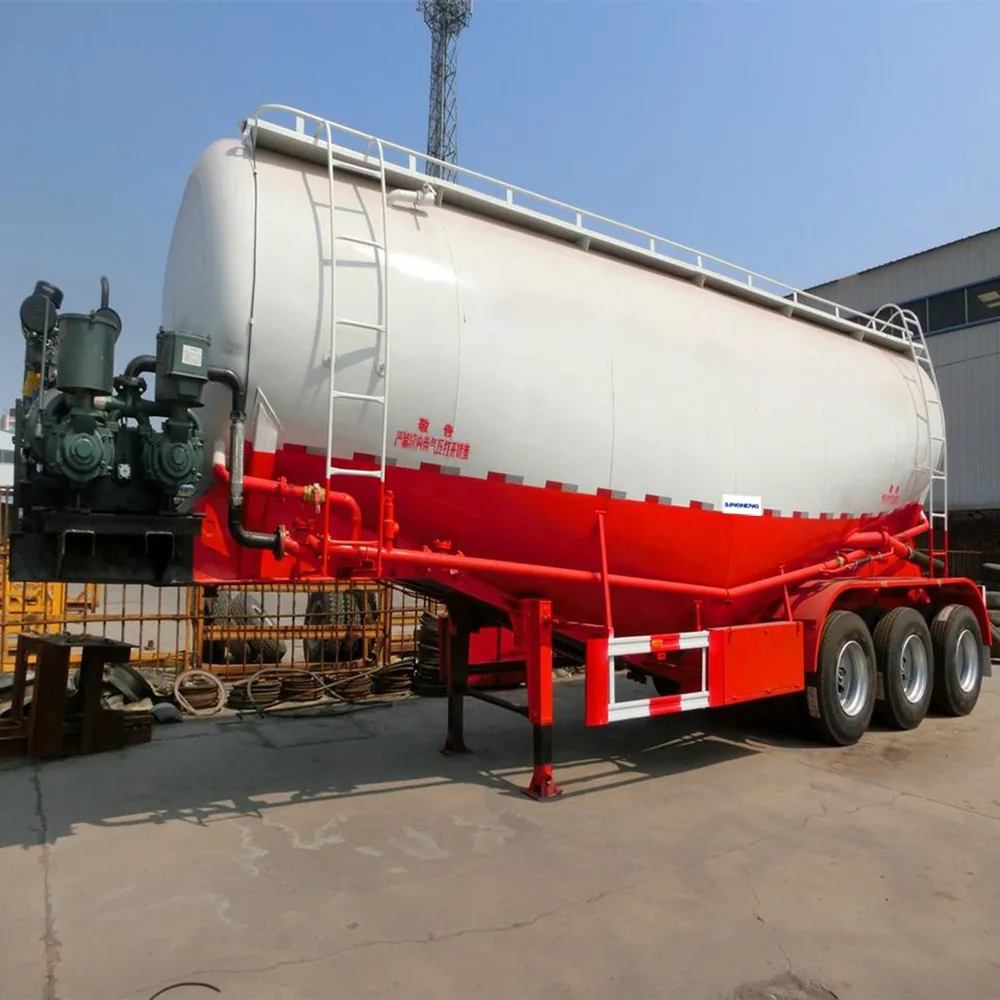

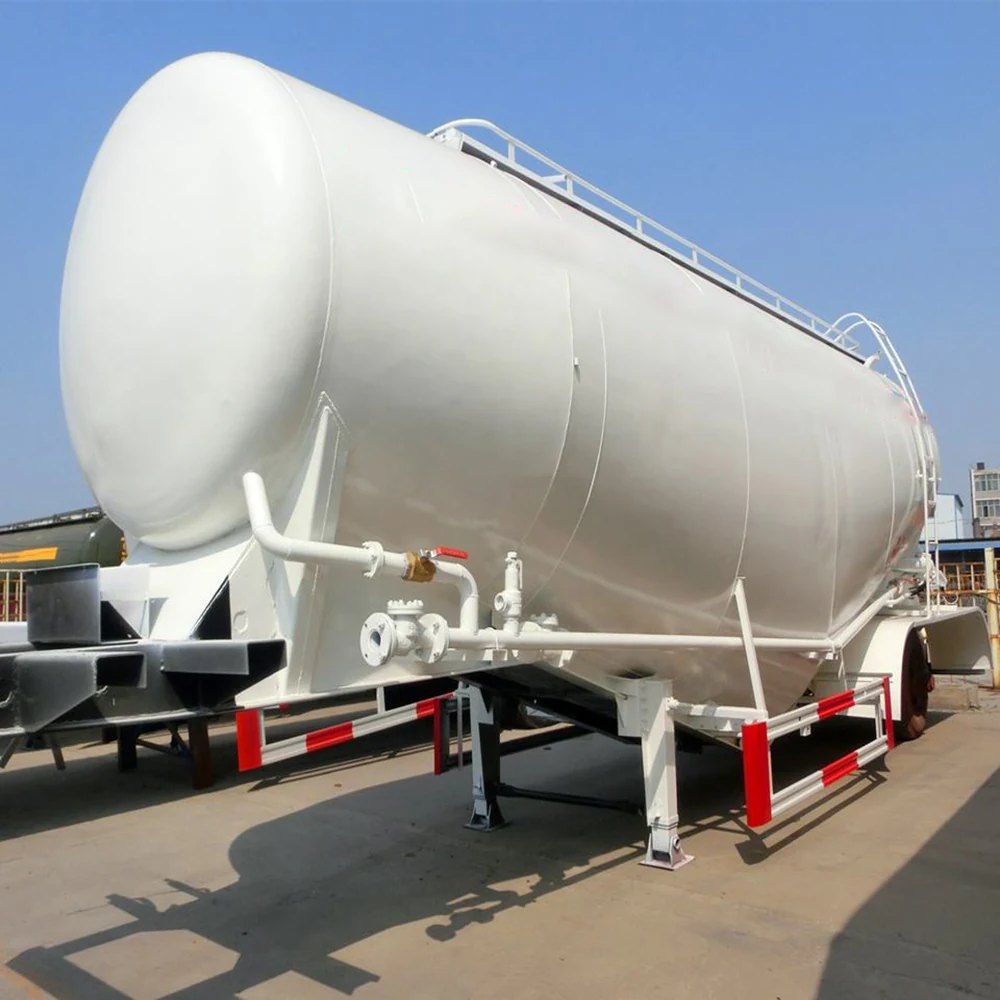

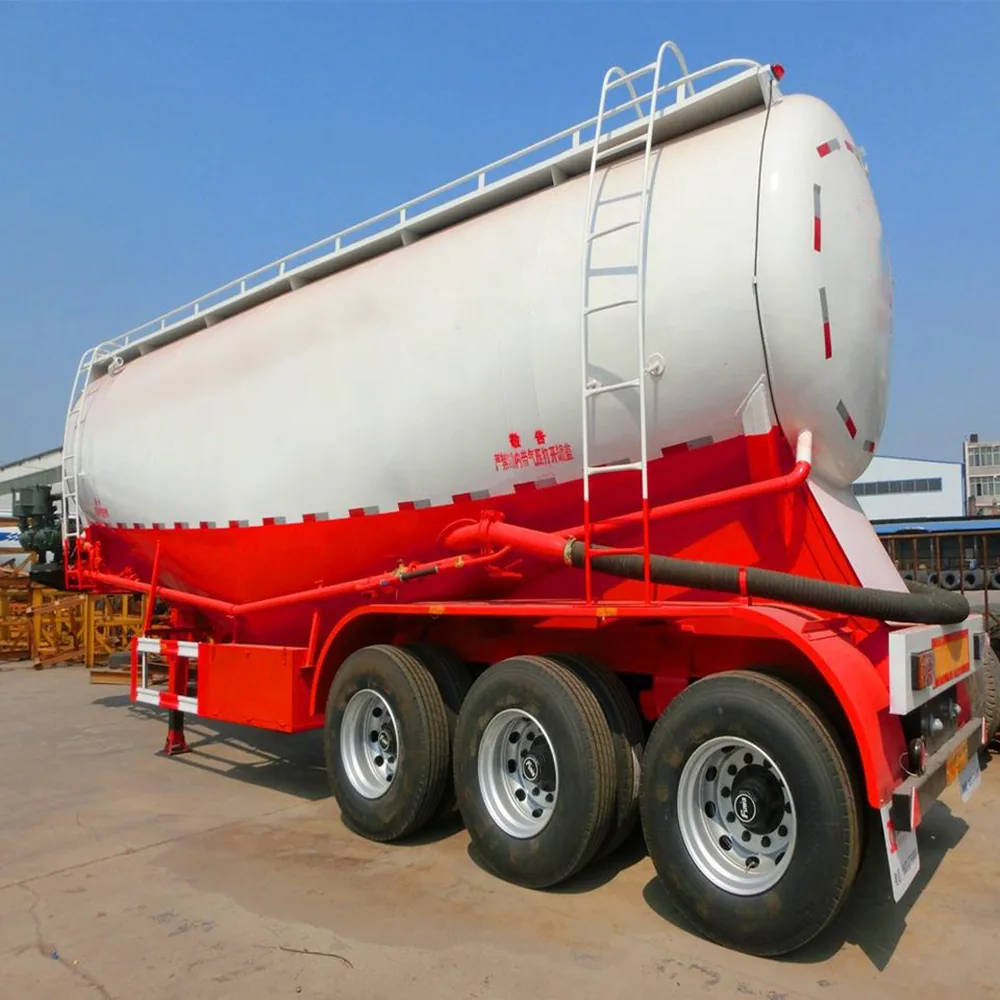

High Quanlity Lime Coal Ash Powder Transport Tank Semi-trailer China Factory Direct Sales
Lime and coal ash powder tanker, 11000x2500*3800mm, 42 tonne capacity at 9 tonne tare.
Overview
What This Trailer Is Built For
A three-axle pneumatic powder tanker set up for lime and coal ash, 11000mm x 2500mm x 3800mm at 9 tonnes tare, 42 tonnes loading capacity and 51 tonnes total. Lime and fly ash are lighter and more abrasive than cement, so tank volume matters more than payload rating and the discharge system has to handle material that packs easily. Axles are three square-section 13 tonne FUWA units, the kingpin is a 2.00 inch 50# bolting type, tires are 12R22.5 Triangle on 9.00-22.5 rims with 13 wheels including a spare.
Key Benefits
What You Get
- Sized for lighter, bulkier powders such as lime and fly ash rather than dense cement alone
- 42 tonne loading capacity at only 9 tonnes tare
- Square-section 13 tonne FUWA axles resist the torsion a pressurised tank creates
- 13 wheels including a spare keeps a loaded tanker moving after a puncture
- Pneumatic discharge goes straight into a silo with no manual handling
Problems Solved
What It Fixes
- Cement-sized tanks run out of volume before weight on lighter powders
- Packed lime and ash bridge in the tank and slow discharge
- Round axle sections twist under a pressurised tank body
- A puncture on a loaded pneumatic tanker is difficult to recover
Who It Is For
Operators Who Buy This Model
- Power station ash haulage contractors
- Lime and industrial mineral distributors
- Water treatment and process plant suppliers
- Bulk powder hauliers with mixed material types
Application Scenarios
Where It Works
- Fly ash collection and disposal from power stations
- Lime supply to water treatment and industrial plants
- Mineral powder distribution
- Cement delivery on the same chassis
Technical Features
Build Specification
- Bulk cement tanker semi-trailer for lime, coal ash and mineral powder
- Dimension 11000mm x 2500mm x 3800mm, final dimensions per approved design drawings
- Tare weight 9T, loading capacity 42T, total weight 51T
- Three square axles with 13 tonne capacity, FUWA brand
- Kingpin 2.00 inch 50# bolting type
- Tires 12R22.5 Triangle brand, rims 9.00-22.5
- 13 wheels including one spare
Specifications
Manufacturer Data Sheet
| Type | Bulk cement tanker semi trailer |
|---|---|
| Tare Weight | 9 T |
| Loading Capacity | 42 T |
| Total Weight | 51 T |
| Dimensions | Dimension 11000x2500*3800mm (The final dimensions depend on the final design drawings) |
| Engine | Diesel |
| Axle | 3 axles *square axle with 13 tons capacity, FUWA brand (Chinese best brand) |
| King Pin | 2.00’’(50#) bolting |
| Tire | specs 12R22.5, Triangle brand (Chinese famous brand) |
| Rim | 9.00-22.5,(Chinese famous brand) Number of wheel 13 pieces(including one spare wheel) |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Tank pressure and leak test
- Discharge and fluidising system function check under load
- Axle alignment and brake balance test
- Weld inspection on the tank shell and chassis mountings
Customization
What You Can Change
- Tank volume set to the density of the powder you carry
- Compressor size matched to your silo height and pipe run
- Axle rating and brand chosen to local service support
- Discharge outlet arrangement matched to your silo connections
- Kingpin size changed to your tractor fifth wheel
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Cement-specification powder tanker | This build favours volume over payload, which suits lighter powders such as lime and fly ash. |
| Two-axle powder tanker | Three axles carry 42 tonnes legally; a two-axle unit is limited to around 33 tonnes on the same route. |
| Bagged lime on a flatbed | Pneumatic discharge goes straight into a silo with no handling; bagged transport needs forklifts and manual emptying. |
Use Guide
Operating This Trailer
- Match the compressor output to the silo height and pipe run at your delivery points
- Do not exceed the tank working pressure during discharge
- Vent the tank fully before opening any manhole
- Clean the discharge line between different powder types
- Keep the spare wheel accessible and correctly inflated
Related Products
Related Trailers
Powder Material Carrier Mobile Road Tanker Dry Bulk Cement Tank Truck Trailer
Two-axle dry bulk cement tanker, 9000x2500*3700mm, 33T capacity at 8T tare with FUWA square axles.
View Specification
Powder Tanker Three Axles 45 Square Bulk Cement Tank Semi-Trailer for Sale
45 cubic metre cement powder tanker, 11800*2500*3700mm, 55 tonne capacity and 65 tonne total.
View Specification
Flour Tanker Semi-trailer Bulk Cement Heavy Duty Silo Truck Trailer Ships Box Tractor Large
Flour and food-grade powder tanker, 11000x2500*3800mm, 60 tonne capacity at 9 tonne tare.
View SpecificationFAQ
Questions About This Model
What Can It Carry
Lime, coal ash, mineral powder and bulk cement. The tank volume is set to the material density you carry most often.
What Is the Loading Capacity
42 tonnes within a 51 tonne total weight, against a 9 tonne tare.
Why Square Section Axles
A square axle section resists the torsion that a pressurised tank body puts into the chassis better than a round section.
How Many Wheels Are Supplied
13, including one spare, in 12R22.5 Triangle brand on 9.00-22.5 rims.
Can the Tank Volume Be Changed
Yes. Lighter powders need more volume for the same payload, so tell us your material and we will size the tank.
Are the Dimensions Final
The 11000 x 2500 x 3800mm figures are the standard build. Final dimensions follow the approved design drawings for your order.
How Long Does Delivery Take
Around 45 days for a customized build, or about 10 days from stock where a unit is available.
Get A Price For The High Configuration You Need
Send your country of use, cargo, load weight and axle limits. We confirm the configuration and quote FOB or CIF in one to three days.
