Overview
What This Trailer Is Built For

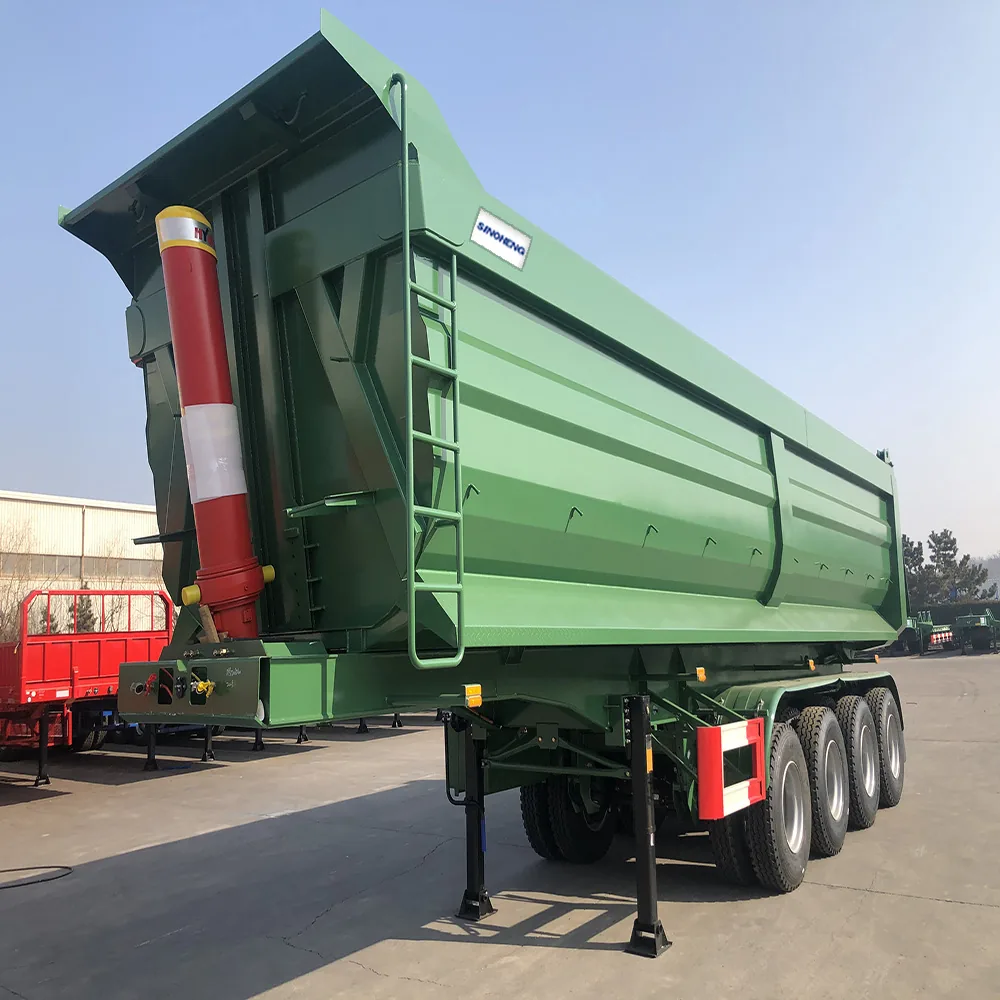

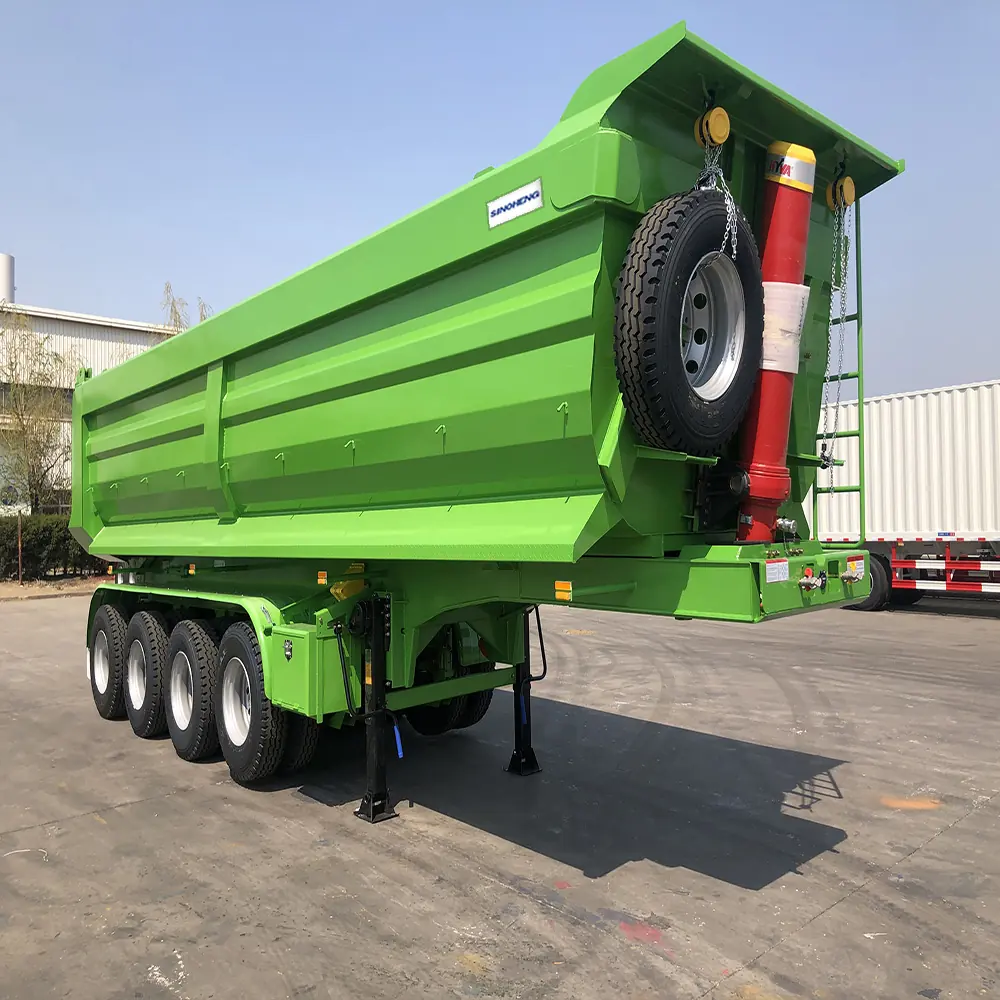

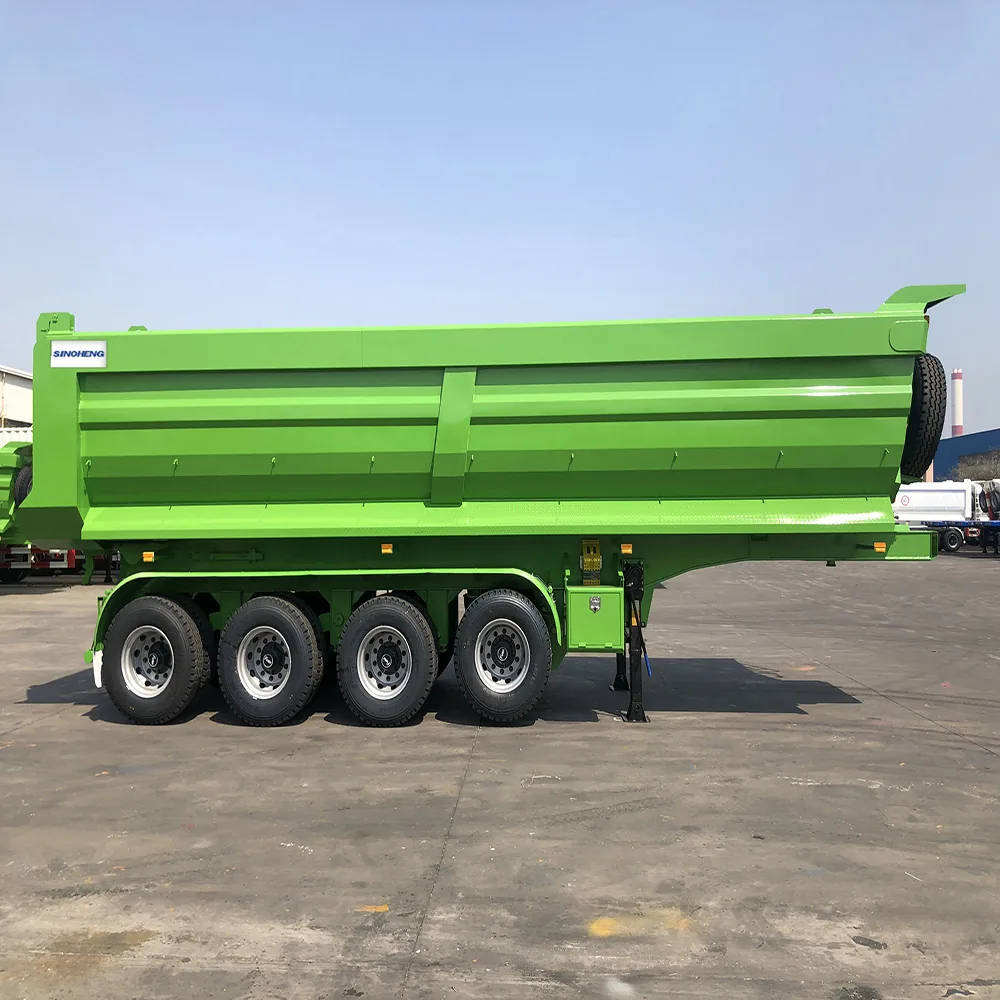

A four-axle end dump trailer with a 9385 x 2550 x 3520mm body inside a 10650 x 2750 x 3700mm envelope, rated at 60 tonnes and available at 40, 50, 60 or 80 tonne payload. End dumping with a hydraulic cylinder and mechanical suspension is the straightforward, low-maintenance arrangement that most bulk operations run, and the fourth axle is what keeps 60 tonnes of dense material inside axle limits. Braking is a WABCO valve with big chamber, the kingpin is a 2 or 3.5 inch JOST, landing gears are two-speed CIMC or JOST, and five tire options are available.
Key Benefits
What You Get
- Four axles keep 60 tonnes of dense material inside per-axle limits
- Hydraulic cylinder end dumping is the simplest and lowest-maintenance tipping arrangement
- Payload options at 40, 50, 60 and 80 tonnes rather than one fixed rating
- WABCO valve with big chamber for braking at high payload
- Mechanical suspension repairs at any roadside workshop
Problems Solved
What It Fixes
- Three-axle tippers exceed axle limits on dense material at 60 tonnes
- Complex tipping arrangements fail far from any service point
- Standard brake valves underperform at high payload
- One fixed payload rating does not fit every operation
Who It Is For
Operators Who Buy This Model
- Bulk hauliers carrying dense material
- Mining and quarry contractors
- Earthworks operations on large civil projects
- Fleets that value simple, repairable equipment
Application Scenarios
Where It Works
- Dense aggregate and ore haulage
- Coal and mineral transport
- Earthworks and spoil removal on large sites
- Quarry to plant shuttle operations
Technical Features
Build Specification
- Four axles, end semi dump trailer, steel
- Overall dimension 10650mm x 2750mm x 3700mm, body 9385 x 2550 x 3520mm
- Maximum payload 60 ton, available at 40, 50, 60 or 80 tonne rating
- Hydraulic cylinder tipping with mechanical suspension
- Brake system WABCO valve with big chamber
- Kingpin 2 inch or 3.5 inch JOST brand, landing gears CIMC or JOST two-speed
- Tires 11R22.5, 13R22.5, 315/80R22.5, 11.00R20 or 12.00R20
Specifications
Manufacturer Data Sheet
| Material | Steel, Steel |
|---|---|
| Size | 10,650mmx2,750mmx3,700mm |
| Max Payload | 60ton Dimension 9,385x2,550x3,520mm |
| Payload | 40ton, 50ton, 60ton,80ton |
| Tire | 11R22.5, 13R22.5, 315/80R22.5, 11.00R20.12.00R20 |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | WABCO Valve with big chamber Landing Gears CIMC or JOST brand two-speed |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Hydraulic cylinder cycle tested through full travel under load
- Four-axle alignment checked as a set
- WABCO brake response test
- Main beam weld inspection at the tipping mounts
Customization
What You Can Change
- Payload rating specified at 40, 50, 60 or 80 tonnes
- Body volume and plate thickness set to your material
- Tire specification from five options
- Kingpin 2 or 3.5 inch JOST
- Landing gear brand CIMC or JOST
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Three-axle end dump | The fourth axle keeps 60 tonnes of dense material legal; three axles reach their limit around 45-50 tonnes. |
| Side tipping trailer | End dumping is more stable on soft and uneven ground; side tipping unloads faster along a trench or road edge. |
| Six-axle 70 tonne tipper | Four axles are lighter and cheaper to maintain; six axles are needed where per-axle limits are enforced hard. |
Use Guide
Operating This Trailer
- Tip only on level compacted ground with the tractor in line
- Lower the body fully before moving off
- Keep the load spread evenly toward the front of the body
- Check the WABCO valve and chamber at every brake service
- Grease the hinge pins and inspect cylinder seals at each service
Related Products
Related Trailers
Rear Flip Tipper Semi Trailer 40cubic 3 Axle Heavy Duty for Sale
40 cubic metre rear flip tipper, HYVA or China lifting brand, mechanical or air suspension.
View Specification
Heavy Truck Trailer 3 Axles Dump Semi Side Trailer 80ton Hydraulic Side Tipping Trailer
80 tonne hydraulic side tipping trailer on an Hg60 main beam with 12 twist locks.
View Specification
Heavy Duty Tipping Truck Trailer Dump Semi Trailer China Manufacturer
Gooseneck rear dump trailer, 30m3 body at 9600kg tare with a full HYVA 196 lifting set.
View SpecificationFAQ
Questions About This Model
What Are the Body Dimensions
9385mm x 2550mm x 3520mm inside a 10650mm x 2750mm x 3700mm overall envelope.
What Payload Can It Carry
60 tonnes as standard, with 40, 50, 60 and 80 tonne ratings available on the same platform.
Why Four Axles
Four axles keep 60 tonnes of dense material inside per-axle limits that a three-axle trailer would exceed.
What Suspension Does It Use
Mechanical suspension, which can be repaired at any roadside workshop without diagnostic equipment.
What Brake System Is Fitted
A WABCO valve with big chamber, specified for braking at high payload.
Which Tires Are Available
11R22.5, 13R22.5, 315/80R22.5, 11.00R20 or 12.00R20.
What Is the Warranty
One year quality guarantee from delivery, with spare parts supplied for the whole service life of the trailer.
