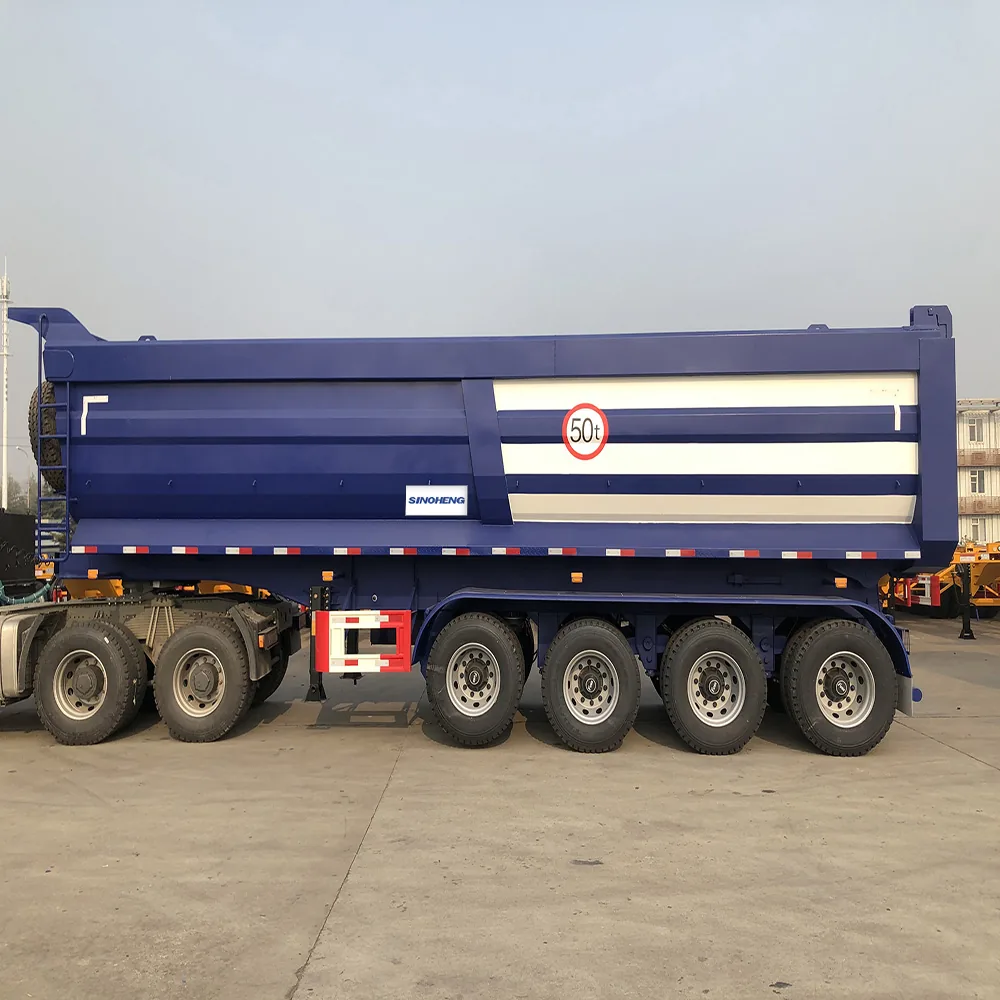

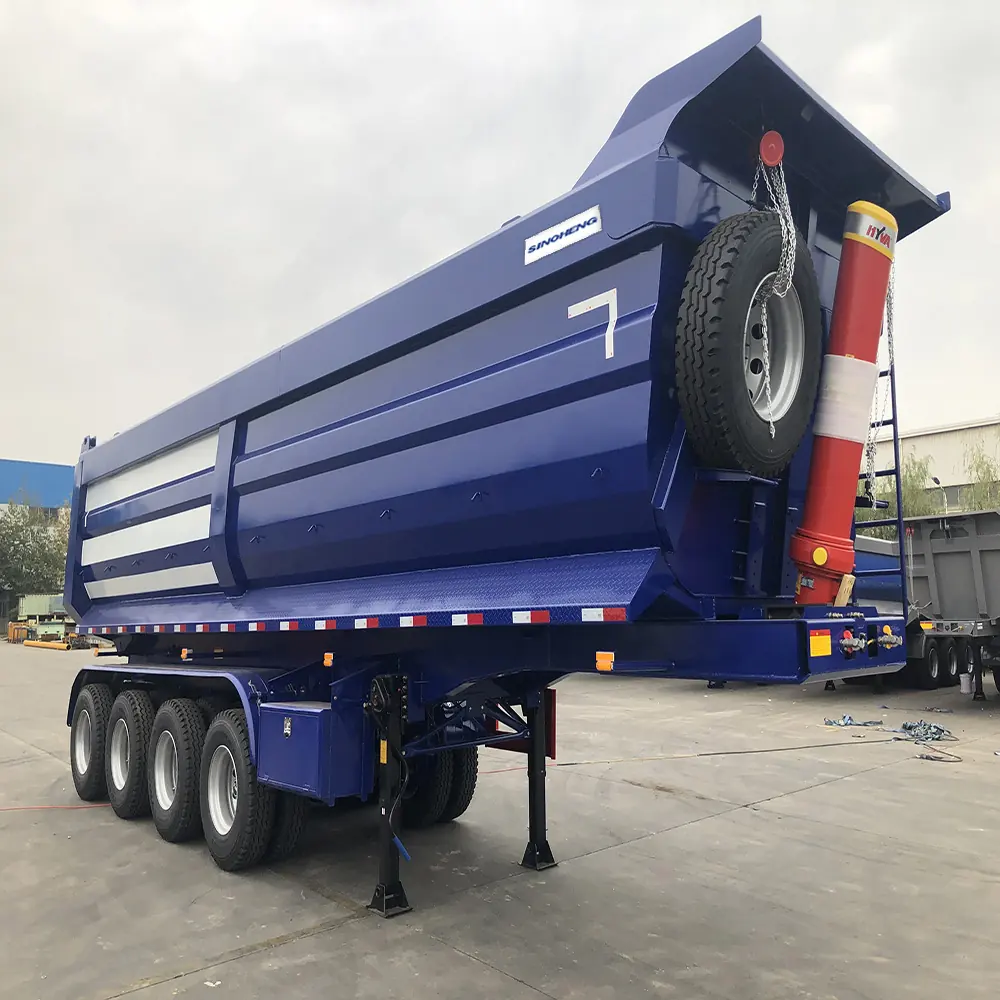

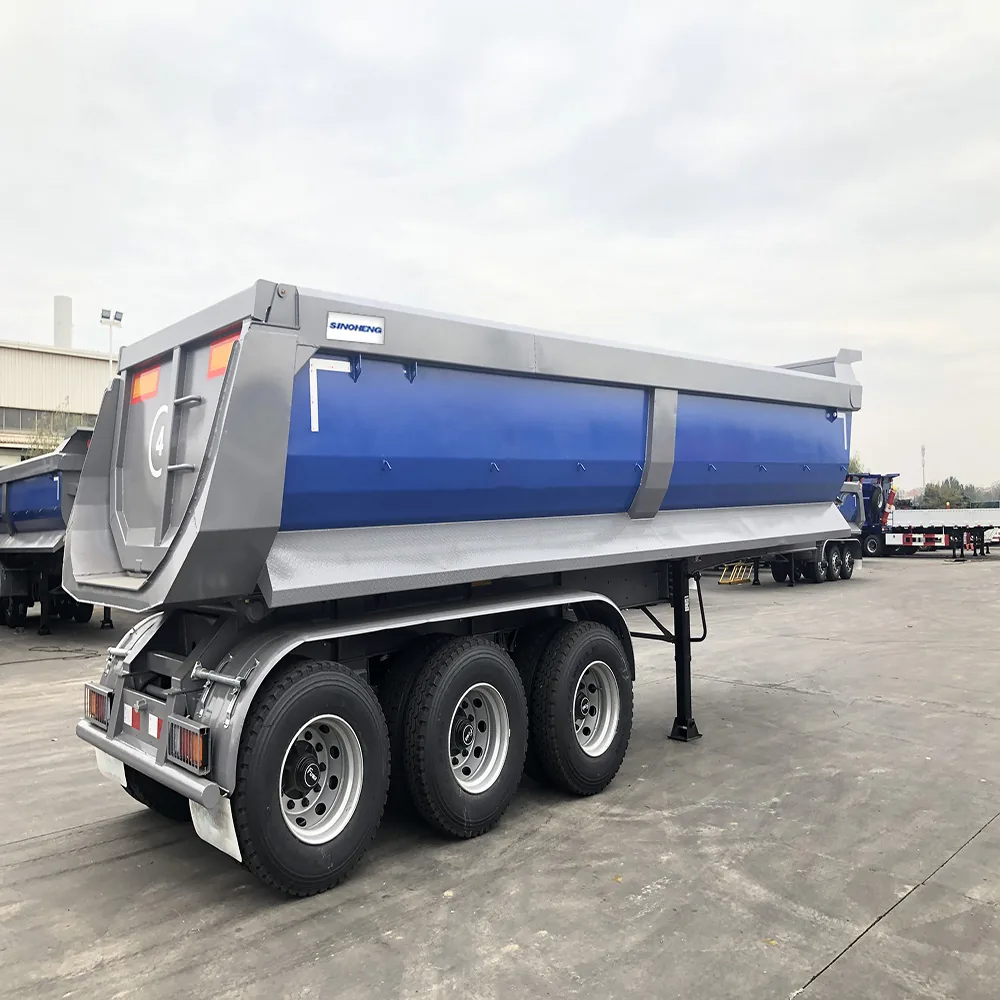

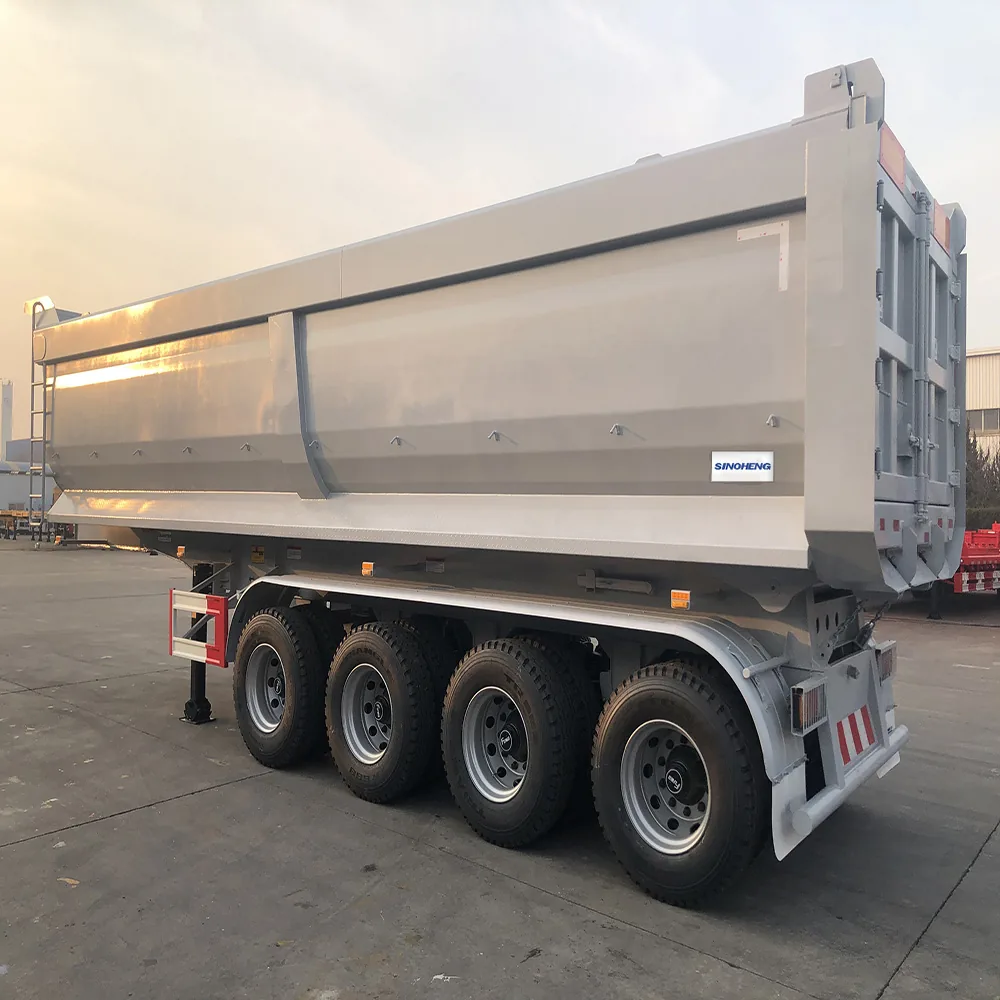

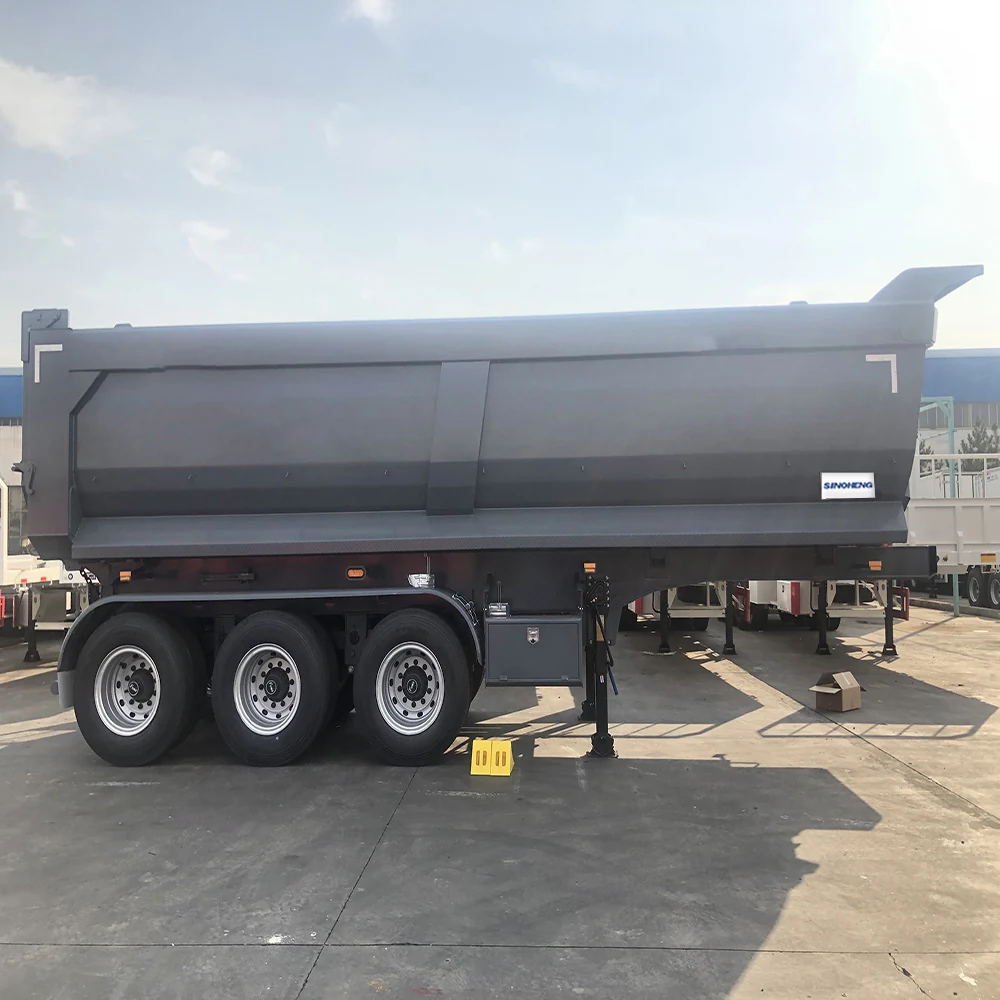

Dump Tipper Semi Trailer 3 Axle 45 Ton for Mining China Factory
45 tonne mining dump tipper with 5mm floor and 4mm side plate at a 7000kg tare.
Overview
What This Trailer Is Built For
A dump tipper built for mining at a 45 tonne rating, with a dump box of 5mm floor plate and 4mm side plate on a 7000kg tare, plus or minus 5 percent. Those plate thicknesses are what matter in a mine: the floor takes the impact of blasted rock dropped from an excavator bucket, and the sides take the scraping as the load slides out. Axles are 13T in 3 or 4 pieces from BPW, FUWA, Yonglitai or Huajin on mechanical suspension, with a spare wheel bracket, a standard 28 tonne JOST or FUWA landing gear and optional ABS. Heavier ratings are available on request.
Key Benefits
What You Get
- 5mm floor plate takes the impact of blasted rock dropped from an excavator bucket
- 4mm side plate resists the scraping of material sliding out during discharge
- 45 tonne rating for mining duty at only 7000kg tare
- Axle count selectable at 3 or 4 with four brand options
- Mechanical suspension repairs at any site workshop
Problems Solved
What It Fixes
- Thin floor plate dishes and cracks under rock dropped from a bucket
- Thin side plate wears through where material scrapes during discharge
- Air suspension systems fail on mine sites with no service support
- Heavy tipper bodies waste payload on a fixed gross limit
Who It Is For
Operators Who Buy This Model
- Mining haulage contractors
- Quarry transport operators
- Earthworks contractors on large civil projects
- Fleets that keep wearing out thin-plate tipper bodies
Application Scenarios
Where It Works
- Ore and overburden haulage on mine haul roads
- Blasted rock movement from face to crusher
- Quarry material transport
- Heavy earthworks and spoil removal
Technical Features
Build Specification
- Dump semi-trailer for mining, 45 tonne rating
- Dump box thickness bottom 5mm, side 4mm
- Tare weight 7000kg plus or minus 5 percent
- Axles 13T, 3 or 4 pieces, BPW, FUWA, Yonglitai or Huajin brand
- Mechanical suspension, spare wheel bracket 1 piece
- Landing gear standard 28 ton, JOST or FUWA or other Chinese brand
- ABS optional, heavier ratings available on request
Specifications
Manufacturer Data Sheet
| Type | dump semi-trailer Parameter |
|---|---|
| Tare Weight | (kg) 7,000 kg(±5%) |
| Axle | 13T 3/4 pcs, BPW or FUWA or Yonglitai or Huajin Brand |
| Suspension | Mechanical |
| Spare Wheel Bracket | 1 pieces |
| ABS | Optional upon choice |
| Landing Gear | Standard 28Ton, JOST brand or FUWA brand or other china brand. |
| Hydraulic System | Dump Box thickness Bottom 5mm, Side 4mm |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Dump box plate thickness verified at floor and sides
- Hydraulic lift cycle tested under load
- Main beam weld inspection at the tipping mounts
- Axle alignment and brake balance test
Customization
What You Can Change
- Plate thickness increased above 5mm floor and 4mm side for abrasive rock
- Axle count 3 or 4 at 13T in four brands
- Body volume set to your material density
- ABS anti-lock braking fitted on request
- Higher tonnage rating quoted on request
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| General purpose tipper | The 5mm floor and 4mm side plate are specified for blasted rock; general purpose bodies use thinner plate that dishes under bucket impact. |
| Six-axle 70 tonne tipper | This build is lighter and more manageable on haul roads; the six-axle carries far more where the road permits. |
| U shape tipper | The U shape sheds wet material best; a rectangular mining body takes rock impact and carries squared loads better. |
Use Guide
Operating This Trailer
- Ask the loader operator to lower the bucket before releasing rock onto the floor
- Tip only on level compacted ground with the tractor in line
- Lower the body fully before moving off
- Inspect the floor plate for dishing after periods of heavy rock loading
- Grease hinge pins and check cylinder seals at each service
Related Products
Related Trailers
Rear Flip Tipper Semi Trailer 40cubic 3 Axle Heavy Duty for Sale
40 cubic metre rear flip tipper, HYVA or China lifting brand, mechanical or air suspension.
View Specification
Heavy Truck Trailer 3 Axles Dump Semi Side Trailer 80ton Hydraulic Side Tipping Trailer
80 tonne hydraulic side tipping trailer on an Hg60 main beam with 12 twist locks.
View Specification
Heavy Duty Tipping Truck Trailer Dump Semi Trailer China Manufacturer
Gooseneck rear dump trailer, 30m3 body at 9600kg tare with a full HYVA 196 lifting set.
View SpecificationKnowledge
Related Guides
The Semi Trailer Manufacturing Industry in China
Where China's trailer industry is concentrated, who the major players are, and what actually matters when you are comparing suppliers.
FAQ
Questions About This Model
What Plate Thickness Is the Body
5mm on the floor and 4mm on the sides. The floor takes bucket impact, the sides take scraping during discharge.
What Tonnage Is It Rated For
45 tonnes for mining duty. Heavier ratings are available on request, so tell us your material and typical load.
Can the Plate Be Made Thicker
Yes. If you load highly abrasive blasted rock, a heavier floor plate is worth specifying at order.
How Many Axles Can I Specify
3 or 4 at 13T each, in BPW, FUWA, Yonglitai or Huajin brand.
Is Air Suspension Available
Mechanical suspension is standard and is normally the right choice on mine sites, where roadside repair matters more than ride quality.
Is ABS Available
Yes, ABS is optional on this model.
What Support Do You Give After Delivery
One year quality guarantee from delivery, spare parts supply for the whole service life, and engineers sent to your country where a fault needs on-site attention.
Get A Price For The Dump Configuration You Need
Send your country of use, cargo, load weight and axle limits. We confirm the configuration and quote FOB or CIF in one to three days.
