Impact Crusher Side Liner
Chamber side protection that keeps the impactor housing out of the wear path
What This Casting Does And Why It Matters
Side liners protect the housing walls of an impact crusher from material thrown sideways by the rotor. They are the least glamorous part of the chamber and the one whose neglect costs the most, because behind them is the housing itself. PangLei casts side liners in manganese and high chromium to suit most makes and models of HSI crusher, supplied with the bar and apron package.
Technical Features
- Austenitic manganese steel or high chromium white iron
- Fixing arrangement reproduced from the original
- Heat treated to the grade cycle
- Dimensional inspection report issued
What You Get That You Would Not Get Elsewhere
Keeps the housing out of the wear path
Cast in the same grades as the bars and aprons around them
Supplied as part of a complete chamber renewal
Geometry reproduced from the original liner
The Failures This Part Is Cast To Prevent
- Housing walls worn where liners were left too long
- Side liners bolted in so long that the fixings have seized
- Chamber renewal done piecemeal across several shutdowns
- Liners unavailable for older impactors
Who It Is For
- Impact crusher operators
- Rebuild workshops
- Recycling and demolition contractors
- Dealers supplying wear packages
Application Scenarios
- Chamber renewal at a blow bar change
- Housing refurbishment
- Mobile impactor servicing
- Spares holding
Technical Data For Impact Crusher Side Liner
Every figure here comes from our published foundry capability. Where a value depends on your machine it is confirmed at quotation rather than guessed.
| Specification | Detail |
|---|---|
| Part type | Side liner, chamber side plate |
| Material options | Austenitic manganese steel, high chromium white iron |
| Models | Most makes and models of HSI crusher |
| Source geometry | Original pattern, customer sample or 3D scan |
| Heat treatment | To grade specification |
| Inspection | Chemical analysis and dimensional report |
| Supplied with | Blow bar and break plate orders |
| Packing | Steel pallet |
Manganese Grades Available For This Part
| Material | Mn % | C % | Si % | P % | S % | Cr % |
|---|---|---|---|---|---|---|
| Mn13 | 11-14 | 1.00-1.45 | 0.3-1.0 | < 0.06 | < 0.04 | — |
| Mn13Cr2 | 11-14 | 1.15-1.25 | 0.3-0.8 | < 0.06 | < 0.04 | 1.5-2.5 |
| Mn18 | 17-19 | 1.2-1.3 | 0.3-0.8 | < 0.06 | < 0.04 | — |
| Mn18Cr2 | 17-19 | 1.2-1.3 | 0.4-0.9 | < 0.06 | < 0.04 | 1.5-2.5 |
| Mn20Cr3 | 19-21 | 1.2-1.3 | 0.3-0.8 | < 0.06 | < 0.04 | 2.5-3 |
| Mn22Cr2 | 21-23 | 1.1-1.4 | 0.3-0.8 | < 0.06 | < 0.04 | 1.5-2.5 |
| Mn22Cr3 | 21-23 | 1.1-1.4 | 0.3-0.8 | < 0.06 | < 0.04 | 2.5-3 |
How This Casting Is Made
Pattern Making
Once drawings are confirmed, pattern making starts immediately in our own pattern shop. Thousands of finished patterns are already on the shelf, so repeat parts skip this step entirely.
Sandbox Making
Casting Process Simulation System (CPSS) is run before the moulds are made. The cavity is kept as solid and as clean as possible so that inclusions have nowhere to start.
Melting And Pouring
Charge materials are bought to a high standard and temperature is controlled through the whole pour to achieve a fine grain structure. Samples are taken to verify the analysis and adjusted if needed, then kept for at least three years for traceability.
Sandbox Opening
Also called casting cleaning. After initial cooling the box is opened, risers and runners are removed and the casting is cleaned. Cooling time is set by casting size, not by the clock.
Heat Treatment
Heating temperature is strictly controlled and castings are spaced in the furnace so they heat uniformly and meet the water fully. Quenching begins within 30 seconds of withdrawal from the oven.
Machining
After rectifying and polishing, castings are machined strictly to drawing for correct fitment. QC then carries out dimensional inspection and issues the dimensional inspection report.
Inspection
Our own physical and chemical laboratory covers spectrometry, hardness, microstructure, dye penetrant and dimensional inspection on site rather than at a third party.
Packing And Delivery
Finished parts are packed on steel pallets for forklift handling, to international standards for road, rail, sea and air transport.
Inspection Supplied With This Part
Chemical analysis and a dimensional inspection report are standard on every order. The remaining procedures are carried out in our own physical and chemical laboratory when specified at order stage.
| Procedure | When |
|---|---|
| Chemical Analysis | standard on every heat |
| Dimensional Inspection Report | standard on every order |
| Hardness Testing | if specified |
| Tensile Testing | if specified |
| Microstructure Analysis | if specified |
| Magnetic Particle Testing | if specified |
| Dye Penetrant Testing | if specified |
| Ultrasonic Testing | if specified |
Laboratory Equipment
- German-made OBLF direct-reading spectrometer
- Hardness testing equipment
- Metallurgical microscope
- Dye penetrant inspection equipment
- Dimensional inspection equipment
How This Part Compares With The Alternatives
| Compared With | What Changes |
|---|---|
| Delaying side liner replacement | Once the liner is through, the housing becomes the wear surface, and housing repair is a workshop job rather than a change-out. |
| Fabricated side plates | Cast wear alloys hold up in an impact and abrasion duty where fabricated mild steel does not. |
| Renewing the chamber piecemeal | Bars, aprons and side liners replaced together mean one shutdown rather than three. |
If Your Part Is Not Standard
With our own pattern shop, a 3D scanner and Casting Process Simulation System, we work from your drawing, your worn sample, or a scan taken on your site. Material grade, profile and machining are all specified against your machine rather than against a catalogue.
- Reverse engineering from a worn part, with no drawing required
- On-site 3D scanning where the component cannot be removed
- Material grade selected against your feed rather than a default
- Pattern retained afterwards, so repeat orders skip pattern making
Fitting And Getting The Life Out Of It
- Inspect side liners at every blow bar change
- Free the fixings before they seize in place
- Check housing wall condition while the liners are off
- Replace the whole chamber package on one shutdown where possible

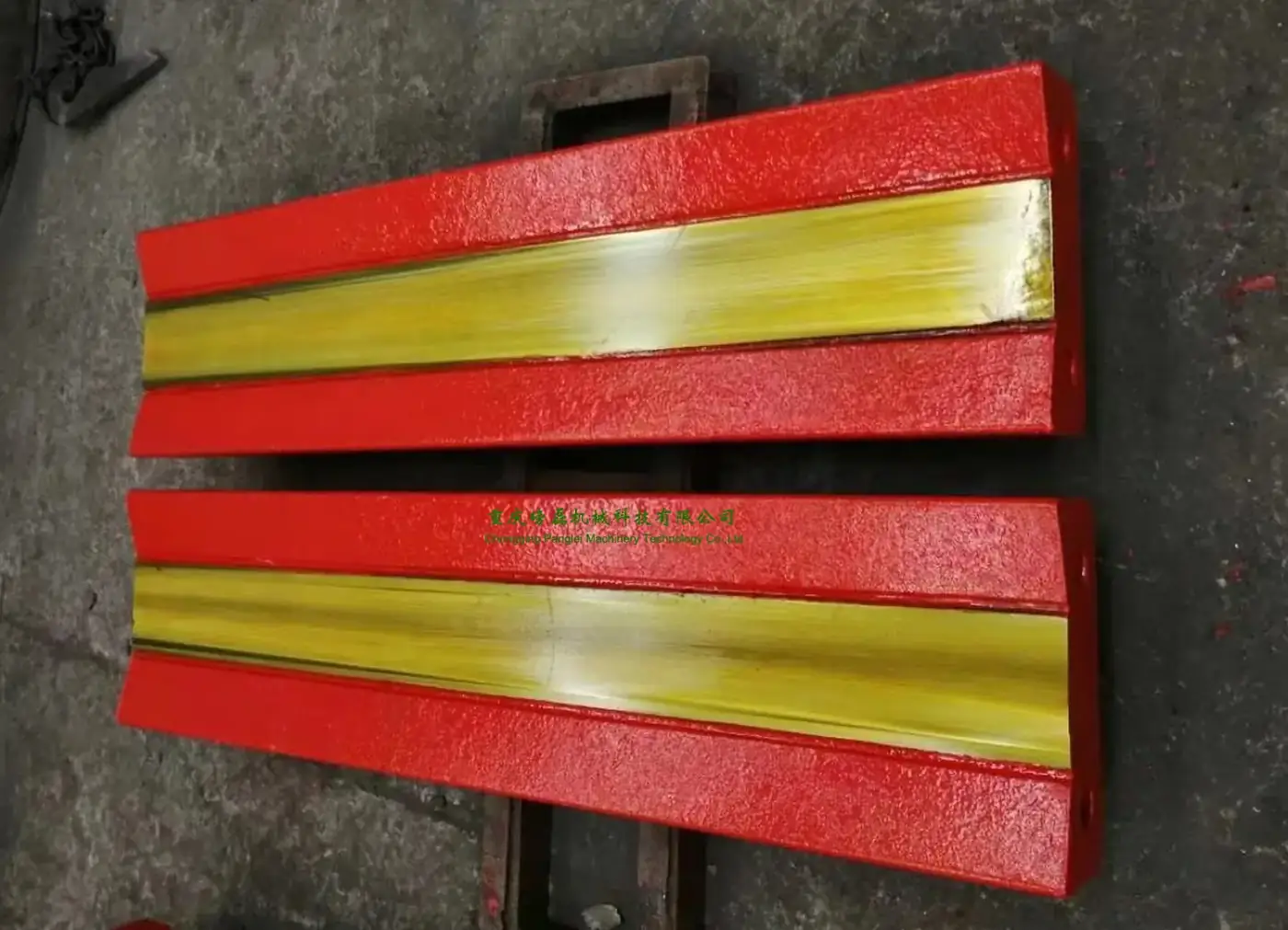

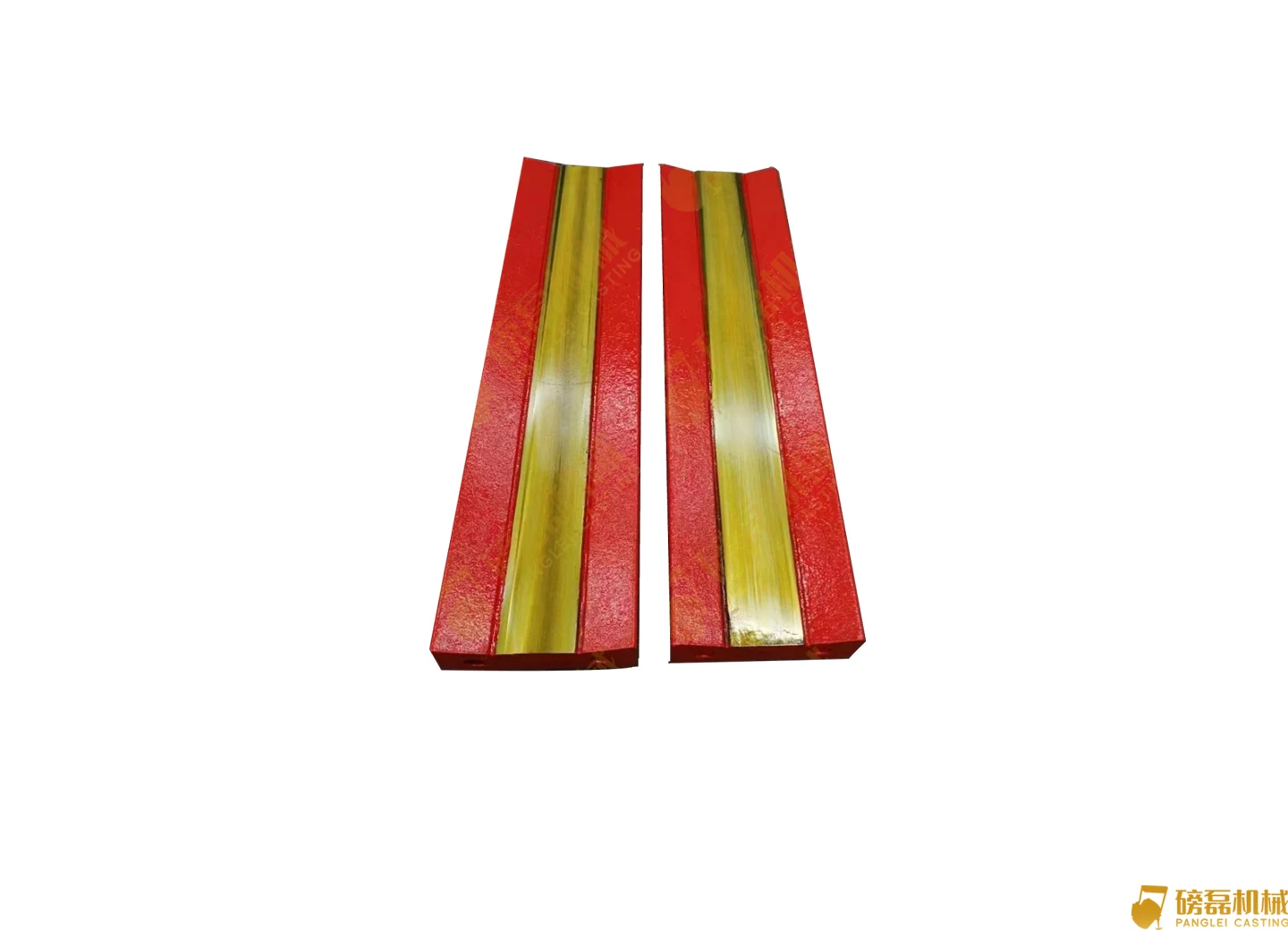

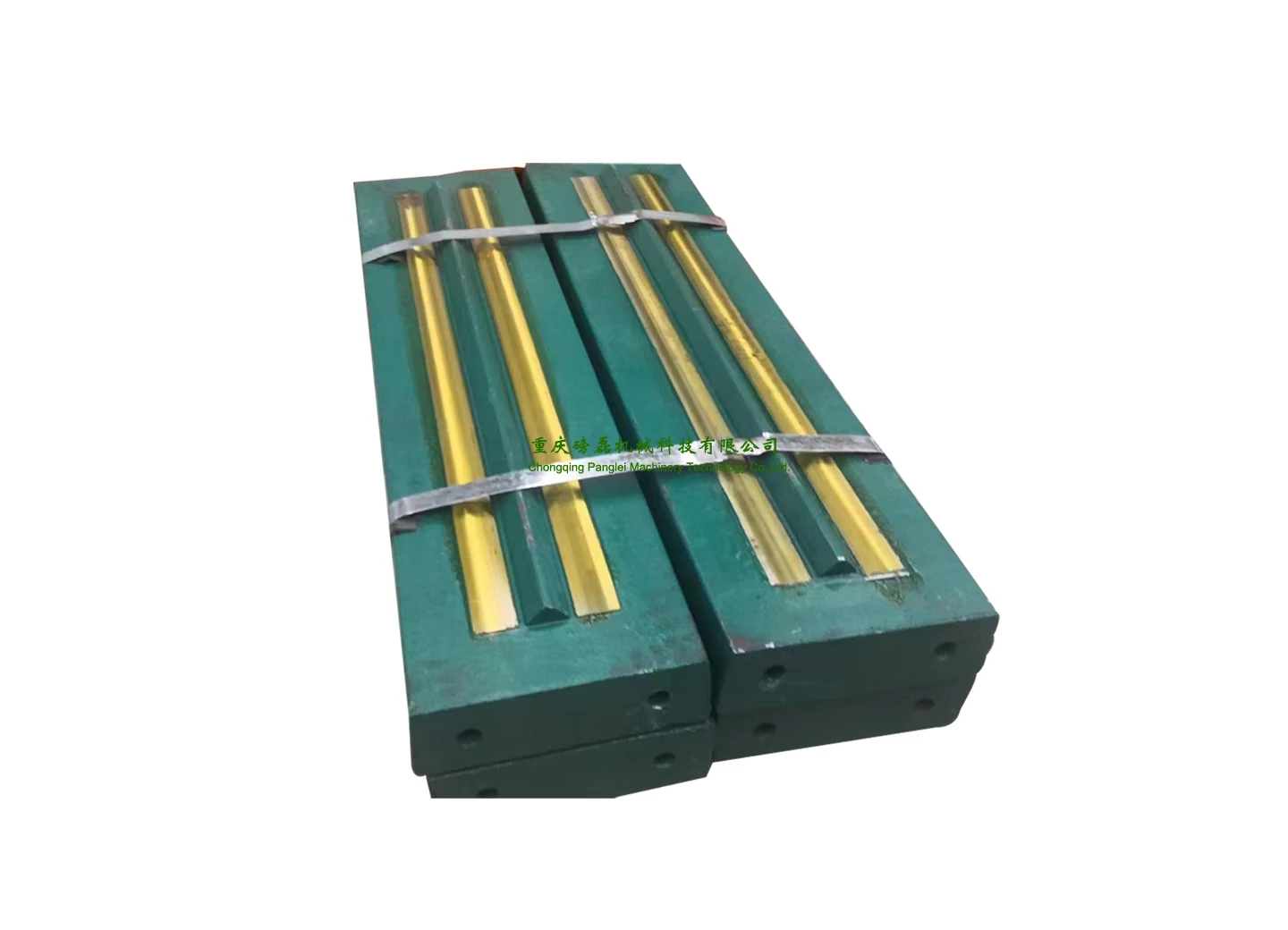

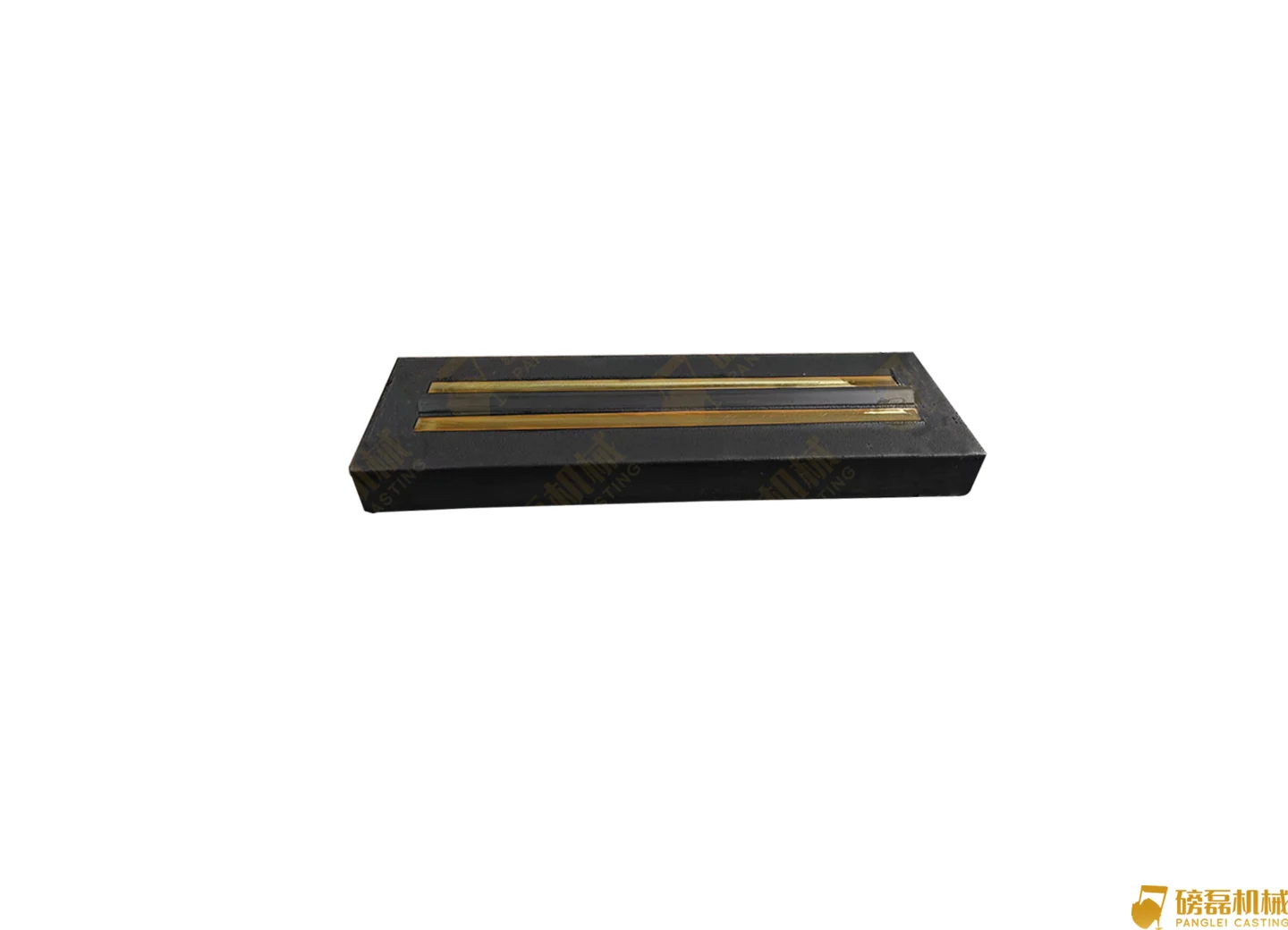

Impact Crusher Side Liner At The Foundry
Parts Usually Ordered Alongside This One
Impact Crusher Blow Bar
Manganese, chrome, ceramic-insert and TIC-insert bars for horizontal shaft impactors
View Part →
Impact Crusher Break Plate
The impact aprons that turn rotor energy into product size
View Part →
Jaw Crusher Cheek Plate
Side liners that keep the crushing chamber square and protect the frame
View Part →
VSI Cavity Wear Plate
Lines the crushing cavity where material leaving the rotor lands
View Part →
Impact Crusher Side Liner Questions
Do side liners really need replacing with the bars?
Not every time, but they should be inspected every time. Replacing them on the same shutdown avoids a second stop later.
Which material do you recommend?
High chromium for clean abrasive feed, manganese where tramp metal can reach the chamber.
Can you supply liners for an obsolete impactor?
Yes, from the worn part or drawing through our pattern shop.
Are the fixings included?
Tell us what you need with the enquiry and we will quote the complete package.
Get A Price For Impact Crusher Side Liner
Send the machine model, the part number if you have one, and the quantity. If you have neither, a photograph with the main dimensions is enough to start.
