Jaw Crusher Cheek Plate
Side liners that keep the crushing chamber square and protect the frame
What This Casting Does And Why It Matters
Cheek plates line the sides of the jaw crushing chamber. They stop feed from grinding against the frame side walls and they keep the chamber the width it was designed to be. When cheek plates are left too long the damage moves into the frame, which is not a consumable. PangLei casts cheek plates in high manganese to suit most makes and models of jaw crusher, supplied alongside the die set.
Technical Features
- Austenitic manganese steel across the Mn13 to Mn22Cr3 range
- Fixing arrangement reproduced from the original plate
- Solution treated and water quenched
- Dimensional inspection report issued
What You Get That You Would Not Get Elsewhere
Protects the frame side walls with a replaceable casting
Keeps the chamber width constant so product size stays predictable
Cast in the same manganese grades as the dies
Supplied with the jaw plate order on one pallet
The Failures This Part Is Cast To Prevent
- Frame side walls worn because cheek plates were left too long
- Chamber width opening up and product size drifting
- Cheek plates sourced separately and arriving after the dies
- Fixings seized into a plate that has worn past its bolt holes
Who It Is For
- Jaw crusher operators of every size
- Recycling and demolition contractors
- Rebuild workshops
- Dealers supplying complete wear packages
Application Scenarios
- Primary jaw crushing
- Concrete and demolition recycling
- Mobile jaw plant operation
- Frame refurbishment
Technical Data For Jaw Crusher Cheek Plate
Every figure here comes from our published foundry capability. Where a value depends on your machine it is confirmed at quotation rather than guessed.
| Specification | Detail |
|---|---|
| Part type | Cheek plate, side liner, side plate |
| Material grades | Mn13, Mn13Cr2, Mn18, Mn18Cr2, Mn22Cr2, Mn22Cr3 |
| Fitment | Both sides of the jaw crushing chamber |
| Supplied with | Fixed and swing jaw plate orders |
| Heat treatment | Water quenched, solution treated |
| Inspection | Chemical analysis and dimensional report |
| Models | Most makes and models of jaw crusher |
| Packing | Steel pallet |
Manganese Grades Available For This Part
| Material | Mn % | C % | Si % | P % | S % | Cr % |
|---|---|---|---|---|---|---|
| Mn13 | 11-14 | 1.00-1.45 | 0.3-1.0 | < 0.06 | < 0.04 | — |
| Mn13Cr2 | 11-14 | 1.15-1.25 | 0.3-0.8 | < 0.06 | < 0.04 | 1.5-2.5 |
| Mn18 | 17-19 | 1.2-1.3 | 0.3-0.8 | < 0.06 | < 0.04 | — |
| Mn18Cr2 | 17-19 | 1.2-1.3 | 0.4-0.9 | < 0.06 | < 0.04 | 1.5-2.5 |
| Mn20Cr3 | 19-21 | 1.2-1.3 | 0.3-0.8 | < 0.06 | < 0.04 | 2.5-3 |
| Mn22Cr2 | 21-23 | 1.1-1.4 | 0.3-0.8 | < 0.06 | < 0.04 | 1.5-2.5 |
| Mn22Cr3 | 21-23 | 1.1-1.4 | 0.3-0.8 | < 0.06 | < 0.04 | 2.5-3 |
How This Casting Is Made
Pattern Making
Once drawings are confirmed, pattern making starts immediately in our own pattern shop. Thousands of finished patterns are already on the shelf, so repeat parts skip this step entirely.
Sandbox Making
Casting Process Simulation System (CPSS) is run before the moulds are made. The cavity is kept as solid and as clean as possible so that inclusions have nowhere to start.
Melting And Pouring
Charge materials are bought to a high standard and temperature is controlled through the whole pour to achieve a fine grain structure. Samples are taken to verify the analysis and adjusted if needed, then kept for at least three years for traceability.
Sandbox Opening
Also called casting cleaning. After initial cooling the box is opened, risers and runners are removed and the casting is cleaned. Cooling time is set by casting size, not by the clock.
Heat Treatment
Heating temperature is strictly controlled and castings are spaced in the furnace so they heat uniformly and meet the water fully. Quenching begins within 30 seconds of withdrawal from the oven.
Machining
After rectifying and polishing, castings are machined strictly to drawing for correct fitment. QC then carries out dimensional inspection and issues the dimensional inspection report.
Inspection
Our own physical and chemical laboratory covers spectrometry, hardness, microstructure, dye penetrant and dimensional inspection on site rather than at a third party.
Packing And Delivery
Finished parts are packed on steel pallets for forklift handling, to international standards for road, rail, sea and air transport.
Inspection Supplied With This Part
Chemical analysis and a dimensional inspection report are standard on every order. The remaining procedures are carried out in our own physical and chemical laboratory when specified at order stage.
| Procedure | When |
|---|---|
| Chemical Analysis | standard on every heat |
| Dimensional Inspection Report | standard on every order |
| Hardness Testing | if specified |
| Tensile Testing | if specified |
| Microstructure Analysis | if specified |
| Magnetic Particle Testing | if specified |
| Dye Penetrant Testing | if specified |
| Ultrasonic Testing | if specified |
Laboratory Equipment
- German-made OBLF direct-reading spectrometer
- Hardness testing equipment
- Metallurgical microscope
- Dye penetrant inspection equipment
- Dimensional inspection equipment
How This Part Compares With The Alternatives
| Compared With | What Changes |
|---|---|
| Running without replacing cheek plates | The frame side wall becomes the wear surface, and frame repair costs many times a set of cheek plates. |
| Fabricated side liners | Cast manganese plates work harden in service; fabricated mild steel simply wears away. |
| Ordering separately from the dies | Ordered together, the whole wear package ships on one pallet for one shutdown. |
If Your Part Is Not Standard
With our own pattern shop, a 3D scanner and Casting Process Simulation System, we work from your drawing, your worn sample, or a scan taken on your site. Material grade, profile and machining are all specified against your machine rather than against a catalogue.
- Reverse engineering from a worn part, with no drawing required
- On-site 3D scanning where the component cannot be removed
- Material grade selected against your feed rather than a default
- Pattern retained afterwards, so repeat orders skip pattern making
Fitting And Getting The Life Out Of It
- Replace cheek plates with the die set wherever possible
- Check frame side wall condition while the plates are off
- Free and inspect the fixings before they seize
- Confirm chamber width after fitting

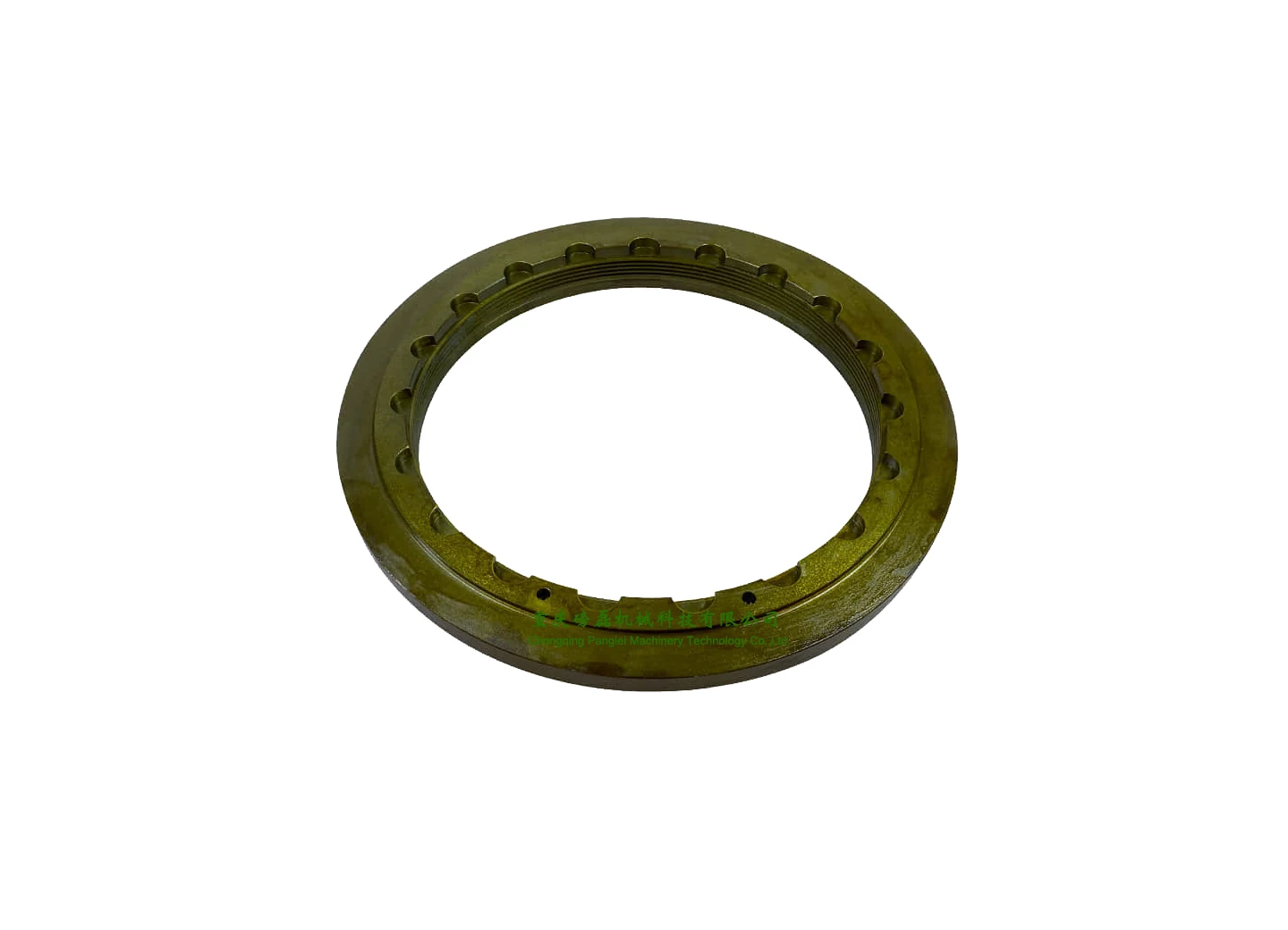

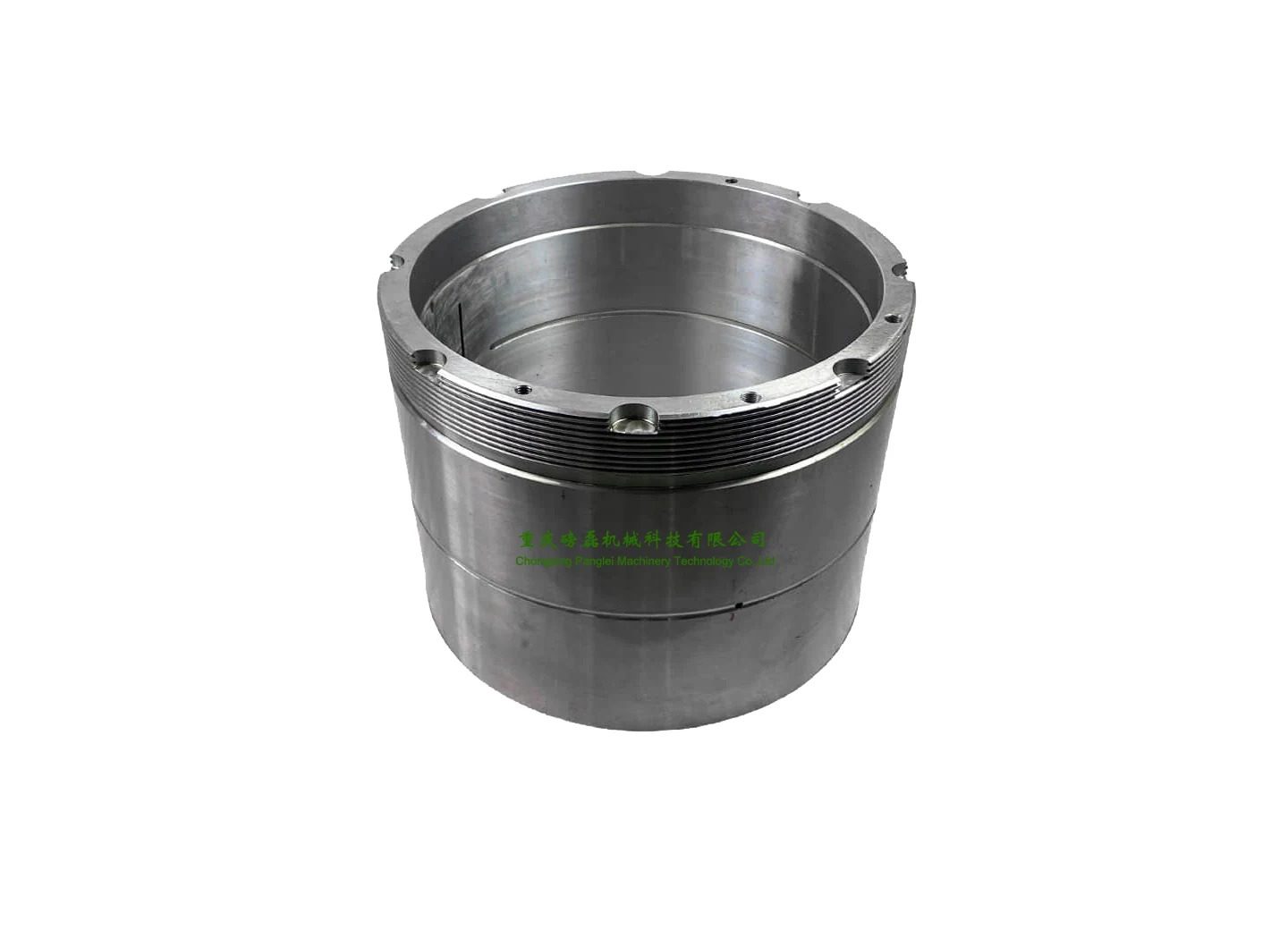

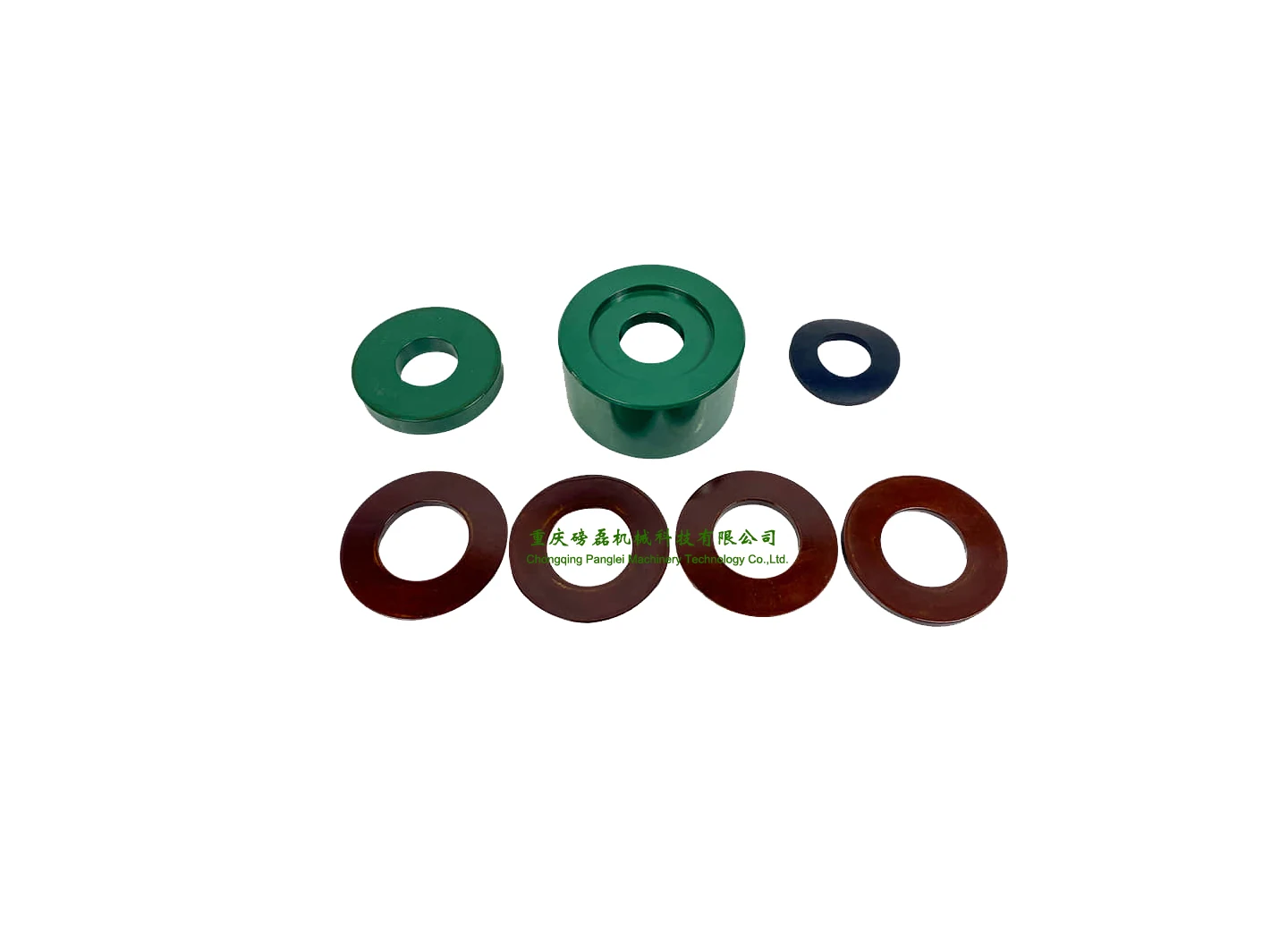

Jaw Crusher Cheek Plate At The Foundry
Parts Usually Ordered Alongside This One
Fixed Jaw Plate
Stationary jaw dies in high manganese, from 600 × 400 machines up to a C200
View Part →

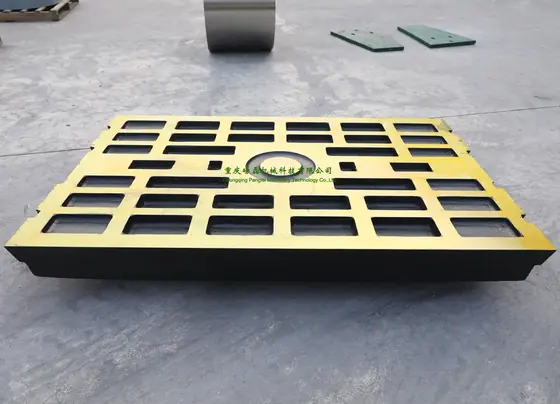

Swing Jaw Plate
Movable jaw dies cast to the same profile and heat as the fixed half
View Part →
Jaw Crusher Toggle Plate
The designed weak point that protects the whole crusher from uncrushable feed
View Part →
Jaw Wedges And Fixing Bolts
The clamping parts that decide whether a new die stays bedded
View Part →This Part In Real Orders
Jaw Crusher Cheek Plate Questions
Do cheek plates come with the jaw dies?
They are quoted alongside them. Most customers order the dies, cheek plates, wedges and bolts as one package.
Which models can you supply?
Most makes and models of jaw crusher. Give us the machine and the plate dimensions and we will confirm.
What material?
The same high manganese grades used for the dies, so the whole chamber wears at a comparable rate.
Can you cast a cheek plate from a worn sample?
Yes, through our pattern shop, with 3D scanning available where the part cannot be shipped.
Get A Price For Jaw Crusher Cheek Plate
Send the machine model, the part number if you have one, and the quantity. If you have neither, a photograph with the main dimensions is enough to start.
