Swing Jaw Plate 600/3012 For A Pegson 1100 × 800 In Liberia
600/3012 swing jaw plate in Mn22Cr2, supplied to a crushing contractor in liberia.
What The Customer Was Dealing With
A Pegson 1100 × 800 jaw crusher working in West Africa needed swing jaw plates on a feed abrasive enough that a general-purpose manganese die was not going to last.
Customer Pain Points
- Abrasive feed consuming standard manganese dies quickly
- A remote site where a second delivery is expensive and slow
- The need for a die that seats correctly first time, with no on-site fettling
What We Did About It
We cast the swing jaw to part number 600/3012 in Mn22Cr2 — 21-23% manganese with 1.5-2.5% chromium — so the crushing face work hardens further before it deforms. The pattern was already held, so no pattern lead time was added to the order.
How The Order Ran Through The Works
Pattern taken from inventory, no pattern-making stage
Bottom-poured from a 5 t intermediate frequency furnace
Sample taken during melting to verify the Mn22Cr2 analysis
Quenched within 30 seconds of furnace withdrawal
Back face and bolt holes machined, dimensional report issued

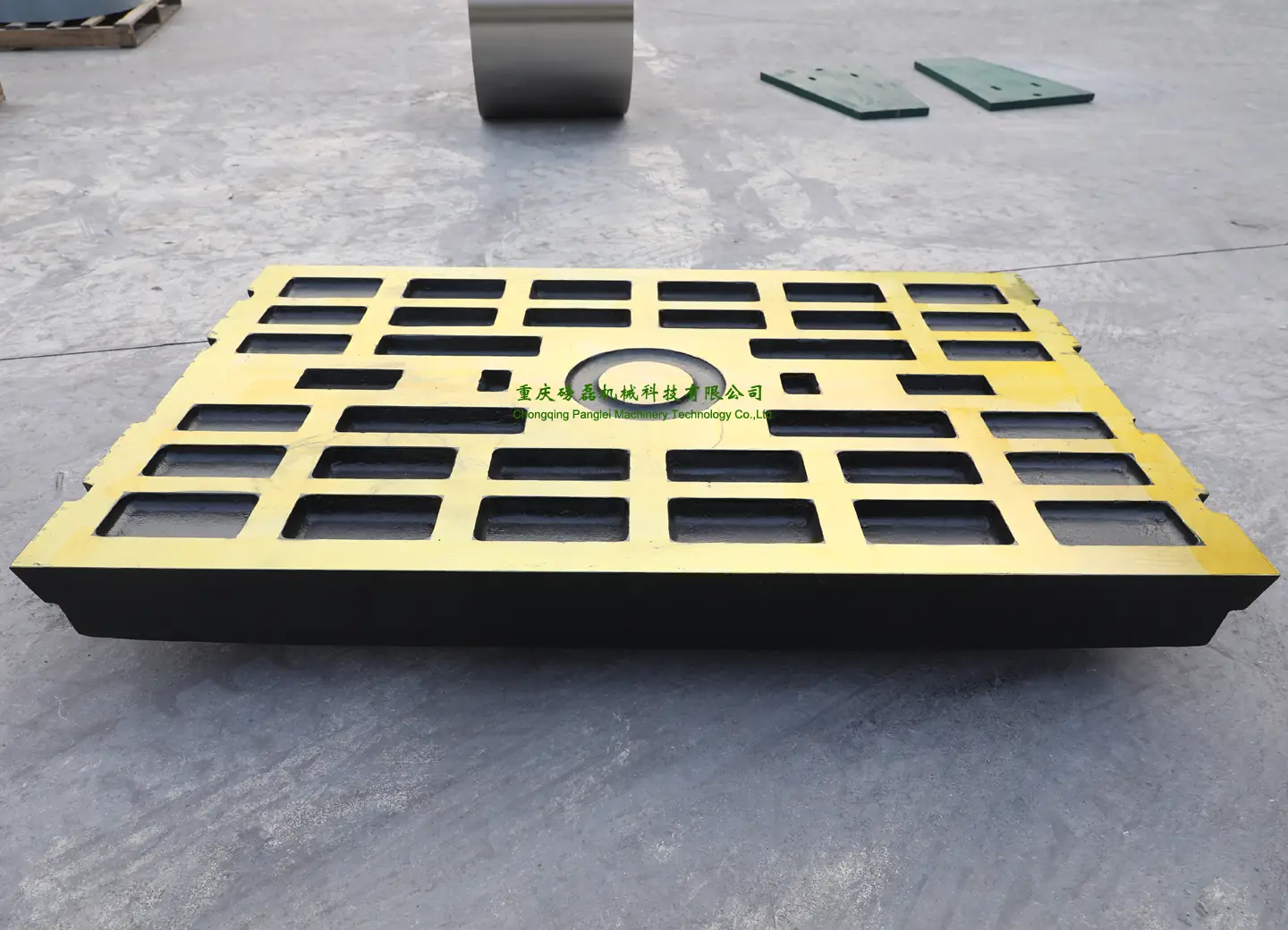

Packed on a steel pallet for sea freight to West Africa
What Was Delivered
The plate was supplied to the customer in Liberia under part number 600/3012 in Mn22Cr2, packed to international standard for the sea journey.
Customer Benefit
A higher manganese and chromium grade on a remote site means fewer change-outs and fewer deliveries, which on a West African contract is where the real cost sits.
Quality Control
Chemical analysis was carried out on the heat and the sample retained for at least three years. A dimensional inspection report was issued after machining and before packing.
The Parts Behind This Case
Swing Jaw Plate
Movable jaw dies cast to the same profile and heat as the fixed half
View Part →
Fixed Jaw Plate
Stationary jaw dies in high manganese, from 600 × 400 machines up to a C200
View Part →
Jaw Crusher Cheek Plate
Side liners that keep the crushing chamber square and protect the frame
View Part →About This Case
Can you name the customer?
No. We describe the customer by region and by sector — in this case a crushing contractor in liberia — because customer names are commercially confidential. The part numbers and materials are real.
Can you repeat this part for us?
Yes. The pattern for 600/3012 swing jaw plate is held, so a repeat order goes straight into moulding with no pattern cost and no pattern lead time.
What documentation came with this order?
Chemical analysis and a dimensional inspection report, as on every order. Additional testing is carried out in our own laboratory when specified at order stage.
Do you supply parts to this region regularly?
Yes. West Africa is a regular destination for us, and around 60% of our output is exported, directly by us or through other companies here in China.
