Slatted Floors
Waterdrop (LWS) Plastic Slat
Waterdrop-pattern LWS slat with rounded holes for fast drainage and quick washdown in farrowing and nursery rooms.
PP600×300 to 600×600 mm
By animal stage
Farrowing Rooms
The room where the margin is made or lost. Equipment for farrowing crates, creep areas and the sow's own comfort.
Pain points
What Goes Wrong In This Room
Piglets chilled on the wrong surface
The sow needs a cool floor and the litter needs a warm one, in the same crate, a metre apart.
Feet damaged in the first days
A floor gap sized for a finishing pig is the wrong gap for a newborn.
Creep areas soaked by oversized drinkers
Full-flow drinkers wet the nest and push piglets off it.
Temperature uneven along the room
The crate at the far end runs colder than the one by the sensor.
How JGM Equips It
A farrowing room is a set of local climates, not one room. JGM equips it accordingly: a waterdrop or fine-gap plastic slat across the piglet area, a cast-iron insert under the sow where weight and heat transfer matter, and penning set out on the same grid so nothing lands across a slat joint.
Water is regulated per line, with a low-flow transparent piglet cup in the creep and a cast float bowl for the sow. Rations are set with 6 L or 8 L volumetric dosing cups rather than scooped. A recirculation fan evens out the room so the controller's reading applies at both ends.
Specification Checklist
- Fine-gap or waterdrop slats across the piglet area
- Cast-iron insert under the sow position
- Crate penning set out on the beam and slat grid
- Separately regulated piglet water line
- Transparent low-flow cup in each creep
- 6 L or 8 L dosing cup per sow place
- Recirculation fan sized to the room length
Send us three numbers
Room dimensions, animal stage and target capacity are enough for our engineers to return a layout and an equipment list.
Start a specificationRecommended equipment
Products For This Stage
Slatted Floors
Slatted Floors
LWD Fine-Gap Plastic Slat
LWD-series slat with a finer drainage gap and a denser rib pattern that protects piglet feet while keeping the pen dry.
PP600×400 to 600×700 mm
Slatted Floors
Cast Iron Slat
Ductile cast-iron slat insert for the dunging area, where the floor takes the most weight and the most wear.
Ductile cast ironHot-dip / coated
Partitions
Farrowing / Weaner Penning
Integrated farrowing and weaner penning, engineered around the flooring and feeders that go in the same room.
TurnkeyGalvanised + plastic
Drinking
Piglet Drinking Cup
Low-flow piglet cup sized for creep and nursery pens, with a transparent bowl so intake can be seen.
PlasticLow flow
Drinking
Drinking Bowl
Robust drinker bowl with a float valve, so water is there when the animal wants it and nowhere else.
Cast + stainlessFloat valve
Feeding
Dosing Cup (6L / 8L)
Volumetric dosing cup in 6 L and 8 L that sets an exact ration per sow and drops it on command.
6 L / 8 LVolumetric dose
Climate
Recirculation Fan
Recirculation fan that mixes room air so the temperature at the far pen matches the temperature at the controller.
Sealed housingWashable
Supply options
Buy It As A Package
Turnkey Pig House Equipment
Give us the building and the herd flow. We engineer the equipment package and supply it as one accountable project.
Flooring and Support Package
The floor and everything that carries it, specified as one system: slat pattern, span, beam section, feet and edge details.
Penning and Panel Package
Your pen layout returned as a counted schedule: panels, posts, brackets, connectors, channel and gates, crated by room.
Feed and Water Package
Feeding and drinking specified together, from the regulator at the room entry to the pan at the pen front.
Related reading
Guides For This Stage
Design GuideDesigning a Pig House for Washdown and Biosecurity
Disinfectant only works on a surface it can reach. Most biosecurity failures are surface-design failures, decided when the equipment was specified.

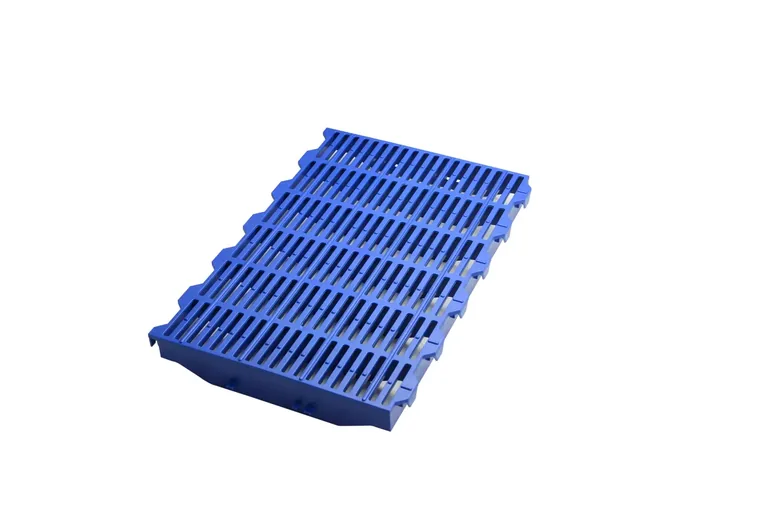

Design GuideHow to Choose Slat Gap Width for Each Pig Stage
The gap in a slatted floor is a compromise between drainage and foot support. This is how to decide which way to lean in each room.
ChecklistNursery Room Equipment Checklist Before Weaning Day
The nursery room is where growth is either kept or lost. This is what to check before the first batch walks in.
Answers
Farrowing Rooms FAQs
Which slat should go under a farrowing crate?
A waterdrop (LWS) or fine-gap (LWD) plastic slat across the piglet area, usually with a cast-iron insert under the sow where weight and heat transfer are highest.
Why a transparent piglet drinker?
So the stockperson can see from the alley whether the cup is holding water and whether the litter has found it, in the days when that matters most.
Can you design the whole room?
Yes. Send room dimensions, the number of farrowing places and any building constraints, and our engineers return a layout, an equipment list and a quotation.
How is the equipment shipped?
Flat-packed and crated for full-container export, crated by room, with assembly drawings and a packing list.
Talk to an engineer
Equip your farrowing rooms from one factory
Slats, beams, penning, feeders, drinkers and fans are made on the same site and crated by room, so the build order is the unload order.
