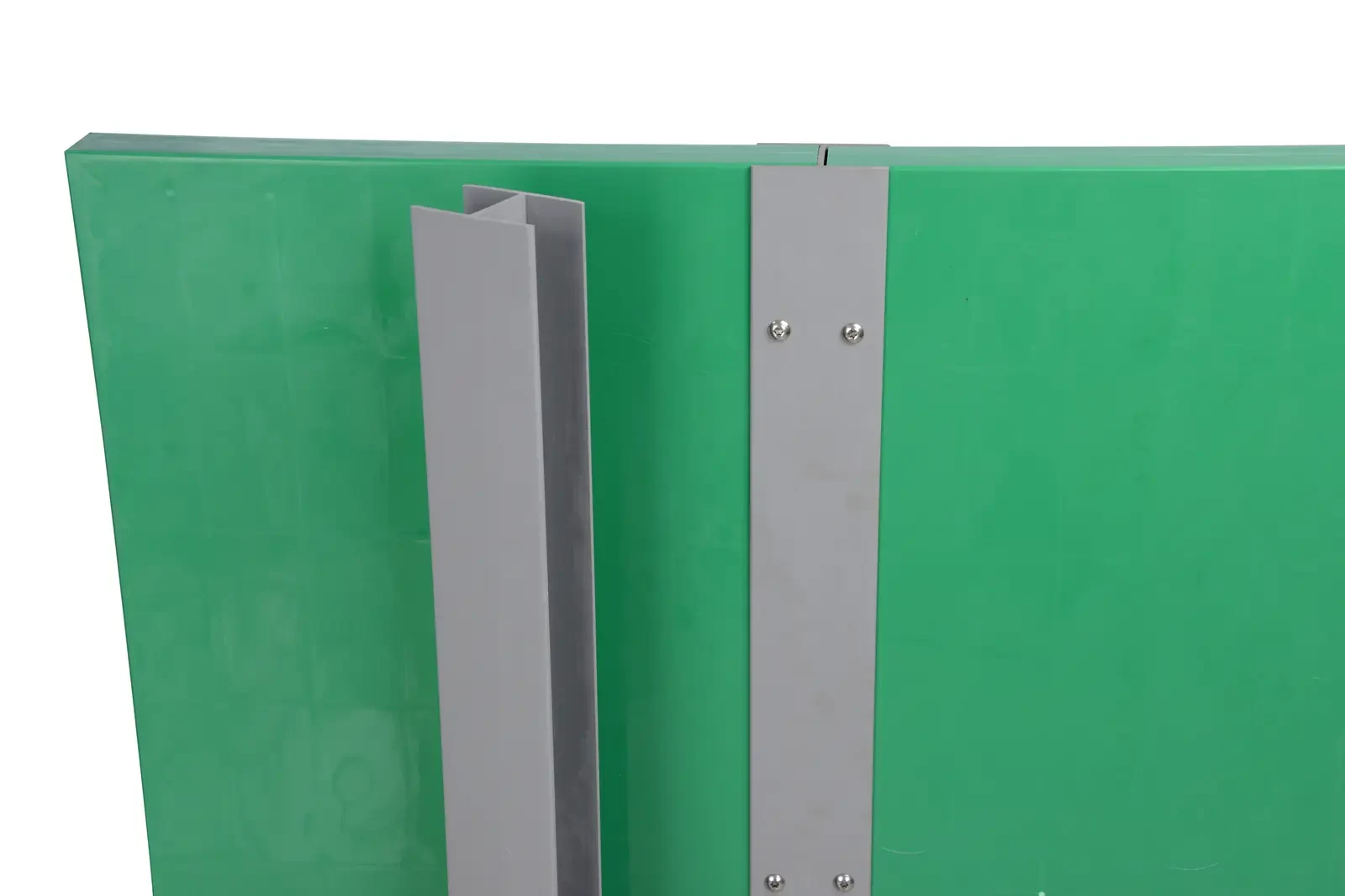

PVC H-Connector
H-section profile that joins two panels into one continuous, flush wall run with no visible fixings.
PVC extrusionH-joint
Climate & Parts
PVC Profiles & Connectors
PVC connecting profiles that lock panels and posts into a sealed, flush penning system — H, L, U, corner post and tube sections.
Pen builds do not stall for want of panels. They stall for want of the connector, the channel or the junction post that nobody counted.
The range
5 Products In This System
PVC U-Channel
Edge and base U-channel that locks panels in place and closes the joint where a wall meets the floor.
PVC extrusionU-channel
PVC L-Profile
L-section trim that finishes a panel edge at an opening or an external corner.
PVC extrusionL-profile
PVC Corner Post
Corner and junction posts that tie panels together wherever a pen changes direction.
PVC extrusion4-way post
PVC Square Tube
Square-section PVC tube for the top rails and frame members that finish a penning run.
PVC extrusion35×35 mm
What This System Is For
The profile range is the part of the system that makes it a system: H-connectors in three thicknesses to join panels flush, eight U-channel sections to seal a run at floor and ceiling, L-trim to cap a cut edge, corner posts in one, two, three and four-way versions, and 35 × 35 mm square tube for top rails.
Everything is extruded in the same rigid PVC as the boards, in white and grey, and counted from your pen layout so the crate arrives complete.
Who Buys It
- Installers building pen grids from PVC board
- Farms extending or repairing an existing penning run
- Distributors stocking the profile set alongside the boards
One order, one packing list
Order this system on its own, or specify it alongside flooring, penning, feeding, water and climate as a single project crated by room.
Turnkey house equipmentCore advantages
Why This Range Is Specified
A profile for every junction
In-line joints, edges, corners, T-junctions, crossings and top rails all have a purpose-made part.
Three H-connector thicknesses
20, 35 and 50 mm so the connector always matches the board.
Dry, reversible assembly
Pushed joints come apart again when a pen layout changes.
Counted from your drawing
Send the layout and the schedule comes back with the quotation.
Where it is used
Rooms and Animal Stages
Farrowing Rooms
The room where the margin is made or lost. Equipment for farrowing crates, creep areas and the sow's own comfort.
Grow-Finish Houses
Where the weight is. Flooring, penning and feeders specified for animals that push, and for the feed conversion the house is judged on.
Nursery and Weaner Rooms
The stage where a pig either keeps growing or stalls. Flooring, penning, feed and water sized for the animal it is now, not the one it will be.
Related reading
Guides For This System
Installation GuideAssembling PVC Panels With H U and L Profiles
A PVC panel wall is only as good as the profiles holding it. Here is how the pieces fit together and the order they go in.
Buying GuidePlanning a Pen Layout Before You Order Penning
The information you send with an enquiry decides how useful the quotation is. This is the list that turns a price into a schedule.
Design GuideDesigning a Pig House for Washdown and Biosecurity
Disinfectant only works on a surface it can reach. Most biosecurity failures are surface-design failures, decided when the equipment was specified.
Answers
PVC Profiles & Connectors FAQs
Which H-connector fits a 35 mm board?
Code 8500059 at 35 × 74 × 4 mm. The 20 mm board takes 20H and the 50 mm section takes 50H.
How many U-channel sections are there?
Eight catalogued sections, from 20.5 × 32.2 × 2.2 mm up to 75 × 51 × 3 mm.
What is a four-way post for?
A crossing where four pens meet, so all four panel runs land in one purpose-made post.
Can you count the fittings from my pen drawing?
Yes — send the layout and a counted schedule comes back with the quotation.
