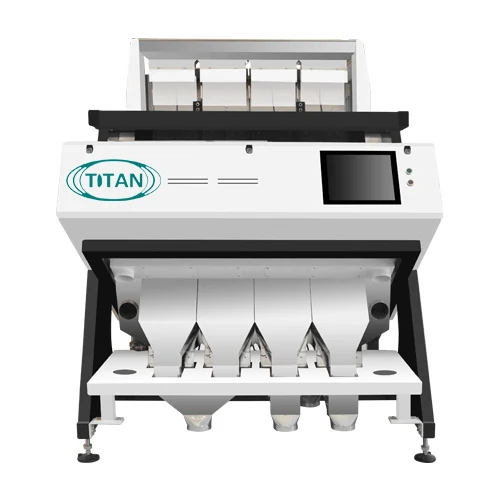

TT Series Chute Optical Sorter
The TT series chute optical sorter is built for fine sorting of grain material such as peanuts, beans, melon seeds, shelled melon seeds, raisins and dehydrated vegetables, and is used across...
What This Machine Does
The TT series chute optical sorter is built for fine sorting of grain material such as peanuts, beans, melon seeds, shelled melon seeds, raisins and dehydrated vegetables, and is used across foodstuff, oil, chemistry and pharmaceutical industries. It combines optics, electronics and pneumatics with a multi colour touch screen.
Key Benefits
- Six frame sizes from 240 to 600 channels for straightforward capacity matching
- Linear colour CCD camera with FPGA processing and high speed electromagnetic ejectors
- Dual view cabinets, with customised infrared light and camera assembly available
- Air consumption published per model so the compressor can be sized before delivery
- Simple operation with easy maintenance and high sorting accuracy
Problems It Solves
- Contaminant and coloured grains reaching the finished lot
- Machines specified without an air consumption figure
- Difficult products that colour alone cannot separate
- Complex interfaces that operators avoid using properly
Who It Is For
- Nut and seed processors
- Dried food and vegetable plants
- Grain processors and traders
- Recycling operations sorting by colour
Application Scenarios
- Peanut, bean and melon seed sorting
- Raisins and dehydrated vegetable sorting
- Grain and seed cleaning to a purity specification
- Recycling and mineral streams sorted by colour
Technical Features
- Latest linear colour CCD camera with FPGA processing system
- High speed electromagnetic ejector bank
- Multi colour touch screen control
- Single phase 180 to 240 V 50 Hz supply across the range
- Air pressure 0.6 to 0.8 MPa with consumption listed per model
TT Series Chute Optical Sorter Model Table
Figures below are taken from the TITAN model sheets. Where a figure depends on the crop or the contamination level it is stated that way rather than averaged.
| Model | Channels | Air consumption | Weight (kg) | Size L x W x H (mm) |
|---|---|---|---|---|
| TT4 | 240 | < 2 m3/min | 800 | 1765 x 1562 x 2143 |
| TT5 | 300 | < 2.5 m3/min | 1050 | 2075 x 1564 x 2140 |
| TT6 | 360 | < 3.0 m3/min | 1300 | 2400 x 1562 x 2143 |
| TT7 | 420 | < 3.5 m3/min | 1320 | 2625 x 1564 x 2140 |
| TT8 | 480 | < 4 m3/min | 1600 | 2950 x 1562 x 2143 |
| TT10 | 600 | < 5 m3/min | 1950 | 3700 x 1562 x 2143 |
How This Machine Is Built
Quality Control
- Camera and lighting alignment set on the assembled machine
- Ejector response checked against the control board before packing
- Sorting software loaded and modes configured for the ordered product
- Machine run tested on product before it is packed
Customisation Options
- Infrared light and camera assembly for special material
- Channel count selected from throughput
- Sorting recipes per product
Use Guide
- Confirm air supply at 0.6 to 0.8 MPa with the listed consumption
- Feed the machine evenly so the chutes are loaded consistently
- Set and save the sorting recipe per product
- Keep spare ejectors in stock
How It Compares With The Alternatives
| AI chute sorter | The TT series covers the same chute principle with model sizes from 240 to 600 channels and published dimensions. |
|---|---|
| Screening and density separation | Optical sorting separates by appearance, catching defects that size and density cannot. |
TT Series Chute Optical Sorter Questions
What air pressure is required?
0.6 to 0.8 MPa across the range, with consumption from under 2 m3/min on a TT4 to under 5 m3/min on a TT10.
What products is it used for?
Grains, seeds, nuts, seasoning, recycling and mineral material, and it is applied in foodstuff, oil, chemistry and pharmaceutical industries.
How much space does it need?
From 1765 x 1562 x 2143 mm on a TT4 up to 3700 x 1562 x 2143 mm on a TT10.
What supply voltage?
Single phase 180 to 240 V 50 Hz.
Can it be fitted with infrared?
Customised infrared light and camera assemblies can be installed for special material.
