Commercial Composter

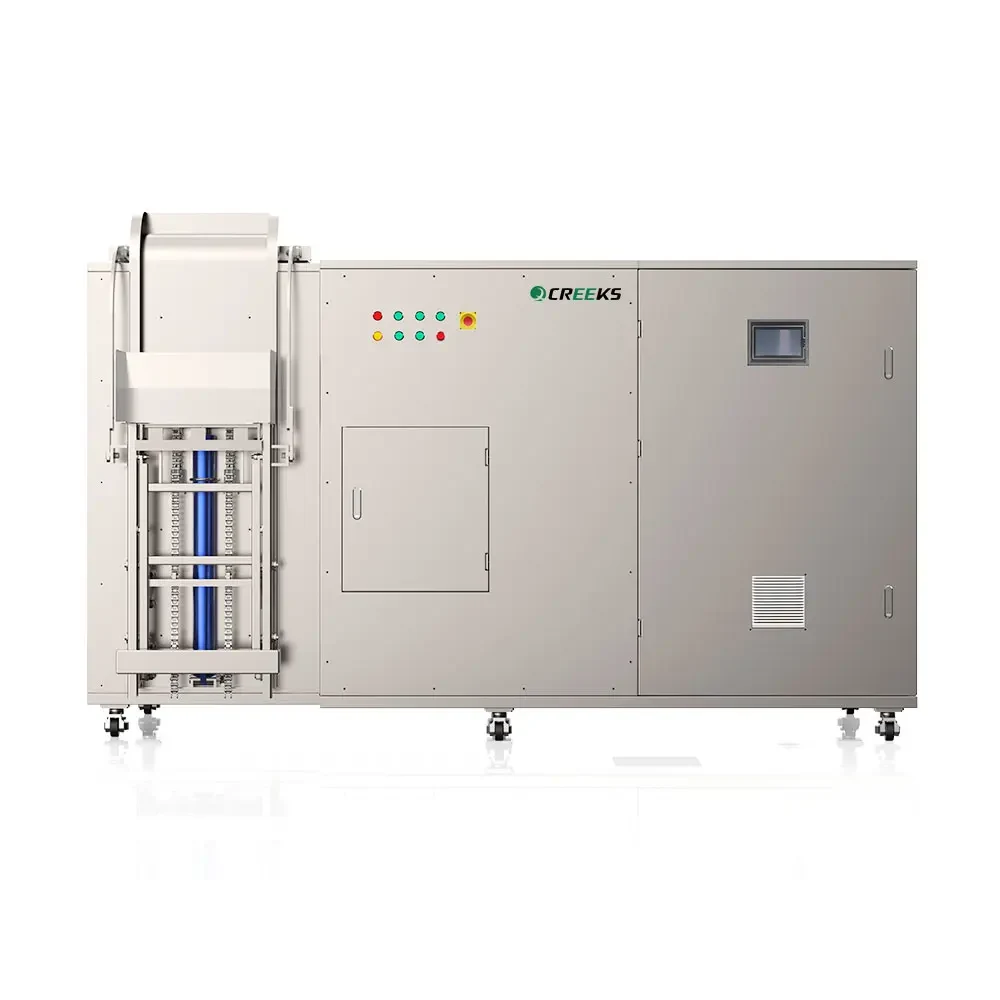

CR-200 Waste Converter Machine
200 kg/day three-phase converter for multi-kitchen sites
CR-200 is the first machine in the three-phase Creeks range: 200 kg of organic waste a day, 380 V at 13 kW, 1200 kg, and a 2800 x 1650 x 1500 mm footprint. Microbial decomposition converts the load to organic fertilizer in 12 to 24 hours with at least 85% volume reduction. It is specified where several kitchens, a large canteen or a small food production line feed one waste point and the site has three-phase power available.
No forms. Message us on WhatsApp or by email and you will be talking to the factory in Suzhou.
What it solves
- Campuses and complexes where several kitchens feed one bin store
- Sites that have outgrown single-phase composting equipment
- Haulage contracts priced on tonnage that is mostly water
- Outdoor waste storage that has to be sheltered and managed
Key benefits
- 200 kg/day processing capacity
- 12-24 hour cycle producing organic fertilizer
- At least 85% waste volume reduction
- 380 V, 50 Hz three-phase supply at 13 kW
- Internal deodorisation, with an extra deodoriser available as an option
- Q235 with spray paint and stainless steel construction
- 1200 kg, 2800 x 1650 x 1500 mm
Technical data
| Model | CR-200 |
|---|---|
| Processing Capacity | 200kgs/day |
| Dimension (L*W*H) | 2800*1650*1500mm |
| Weight | 1200kgs |
| Rated Power | 13KW |
| Power Supply | 380V, 50Hz |
| Decomposition Method | Microbial Decomposition |
| Waste Volume Reduction | ≥85% |
| Processing Time | 12-24 Hours |
| Output | Organic Fertilizer |
| Material | Q235 + Spray Paint + Stainless Steel |
| Deodorization | Internal deodorizationr or optional extra deodoriser |
| Operating Environment | Indoors normal temperature (ventilated) / Outdoor shelters are required |
Technical features
- Microbial decomposition with continuous gap stirring
- Internal deodorisation, optional external deodoriser
- Q235 with spray paint and stainless steel construction
- Fully automatic operation with fault alarm
- Indoors at normal temperature and ventilated, or outdoors under shelter
- 380 V, 50 Hz, 13 kW
Who it is for
Sites with three-phase power and around 200 kg of organic waste a day that want one machine instead of several smaller units.
Where it is used
- University and hospital campuses with multiple kitchens
- Large hotels and resort complexes
- Small food processing lines with consistent organic waste
- Community and municipal collection points
Quality control
Structural fabrication, drive assembly and control cabinet are inspected before a loaded factory run confirms cycle behaviour and deodorisation. Machines in this band are crated for container shipment with lifting points identified.
Customisation
Supply voltage and frequency, additional deodorisation, control language and crating are configured per project. Feeding arrangements - manual, trolley tipper or conveyor - are discussed at quotation.
How it is operated
- Site indoors and ventilated, or outdoors under shelter
- Connect the 380 V three-phase supply and commission the microbial charge
- Load organic waste through the operating day up to 200 kg
- Automatic decomposition runs 12-24 hours
- Remove organic fertilizer on the commissioned interval
- Service deodorisation and drive components on schedule
How it compares
CR-200 is the entry point to three-phase capacity. CR-100 below it stays on 220 V; CR-300 and CR-500 above it add throughput on the same 380 V platform with larger frames.
Frequently asked questions
Why does CR-200 need three-phase power?
Throughput at this scale requires a 13 kW drive and heating load, which is supplied from 380 V, 50 Hz three phase.
Can it be installed outdoors?
Yes, provided a shelter is built. Indoors it needs normal temperature and ventilation.
How is odour handled at this size?
Internal deodorisation is standard, and an extra deodoriser can be specified where the installation is close to occupied areas.
How much reduction should we plan for?
At least 85% of the incoming volume.
What is the output?
Organic fertilizer, suitable for grounds, landscaping and agricultural use after the recommended blending.
How is the machine delivered?
Crated for container shipment with lifting points identified for site placement.
Can it handle a mixed campus waste stream?
Yes - it is commonly specified where several kitchens feed one collection point.
Quote for the CR-200 Waste Converter Machine
Tell us your daily waste volume, power supply and destination port. We reply with a specification and price.
