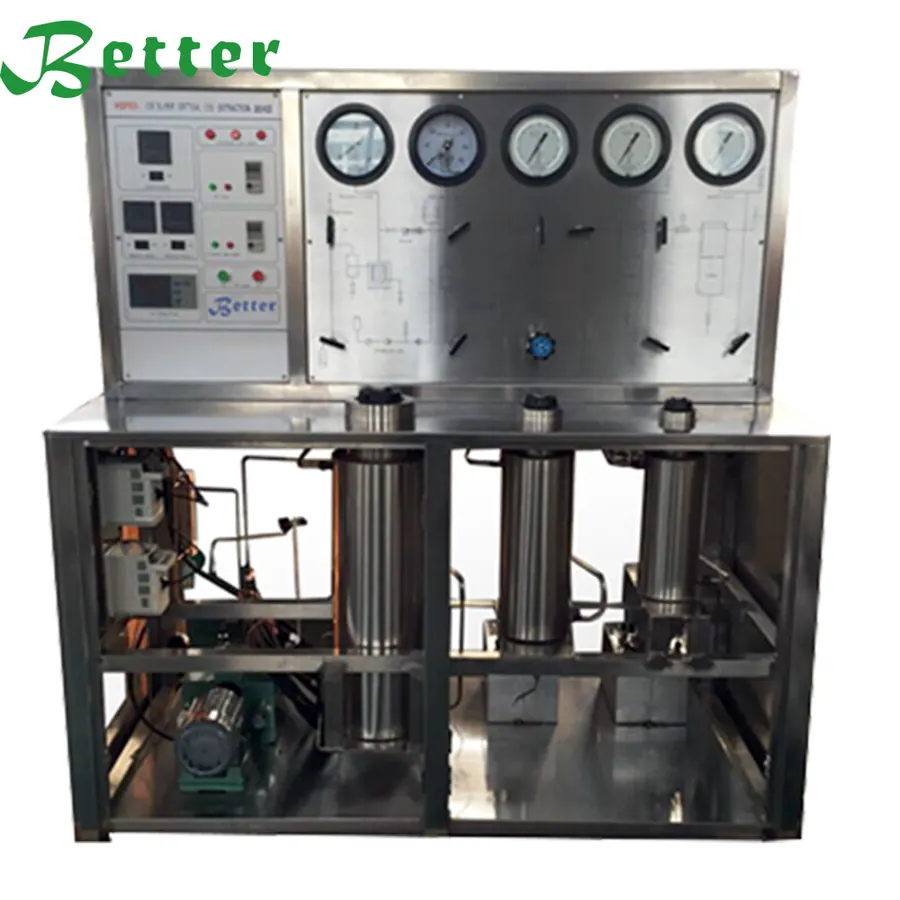

HSFE-5 supercritical CO2 extraction machine with 5L extraction kettle and control panel

CO2 Supercritical Extraction

Supercritical CO2 Cinnamon Oil Extraction Machine

Model HSFE-5

A 5L supercritical fluid extraction system with one extractor and two separators, rated to 50MPa and up to 85°C, for solvent-free extraction of cinnamon oil and other botanical oils.

Model
HSFE-5
Extraction kettle
5L
Working pressure
50MPa
The flow of CO2
0~50L/h
Voltage
3 phase 380V 50HZ
Extraction temperature
Ambient temperature to 85°C
Request A Quote Talk To An Engineer

Drawings and CAD files are not published for download. Ask by email and they are sent directly. Datasheet PDF available in the Download Center.

Product Overview

The HSFE-5 is a multi-function supercritical fluid extraction system. It works in an intermittent or a continuous way to extract solvent from solid or liquid material, and an additive can be added to the supercritical fluid when the process calls for it.

The system is built around one extractor and two separators. The highest working pressure of the solid extractor is 50MPa and the highest working temperature is 85°C, which covers the pressure and temperature window used for cinnamon oil and most other botanical extractions.

Pressure vessels are designed according to the related national standard and rule demand, with an overpressure protection system, which means sufficient safety valves. Pressure, temperature and flow are shown on pressure gauges and digital instruments, and the pipe parts, valves and pipelines are all stainless steel.

Technical Features

  • Multi-function SPE equipment, intermittent or continuous working mode
  • One extractor and two separators
  • Additive can be dosed into the supercritical fluid
  • Overpressure protection system with sufficient safety valves
  • Pressure, temperature and flow shown on gauges and digital instruments
  • Stainless steel pipe parts, valves and pipelines

Materials And Construction

Wetted parts on the supercritical CO2 systems are stainless steel throughout: pipe parts, valves and pipelines. Laboratory vessels are borosilicate glass 3.3, also known as GG-17. Pressure vessels are designed to the related national standard and rule demand and carry an overpressure protection system with sufficient safety valves.

Manufacturing And Quality Control

  • Every procedure and detail is inspected during production, which is why a supercritical CO2 machine takes about 60 workdays to build.
  • Pressure vessels are designed to the related national standard and rule demand, with an overpressure protection system and sufficient safety valves.
  • Machines are assembled and tested before packing, so what leaves the workshop is a machine that has already been run.
  • Pressure, temperature and flow are shown on pressure gauges and digital instruments so the operator can verify the process at any point.

Customization Options

Machines are supplied from 0.5L to 200L, and a larger capacity machine can be customised according to your request. On the distillation plants the volume of the pot is built according to the demand of the customer. Better Industry also provides customised turn-key solutions covering specific extraction process parameters, engineering design, equipment manufacturing and installation.

Key Benefits

Solvent-free extract

CO2 leaves as a gas in the separator, so the cinnamon oil carries no residual solvent.

Two separators

Fractions can be dropped out separately instead of collecting everything in one vessel.

50MPa design pressure

Enough headroom to run the dense, high-pressure conditions that resinous material needs.

Stainless steel wetted parts

Pipe parts, valves and pipelines are all stainless steel.

Use Guide

  1. 1Load the prepared, milled botanical into the 5L extraction kettle and close the vessel.
  2. 2Bring the CO2 up to the working pressure and temperature set for the material, staying inside the 50MPa and 85°C limits.
  3. 3Circulate CO2 through the bed at a flow rate within the 0~50L/h range and hold for the extraction time set for the material.
  4. 4Drop the pressure across the two separators so the extract falls out and the CO2 returns to gas.
  5. 5Collect the extract from the separators, then recirculate the CO2 for the next cycle.

Comparison With Other Machines

SpecificationHSFE-5HSFE-10
MachineSupercritical CO2 Cinnamon Oil Extraction MachineSupercritical CO2 Neem Oil Extraction Machine
ModelHSFE-5HSFE-10
Extraction kettle5L10L
Working pressure50MPa50MPa
The flow of CO20~50L/h0~50L/h

Where a value is not published for a machine it is shown as a dash. Sizes outside the published range are quoted per project.

Related Products

HSFE-10 supercritical CO2 extraction machine with 10L kettle, control cabinet and chiller CO2 Supercritical Extraction Supercritical CO2 Neem Oil Extraction Machine Model HSFE-10 A 10L supercritical fluid extraction system rated to 50MPa and 85°C, with one extractor and two separators, for solven… View specifications → HEC10 plant essential oil extraction equipment with distillation pot, column and control panel Essential Oil Extraction Plant Essential Oil Extraction Equipment Model HEC10 A compact steam distillation plant with a 4kW heater, 0.3m2 heating area and 0.7m2 condensing area, occupying about 1.… View specifications → EC30 jasmine essential oil extraction machine with 30L distillation pot and condensing column Essential Oil Extraction Jasmine Essential Oil Extract Machine 30L Model EC30 / HEC30 A 30L steam distillation machine with 5.5kW heating, 0.33m2 heating area and 0.72m2 condensing area, built for jasmine… View specifications → HEC50 lavender essential oil extraction machine with 50L distillation pot and condensing column Essential Oil Extraction Lavender Essential Oil Extraction Machine Model HEC50 The largest steam distillation plant in the range: a 50L pot with 11kW heating, 0.50m2 heating area, 0.85m2 condensing… View specifications →

Related Industry Applications

Industry Hemp and CBD Processing Extraction, winterization and distillation equipment for hemp processors, supplied as single machine… Read more → Industry Essential Oil and Aromatherapy Steam distillation plants from 10L to 50L for growers, distillers and aromatherapy brands.… Read more → Industry Herbal Pharmaceutical and Nutraceutical Extraction, concentration and refining equipment for Chinese medicine, health product and biological… Read more →

Related Guides

Process Guide How Supercritical CO2 Extraction Works What the supercritical state is, why CO2 is used as a solvent, and how a one-extractor two-separator… Read more → Comparison CO2 or Ethanol: Choosing an Extraction Route A side by side comparison of supercritical CO2 and cold ethanol extraction on solvent residue, throu… Read more → Buying Guide How to Choose the Right Extractor Size Turning a target output into a kettle volume: batch size, cycle time, yield and the two pieces of in… Read more →

FAQ

Questions About The HSFE-5

What is the model number and main specification?
HSFE-5. Extraction kettle: 5L; Working pressure: 50MPa; The flow of CO2: 0~50L/h
Can this machine be built in a different size?
Yes. Machines are supplied from 0.5L to 200L and a larger capacity machine can be customised according to your request.
How is the machine packed and installed?
In a plywood case. The machine is assembled and tested before packing, and installation service is provided.
Can you run a test with our raw material first?
Yes. An extraction test can be run with your raw material and videos and pictures of the test are sent to you for reference.
Can the CO2 be reused?
Yes. CO2 is used in circulation inside the system rather than consumed on every batch.
What materials can be processed on a CO2 extraction machine?
The CO2 extraction machines are used for hemp oil, wheat embryo oil, fish oil, tobacco essential oil, Arteannuin, Sundrops oil, Gingerol, Pepper haematochrome, Hops extract and Agarwood oil, among others.
What size machines are available?
Machines from 0.5L to 200L are supplied. Larger capacities can be customised against your process requirement.

Next Step

Request A Quote For The HSFE-5

Send your raw material and the production capacity you need per batch and a full specification comes back.

Send two things and a real specification comes back: the raw material you will process, and the production capacity you need per batch.
