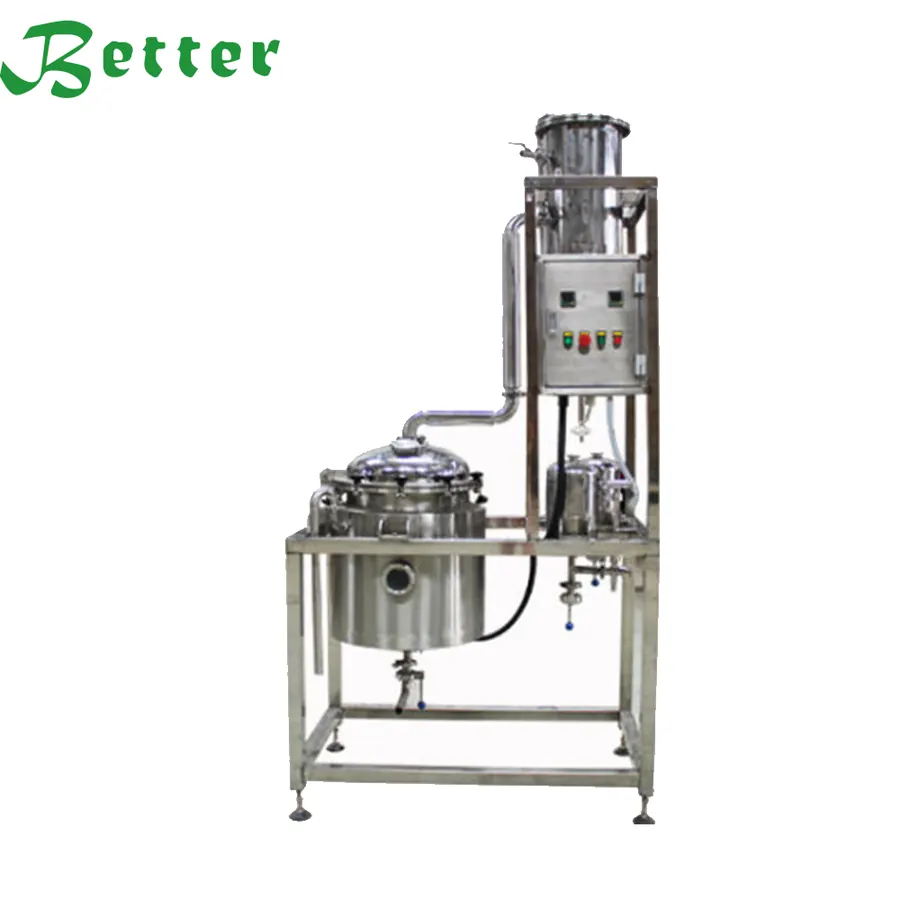

HEC50 lavender essential oil extraction machine with 50L distillation pot and condensing column

Essential Oil Extraction

Lavender Essential Oil Extraction Machine

Model HEC50

The largest steam distillation plant in the range: a 50L pot with 11kW heating, 0.50m2 heating area, 0.85m2 condensing area and a separate 0.80m2 cooling area.

Model
HEC50
Distilling pot
50L
Power
11kW
Heating area
0.50M²
Condensing area
0.85M²
Cooling area
0.80m²
Power supply
380V/50HZ/3P
Request A Quote Talk To An Engineer

Drawings and CAD files are not published for download. Ask by email and they are sent directly. Datasheet PDF available in the Download Center.

Product Overview

The BETTER HEC50 essential oil extract machine is used in the production of Chinese medicines, health products, biological drugs, cosmetics and food. It uses technology and chemical separation to extract plant components efficiently by steam distillation, and has a good effect on collecting essential oil from plants.

At 50L it is the largest steam distillation plant in the standard range, and it is the one most often specified for lavender, where the harvest window is short and the batch has to be turned around quickly.

The heat exchange is sized to match. The plant carries 0.50m2 of heating area, 0.85m2 of condensing area and a separate 0.80m2 cooling area, driven by an 11kW supply at 380V 50Hz three phase.

Technical Features

  • 50L distillation pot
  • 11kW installed power at 380V/50Hz three phase
  • Heating area 0.50m², condensing area 0.85m², cooling area 0.80m²
  • Steam distillation with indirect heating
  • Suited to Chinese medicine, health product, cosmetic and food production

Materials And Construction

Wetted parts on the supercritical CO2 systems are stainless steel throughout: pipe parts, valves and pipelines. Laboratory vessels are borosilicate glass 3.3, also known as GG-17. Pressure vessels are designed to the related national standard and rule demand and carry an overpressure protection system with sufficient safety valves.

Manufacturing And Quality Control

  • Every procedure and detail is inspected during production, which is why a supercritical CO2 machine takes about 60 workdays to build.
  • Pressure vessels are designed to the related national standard and rule demand, with an overpressure protection system and sufficient safety valves.
  • Machines are assembled and tested before packing, so what leaves the workshop is a machine that has already been run.
  • Pressure, temperature and flow are shown on pressure gauges and digital instruments so the operator can verify the process at any point.

Customization Options

Machines are supplied from 0.5L to 200L, and a larger capacity machine can be customised according to your request. On the distillation plants the volume of the pot is built according to the demand of the customer. Better Industry also provides customised turn-key solutions covering specific extraction process parameters, engineering design, equipment manufacturing and installation.

Key Benefits

Largest standard pot

50L of distillation volume for a faster harvest turnaround.

Separate cooling area

0.80m2 of cooling area in addition to the 0.85m2 condenser.

11kW heating

Enough installed power to bring a full 50L charge up quickly.

Same operating principle

The process is identical to the smaller HEC plants, so operators move up without retraining.

Use Guide

  1. 1Load the wilted lavender or herb charge evenly into the 50L pot.
  2. 2Start heating and bring the charge to distillation temperature.
  3. 3Run the condenser and cooling circuits before vapour reaches the column.
  4. 4Collect oil and hydrosol, then separate the two phases.
  5. 5Empty and clean the pot before the next charge to keep the aroma profile clean.

Comparison With Other Machines

SpecificationHEC50HEC10EC30 / HEC30
MachineLavender Essential Oil Extraction MachinePlant Essential Oil Extraction EquipmentJasmine Essential Oil Extract Machine 30L
ModelHEC50HEC10EC30 jasmine essential oil extract machine
Distilling pot50L——
Power11kW4kW5.5KW (3 phase, 380v/50Hz)
Heating area0.50M²——

Where a value is not published for a machine it is shown as a dash. Sizes outside the published range are quoted per project.

Related Products

HEC10 plant essential oil extraction equipment with distillation pot, column and control panel Essential Oil Extraction Plant Essential Oil Extraction Equipment Model HEC10 A compact steam distillation plant with a 4kW heater, 0.3m2 heating area and 0.7m2 condensing area, occupying about 1.… View specifications → EC30 jasmine essential oil extraction machine with 30L distillation pot and condensing column Essential Oil Extraction Jasmine Essential Oil Extract Machine 30L Model EC30 / HEC30 A 30L steam distillation machine with 5.5kW heating, 0.33m2 heating area and 0.72m2 condensing area, built for jasmine… View specifications → HEC20 citronella oil distillation plant with 20L pot, condensing column and control panel Essential Oil Extraction OEM ODM Pure Essential Citronella Oil Distillation Plant Model HEC20 A 20L steam distillation plant with 4.5kW heating, 0.4m2 heating area and 0.75m2 condensing area, supplied on an OEM a… View specifications → HSFE-5 supercritical CO2 extraction machine with 5L extraction kettle and control panel CO2 Supercritical Extraction Supercritical CO2 Cinnamon Oil Extraction Machine Model HSFE-5 A 5L supercritical fluid extraction system with one extractor and two separators, rated to 50MPa and up to 85°C, for s… View specifications →

Related Industry Applications

Industry Essential Oil and Aromatherapy Steam distillation plants from 10L to 50L for growers, distillers and aromatherapy brands.… Read more → Industry Food Flavour and Cosmetic Ingredients Solvent-free CO2 extraction and steam distillation for spice oleoresin, flavour and cosmetic ingredi… Read more →

Related Guides

Process Guide Steam Distillation for Essential Oil Production How a steam distillation plant turns flowers, leaves, wood and spice into essential oil and hydrosol… Read more → Buying Guide How to Choose the Right Extractor Size Turning a target output into a kettle volume: batch size, cycle time, yield and the two pieces of in… Read more →

FAQ

Questions About The HEC50

What is the model number and main specification?
HEC50. Distilling pot: 50L; Power: 11kW; Heating area: 0.50M²
Can this machine be built in a different size?
Yes. Machines are supplied from 0.5L to 200L and a larger capacity machine can be customised according to your request.
How is the machine packed and installed?
In a plywood case. The machine is assembled and tested before packing, and installation service is provided.
Can you run a test with our raw material first?
Yes. An extraction test can be run with your raw material and videos and pictures of the test are sent to you for reference.
Which plants can be processed by steam distillation?
Flowers such as rose, lavender, ylang ylang, chamomile, neroli and geranium; plants such as rosemary, citronella and lemongrass; citrus such as lemon, orange, bergamot, grapefruit and lime; leaves such as eucalyptus, mugwort, patchouli, peppermint and pine needle; woods such as sandalwood, agarwood, cedarwood and wintergreen; resins such as frankincense and myrrh; and others including cinnamon, pepper, fennel and ginger.
Can the pot volume be changed?
Yes. The volume of the distillation pot is built according to the demand of the customer.
How many people are needed to operate the machine?
One person can operate the distillation plant. The layout and the control panel are arranged for single-operator running.

Next Step

Request A Quote For The HEC50

Send your raw material and the production capacity you need per batch and a full specification comes back.

Send two things and a real specification comes back: the raw material you will process, and the production capacity you need per batch.
