Essential Oil Extraction
Plant Essential Oil Extraction Equipment
Model HEC10

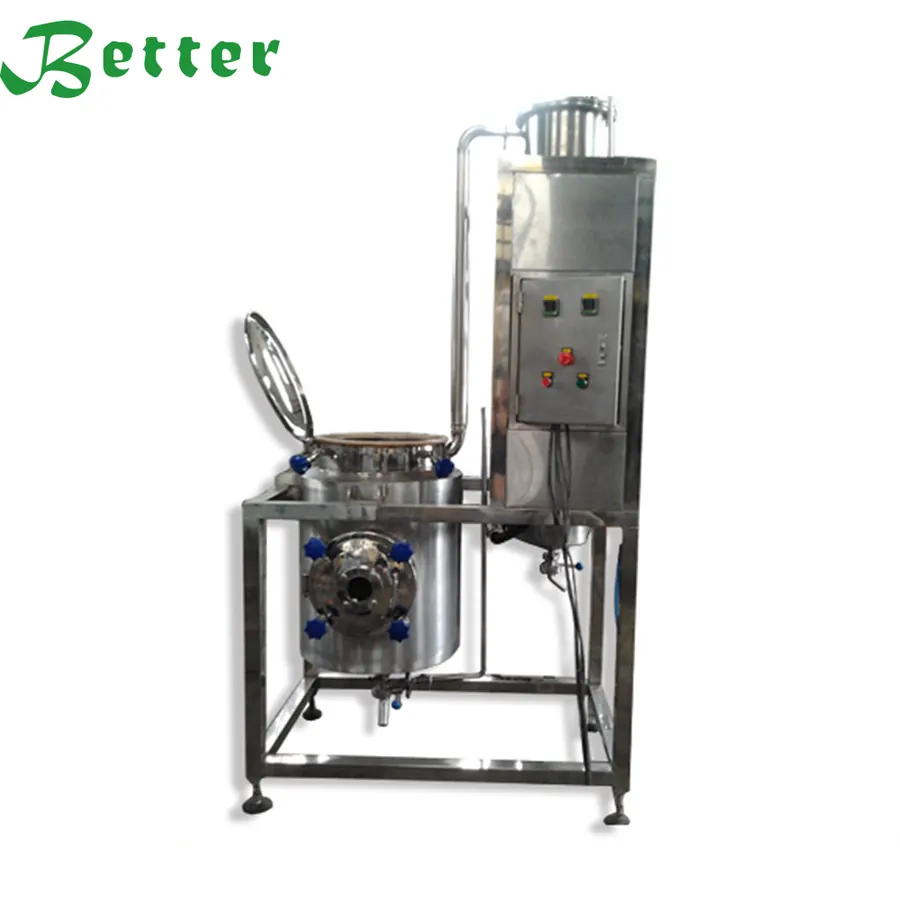

A compact steam distillation plant with a 4kW heater, 0.3m2 heating area and 0.7m2 condensing area, occupying about 1.5 square metres of floor space.
- Model
- HEC10
- Power
- 4kW
- Capacity
- 10
- Condenser diameter
- 102
- Heating area of extraction tank
- 0.3m²
- Condensing area of condenser
- 0.7m²
Drawings and CAD files are not published for download. Ask by email and they are sent directly. Datasheet PDF available in the Download Center.
Product Overview
The HEC10 essential oil plant is used in the production of Chinese medicines, health products, biological drugs, cosmetics and food. It applies biological and chemical separation technique, extracting plant components efficiently by steam distillation, with a good effect on collecting essential oil from plants.
Heating is indirect, through heat-transfer oil. Under clean, safe, atmospheric conditions the plant reaches 100°C quickly, and where the material calls for it a vacuum pump can be added so that the extraction speed of the essential oil rises.
The layout is deliberately compact. The whole machine covers only about 1.5 square metres, and one person can operate it, which makes it a practical first distillation plant for a farm, a workshop or a product development room.
Technical Features
- Steam distillation with indirect heat-transfer oil heating
- Reaches 100°C under clean, safe, atmospheric conditions
- Optional vacuum pump for faster extraction
- Condensing area 0.7m², heating area 0.3m²
- Compact structure covering about 1.5 square metres
- Single-operator layout
Materials And Construction
Wetted parts on the supercritical CO2 systems are stainless steel throughout: pipe parts, valves and pipelines. Laboratory vessels are borosilicate glass 3.3, also known as GG-17. Pressure vessels are designed to the related national standard and rule demand and carry an overpressure protection system with sufficient safety valves.
Manufacturing And Quality Control
- Every procedure and detail is inspected during production, which is why a supercritical CO2 machine takes about 60 workdays to build.
- Pressure vessels are designed to the related national standard and rule demand, with an overpressure protection system and sufficient safety valves.
- Machines are assembled and tested before packing, so what leaves the workshop is a machine that has already been run.
- Pressure, temperature and flow are shown on pressure gauges and digital instruments so the operator can verify the process at any point.
Customization Options
Machines are supplied from 0.5L to 200L, and a larger capacity machine can be customised according to your request. On the distillation plants the volume of the pot is built according to the demand of the customer. Better Industry also provides customised turn-key solutions covering specific extraction process parameters, engineering design, equipment manufacturing and installation.
Key Benefits
One-person operation
One person can operate the distillation plant without assistance.
Fast to temperature
Indirect heat-transfer oil heating reaches 100°C quickly under clean, safe, atmospheric conditions.
Optional vacuum
Adding a vacuum pump increases the extraction speed of essential oils.
1.5 square metres
The compact structure fits into a small distillation room.
Use Guide
- 1Load the prepared botanical into the distillation pot and close the lid.
- 2Start the heat-transfer oil heating and bring the pot up to distillation temperature.
- 3Where the material is heat sensitive, connect the vacuum pump before starting the run.
- 4Condense the vapour through the condenser and collect oil and hydrosol in the separator.
- 5Drain the separator, empty the spent botanical and prepare the next charge.
Comparison With Other Machines
| Specification | HEC10 | EC30 / HEC30 | HEC50 |
|---|---|---|---|
| Machine | Plant Essential Oil Extraction Equipment | Jasmine Essential Oil Extract Machine 30L | Lavender Essential Oil Extraction Machine |
| Model | HEC10 | EC30 jasmine essential oil extract machine | HEC50 |
| Power | 4kW | 5.5KW (3 phase, 380v/50Hz) | 11kW |
| Capacity | 10 | — | — |
| Condenser diameter | 102 | — | — |
Where a value is not published for a machine it is shown as a dash. Sizes outside the published range are quoted per project.
