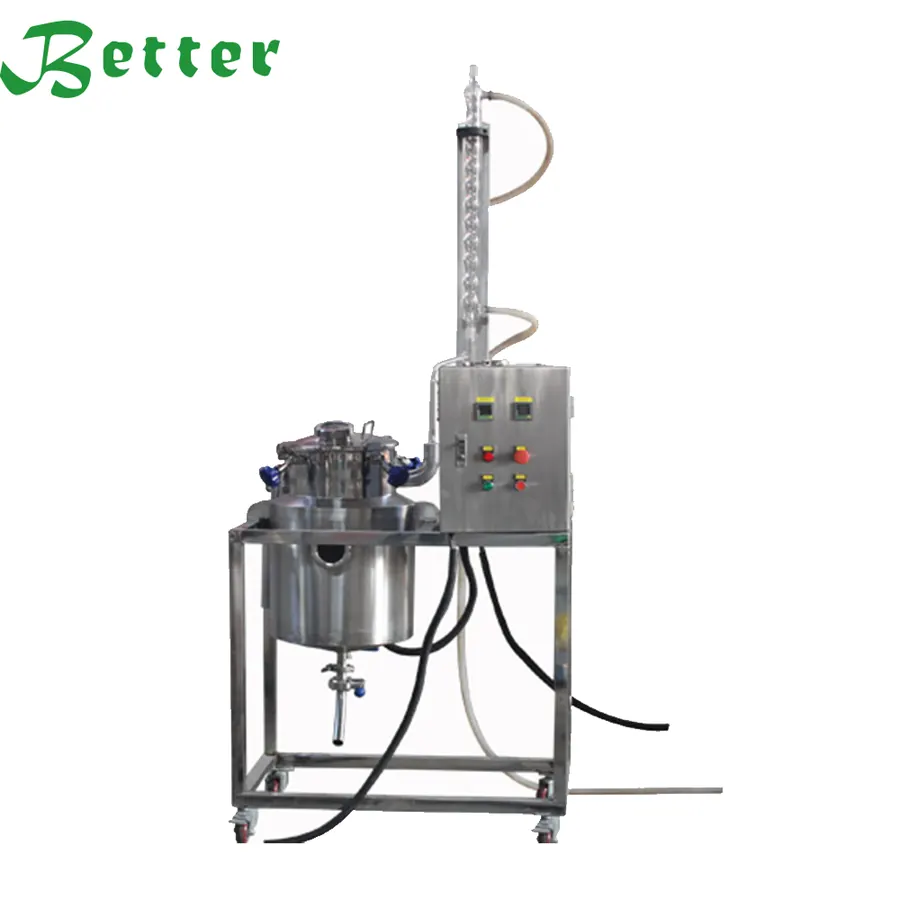

EC30 jasmine essential oil extraction machine with 30L distillation pot and condensing column

Essential Oil Extraction

Jasmine Essential Oil Extract Machine 30L

Model EC30 / HEC30

A 30L steam distillation machine with 5.5kW heating, 0.33m2 heating area and 0.72m2 condensing area, built for jasmine and other delicate flower material.

Model
EC30 jasmine essential oil extract machine
Power
5.5KW (3 phase, 380v/50Hz)
Volume of distillation pot
30L (according to demand of customers)
Heating area of distillation pot
0.33M²
Condensation area of condenser
0.72M²
Power of heater
5.5KW
Request A Quote Talk To An Engineer

Drawings and CAD files are not published for download. Ask by email and they are sent directly. Datasheet PDF available in the Download Center.

Product Overview

The BETTER HEC30 jasmine essential oil extract machine is used in the production of Chinese medicines, health products, biological drugs, cosmetics and food. It uses technology and chemical separation to extract plant components efficiently by steam distillation, and has a good effect on collecting essential oil from plants.

Jasmine is one of the more demanding flowers to distil. The 0.72m2 condensing area is generous for a 30L pot, which keeps the vapour path cool and helps protect the delicate top notes that give jasmine its value.

The volume of the distillation pot is built according to the demand of the customer, so 30L is a starting point rather than a fixed limit.

Technical Features

  • Steam distillation for flower and botanical material
  • 30L distillation pot, volume made to customer demand
  • 5.5kW heater, 3 phase 380V 50Hz
  • Heating area 0.33m², condensation area 0.72m²
  • Suited to Chinese medicine, health product, cosmetic and food production

Materials And Construction

Wetted parts on the supercritical CO2 systems are stainless steel throughout: pipe parts, valves and pipelines. Laboratory vessels are borosilicate glass 3.3, also known as GG-17. Pressure vessels are designed to the related national standard and rule demand and carry an overpressure protection system with sufficient safety valves.

Manufacturing And Quality Control

  • Every procedure and detail is inspected during production, which is why a supercritical CO2 machine takes about 60 workdays to build.
  • Pressure vessels are designed to the related national standard and rule demand, with an overpressure protection system and sufficient safety valves.
  • Machines are assembled and tested before packing, so what leaves the workshop is a machine that has already been run.
  • Pressure, temperature and flow are shown on pressure gauges and digital instruments so the operator can verify the process at any point.

Customization Options

Machines are supplied from 0.5L to 200L, and a larger capacity machine can be customised according to your request. On the distillation plants the volume of the pot is built according to the demand of the customer. Better Industry also provides customised turn-key solutions covering specific extraction process parameters, engineering design, equipment manufacturing and installation.

Key Benefits

Sized for flower material

A 30L pot suits the low bulk density of flower charges.

Generous condensing area

0.72m2 of condensing area for a 30L pot keeps the vapour path cool.

Pot volume to order

The volume of the distillation pot is made according to the demand of the customer.

Standard 380V supply

5.5kW at 3 phase 380V 50Hz.

Use Guide

  1. 1Charge the flower material into the 30L pot without packing it too tightly.
  2. 2Bring the pot to distillation temperature with the 5.5kW heater.
  3. 3Let the vapour pass through the condenser and collect oil and hydrosol.
  4. 4Separate the oil from the hydrosol and decant into a clean vessel.
  5. 5Clean the pot and condenser between botanicals to avoid carry-over of aroma.

Comparison With Other Machines

SpecificationEC30 / HEC30HEC10HEC50
MachineJasmine Essential Oil Extract Machine 30LPlant Essential Oil Extraction EquipmentLavender Essential Oil Extraction Machine
ModelEC30 jasmine essential oil extract machineHEC10HEC50
Power5.5KW (3 phase, 380v/50Hz)4kW11kW
Volume of distillation pot30L (according to demand of customers)——
Heating area of distillation pot0.33M²——

Where a value is not published for a machine it is shown as a dash. Sizes outside the published range are quoted per project.

Related Products

HEC10 plant essential oil extraction equipment with distillation pot, column and control panel Essential Oil Extraction Plant Essential Oil Extraction Equipment Model HEC10 A compact steam distillation plant with a 4kW heater, 0.3m2 heating area and 0.7m2 condensing area, occupying about 1.… View specifications → HEC50 lavender essential oil extraction machine with 50L distillation pot and condensing column Essential Oil Extraction Lavender Essential Oil Extraction Machine Model HEC50 The largest steam distillation plant in the range: a 50L pot with 11kW heating, 0.50m2 heating area, 0.85m2 condensing… View specifications → HEC20 citronella oil distillation plant with 20L pot, condensing column and control panel Essential Oil Extraction OEM ODM Pure Essential Citronella Oil Distillation Plant Model HEC20 A 20L steam distillation plant with 4.5kW heating, 0.4m2 heating area and 0.75m2 condensing area, supplied on an OEM a… View specifications → HSFE-5 supercritical CO2 extraction machine with 5L extraction kettle and control panel CO2 Supercritical Extraction Supercritical CO2 Cinnamon Oil Extraction Machine Model HSFE-5 A 5L supercritical fluid extraction system with one extractor and two separators, rated to 50MPa and up to 85°C, for s… View specifications →

Related Industry Applications

Industry Essential Oil and Aromatherapy Steam distillation plants from 10L to 50L for growers, distillers and aromatherapy brands.… Read more → Industry Food Flavour and Cosmetic Ingredients Solvent-free CO2 extraction and steam distillation for spice oleoresin, flavour and cosmetic ingredi… Read more →

Related Guides

Process Guide Steam Distillation for Essential Oil Production How a steam distillation plant turns flowers, leaves, wood and spice into essential oil and hydrosol… Read more → Buying Guide How to Choose the Right Extractor Size Turning a target output into a kettle volume: batch size, cycle time, yield and the two pieces of in… Read more →

FAQ

Questions About The EC30 / HEC30

What is the model number and main specification?
EC30 / HEC30. Power: 5.5KW (3 phase, 380v/50Hz); Volume of distillation pot: 30L (according to demand of customers); Heating area of distillation pot: 0.33M²
Can this machine be built in a different size?
Yes. Machines are supplied from 0.5L to 200L and a larger capacity machine can be customised according to your request.
How is the machine packed and installed?
In a plywood case. The machine is assembled and tested before packing, and installation service is provided.
Can you run a test with our raw material first?
Yes. An extraction test can be run with your raw material and videos and pictures of the test are sent to you for reference.
Which plants can be processed by steam distillation?
Flowers such as rose, lavender, ylang ylang, chamomile, neroli and geranium; plants such as rosemary, citronella and lemongrass; citrus such as lemon, orange, bergamot, grapefruit and lime; leaves such as eucalyptus, mugwort, patchouli, peppermint and pine needle; woods such as sandalwood, agarwood, cedarwood and wintergreen; resins such as frankincense and myrrh; and others including cinnamon, pepper, fennel and ginger.
Can the pot volume be changed?
Yes. The volume of the distillation pot is built according to the demand of the customer.
How many people are needed to operate the machine?
One person can operate the distillation plant. The layout and the control panel are arranged for single-operator running.

Next Step

Request A Quote For The EC30 / HEC30

Send your raw material and the production capacity you need per batch and a full specification comes back.

Send two things and a real specification comes back: the raw material you will process, and the production capacity you need per batch.
