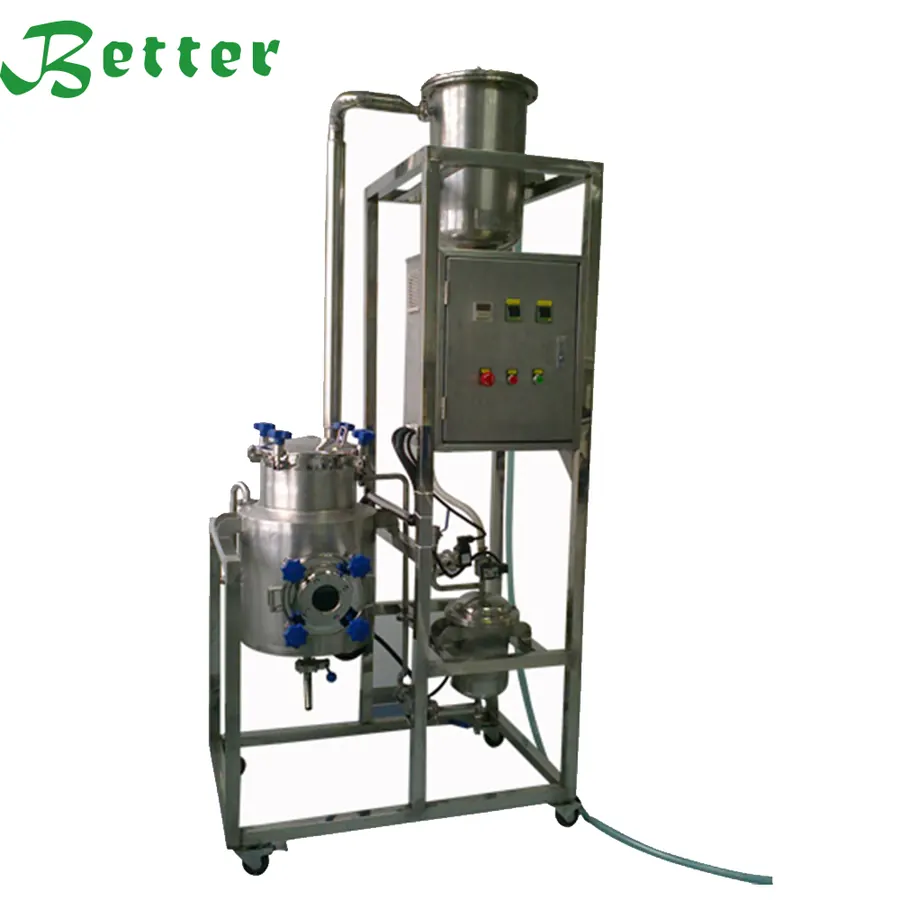

HEC20 citronella oil distillation plant with 20L pot, condensing column and control panel

Essential Oil Extraction

OEM ODM Pure Essential Citronella Oil Distillation Plant

Model HEC20

A 20L steam distillation plant with 4.5kW heating, 0.4m2 heating area and 0.75m2 condensing area, supplied on an OEM and ODM basis.

Model
HEC20
Power
4.5KW (3 phase, 380v/50Hz)
Volume of distillation pot
20L (according to demand of customers)
Heating area of distillation pot
0.4M²
Condensation area of condenser
0.75M²
Power of heater
4.5KW
Request A Quote Talk To An Engineer

Drawings and CAD files are not published for download. Ask by email and they are sent directly. Datasheet PDF available in the Download Center.

Product Overview

The BETTER HEC20 essential oil distilling equipment is used in the production of Chinese medicines, health products, biological drugs, cosmetics and food. It uses technology and chemical separation to extract plant components efficiently by steam distillation, and has a good effect on collecting essential oil from plants.

The HEC20 sits between the 10L and 30L plants and is the size most often chosen for grassy material such as citronella and lemongrass, where the charge is bulky but the oil content is high.

The plant is supplied on an OEM and ODM basis, and the volume of the distillation pot is built according to the demand of the customer.

Technical Features

  • 20L distillation pot, volume made to customer demand
  • 4.5kW heater, 3 phase 380V 50Hz
  • Heating area 0.4m², condensation area 0.75m²
  • Steam distillation for grassy, leafy and root material
  • OEM and ODM supply

Materials And Construction

Wetted parts on the supercritical CO2 systems are stainless steel throughout: pipe parts, valves and pipelines. Laboratory vessels are borosilicate glass 3.3, also known as GG-17. Pressure vessels are designed to the related national standard and rule demand and carry an overpressure protection system with sufficient safety valves.

Manufacturing And Quality Control

  • Every procedure and detail is inspected during production, which is why a supercritical CO2 machine takes about 60 workdays to build.
  • Pressure vessels are designed to the related national standard and rule demand, with an overpressure protection system and sufficient safety valves.
  • Machines are assembled and tested before packing, so what leaves the workshop is a machine that has already been run.
  • Pressure, temperature and flow are shown on pressure gauges and digital instruments so the operator can verify the process at any point.

Customization Options

Machines are supplied from 0.5L to 200L, and a larger capacity machine can be customised according to your request. On the distillation plants the volume of the pot is built according to the demand of the customer. Better Industry also provides customised turn-key solutions covering specific extraction process parameters, engineering design, equipment manufacturing and installation.

Key Benefits

OEM and ODM supply

The plant is built and supplied on an OEM and ODM basis.

Pot volume to order

20L is the standard, and the pot volume is made according to customer demand.

Balanced heat exchange

0.4m2 heating area against 0.75m2 of condensing area.

Mid-range footprint

Larger throughput than the 10L plant without the floor area of the 50L.

Use Guide

  1. 1Cut and load the citronella or lemongrass charge into the 20L pot.
  2. 2Heat the pot to distillation temperature with the 4.5kW heater.
  3. 3Pass the vapour through the condenser and collect the distillate.
  4. 4Separate the oil from the hydrosol in the collection vessel.
  5. 5Empty the spent grass and clean the pot before the next charge.

Comparison With Other Machines

SpecificationHEC20HEC10EC30 / HEC30
MachineOEM ODM Pure Essential Citronella Oil Distillation PlantPlant Essential Oil Extraction EquipmentJasmine Essential Oil Extract Machine 30L
ModelHEC20HEC10EC30 jasmine essential oil extract machine
Power4.5KW (3 phase, 380v/50Hz)4kW5.5KW (3 phase, 380v/50Hz)
Volume of distillation pot20L (according to demand of customers)—30L (according to demand of customers)
Heating area of distillation pot0.4M²—0.33M²

Where a value is not published for a machine it is shown as a dash. Sizes outside the published range are quoted per project.

Related Products

HEC10 plant essential oil extraction equipment with distillation pot, column and control panel Essential Oil Extraction Plant Essential Oil Extraction Equipment Model HEC10 A compact steam distillation plant with a 4kW heater, 0.3m2 heating area and 0.7m2 condensing area, occupying about 1.… View specifications → EC30 jasmine essential oil extraction machine with 30L distillation pot and condensing column Essential Oil Extraction Jasmine Essential Oil Extract Machine 30L Model EC30 / HEC30 A 30L steam distillation machine with 5.5kW heating, 0.33m2 heating area and 0.72m2 condensing area, built for jasmine… View specifications → HEC50 lavender essential oil extraction machine with 50L distillation pot and condensing column Essential Oil Extraction Lavender Essential Oil Extraction Machine Model HEC50 The largest steam distillation plant in the range: a 50L pot with 11kW heating, 0.50m2 heating area, 0.85m2 condensing… View specifications → HSFE-5 supercritical CO2 extraction machine with 5L extraction kettle and control panel CO2 Supercritical Extraction Supercritical CO2 Cinnamon Oil Extraction Machine Model HSFE-5 A 5L supercritical fluid extraction system with one extractor and two separators, rated to 50MPa and up to 85°C, for s… View specifications →

Related Industry Applications

Industry Essential Oil and Aromatherapy Steam distillation plants from 10L to 50L for growers, distillers and aromatherapy brands.… Read more → Industry Food Flavour and Cosmetic Ingredients Solvent-free CO2 extraction and steam distillation for spice oleoresin, flavour and cosmetic ingredi… Read more →

Related Guides

Process Guide Steam Distillation for Essential Oil Production How a steam distillation plant turns flowers, leaves, wood and spice into essential oil and hydrosol… Read more → Buying Guide How to Choose the Right Extractor Size Turning a target output into a kettle volume: batch size, cycle time, yield and the two pieces of in… Read more →

FAQ

Questions About The HEC20

What is the model number and main specification?
HEC20. Power: 4.5KW (3 phase, 380v/50Hz); Volume of distillation pot: 20L (according to demand of customers); Heating area of distillation pot: 0.4M²
Can this machine be built in a different size?
Yes. Machines are supplied from 0.5L to 200L and a larger capacity machine can be customised according to your request.
How is the machine packed and installed?
In a plywood case. The machine is assembled and tested before packing, and installation service is provided.
Can you run a test with our raw material first?
Yes. An extraction test can be run with your raw material and videos and pictures of the test are sent to you for reference.
Which plants can be processed by steam distillation?
Flowers such as rose, lavender, ylang ylang, chamomile, neroli and geranium; plants such as rosemary, citronella and lemongrass; citrus such as lemon, orange, bergamot, grapefruit and lime; leaves such as eucalyptus, mugwort, patchouli, peppermint and pine needle; woods such as sandalwood, agarwood, cedarwood and wintergreen; resins such as frankincense and myrrh; and others including cinnamon, pepper, fennel and ginger.
Can the pot volume be changed?
Yes. The volume of the distillation pot is built according to the demand of the customer.
How many people are needed to operate the machine?
One person can operate the distillation plant. The layout and the control panel are arranged for single-operator running.

Next Step

Request A Quote For The HEC20

Send your raw material and the production capacity you need per batch and a full specification comes back.

Send two things and a real specification comes back: the raw material you will process, and the production capacity you need per batch.
