Jacketed Glass Reactor with Oil Bath for Heating
Model HGR-50

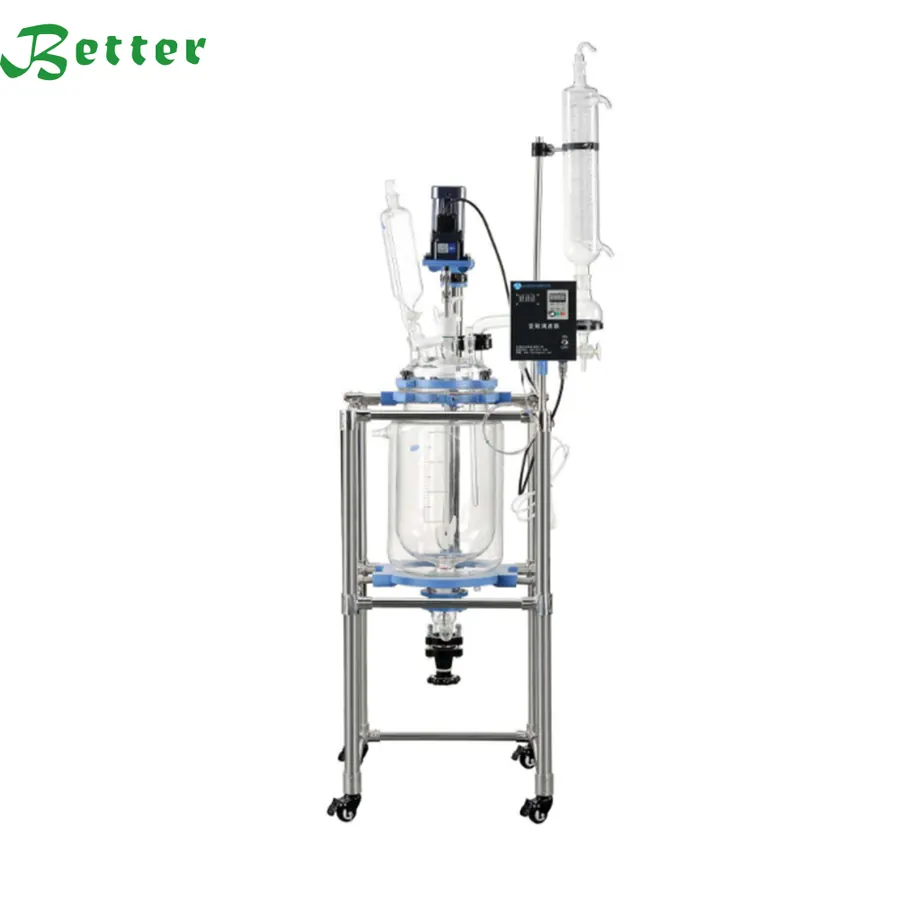

A 50L double-layer jacketed glass reactor in borosilicate 3.3 (GG-17), working from -60°C to 200°C with water or oil recycling in the jacket.
- Mode
- HGR-50
- Volume
- 50L
- Motor
- AC Motor
- Heating type
- Water or oil recycling
- Working temperature
- -60 to 200°C
- Glass material
- Borosilicate Glass 3.3 (GG-17)
Drawings and CAD files are not published for download. Ask by email and they are sent directly. Datasheet PDF available in the Download Center.
Product Overview
The lab jacketed chemical stirred glass reactor is designed as double-level glass. The reaction material is put into the inner vessel, where it can be stirred. In the interbed, different cold and hot media are circulated, which may be refrigerating fluid, hot water or hot oil, to carry out the heating and cooling of the reaction.
Under constant temperature, at ordinary pressure as well as negative pressure, the stirring reaction can be carried out in the sealed glass reactor, and back-flow and distillation can also be run in the same unit.
The working range is -60°C to 200°C and the glass is borosilicate 3.3, also known as GG-17, which is the standard specification for laboratory reactor glassware.
Technical Features
- Double-level jacketed glass construction
- 50L inner vessel volume
- AC motor stirring
- Water or oil recycling through the jacket
- Working temperature -60 to 200°C
- Borosilicate glass 3.3 (GG-17)
Materials And Construction
Wetted parts on the supercritical CO2 systems are stainless steel throughout: pipe parts, valves and pipelines. Laboratory vessels are borosilicate glass 3.3, also known as GG-17. Pressure vessels are designed to the related national standard and rule demand and carry an overpressure protection system with sufficient safety valves.
Manufacturing And Quality Control
- Every procedure and detail is inspected during production, which is why a supercritical CO2 machine takes about 60 workdays to build.
- Pressure vessels are designed to the related national standard and rule demand, with an overpressure protection system and sufficient safety valves.
- Machines are assembled and tested before packing, so what leaves the workshop is a machine that has already been run.
- Pressure, temperature and flow are shown on pressure gauges and digital instruments so the operator can verify the process at any point.
Customization Options
Machines are supplied from 0.5L to 200L, and a larger capacity machine can be customised according to your request. On the distillation plants the volume of the pot is built according to the demand of the customer. Better Industry also provides customised turn-key solutions covering specific extraction process parameters, engineering design, equipment manufacturing and installation.
Key Benefits
One vessel, three jobs
Stirred reaction, reflux and distillation are all run in the same reactor.
-60°C to 200°C
The jacket takes refrigerating fluid, hot water or hot oil for the full range.
Sealed for vacuum work
Reactions can be run at ordinary pressure or under negative pressure.
Borosilicate 3.3 glass
GG-17 glass for chemical and thermal resistance, and full visibility of the batch.
Use Guide
- 1Charge the reaction material into the inner vessel and seal the reactor.
- 2Set the circulating medium in the jacket: refrigerating fluid for cooling, hot water or hot oil for heating.
- 3Start the AC stirrer motor and bring the batch to the set temperature.
- 4Run the reaction at constant temperature, under ordinary or negative pressure as required.
- 5Switch to reflux or distillation in the same vessel, then discharge and clean.
Comparison With Other Machines
| Specification | HGR-50 |
|---|---|
| Machine | Jacketed Glass Reactor with Oil Bath for Heating |
| Mode | HGR-50 |
| Volume | 50L |
| Motor | AC Motor |
| Heating type | Water or oil recycling |
Where a value is not published for a machine it is shown as a dash. Sizes outside the published range are quoted per project.
