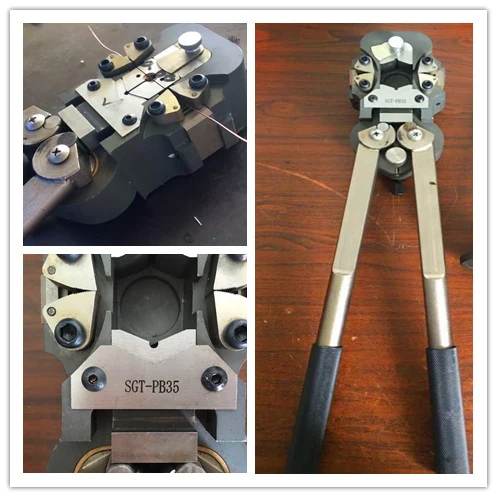

PB35 Portable Cold Welder for 0.35-1.30 mm Wire
The PB35 takes the portable format as far as it goes. The body is aluminium alloy, weight 3.5 kg, envelope 230 × 165 × 200 mm, and it welds copper wire from 0.35 mm to 1.30 mm and aluminium from 0.35 mm to 1.50 mm. It is packed in a strong carry case.
Specifications
- Portable cold pressure welding machine ModelPB35
- Materialaluminum alloy body.
- Copper wire0.35mm-1.30mm
- Aluminium wire0.35mm-1.50mm
- DimensionL230mm*W165mm*H200mm
- Net weight3.5kgs
- Packagepacked in strong carry case.
Key Benefits
What This Model Gives You
1.30 mm Copper by Hand
The top of the hand-held range, covering the sizes most intermediate drawing runs.
Aluminium Alloy Body
Stiffness at 3.5 kg rather than the weight a cast iron frame would need.
Same Range as a DB30
Portable access to the wire sizes a 13 kg bench welder covers.
Carry Case Supplied
Machine and dies travel together.
Application Scenarios
Where It Is Used
- Intermediate copper and aluminium drawing
- Bunching and stranding
- Field and maintenance work
- Enamelled wire in larger sizes
Industries
Problems It Solves
Why Buyers Specify It
- A 1.3 mm joint normally means walking the coil to a bench machine
- A cast iron portable at this range would be too heavy to hold
- Two machines are needed if the portable stops at 0.90 mm
Compared With Other Models
The PA30 covers 0.30-0.90 mm at 1.30 kg in cast stainless steel. The PB35 carries the range to 1.30 mm copper in aluminium alloy at 3.5 kg. The DB30 covers the same wire range as a 13 kg bench machine with double cavity dies.
Use Guide
How It Is Set Up and Run
- Fit the die set cut for the wire diameter.
- Trim both ends square and load with equal protrusion.
- Close the handles fully through the stroke.
- Shear the flash and pull-test the joint.
Customisation and Supply
What Is Built to Order
Dies to Your Wire
Dies are manufactured for wire between 0.10 mm and 25.0 mm to suit round or profile wire and rod, to the customer's own specification, at -1% / +2% of the wire diameter.
Your Electrical Supply
On the motorised and hydraulic machines, operating voltage is built to the industrial supply of the destination country. State voltage, phase and frequency with the order.
Export Packing
Machines are packed in a strong wooden or plywood case as stated per model. Carry cases are supplied with the portable welders and the DA10.
Related Articles
Background Reading
Related Products
Others in Cold Welding Machines
Cold Welding Machines
DA10 Desk Cold Welder for 0.10-0.50 mm Copper
The bench-mounted DA10 build at 3.5 kg, for fine copper and aluminium wire from 0.10 mm.
View specifications
Cold Welding Machines
DB100 Desk Cold Welder for 1.00-4.00 mm Copper
Bench or trolley mounted, copper 0.90-4.00 mm and aluminium 1.00-5.50 mm on a 36 kg ductile cast iron frame.
View specificationsFAQ
PB35 Portable Cold Welder for 0.35-1.30 mm Wire Questions
What wire range does it cover
Copper wire 0.35 mm to 1.30 mm and aluminium wire 0.35 mm to 1.50 mm.
What is the body material
Aluminium alloy.
What does it weigh
3.5 kg, at L230 × W165 × H200 mm.
How is it packed
In a strong carry case.
Quote the PB35 Portable Cold Welder for 0.35-1.30 mm Wire
Give the wire material, the diameter and the country the machine will run in, and the quote comes back with the die set and the voltage build already decided.
