Product Overview

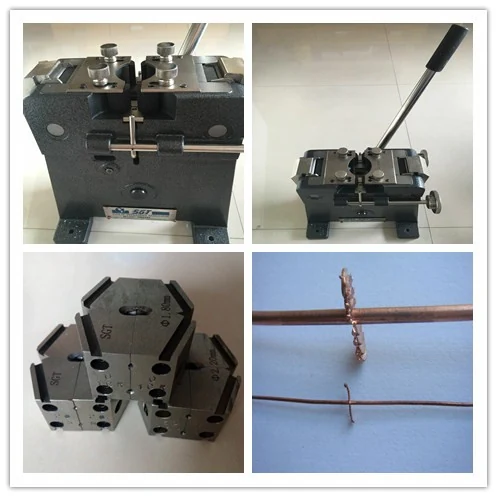

DB100 Desk Cold Welder for 1.00-4.00 mm Copper
The DB100 is the largest hand-operated desk welder before the hydraulic range starts. It covers copper from 0.90 mm to 4.00 mm and aluminium from 1.00 mm to 5.50 mm, with double cavity dies available up to 2.50 mm, and can be bench or trolley mounted for ease of movement.
Specifications
- Desk cold welder ModelDB100
- Materialductile cast iron.
- Copper wire0.90mm-4.00mm Aluminum wire: 1.00mm-5.50mm
- DimensionL310mm*W190mm*H310mm
- Net weight36.0kgs
Key Benefits
What This Model Gives You
4.00 mm Copper Without Hydraulics
The top of the hand-operated range, which covers most intermediate drawing without a hydraulic press.
Double Cavity to 2.50 mm
Two cavities in one die doubles the life before regrind on the sizes that run most.
Bench or Trolley
Mount it where the breaks happen and move it when the line changes.
36 kg of Ductile Cast Iron
Enough mass to take a 4 mm copper upset without the frame opening.
Application Scenarios
Where It Is Used
- Intermediate copper and aluminium drawing
- Stranding and bunching feed
- Cable conductor preparation
- Winding wire in larger sections
Industries
Problems It Solves
Why Buyers Specify It
- A 4 mm copper joint is beyond a portable welder
- A fixed bench machine is in the wrong place half the time
- Single cavity dies wear out on the sizes that run all day
Compared With Other Models
The DA100 covers copper 1.00-3.25 mm on a 37 kg cast steel frame. The DB100 extends the copper range to 4.00 mm and the aluminium range to 5.50 mm in ductile cast iron. The DJ100 goes further again, to 4.50 mm copper on an 80 kg frame with larger dies.
Use Guide
How It Is Set Up and Run
- Mount on a bench or trolley at working height.
- Fit single cavity dies, or double cavity for wire up to 2.50 mm.
- Trim both ends square and load with equal protrusion.
- Close the lever fully, shear the flash and pull-test the joint.
Customisation and Supply
What Is Built to Order
Dies to Your Wire
Dies are manufactured for wire between 0.10 mm and 25.0 mm to suit round or profile wire and rod, to the customer's own specification, at -1% / +2% of the wire diameter.
Your Electrical Supply
On the motorised and hydraulic machines, operating voltage is built to the industrial supply of the destination country. State voltage, phase and frequency with the order.
Export Packing
Machines are packed in a strong wooden or plywood case as stated per model. Carry cases are supplied with the portable welders and the DA10.
Related Articles
Background Reading
Related Products
Others in Cold Welding Machines
Cold Welding Machines
DA10 Desk Cold Welder for 0.10-0.50 mm Copper
The bench-mounted DA10 build at 3.5 kg, for fine copper and aluminium wire from 0.10 mm.
View specifications
Cold Welding Machines
DB30 Desk Cold Welder for 0.35-1.30 mm Copper
Double cavity dies as standard, copper 0.35-1.30 mm and aluminium 0.30-1.40 mm at 13 kg.
View specificationsFAQ
DB100 Desk Cold Welder for 1.00-4.00 mm Copper Questions
What is the welding range
Copper wire 0.90 mm to 4.00 mm and aluminium wire 1.00 mm to 5.50 mm.
Are double cavity dies available
Yes, up to 2.50 mm.
Can it be moved around the plant
Yes. It can be bench or trolley mounted for ease of movement.
What are the dimensions
L310 × W190 × H310 mm, 36.0 kg net, ductile cast iron.
Quote the DB100 Desk Cold Welder for 1.00-4.00 mm Copper
Give the wire material, the diameter and the country the machine will run in, and the quote comes back with the die set and the voltage build already decided.
