Wire Pointing Machines

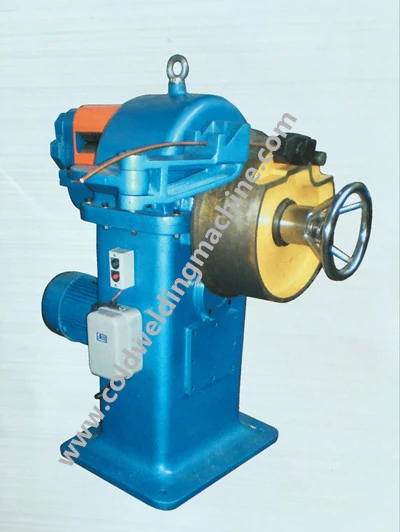

SGT450 Copper Rod Pointing Machine for 8.0 mm Rod
Points 8.0 mm copper rod and 13.0 mm aluminium rod down to a φ1.00 mm outlet on a 450 mm block.
View specifications
Wire Pointing Machines for Drawing Lines and Rod Breakdown
Conical points rather than triangular, on wire from φ3.55 mm down to φ0.66 mm and on 8.0 mm copper rod.
2 products
The Full Wire Pointing Machines Range
Wire Pointing Machines
SGT170 Wire Pointing Machine for Intermediate Drawing
Conical points from φ3.55 mm in to φ0.66 mm out, on eight grooves with nitrided 38CrMoAl rolls.
View specificationsThe Problem
What This Category Is For
A badly pointed wire breaks in the die on the first pull, and a triangular point is the usual reason. A rolled conical point threads the die and survives the draw, which is the difference between one restart and a shift of them.
Who It Suits
- Intermediate wire drawing lines
- Rod breakdown mills handling 8.0 mm copper rod and 13.0 mm aluminium rod
- Plants threading new coils several times a shift
- Any drawing line where point failure is the common restart
Industries
Core Advantages
Why These Machines Are Specified
Conical Not Triangular
The point is conical after rolling, so the wire is not drawn broken while the die takes it.
Two Frame Sizes
SGT170 for intermediate drawing from φ3.55 mm to φ0.66 mm, SGT450 for 8.0 mm copper rod and 13.0 mm aluminium rod.
Nitrided Rolls
Roll material is 38CrMoAl subjected to deep nitriding, so the rolls resist abrasion and stay in service.
Small Footprint
Compact configuration with eight grooves for wire on the SGT170, so it fits beside the block.
Solutions
Where This Category Fits in the Line
Solution
Continuous Drawing Without Breaks
A break is unavoidable. What is avoidable is threading the whole line again.
See the workflowRelated Categories
Other Equipment for the Same Plant
Cold Welding Machines
Hand-held and bench machines that join non-ferrous wire by pressure alone, from 0.05 mm hair-fine wire up to 4.50 mm copper.
Hydraulic Pressure Welders
The CHY series covers copper from 1.00 mm to 20.00 mm and aluminium to 25.00 mm, including rectangular strip.
Cold Welding Dies
Industry-standard dies for wire from 0.10 mm to 25.0 mm, single or double cavity, round or profile.
Diamond Drawing Dies
Drawing and stranding dies from 0.015 mm to 40.00 mm, chosen by wear rate rather than by price per die.
FAQ
Wire Pointing Machines Questions
q
a
q
a
q
a
q
a
Send the Wire Size and the Country
Quotes for wire pointing machines are built around the wire diameter, the section and the electrical supply where the machine will run.
