Product Overview

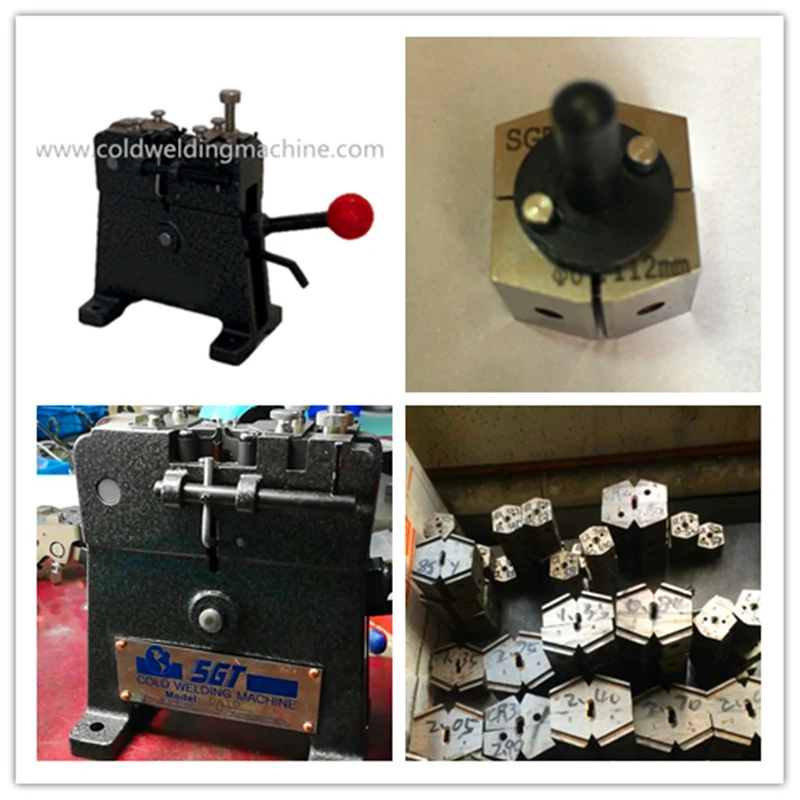

DA10 Desk Cold Welder for 0.10-0.50 mm Copper
This is the desk build of the DA10: same 0.10-0.50 mm range in copper and aluminium, same ductile cast iron body and 255 × 65 × 145 mm envelope, at a 3.5 kg net weight. It is the version to specify when the welder will live in one place on the bench and be used many times a shift.
Specifications
- Desk cold welder ModelDA10
- Materialductile cast iron
- CapacitiesCopper/Aluminum wire: 0.10mm-0.50mm
- DimensionL255mm*W65mm*H145mm
- Net Weight3.5kg
Key Benefits
What This Model Gives You
Bench Duty Build
A slightly heavier 3.5 kg body for a machine that stays clamped to one bench.
Industry Standard Dies
Takes the standard fine-wire die family, so cavities are available for any size in the range.
Narrow Footprint
65 mm wide, which is why it fits between two blocks on a crowded drawing frame.
Carry Case Supplied
Still shipped with a case, so it can be moved when the line layout changes.
Application Scenarios
Where It Is Used
- Fine wire drawing frames
- Enamelled wire take-up and pay-off
- Bunching and twisting machines
- Wire sample preparation
Industries
Problems It Solves
Why Buyers Specify It
- A break on fine wire wastes more time in threading than in welding
- Portable welders get lost on a large shop floor
- Heat joining a 0.1 mm wire usually destroys it
Compared With Other Models
Functionally identical range to the DA10 table version at 3.3 kg. Below 0.10 mm use the PW10 hand-held welder, which starts at 0.05 mm. Above 0.50 mm move to the PA30 or DA30.
Use Guide
How It Is Set Up and Run
- Clamp the welder to the bench at working height.
- Fit the die cut for the wire size.
- Trim both wire ends square and load with equal protrusion.
- Close fully, shear the flash, and pull-test the joint.
Customisation and Supply
What Is Built to Order
Dies to Your Wire
Dies are manufactured for wire between 0.10 mm and 25.0 mm to suit round or profile wire and rod, to the customer's own specification, at -1% / +2% of the wire diameter.
Your Electrical Supply
On the motorised and hydraulic machines, operating voltage is built to the industrial supply of the destination country. State voltage, phase and frequency with the order.
Export Packing
Machines are packed in a strong wooden or plywood case as stated per model. Carry cases are supplied with the portable welders and the DA10.
Related Articles
Background Reading
Related Products
Others in Cold Welding Machines
Cold Welding Machines
DB100 Desk Cold Welder for 1.00-4.00 mm Copper
Bench or trolley mounted, copper 0.90-4.00 mm and aluminium 1.00-5.50 mm on a 36 kg ductile cast iron frame.
View specifications
Cold Welding Machines
DB30 Desk Cold Welder for 0.35-1.30 mm Copper
Double cavity dies as standard, copper 0.35-1.30 mm and aluminium 0.30-1.40 mm at 13 kg.
View specificationsFAQ
DA10 Desk Cold Welder for 0.10-0.50 mm Copper Questions
How does it differ from the table DA10
Same 0.10-0.50 mm range, same body material and dimensions; this build is listed at 3.5 kg net rather than 3.3 kg.
Does it need power
No. It is hand-operated.
Can it be trolley mounted
It is a desk machine and is normally bench mounted. For a trolley-mounted machine in a larger range, see the DB30 and DB100.
What dies does it take
Industry standard fine-wire dies cut for the wire diameter between 0.10 mm and 0.50 mm.
Quote the DA10 Desk Cold Welder for 0.10-0.50 mm Copper
Give the wire material, the diameter and the country the machine will run in, and the quote comes back with the die set and the voltage build already decided.
