Product Overview

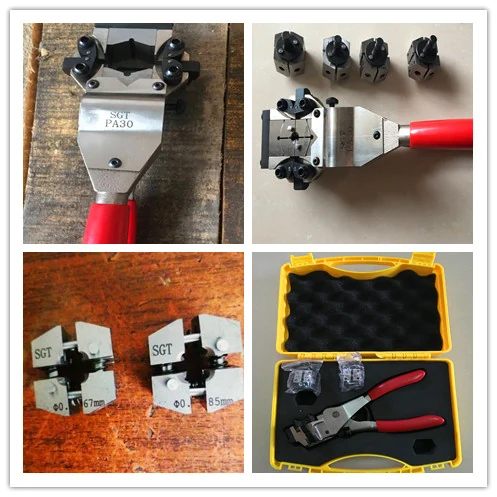

PA30 Portable Cold Welder for 0.30-0.90 mm Wire
The PA30 is a hand-held cold pressure welding machine in cast stainless steel, weighing 1.30 kg and measuring 245 × 85 × 85 mm. It welds copper and aluminium wire from 0.30 mm to 0.90 mm and is packed in a strong carry case — the industry-standard light welder for use in a narrow space.
Specifications
- Portable cold pressure welding machine ModelPA30
- Materialcast stainless steel.
- Copper wire0.30mm-0.90mm
- Aluminium wire0.30mm-0.90mm
- DimensionL245mm*W85mm*H85mm
- Net weight1.30kgs
- Packagepacked in strong carry case.
Key Benefits
What This Model Gives You
1.30 kg in the Hand
Light enough to hold at the block for as many joints as the shift needs.
Cast Stainless Steel
Corrosion-free in a drawing hall with soap and lubricant everywhere.
Carry Case Supplied
Packed in a strong carry case, so the dies travel with the machine.
Narrow Space Access
85 mm across, which is what lets it reach between machines.
Application Scenarios
Where It Is Used
- Fine copper and aluminium wire drawing
- Enamelled wire lines
- Bunching and twisting
- Maintenance work between machines
Industries
Problems It Solves
Why Buyers Specify It
- A bench welder is never where the break is
- A steel-bodied welder corrodes in a wet drawing hall
- Loose dies get lost without a case
Compared With Other Models
The PB10 covers 0.12-0.50 mm at 160 mm long. The PA30 takes the next band, 0.30-0.90 mm. The PB35 runs 0.35-1.30 mm in aluminium alloy at 3.5 kg. The PW10 is the finest at 0.05-0.50 mm and 820 g.
Use Guide
How It Is Set Up and Run
- Fit the SD2 double cavity die set for the wire size.
- Trim both wire ends square.
- Load with equal protrusion and close the handles fully.
- Shear the flash and pull-test the joint by hand.
Customisation and Supply
What Is Built to Order
Dies to Your Wire
Dies are manufactured for wire between 0.10 mm and 25.0 mm to suit round or profile wire and rod, to the customer's own specification, at -1% / +2% of the wire diameter.
Your Electrical Supply
On the motorised and hydraulic machines, operating voltage is built to the industrial supply of the destination country. State voltage, phase and frequency with the order.
Export Packing
Machines are packed in a strong wooden or plywood case as stated per model. Carry cases are supplied with the portable welders and the DA10.
Related Articles
Background Reading
Related Products
Others in Cold Welding Machines
Cold Welding Machines
DA10 Desk Cold Welder for 0.10-0.50 mm Copper
The bench-mounted DA10 build at 3.5 kg, for fine copper and aluminium wire from 0.10 mm.
View specifications
Cold Welding Machines
DB100 Desk Cold Welder for 1.00-4.00 mm Copper
Bench or trolley mounted, copper 0.90-4.00 mm and aluminium 1.00-5.50 mm on a 36 kg ductile cast iron frame.
View specificationsFAQ
PA30 Portable Cold Welder for 0.30-0.90 mm Wire Questions
What wire range does it cover
Copper wire 0.30 mm to 0.90 mm and aluminium wire 0.30 mm to 0.90 mm.
What is the body material
Cast stainless steel.
What does it weigh
1.30 kg, at L245 × W85 × H85 mm.
Which dies does it take
SD2 double cavity welding dies, which are matched to PA30, DA30 and DB30 machines.
Quote the PA30 Portable Cold Welder for 0.30-0.90 mm Wire
Give the wire material, the diameter and the country the machine will run in, and the quote comes back with the die set and the voltage build already decided.
