Product Overview

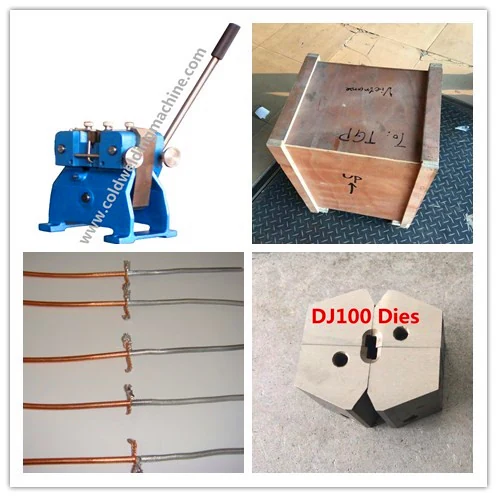

DJ100 Desk Cold Welder for 1.00-4.50 mm Copper
The DJ100 takes the hand-operated desk format as far as it goes: copper wire from 1.00 mm to 4.50 mm and aluminium from 1.00 mm to 6.00 mm, in a ductile cast iron body at 80 kg. Its dies are larger than DB100 dies, which is what lets the same format carry the extra section.
Specifications
- Desk cold pressure welding machine ModelDJ100
- Materialductile cast ion body
- Copper wire1.00mm-4.50mm
- Aluminium wire1.00mm-6.00mm
- DimensionL370mm*W200mm*H380mm
- Net weight80kgs
- Packagepacked in strong plywood case.
Key Benefits
What This Model Gives You
4.50 mm Copper 6.00 mm Aluminium
The top of the non-hydraulic range, covering sections that would otherwise need a CHY100.
Larger Dies Than DB100
A bigger die body spreads the load, which is how the frame handles the larger upset.
80 kg of Frame
Mass that keeps die alignment under a 4.5 mm copper upset.
Plywood Case Export Packing
Packed in a strong plywood case, so an 80 kg machine arrives intact.
Application Scenarios
Where It Is Used
- Intermediate and coarse copper drawing
- Aluminium conductor to 6 mm
- Stranding and cabling feed
- Plants not ready for a hydraulic press
Industries
Problems It Solves
Why Buyers Specify It
- The gap between a 4 mm desk welder and a 130 kg hydraulic machine
- Standard desk dies are too small to carry a 4.5 mm upset
- An unboxed heavy machine arrives damaged
Compared With Other Models
The DB100 covers copper to 4.00 mm at 36 kg. The DJ100 carries it to 4.50 mm at 80 kg with bigger dies. Above that the CHY100 hydraulic welder takes over at 1.00-4.00 mm copper with 130 kg and a 0.75 kW motor.
Use Guide
How It Is Set Up and Run
- Bolt the machine to a bench that will carry 80 kg.
- Fit the DJ100 die set cut for the wire diameter.
- Trim both ends square and load with equal protrusion.
- Close fully, shear the flash and pull-test.
Customisation and Supply
What Is Built to Order
Dies to Your Wire
Dies are manufactured for wire between 0.10 mm and 25.0 mm to suit round or profile wire and rod, to the customer's own specification, at -1% / +2% of the wire diameter.
Your Electrical Supply
On the motorised and hydraulic machines, operating voltage is built to the industrial supply of the destination country. State voltage, phase and frequency with the order.
Export Packing
Machines are packed in a strong wooden or plywood case as stated per model. Carry cases are supplied with the portable welders and the DA10.
Related Articles
Background Reading
Related Products
Others in Cold Welding Machines
Cold Welding Machines
DA10 Desk Cold Welder for 0.10-0.50 mm Copper
The bench-mounted DA10 build at 3.5 kg, for fine copper and aluminium wire from 0.10 mm.
View specifications
Cold Welding Machines
DB100 Desk Cold Welder for 1.00-4.00 mm Copper
Bench or trolley mounted, copper 0.90-4.00 mm and aluminium 1.00-5.50 mm on a 36 kg ductile cast iron frame.
View specificationsFAQ
DJ100 Desk Cold Welder for 1.00-4.50 mm Copper Questions
What is the welding range
Copper wire 1.00 mm to 4.50 mm and aluminium wire 1.00 mm to 6.00 mm.
Are DJ100 dies the same as DB100 dies
No. The DJ100 dies are bigger than the DB100 dies.
What does it weigh
80 kg net, L370 × W200 × H380 mm.
How is it packed
In a strong plywood case.
Quote the DJ100 Desk Cold Welder for 1.00-4.50 mm Copper
Give the wire material, the diameter and the country the machine will run in, and the quote comes back with the die set and the voltage build already decided.
