Product Overview

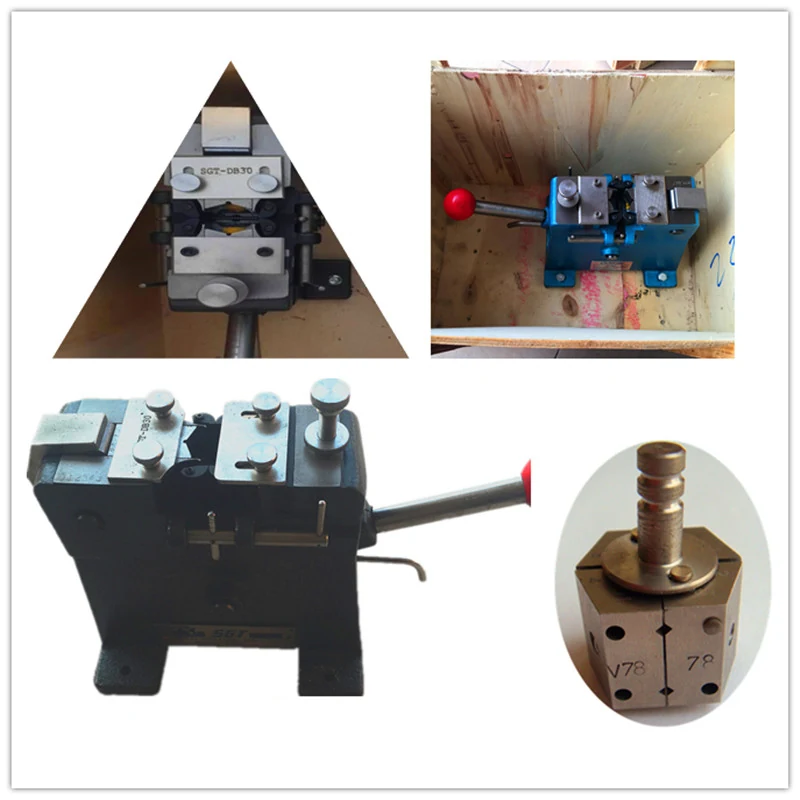

DB30 Desk Cold Welder for 0.35-1.30 mm Copper
The DB30 is the workhorse desk welder for the sizes a drawing hall runs most. It handles copper from 0.35 mm to 1.30 mm and aluminium from 0.30 mm to 1.40 mm, is built in ductile cast iron at 13 kg, and can be bench or trolley mounted. The dies available for it are double cavity.
Specifications
- Desk cold welder ModelDB30
- Materialductile cast iron.
- Copper wire0.35mm-1.30mm Aluminum wire: 0.30mm-1.40mm
- DimensionL250mm*W70mm*H155mm
- Net weight13.0kgs
Key Benefits
What This Model Gives You
Double Cavity as Standard
Two cavities per die set, so the die runs twice as long before it has to come out.
Bench or Trolley Mounted
13 kg is light enough to move and heavy enough to stay put while welding.
Covers the Busiest Sizes
0.35-1.30 mm copper is where most intermediate and fine drawing actually runs.
Ductile Cast Iron
Takes the closing force repeatedly without the frame taking a set.
Application Scenarios
Where It Is Used
- Intermediate wire drawing
- Bunching and stranding
- Enamelled wire lines
- Cable conductor preparation
Industries
Problems It Solves
Why Buyers Specify It
- Single cavity dies on the busiest wire size wear out fastest
- A bench-only welder is always on the wrong side of the hall
- Portable welders top out at 1.30 mm and are slower per joint
Compared With Other Models
The DB30 and the DA30 cover almost the same wire range; the DA30 is a 10 kg cast steel machine, the DB30 a 13 kg ductile cast iron machine with double cavity dies. The PB35 is the portable equivalent at 3.5 kg in aluminium alloy.
Use Guide
How It Is Set Up and Run
- Mount on a bench or trolley at working height.
- Fit the SD2 double cavity die set cut for the wire size.
- Trim both ends square and load with equal protrusion.
- Close fully, shear the flash, and pull-test.
Customisation and Supply
What Is Built to Order
Dies to Your Wire
Dies are manufactured for wire between 0.10 mm and 25.0 mm to suit round or profile wire and rod, to the customer's own specification, at -1% / +2% of the wire diameter.
Your Electrical Supply
On the motorised and hydraulic machines, operating voltage is built to the industrial supply of the destination country. State voltage, phase and frequency with the order.
Export Packing
Machines are packed in a strong wooden or plywood case as stated per model. Carry cases are supplied with the portable welders and the DA10.
Related Articles
Background Reading
Related Products
Others in Cold Welding Machines
Cold Welding Machines
DA10 Desk Cold Welder for 0.10-0.50 mm Copper
The bench-mounted DA10 build at 3.5 kg, for fine copper and aluminium wire from 0.10 mm.
View specifications
Cold Welding Machines
DB100 Desk Cold Welder for 1.00-4.00 mm Copper
Bench or trolley mounted, copper 0.90-4.00 mm and aluminium 1.00-5.50 mm on a 36 kg ductile cast iron frame.
View specificationsFAQ
DB30 Desk Cold Welder for 0.35-1.30 mm Copper Questions
What range does it weld
Copper wire 0.35 mm to 1.30 mm and aluminium wire 0.30 mm to 1.40 mm.
Are the dies single or double cavity
The welding dies available for the DB30 are double cavity.
Can it be trolley mounted
Yes, bench or trolley mounted for ease of movement.
What are the dimensions
L250 × W70 × H155 mm, 13.0 kg net.
Quote the DB30 Desk Cold Welder for 0.35-1.30 mm Copper
Give the wire material, the diameter and the country the machine will run in, and the quote comes back with the die set and the voltage build already decided.
