CHY800 Hydraulic Pressure Welding Machine
The largest frame in the range — copper rod 8.00-20.00 mm and aluminium rod 8.00-25.00 mm.
Product Overview

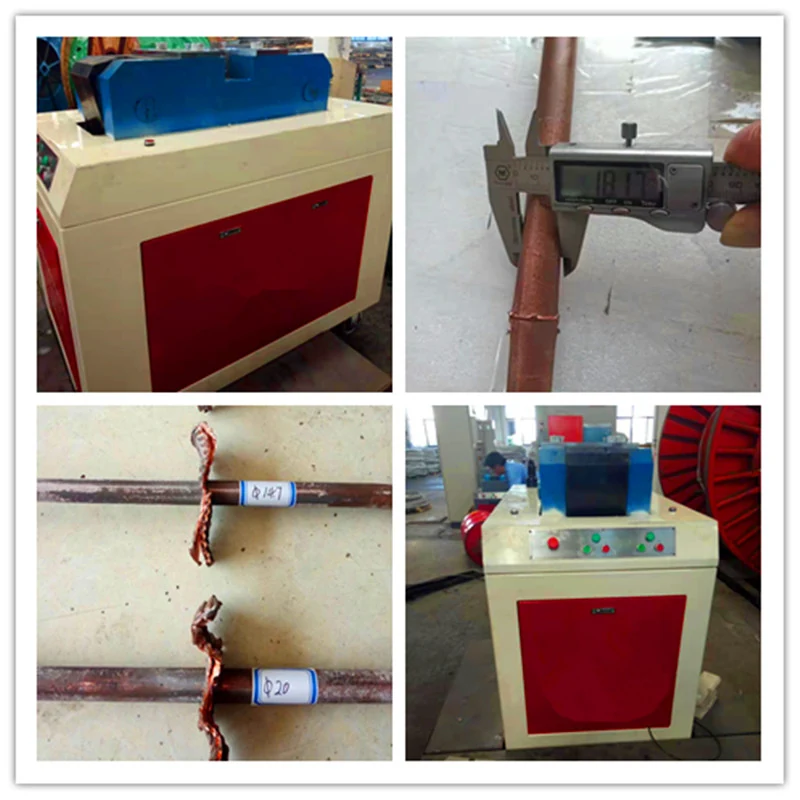

CHY800 Hydraulic Pressure Welding Machine
The CHY800 is a two-part machine: a 2000 kg press and a 300 kg power pack, together covering pure copper rod from 8.00 mm to 20.00 mm and pure aluminium rod from 8.00 mm to 25.00 mm. It is the machine for the top of the rod range, where nothing smaller will upset the section.
Specifications
- Hydraulic pressure welding machine ModelCHY800
- Pure copper rod8.00mm-20.00mm
- Pure aluminium rod8.00mm-25.00mm
- DimensionL1300mm*W1000mm*H1300mm + L800mm*W1000mm*H1300mm
- Net weight2000kgs+ 300kgs
Key Benefits
What This Model Gives You
20 mm Copper 25 mm Aluminium
The widest sections in the SGT cold welding programme.
Separate Power Pack
The 300 kg pack sits away from the press, which keeps heat and noise off the operator and simplifies siting.
2000 kg Press
The mass needed to hold die alignment on a 25 mm aluminium rod.
Solid Phase at Rod Scale
No heat, no flux and no filler even at 25 mm, so the rod is not annealed either side of the joint.
Application Scenarios
Where It Is Used
- Copper rod breakdown at 20 mm
- Aluminium rod to 25 mm
- Continuous casting and rolling lines
- Heavy conductor and busbar production
Industries
Problems It Solves
Why Buyers Specify It
- Sections above 20 mm aluminium leave the CHY700 range behind
- A single-block machine of this capacity is difficult to site
- Resistance welding a 25 mm rod anneals a long heat-affected zone
Compared With Other Models
The CHY700 and CHY700-B stop at 13.00 mm copper and 25.00 mm aluminium in a single frame. The CHY800 starts at 8.00 mm and runs rod to 20.00 mm copper, and splits the machine into press and power pack rather than one block.
Use Guide
How It Is Set Up and Run
- Site the press and the power pack with the hydraulic run between them.
- Fit the die pair cut for the rod section.
- Load both rod ends into the cavity.
- Cycle the press, shear the flash, and pull-test before returning the line to production.
Customisation and Supply
What Is Built to Order
Dies to Your Wire
Dies are manufactured for wire between 0.10 mm and 25.0 mm to suit round or profile wire and rod, to the customer's own specification, at -1% / +2% of the wire diameter.
Your Electrical Supply
On the motorised and hydraulic machines, operating voltage is built to the industrial supply of the destination country. State voltage, phase and frequency with the order.
Export Packing
Machines are packed in a strong wooden or plywood case as stated per model. Carry cases are supplied with the portable welders and the DA10.
Related Articles
Background Reading
Related Products
Others in Hydraulic Pressure Welders
Hydraulic Pressure Welders
CHY200-B Hydraulic Pressure Welding Machine
Copper 2.00-6.00 mm and aluminium 2.00-8.00 mm on a 380 kg frame with a 1.5 kW motor.
View specifications
Hydraulic Pressure Welders
CHY400-B Hydraulic Pressure Welding Machine
Copper 4.00-9.00 mm and aluminium 4.00-12.00 mm, supplied 3P 380 V 50 Hz on a 760 kg frame.
View specificationsFAQ
CHY800 Hydraulic Pressure Welding Machine Questions
What sections does it cover
Pure copper rod 8.00 mm to 20.00 mm and pure aluminium rod 8.00 mm to 25.00 mm. Other sections such as rectangular wire are subject to evaluation.
Is it one machine or two
Two units: a press at L1300 × W1000 × H1300 mm and 2000 kg, plus a power pack at L800 × W1000 × H1300 mm and 300 kg.
What motor power and pressure
TBC — motor rating and working pressure are not published for this model; they are confirmed against the section on quotation.
What dies does it use
Dies are cut for the rod section being welded. Send the material and diameter with the enquiry.
Quote the CHY800 Hydraulic Pressure Welding Machine
Give the wire material, the diameter and the country the machine will run in, and the quote comes back with the die set and the voltage build already decided.
