Product Overview

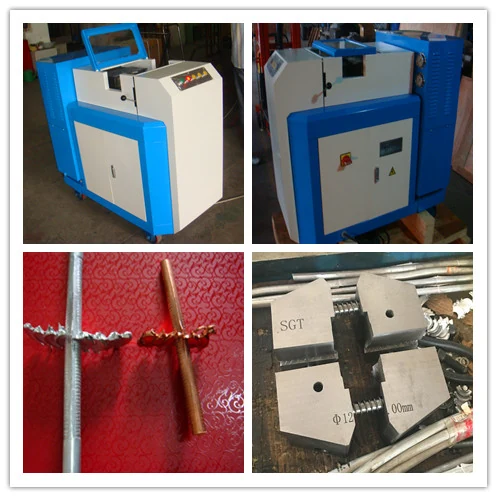

CHY400 Hydraulic Cold Welder for 8.0 mm Copper Rod
The CHY400 is the machine a rod breakdown mill reaches for when the section has outgrown a bench welder. It is designed for rectangular strip as well as wire, runs on a 5.5 kW motor at 6.5 MPa working pressure, and is built heavy enough at 660 kg that the dies stay square while the metal upsets.
Specifications
- Hydraulic pressure welding machine ModelCHY400
- Copper wire4.00mm-8.00mm
- Aluminium wire4.00mm-15.00mm
- DimensionL1200mm*W580mm*H1100mm
- Net weight660kgs
- Motor power5.5KW
- Working pressure6.5MPa
- Oil temperature≦75°C
- Operating voltagecusotmized the customer's industrial voltage in your country.
- Packagepacked in strong plywood case.
Key Benefits
What This Model Gives You
Copper to 8.00 mm Aluminium to 15.00 mm
The widest aluminium range in the CHY400 frame, which matters on rod lines where aluminium sections run larger than copper.
Strip and Wire on One Machine
Designed for rectangular strip as well as round wire, so a plant running busbar and rod does not need two welders.
Runs a Full Shift
Oil temperature is held at or below 75 °C at the rated duty, so the machine is not the thing that stops the line.
Built to Your Supply
Operating voltage is customised to the industrial supply in the destination country before shipment.
Application Scenarios
Where It Is Used
- 8.0 mm copper rod breakdown
- Aluminium rod up to 15.00 mm
- Rectangular busbar and strip joints
- Continuous casting and rolling line restarts
Industries
Problems It Solves
Why Buyers Specify It
- Bench welders cannot generate the force to upset an 8 mm rod
- Brazing an 8 mm rod anneals the section either side of the joint
- A rod joint has to survive the first breakdown pass without opening
Compared With Other Models
Against the CHY400-B on the same frame: the CHY400 takes a wider aluminium range (to 15.00 mm against 12.00 mm) at a lower weight and a higher motor rating, while the CHY400-B takes a slightly larger copper section and ships as a defined 3P 380 V 50 Hz machine.
Use Guide
How It Is Set Up and Run
- Fit the die pair cut for the rod section being welded.
- Set working pressure to 6.5 MPa and confirm oil temperature is below 75 °C.
- Load both rod ends into the cavity so the faces meet inside the die.
- Cycle the press, then shear the flash in the same die set.
- Pull-test the first joint of each batch — a sound weld breaks in the parent rod.
Customisation and Supply
What Is Built to Order
Dies to Your Wire
Dies are manufactured for wire between 0.10 mm and 25.0 mm to suit round or profile wire and rod, to the customer's own specification, at -1% / +2% of the wire diameter.
Your Electrical Supply
On the motorised and hydraulic machines, operating voltage is built to the industrial supply of the destination country. State voltage, phase and frequency with the order.
Export Packing
Machines are packed in a strong wooden or plywood case as stated per model. Carry cases are supplied with the portable welders and the DA10.
Related Articles
Background Reading
Related Products
Others in Hydraulic Pressure Welders
Hydraulic Pressure Welders
CHY400-B Hydraulic Pressure Welding Machine
Copper 4.00-9.00 mm and aluminium 4.00-12.00 mm, supplied 3P 380 V 50 Hz on a 760 kg frame.
View specifications
Hydraulic Pressure Welders
CHY700-B Hydraulic Pressure Welding Machine
Copper 7.00-12.00 mm and aluminium 7.00-20.00 mm on a 1500 kg frame at up to 8.0 MPa.
View specificationsFAQ
CHY400 Hydraulic Cold Welder for 8.0 mm Copper Rod Questions
Does it handle rectangular strip
Yes. The CHY400 is designed for rectangular strip as well as wire. The range for rectangular non-ferrous wire is calculated from the cross-sectional area, so send the strip dimensions with the enquiry.
What voltage is it supplied at
Operating voltage is customised to the customer's industrial voltage in their country. State voltage, phase and frequency on the order.
How is it packed
In a strong plywood case. Shipping weight is based on a 660 kg net machine.
Which dies fit it
CHY400 welding dies, covering copper 4.00-8.00 mm and aluminium 4.00-14.00 mm.
Quote the CHY400 Hydraulic Cold Welder for 8.0 mm Copper Rod
Give the wire material, the diameter and the country the machine will run in, and the quote comes back with the die set and the voltage build already decided.
