CHY700-B Hydraulic Pressure Welding Machine
Copper 7.00-12.00 mm and aluminium 7.00-20.00 mm on a 1500 kg frame at up to 8.0 MPa.
Product Overview

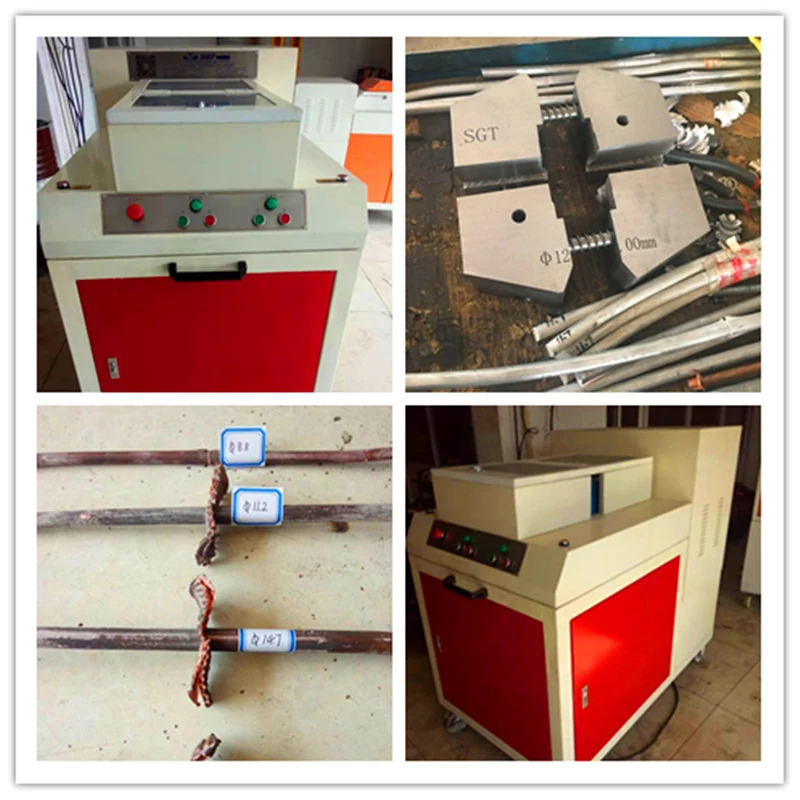

CHY700-B Hydraulic Pressure Welding Machine
The CHY700-B is built for large-section rod. It covers pure copper from 7.00 mm to 12.00 mm and pure aluminium from 7.00 mm to 20.00 mm, with a 7.50 kW motor, a working pressure band of 5.5-8.0 MPa and a 1500 kg frame in a 1500 × 800 × 1400 mm footprint.
Specifications
- Hydraulic pressure welding machine ModelCHY700-B
- Pure copper wire7.00mm-12.00mm
- Pure aluminium wire7.00mm-20.00mm
- DimensionL1500mm*W800mm*H1400mm
- Net weight1500kgs
- Motor power7.50KW
- Working pressure5.5-8.0 MPa
- Oil temperature≦70°C
Key Benefits
What This Model Gives You
20.00 mm Aluminium
Covers the aluminium rod sections that rod breakdown and ACSR work actually run.
5.5 to 8.0 MPa
A wide pressure band, so the same machine can be set correctly for a 7 mm copper wire and a 20 mm aluminium rod.
1500 kg Frame
Rigidity at the sections where a lighter machine would flex and throw the upset off-centre.
70 °C Oil Limit
Held at the published limit despite a 7.50 kW motor, which is what allows a full production shift.
Application Scenarios
Where It Is Used
- Aluminium rod breakdown to 20 mm
- Large copper conductor joints
- ACSR and overhead conductor production
- Continuous casting and rolling lines
Industries
Problems It Solves
Why Buyers Specify It
- Sections above 12 mm aluminium have no bench-scale answer
- One fixed working pressure cannot cover both ends of a wide range
- Large joints fail at the interface when the frame flexes
Compared With Other Models
The CHY700 takes copper 7.00-13.00 mm and aluminium 7.00-25.00 mm at 8.0 MPa on a 1780 kg frame. The CHY700-B is the lighter 1500 kg build with a 5.5-8.0 MPa band and a stated 70 °C oil limit, covering copper to 12.00 mm and aluminium to 20.00 mm.
Use Guide
How It Is Set Up and Run
- Fit CHY700 dies cut for the section.
- Set the working pressure for the section — lower in the band for 7 mm copper, higher for 20 mm aluminium.
- Load both ends so the faces meet inside the cavity.
- Cycle, shear, and verify the joint breaks in the parent metal.
Customisation and Supply
What Is Built to Order
Dies to Your Wire
Dies are manufactured for wire between 0.10 mm and 25.0 mm to suit round or profile wire and rod, to the customer's own specification, at -1% / +2% of the wire diameter.
Your Electrical Supply
On the motorised and hydraulic machines, operating voltage is built to the industrial supply of the destination country. State voltage, phase and frequency with the order.
Export Packing
Machines are packed in a strong wooden or plywood case as stated per model. Carry cases are supplied with the portable welders and the DA10.
Related Articles
Background Reading
Related Products
Others in Hydraulic Pressure Welders
Hydraulic Pressure Welders
CHY200-B Hydraulic Pressure Welding Machine
Copper 2.00-6.00 mm and aluminium 2.00-8.00 mm on a 380 kg frame with a 1.5 kW motor.
View specifications
Hydraulic Pressure Welders
CHY400-B Hydraulic Pressure Welding Machine
Copper 4.00-9.00 mm and aluminium 4.00-12.00 mm, supplied 3P 380 V 50 Hz on a 760 kg frame.
View specificationsFAQ
CHY700-B Hydraulic Pressure Welding Machine Questions
How large an aluminium rod can it weld
Pure aluminium rod from 7.00 mm to 20.00 mm.
What is the working pressure
5.5 to 8.0 MPa, set for the section being welded.
What does it weigh
1500 kg net, in a L1500 × W800 × H1400 mm footprint.
Which dies are used
CHY700 welding dies, covering copper 7.00-13.00 mm and aluminium 7.00-25.00 mm.
Quote the CHY700-B Hydraulic Pressure Welding Machine
Give the wire material, the diameter and the country the machine will run in, and the quote comes back with the die set and the voltage build already decided.
