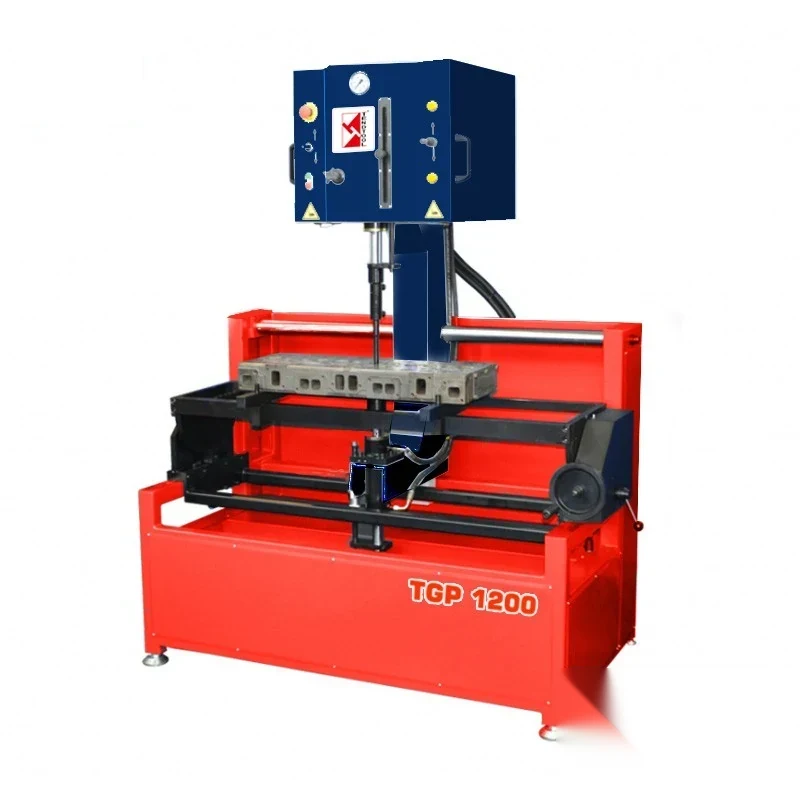

Hydraulic Valve Guide Press Machine TGP1200
The TGP1200 is a hydraulic bench for pressing valve guides out of and into cylinder heads, and for assembling and disassembling engine valves on the same station. Guides are an interference fit, and driving them with a hammer is how heads get cracked and guides get bent. The bench uses a hydraulic cylinder working at u...
What This Machine Does
The TGP1200 is a hydraulic bench for pressing valve guides out of and into cylinder heads, and for assembling and disassembling engine valves on the same station. Guides are an interference fit, and driving them with a hammer is how heads get cracked and guides get bent. The bench uses a hydraulic cylinder working at up to 200 bar, adjustable from 0, so the operator sets the pressure the job needs and applies it steadily. The working table is 1200 mm long with 1100 mm of transverse and 150 mm of longitudinal movement, and rotates through 50 degrees so an angled guide bore can be presented square to the ram. Upper cylinder movement is 230 mm and lower cylinder movement is 140 mm. Motor power is 1.5 kW on a 380V 50Hz three-phase supply, and the machine measures 1370 x 930 x 1850 mm at 400 kg. Standard equipment includes dismounting pilots, a set of installation tools and compressing feet in different sizes.
Why Buyers Choose This Machine
- Hydraulic pressing at up to 200 bar replaces hammer work so guides go in straight and heads are not cracked
- Pressure adjustable from 0 to 200 bar so the force matches the guide and head material
- Table rotates through 50 degrees to bring angled guide bores square to the ram
- 1200 mm table with 1100 mm transverse movement covers long cylinder heads without re-clamping
- Same bench handles valve assembly and disassembly so head work stays on one station
- Standard tool set includes dismounting pilots installation tools and several sizes of compressing foot
- Reduces operator fatigue and the costly errors that come from forcing guides by hand
Where Hydraulic Valve Guide Press Machine TGP1200 Earns Its Place
Problems It Solves
- Driving guides with a hammer bends them and cracks the head casting
- Hand pressing gives a different installed depth on every guide
- Angled guide bores cannot be pressed square on a fixed flat bench
- Valve assembly and disassembly needs a second station if the press bench cannot do it
- Repetitive hand pressing tires the operator and errors follow
- Long cylinder heads have to be re-clamped several times on a short bench
Who It Is For
- Cylinder head reconditioning shops
- Engine rebuilders doing guide replacement in-house
- Truck bus and plant workshops overhauling their own heads
- Distributors equipping head reconditioning lines in export markets
Application Scenarios
- Pressing worn valve guides out of a cylinder head
- Installing new guides to a set depth with controlled hydraulic force
- Assembling and disassembling valves valve springs and retainers on a head
- Guide replacement on angled guide bores using the 50 degree table rotation
- Guide work on long cylinder heads within the 1200 mm table length
Technical Detail
Technical Features
- Hydraulic cylinder for guide pressing and valve assembly and disassembly
- Working pressure 200 bar adjustable from 0 to 200 bar
- Working table length 1200 mm
- Transverse movement 1100 mm and longitudinal movement 150 mm
- Upper cylinder movement 230 mm and lower cylinder movement 140 mm
- Table rotation 50 degrees
- Motor power 1.5 kW
- Standard tools for guide replacement including dismounting pilots and compressing feet
Specifications
| Machine type | Hydraulic valve guide press machine |
|---|---|
| Models | TGP1200 |
| Working table length | 1200 mm |
| Transverse movement | 1100 mm |
| Longitudinal movement | 150 mm |
| Upper cylinder movement | 230 mm |
| Lower cylinder movement | 140 mm |
| Table rotation | 50 degrees |
| Working pressure | 200 bar, adjustable 0-200 bar |
| Motor power | 1.5 kW |
| Power supply | 380V 50HZ 3PH |
| Machine dimensions | 1370 x 930 x 1850 mm |
| Weight | 400 kg |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Guide pressing
- Guide removal
- Valve assembly and disassembly
Quality Control
- Hydraulic circuit pressure tested across the 0 to 200 bar adjustment range
- Upper and lower cylinder travel checked over the full 230 mm and 140 mm strokes
- Table rotation checked through the 50 degree range and locked position verified
- Standard tool set counted and fitted before packing
- Machine run through a full press cycle before shipment
Customisation Options
- Dismounting pilots specified for the guide diameters you work with
- Compressing feet set chosen for the valve and retainer sizes in your engines
- Supply voltage and frequency set for your market if you are not on 380V 50Hz three-phase
- Additional installation tooling quoted for particular head types
- Manual and control labelling prepared in your working language
How It Compares With the Alternatives
| Hammer and drift guide replacement | Hand driving bends guides and cracks castings; the TGP1200 applies controlled hydraulic force up to 200 bar in a square setup |
|---|---|
| Universal workstation TWS1100 | The workstation is built around clamping and valve assembly with pneumatic control; the TGP1200 adds the hydraulic press capacity needed to move interference-fit guides |
| A general workshop hydraulic press | A general press has no head fixturing or 50 degree table rotation, so angled guide bores cannot be brought square to the ram |
Running the Machine
Step 1
Mount the cylinder head on the table and clamp it
Step 2
Rotate the table within the 50 degree range until the guide bore is square to the ram
Step 3
Fit the dismounting pilot for the guide size and set the pressure on the adjustable control
Step 4
Press the old guide out using the upper or lower cylinder as the head orientation requires
Step 5
Clean the guide bore and check it before fitting the new guide
Step 6
Fit the installation tool and press the new guide to the required depth
Step 7
Use the compressing feet to assemble the valve spring and retainer on the same bench
Other Machines in Engine Rebuilding Machine
M4215 Hydraulic Vertical Cylinder Honing Machine
View Machine →
Line Honing Machine LH100
View Machine →
TSM850 Cylinder Head Disc Grinding and Milling Machine
View Machine →
Cylinder Block Grinding & Milling Machine 3M9740B*130/150
View Machine →Related Applications and Guides
Engine Rebuilding Workshops
Engine rebuilding workshops recondition blocks heads crankshafts and valves to a geometry the engine will hold for a full service life. XAIMC supplies
Automotive Service and Fleet Workshops
Service centres and fleet depots keep vehicles moving. XAIMC supplies the lifting tyre wheel and fluid handling equipment those workshops use, includi
Cylinder Boring vs Honing - What Each Operation Does
Boring removes metal to bring a worn cylinder back to a round straight bore at a new oversize, while honing produces the final diameter, geometry and
How to Choose a Valve Seat Cutting Machine
A valve seat cutting machine machines the seat angles and the valve guide bore in a cylinder head so that the valve seals concentrically against the s
Questions About Hydraulic Valve Guide Press Machine TGP1200
What working pressure does the machine give?
200 bar, adjustable from 0 to 200 bar, so the force is set to suit the guide and the head material.
What size cylinder heads does it take?
The working table is 1200 mm long with 1100 mm transverse movement. Send us the longest head you work on and we will confirm it fits.
Can it work on angled guide bores?
Yes. The table rotates through 50 degrees so the guide bore can be presented square to the ram.
What tools are supplied with it?
Standard equipment includes tools for valve guide replacement such as dismounting pilots, a standard set of installation tools, and a set of compressing feet in different sizes.
What power supply does it need?
380V 50HZ 3PH with a 1.5 kW motor as standard. Tell us your market supply and we will build to it.
How heavy is it and how much space does it need?
400 kg with machine dimensions of 1370 x 930 x 1850 mm.
What are your payment and trade terms?
FOB CFR and CIF. Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the Hydraulic Valve Guide Press Machine TGP1200
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
