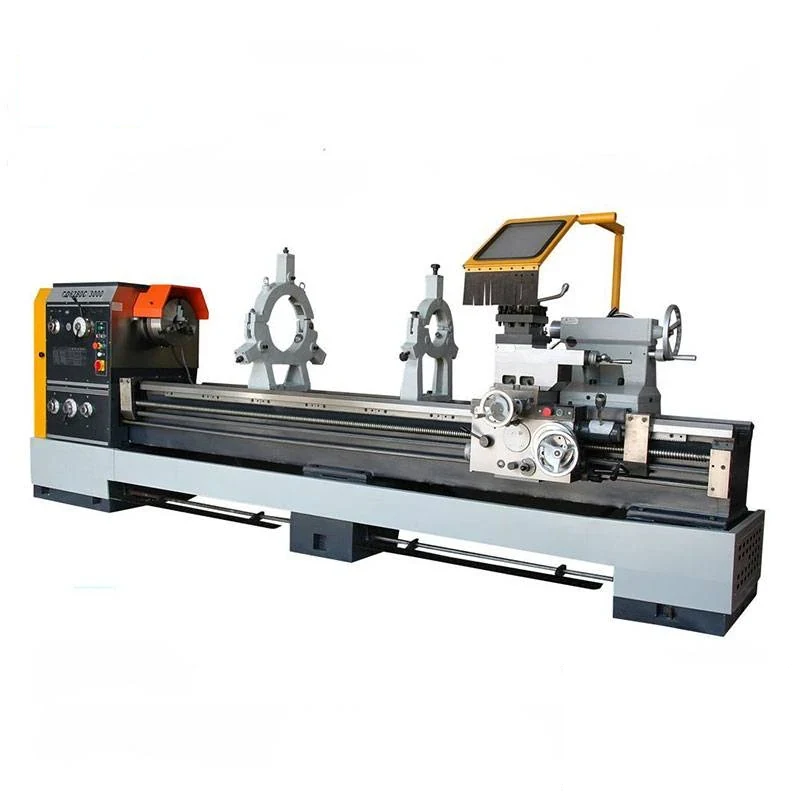

CQ6280 Universal Heavy Duty Horizontal Lathe Machine
The CQ6280 is the heavy duty end of the manual gap-bed range, built for work that a workshop lathe simply cannot hold. In both the CQ6280B and CQ6280C builds it swings 800mm over the bed, 1000mm in the gap and 560mm over the slide, and takes workpieces up to 2000mm or 3000mm long. That combination suits rolls, large sh...
What This Machine Does
The CQ6280 is the heavy duty end of the manual gap-bed range, built for work that a workshop lathe simply cannot hold. In both the CQ6280B and CQ6280C builds it swings 800mm over the bed, 1000mm in the gap and 560mm over the slide, and takes workpieces up to 2000mm or 3000mm long. That combination suits rolls, large shafts, flanged housings and heavy rotary parts that would otherwise have to be sent to a specialist shop. It performs internal and external turning, taper turning and end facing, drills, bores and broaches grooves, and cuts inch, metric, module and D.P. threads. Flat stock and irregular shapes are machined in the gap. The spindle has a through-hole bore for larger bar stock and both inch and metric systems are on the machine. Hand brake and foot brake versions are offered, and the machines run on 220V, 380V or 420V at 50Hz or 60Hz.
Why Buyers Choose This Machine
- 800mm swing over the bed and 1000mm in the gap covers roll and large flange work
- Workpiece length options of 2000mm and 3000mm so long shafts stay in house
- 560mm swing over the slide means large diameters can still be turned with the carriage in place
- Gap takes flat stock and irregular shapes that no plain bed of this size would clear
- Inch metric module and D.P. threading for heavy repair and gear work
- Through-hole spindle bore for larger bar stock
- Built for 220V 380V or 420V at 50Hz or 60Hz with hand or foot braking
Where CQ6280 Universal Heavy Duty Horizontal Lathe Mac Earns Its Place
Problems It Solves
- Large diameter parts are sent to specialist shops at high cost and long lead time
- Long shafts cannot be supported on a lathe with insufficient centre distance
- A plain bed of this size still will not clear 1000mm flange work
- Heavy keyway work needs a separate slotting machine unless the lathe can broach grooves
- Heavy repair threads in module and D.P. usually mean special change gear sets
- Machines locked to one voltage cannot be redeployed between plant sites
Who It Is For
- Heavy engineering and roll repair shops
- Mine cement and steel plant maintenance departments
- Shipyard and heavy fabrication workshops
- Subcontractors taking in large diameter turning
- Machinery importers supplying heavy industry in export markets
Application Scenarios
- Turning and facing rolls large shafts and heavy flanged housings
- Machining parts up to 3000mm long between centres
- Facing and boring parts up to 1000mm diameter in the gap
- Groove broaching keyways in heavy bores without a separate slotter
- Cutting large module and D.P. threads on gear and screw components
- Repair machining of worn heavy plant components on site-owned equipment
Technical Detail
Technical Features
- Manual gap-bed heavy duty construction
- Swing over bed 800mm and swing in gap 1000mm
- Swing over slide 560mm
- Maximum workpiece length 2000mm or 3000mm
- Internal and external turning taper turning and end facing
- Drilling boring and groove broaching
- Inch metric module and D.P. thread cutting
- Through-hole spindle bore with inch and metric measuring systems
- Hand brake or foot brake and 220V 380V or 420V at 50Hz or 60Hz
Specifications
| Machine type | Heavy duty universal gap-bed horizontal lathe |
|---|---|
| Models | CQ6280B and CQ6280C |
| Swing over bed | 800mm |
| Swing in gap | 1000mm |
| Swing over slide | 560mm |
| Max workpiece length | 2000mm or 3000mm |
| Spindle bore | Through hole for bar stock |
| Threading | Inch metric module and D.P. |
| Measuring systems | Inch and metric |
| Braking | Hand brake or foot brake |
| Power supply | 220V 380V or 420V at 50Hz or 60Hz |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Turning
- Taper turning
- End facing
- Drilling
- Boring
- Groove broaching
- Thread cutting
Quality Control
- Bed and gap alignment checked over the full 2000mm or 3000mm length
- Spindle run-out and bearing preload measured on the assembled headstock
- Carriage and slide travel checked against swing clearance at 800mm and 560mm
- Thread positions exercised across inch metric module and D.P.
- Brake and electrical circuit tested at the voltage specified on the order
Customisation Options
- CQ6280B or CQ6280C build chosen with the order
- Workpiece length specified as 2000mm or 3000mm
- Hand brake or foot brake selected
- Supply voltage of 220V 380V or 420V and 50Hz or 60Hz built to your site
- Heavy chuck face plate and steady rest package quoted with the machine
How It Compares With the Alternatives
| Gap Bed Lathe Machine CS6240 CS6250B/C CS6266B/C | The CS gap bed frames are workshop sizes; the CQ6280 goes to 800mm over the bed and 1000mm in the gap for heavy industrial parts |
|---|---|
| Vertical turning lathe | A vertical machine suits large flat discs but cannot take a 3000mm shaft between centres the way the CQ6280 can |
| Subcontracting heavy turning | Bringing roll and large flange work in house removes the transport cost and the queue at the specialist shop |
| Lathe without groove broaching | Broaching keyways on the lathe avoids re-fixturing a heavy part on a slotting machine |
Running the Machine
Step 1
Install on a foundation designed for the machine weight and the length variant ordered
Step 2
Level the bed over its full length and recheck after the first weeks of operation
Step 3
Support long shafts with the steady rest before taking a roughing cut
Step 4
Keep the gap section fitted for shaft work and remove it only for large diameter parts
Step 5
Balance heavy irregular parts before running the spindle up to speed
Step 6
Select the thread system and pitch from the chart before engaging the lead screw
Step 7
Check brake function and lubrication at the start of each shift
Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Heavy Equipment and Plant Maintenance
Mines quarries plantations and processing plants cannot wait for imported spares. XAIMC supplies the boring gear cutting turning and grinding machines
Machine Tool Installation and Commissioning Checklist
Installing an imported machine tool correctly means preparing the site, unpacking and positioning the machine, levelling it, connecting services and p
Preventive Maintenance for Manual Lathes and Milling Machines
Manual lathes and milling machines keep their accuracy through lubrication, cleanliness, correct adjustment of gibs and backlash, and regular geometri
Questions About CQ6280 Universal Heavy Duty Horizontal Lathe
What is the largest diameter and length the CQ6280 handles?
800mm over the bed, 1000mm in the gap and 560mm over the slide, with maximum workpiece length of 2000mm or 3000mm depending on the build you order.
What is the difference between CQ6280B and CQ6280C?
They are two builds of the same capacity. Send us your part drawings and duty and we will confirm which build we would quote.
Can it cut large module threads?
Yes. Inch, metric, module and D.P. threads are all covered. Tell us the pitches you need and we will confirm them against the chart.
What foundation does the machine need?
It is a heavy machine and needs a foundation matched to its weight and length. Tell us the variant you are ordering and we will send the installation drawing.
What voltage and frequency can you supply?
220V, 380V or 420V at 50Hz or 60Hz, built to the supply you state on the order.
How is a machine this size packed and shipped?
It is packed for sea freight from our Xi'an works and shipped on FOB CFR or CIF terms. Tell us your destination port and we will quote accordingly.
What are your payment terms?
30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the CQ6280 Universal Heavy Duty Horizontal Lathe
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
