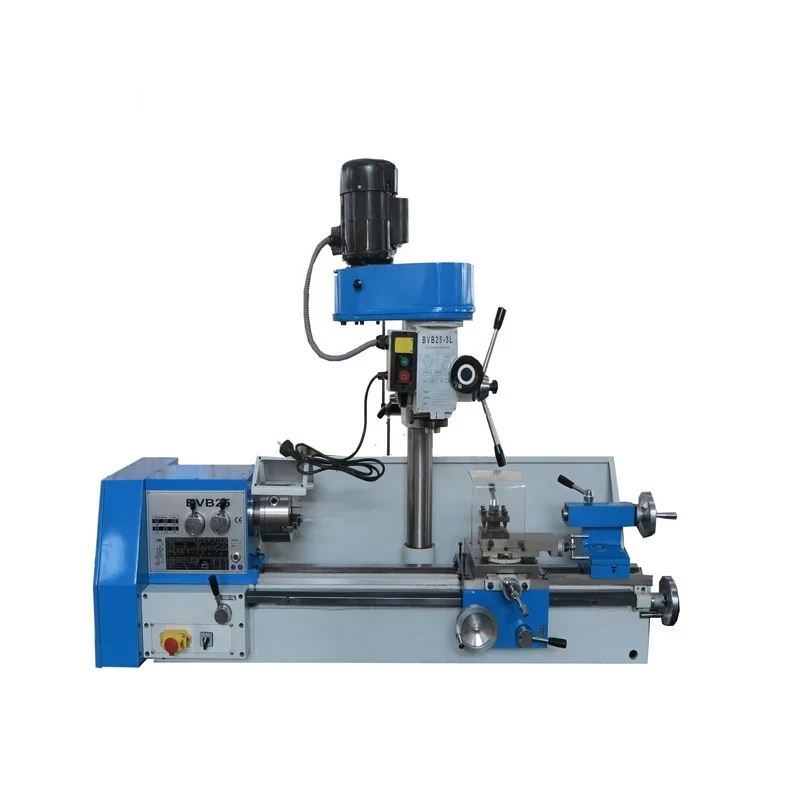

BVB25 3in1 Multipurpose Milling Drilling Machine
The BVB25 puts turning, milling and drilling on one base, so a small workshop can make and repair parts without buying three machines or finding floor space for them. As a lathe it swings 250mm over the bed, with 450mm between centres on the BVB25 and 700mm on the long-bed BVB25L, and the spindle has an MT4 taper with ...
What This Machine Does
The BVB25 puts turning, milling and drilling on one base, so a small workshop can make and repair parts without buying three machines or finding floor space for them. As a lathe it swings 250mm over the bed, with 450mm between centres on the BVB25 and 700mm on the long-bed BVB25L, and the spindle has an MT4 taper with a 27mm bore. Bed ways are precision ground and hardened and the spindle is carried on precision roller bearings, so the machine holds size rather than drifting as the carriage wears. Headstock gears are steel, ground and hardened, and speed changes are made on levers rather than by moving belts, over six steps from 115 to 1620rpm. The gearbox provides various feeds and cuts threads from 0.2 to 3.5mm metric and 8 to 56 T.P.I. inch. The 750W machine can be supplied with or without a cabinet, and weighs 151kg net.
Why Buyers Choose This Machine
- Turning milling and drilling on one machine so a small shop needs one footprint not three
- Precision ground and hardened bed ways keep the carriage accurate over time
- Spindle on precision roller bearings for steady running across 115 to 1620rpm
- Six-step lever speed change instead of moving belts between jobs
- Thread cutting 0.2 to 3.5mm metric and 8 to 56 T.P.I. inch on the gearbox
- BVB25L extends to 700mm between centres for longer shaft work
- MT4 spindle taper with 27mm bore takes bar work through the spindle
- Supplied with or without a cabinet according to how you want to install it
Where BVB25 3in1 Multipurpose Milling Drilling Machine Earns Its Place
Problems It Solves
- Buying separate lathe mill and drill takes three machines' worth of floor space and budget
- Moving a part between machines loses the setup and introduces alignment error
- Soft bed ways wear at the chuck end and the machine loses its accuracy
- Belt changes for every speed slow down a job with several operations
- Repair parts with unusual threads cannot be bought and must be cut
- Long shafts do not fit machines with short beds
Who It Is For
- Maintenance and repair workshops making their own parts
- Small fabrication shops needing occasional turning and milling
- Technical schools and training centres
- Distributors supplying compact workshop machine tools in export markets
Application Scenarios
- Turning a shaft then milling a keyway on the same setup in a maintenance shop
- Drilling and tapping a bracket after turning a spigot on it
- Cutting metric or inch threads for a repair part that cannot be bought
- Making small production batches in a workshop with no dedicated machine shop
- Training work in a technical school covering turning milling and drilling
- Long shaft work up to 700mm between centres on the BVB25L
Technical Detail
Technical Features
- Combined turning milling and drilling machine
- Precision ground and hardened bed ways
- Spindle supported on precision roller bearings
- Headstock gears in steel ground and hardened
- Easy operating speed change levers, six steps
- Spindle speed range 115-1620rpm
- Gearbox with various feeds and thread cutting
- Metric threads 0.2-3.5mm and inch threads 8-56 T.P.I.
- Optional cabinet stand
Specifications
| Machine type | 3in1 multipurpose lathe milling and drilling machine |
|---|---|
| Models | BVB25 / BVB25L |
| Distance between centres | 450 / 700mm |
| Swing over bed | 250mm |
| Taper of spindle bore | MT4 |
| Spindle bore | 27mm |
| Steps of spindle speeds | 6 steps |
| Range of spindle speeds | 115-1620rpm |
| Range of inch threads | 8-56 T.P.I. |
| Range of metric threads | 0.2-3.5mm |
| Travel of cross slide | 140mm |
| Taper of tailstock quill | MT3 |
| Main motor | 750W |
| Packing size | 1260/1510x570x580mm |
| Net / gross weight | 151kg / 171kg |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Turning
- Milling
- Drilling
- Thread cutting
Quality Control
- Bed way hardness and ground finish checked before assembly
- Spindle run-out measured at the MT4 nose
- All six spindle speed steps verified across the 115 to 1620rpm range
- Thread pitches test cut and compared against the metric and inch charts
- Machine run in and a test part turned milled and drilled before packing
Customisation Options
- BVB25 at 450mm or BVB25L at 700mm between centres according to your longest work
- Supplied with or without a cabinet as you prefer to install it
- Chuck vice and cutter package quoted with the machine
- Supply voltage and frequency set for your market for the 750W motor
- Manual prepared in your working language
How It Compares With the Alternatives
| BV20-1 manual small bench lathe | The BV20-1 is a lathe only with a 220mm swing; the BVB25 adds milling and drilling and swings 250mm with an MT4 spindle |
|---|---|
| HQ800 multi purpose drilling milling machine | The HQ800 gives a larger 420mm swing and 800mm between centres; the BVB25 is the smaller 151kg machine for a bench or light cabinet installation |
| Buying separate lathe mill and drill | Three machines need three footprints and three budgets, and the part has to be reset between them; the BVB25 does all three from one base |
Running the Machine
Step 1
Install the machine on a solid bench or on the cabinet stand and level it
Step 2
Mount work in the chuck within the 250mm swing and 450 or 700mm between centres
Step 3
Select a spindle speed on the levers from the six steps between 115 and 1620rpm
Step 4
Turn and face using the 140mm cross slide travel
Step 5
Set the gearbox for the feed or the thread pitch you need
Step 6
Switch to the milling head for keyways and flats on the same workpiece
Step 7
Use the MT3 tailstock quill for drilling on centre
Related Applications and Guides
General Machining Job Shops
Job shops take whatever work comes through the door, which means their equipment has to cover a wide range rather than do one thing perfectly. XAIMC s
Heavy Equipment and Plant Maintenance
Mines quarries plantations and processing plants cannot wait for imported spares. XAIMC supplies the boring gear cutting turning and grinding machines
Machine Tool Installation and Commissioning Checklist
Installing an imported machine tool correctly means preparing the site, unpacking and positioning the machine, levelling it, connecting services and p
Preventive Maintenance for Manual Lathes and Milling Machines
Manual lathes and milling machines keep their accuracy through lubrication, cleanliness, correct adjustment of gibs and backlash, and regular geometri
Questions About BVB25 3in1 Multipurpose Milling Drilling Mac
What is the difference between BVB25 and BVB25L?
Bed length. BVB25 gives 450mm between centres and BVB25L gives 700mm. Send us your longest workpiece and we will confirm which you need.
Can it really do all three operations?
Yes. It is a combined machine covering turning, milling and drilling, with thread cutting through the gearbox.
What threads does it cut?
Metric threads from 0.2 to 3.5mm and inch threads from 8 to 56 T.P.I.
Does it come with a cabinet?
With or without a cabinet according to requirement. Tell us which you want when you order.
What is the spindle taper and bore?
MT4 taper with a 27mm spindle bore; the tailstock quill takes MT3.
How is it packed and how much does it weigh?
Packing size is 1260/1510x570x580mm depending on bed length, at 151kg net and 171kg gross.
What are your payment and trade terms?
FOB CFR and CIF. Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the BVB25 3in1 Multipurpose Milling Drilling Mac
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
