Auto Spare Parts Ultrasonic Cleaner Machine UCM1500
The UCM1500 is a 1500 litre overflow ultrasonic cleaning tank for auto spare parts, sized to take engine blocks, cylinder heads, gearbox casings and batches of smaller components. Parts coming off a stripped engine carry carbon, oil and old gasket material into every water gallery and blind hole, and no amount of brush...
What This Machine Does

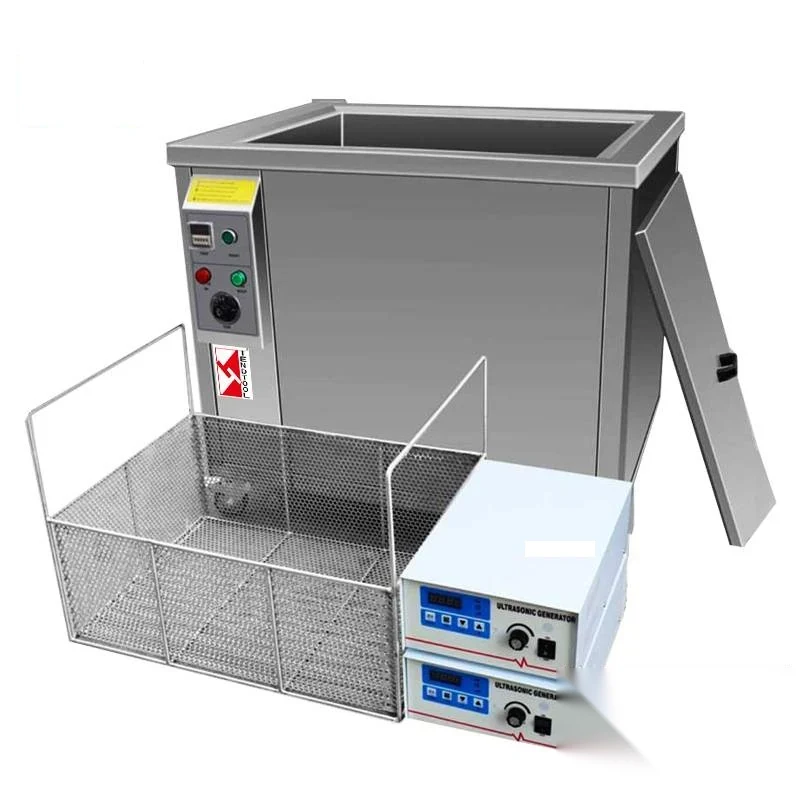

The UCM1500 is a 1500 litre overflow ultrasonic cleaning tank for auto spare parts, sized to take engine blocks, cylinder heads, gearbox casings and batches of smaller components. Parts coming off a stripped engine carry carbon, oil and old gasket material into every water gallery and blind hole, and no amount of brushing reaches those. Ultrasonic cavitation does, and the overflow design carries the loosened contamination off the bath surface rather than letting it settle back onto clean parts. Tank size is 1500*900*900mm, ultrasonic power is adjustable from 0 to 5400W at 28KHZ or 40KHZ, heating power is 18000W with the heater adjustable from 20 to 95 degrees C, and the timer runs 0 to 99H. The tank comes with a drainage basket, a lid and multi-direction castors. Power supply is AC 380-440V or AC 220-240V at 50/60Hz. Cleaning results improve when the right cleaning agent is used with it.
Why Buyers Choose This Machine
- 1500 litre tank at 1500*900*900mm takes blocks heads and casings rather than only small parts
- Ultrasonic cavitation cleans water galleries oil ways and blind holes that brushing cannot reach
- Overflow design carries floating contamination off the bath instead of settling it back on clean parts
- Ultrasonic power adjustable 0 to 5400W so delicate parts and heavy castings can both be run
- Choice of 28KHZ or 40KHZ to suit heavy soil removal or finer cleaning
- Heater adjustable 20 to 95 degrees C with 18000W heating power shortens cycle time on greasy parts
- 0 to 99H digital timer lets a long cycle run unattended
- Drainage basket lid and multi-direction castors make it a workable station on a shop floor
Where Auto Spare Parts Ultrasonic Cleaner Machine UCM1 Earns Its Place
Problems It Solves
- Carbon and sludge left in water galleries and oil ways come loose after the engine is rebuilt
- Hand washing large castings takes hours and still misses blind holes
- Contamination settling back onto cleaned parts in a still tank undoes the wash
- Measurement and crack inspection are unreliable on a dirty surface
- Fixed-power cleaners either damage delicate parts or fail to shift heavy soil
- Cold cleaning is slow on heavily greased components
Who It Is For
- Engine rebuilding workshops cleaning cores before machining
- Transmission and driveline repair shops
- Machine shops that want parts clean before measurement and inspection
- Fleet and plant workshops handling high volumes of dirty components
- Distributors equipping engine rebuild lines in export markets
Application Scenarios
- Cleaning stripped engine blocks and cylinder heads before machining
- Degreasing gearbox and transmission casings
- Batch cleaning of small engine components in the drainage basket
- Removing carbon from pistons and valves before inspection
- Preparing parts for crack detection where surface contamination hides defects
- Cleaning parts before reassembly at the end of a rebuild
Technical Detail
Technical Features
- Overflow ultrasonic cleaning tank design
- Tank capacity 1500L with tank size 1500*900*900mm
- Ultrasonic frequency 28KHZ or 40KHZ
- Ultrasonic power 0-5400W adjustable
- Heating power 18000W with heater adjustable 20-95 degrees C
- Digital timer 0-99H adjustable with digital heating control
- Transducers with small attenuation and long service life
- Independently designed and developed driver board and ultrasonic generators
- Drainage basket lid and multi-direction castors
Specifications
| Machine type | Overflow ultrasonic cleaning machine for auto spare parts |
|---|---|
| Models | UCM1500 |
| Capacity | 1500L |
| Tank size | 1500*900*900mm |
| Frequency | 28KHZ or 40KHZ |
| Ultrasonic power | 0-5400W adjustable |
| Heating power | 18000W |
| Heater range | 20-95 degrees C adjustable |
| Timer | 0-99H adjustable |
| Power supply | AC 380-440V 50/60Hz or AC 220-240V 50/60Hz |
| Tank range available | 38-5000 Litre |
| Supplied with | Drainage basket lid multi-direction castors |
| Certification | CE / FCC / ROHS |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Ultrasonic cleaning
- Degreasing
- Carbon removal
Quality Control
- Ultrasonic power output checked across the 0 to 5400W adjustment range
- Heater and thermostat verified through the 20 to 95 degrees C range
- Tank welds and overflow circuit leak tested before shipment
- Transducer bonding and output checked on each generator channel
- Timer and control functions run through a full cycle before packing
Certifications
- CE
- FCC
- ROHS
Customisation Options
- Tank capacity selected from the 38 to 5000 litre range for the largest part you clean
- Frequency specified as 28KHZ for heavier soil or 40KHZ for finer cleaning
- Power supply built for AC 380-440V or AC 220-240V at 50/60Hz to suit your market
- Basket layout arranged for the components you run most often
- Cleaning agent recommendation matched to the soils in your workshop
How It Compares With the Alternatives
| Hand washing in a solvent tank | A solvent tank and brush never reach blind holes and water galleries; cavitation works everywhere the liquid gets to |
|---|---|
| A still ultrasonic tank without overflow | In a still tank the loosened contamination floats and settles back on the parts; the overflow design carries it off the surface |
| Hot jet washing | A jet washer cleans what it can hit in line of sight; ultrasonic cleaning at 28 or 40 KHZ reaches internal passages a jet cannot enter |
Running the Machine
Step 1
Fill the tank and add a cleaning agent suited to the soil you are removing
Step 2
Set the heater between 20 and 95 degrees C for the parts and the agent
Step 3
Load parts into the drainage basket so the liquid can circulate around them
Step 4
Select 28KHZ for heavy soil or 40KHZ for finer work
Step 5
Set ultrasonic power within the 0 to 5400W range according to how delicate the parts are
Step 6
Set the timer within the 0 to 99H range and run the cycle with the lid closed
Step 7
Lift the basket drain the parts and rinse before machining or assembly
Other Machines in Engine Rebuilding Machine
Self-Adaptive Touch Screen Machine for Cylinder Head
View Machine →
Crankshaft Grinding Machine MQ8260A/C
View Machine →
Vertical Fine Boring & Milling Machine TX1500/TX2150/TX2500
View Machine →
Vertical Fine Boring Machine T7220B/C
View Machine →Related Applications and Guides
Engine Rebuilding Workshops
Engine rebuilding workshops recondition blocks heads crankshafts and valves to a geometry the engine will hold for a full service life. XAIMC supplies
Automotive Service and Fleet Workshops
Service centres and fleet depots keep vehicles moving. XAIMC supplies the lifting tyre wheel and fluid handling equipment those workshops use, includi
Cylinder Boring vs Honing - What Each Operation Does
Boring removes metal to bring a worn cylinder back to a round straight bore at a new oversize, while honing produces the final diameter, geometry and
How to Choose a Valve Seat Cutting Machine
A valve seat cutting machine machines the seat angles and the valve guide bore in a cylinder head so that the valve seals concentrically against the s
Questions About Auto Spare Parts Ultrasonic Cleaner Machine
What size parts will the UCM1500 take?
The tank is 1500*900*900mm with a 1500L capacity. Tank capacities from 38 to 5000 litres are available, so send us your largest part and we will size the machine.
Should I choose 28KHZ or 40KHZ?
28KHZ is the more aggressive setting for heavy soil on castings; 40KHZ suits finer cleaning. Tell us what parts you clean and we will recommend the frequency.
Is a cleaning agent required?
The machine works with water, but the cleaning effect will be better if an appropriate cleaning agent is used together with it. Tell us your soils and we will suggest one.
What power supply does it need?
AC 380-440V 50/60Hz or AC 220-240V 50/60Hz. Confirm your supply on the order and we will build to it.
What certification does it carry?
CE, FCC and ROHS.
Can it be moved around the workshop?
Yes. The tank is supplied with multi-direction castors, along with a drainage basket and lid.
What are your payment and trade terms?
FOB CFR and CIF. Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the Auto Spare Parts Ultrasonic Cleaner Machine
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
