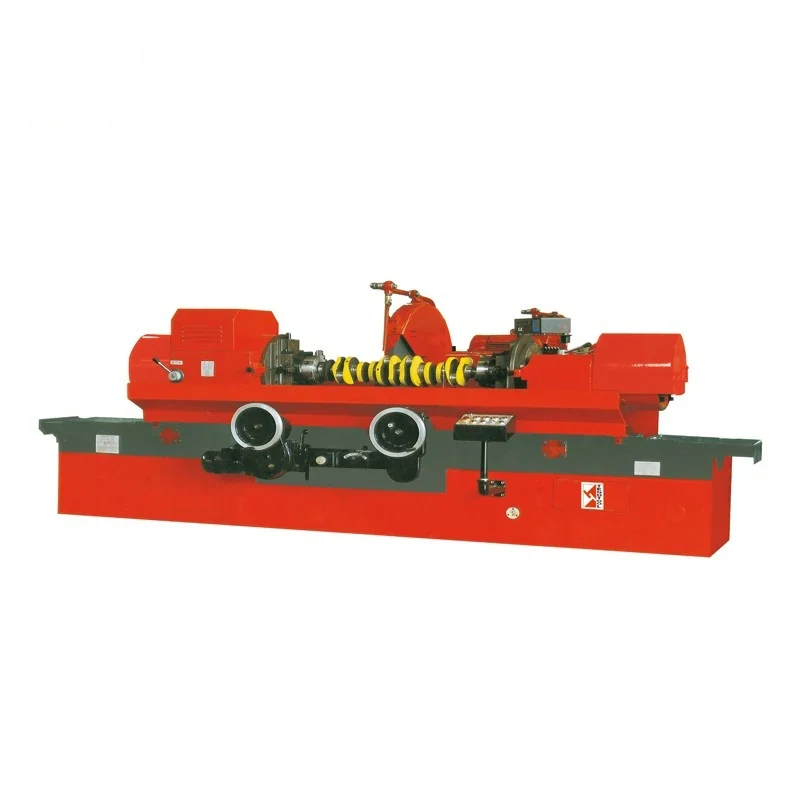

Crankshaft Grinding Machine MQ8260A/C
The MQ8260A is a crankshaft grinder for automobile, tractor and diesel engine repair shops, used to regrind the crankpins and journals of crankshafts back to a serviceable size. The MQ8260C is modified on the basis of the MQ8260A and is intended for the same work in automobile, tractor and diesel engine works and their...
What This Machine Does
The MQ8260A is a crankshaft grinder for automobile, tractor and diesel engine repair shops, used to regrind the crankpins and journals of crankshafts back to a serviceable size. The MQ8260C is modified on the basis of the MQ8260A and is intended for the same work in automobile, tractor and diesel engine works and their repair shops. Wheelhead rapid approach and withdrawal is hydraulically effected, so the operator brings the wheel to the work and clears it again without hand-cranking. The worktable can be approached either by hand or by power, and power table traverse to left or right is actuated momentarily by depressing and releasing the electric push button for the direction wanted. That arrangement is there for a practical reason: crankshaft work means spacing the table from one journal or crankpin to the next, over and over, and doing that on a button rather than a handwheel is what keeps a long shaft moving through the shop. Four different work speeds are available.
Why Buyers Choose This Machine
- Regrinds both crankpins and journals, so one machine covers the whole crankshaft rather than part of it
- Hydraulic wheelhead rapid approach and withdrawal removes hand-cranking between cuts
- Push-button power table traverse left or right makes spacing from one journal to the next quick and repeatable
- Worktable can also be approached by hand where fine positioning is wanted
- Four work speeds let the operator match wheel and work speed to the journal being ground
- MQ8260C is the updated version of the MQ8260A, so shops can buy into a known machine with the later build
Where Crankshaft Grinding Machine MQ8260A Earns Its Place
Problems It Solves
- Worn crankpins and journals scrap an otherwise serviceable crankshaft when there is no way to regrind them
- Subcontracting crankshaft grinding adds days to every engine rebuild
- Hand-cranking the wheelhead in and out on every journal wastes operator time on a long shaft
- Spacing the table accurately from one journal to the next is slow without powered traverse
- A single work speed forces a compromise across different journal sizes and conditions
Who It Is For
- Automobile engine rebuild shops that currently send crankshaft grinding out
- Tractor and agricultural machinery repair shops
- Diesel engine works and their repair shops
- Distributors equipping engine reconditioning workshops in export markets
Application Scenarios
- Regrinding worn crankpins on automobile engine crankshafts to an undersize bearing
- Reconditioning tractor engine crankshafts in agricultural machinery repair shops
- Diesel engine crankshaft work in engine works and marine or industrial repair shops
- Grinding main journals after a bearing failure has scored the shaft
- Batch crankshaft reconditioning where the table must be spaced from journal to journal repeatedly
Technical Detail
Technical Features
- Grinds both journals and crankpins of crankshafts
- Hydraulic wheelhead rapid approach and withdrawal
- Worktable approached by hand or by power
- Momentary push-button power table traverse left or right
- Table spacing arrangement for moving between journals and crankpins
- Four different work speeds
- MQ8260C modified on the basis of the MQ8260A
Specifications
| Machine type | Crankshaft grinding machine |
|---|---|
| Models | MQ8260A / MQ8260C |
| Work performed | Grinding of crankshaft journals and crankpins |
| Wheelhead approach and withdrawal | Hydraulic rapid |
| Table traverse | By hand or by power, push-button left or right |
| Work speeds | Four |
| Intended users | Automobile, tractor and diesel engine works and repair shops |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Cylindrical grinding
- Crankpin grinding
- Journal grinding
Quality Control
- Journal roundness and diameter checked after grinding on a sample shaft
- Wheelhead hydraulic approach and withdrawal function tested before shipment
- Table traverse tested in both power and hand modes
- Machine run in through each of the four work speeds before packing
- Ground surfaces of the machine's own rails inspected in our inspection department
Customisation Options
- Chuck and workholding specified for the crankshaft types you recondition
- Grinding wheel specification advised for your journal material and size
- Supply voltage and frequency set to your market
- Operating manual prepared in the language your shop works in
How It Compares With the Alternatives
| Sending crankshafts out for regrinding | Subcontracting adds transport and turnaround to every rebuild; grinding in house keeps the engine on your own bench |
|---|---|
| Crankshaft polishing or lapping only | Polishing restores finish but cannot take a scored journal back to an undersize bearing dimension; that needs grinding |
| MQ8260A against MQ8260C | The MQ8260C is modified on the basis of the MQ8260A for the same journal and crankpin work, so the choice is between the original build and the later one |
Running the Machine
Step 1
Mount the crankshaft and set it running true on the main journal centres
Step 2
Select the work speed suited to the journal you are grinding
Step 3
Bring the wheelhead in on the hydraulic rapid approach and set the infeed
Step 4
Grind the journal, then withdraw the wheelhead hydraulically
Step 5
Use the push-button power traverse to space the table to the next journal or crankpin
Step 6
Check diameter and roundness before moving to the next journal
Step 7
Dress the wheel as required through the shaft
Other Machines in Engine Rebuilding Machine
Small Boring Machine T806/T807/T806A/T808A
View Machine →
Portable Cylinder Boring Machine T808A
View Machine →
Cylinder Boring Machine T8014A/T8016A
View Machine →
Boring & Honing Machine for Motorcycle Cylinder SBM100
View Machine →Related Applications and Guides
Engine Rebuilding Workshops
Engine rebuilding workshops recondition blocks heads crankshafts and valves to a geometry the engine will hold for a full service life. XAIMC supplies
Automotive Service and Fleet Workshops
Service centres and fleet depots keep vehicles moving. XAIMC supplies the lifting tyre wheel and fluid handling equipment those workshops use, includi
Cylinder Boring vs Honing - What Each Operation Does
Boring removes metal to bring a worn cylinder back to a round straight bore at a new oversize, while honing produces the final diameter, geometry and
How to Choose a Valve Seat Cutting Machine
A valve seat cutting machine machines the seat angles and the valve guide bore in a cylinder head so that the valve seals concentrically against the s
Questions About Crankshaft Grinding Machine MQ8260A
What is the difference between the MQ8260A and the MQ8260C?
The MQ8260C is modified on the basis of the MQ8260A. Both grind the journals and crankpins of crankshafts for automobile tractor and diesel engine repair work. Tell us your work and we will advise which model to quote.
What size of crankshaft will it take?
Send us the length and the largest journal diameter of the crankshafts you recondition and we will confirm the capacity before you order.
Does it grind crankpins as well as main journals?
Yes. The machine is intended for grinding both the journals and the crankpins of crankshafts.
Are grinding wheels supplied?
Wheel specification depends on your journal material and size. Send us the shafts you work on and we will quote wheels with the machine.
What voltage is the machine supplied at?
We set supply voltage and frequency to your market. Confirm your shop supply when you place the order.
How is the machine packed and shipped?
It is packed for sea freight from our storehouse in Xi'an. We quote FOB CFR or CIF, so tell us your destination port.
What are your payment terms?
30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the Crankshaft Grinding Machine MQ8260A
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
