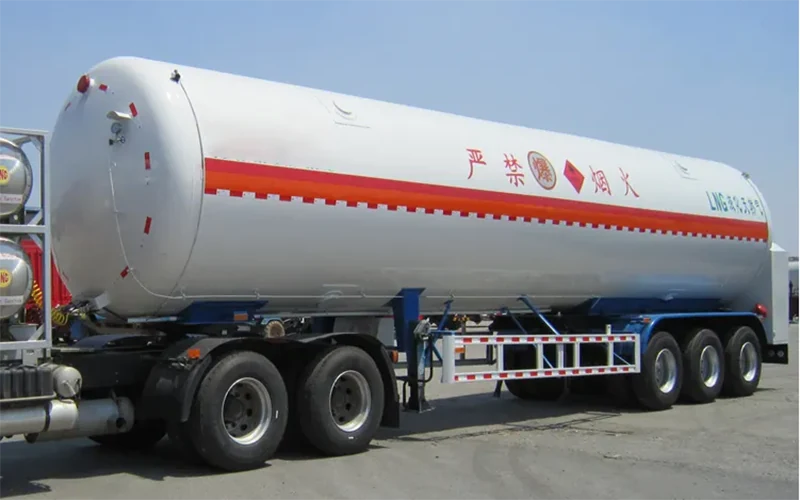

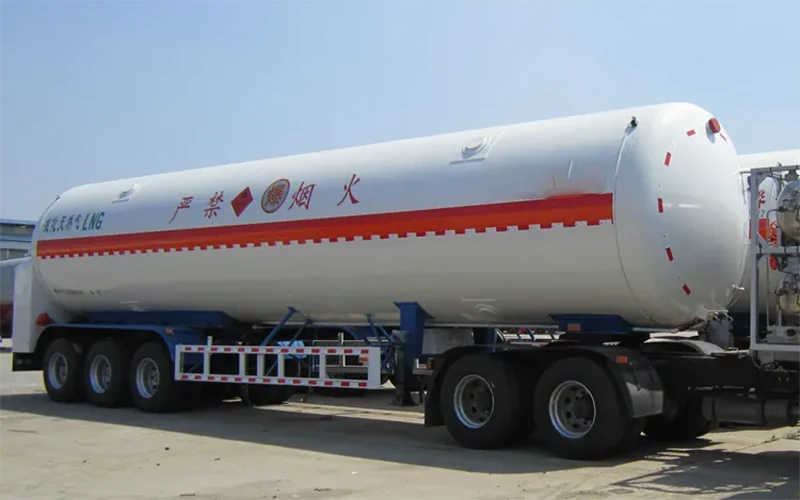

Large Capacity LNG Three Axles Semi Trailer Tank China Manufacturer
Large capacity LNG tank trailer, 13000x2500x3500mm, aluminium alloy tank and 20-25 tonne payload.
Overview
What This Trailer Is Built For
A large capacity tri-axle LNG tanker at 13000mm x 2500mm x 3500mm with a payload between 20001kg and 25000kg. The tank body is aluminium alloy in 5083, 5182 or 5454 with a Q235 6mm end plate, built on the metal double-cylinder vacuum fibre insulation structure that LNG requires, with an operation box at the rear. Fittings include a 500mm manhole cover, a 4 inch disc discharge valve and a 4 inch seamless steel discharge pipe. The kingpin is available as 2 inch 50mm or 3.5 inch 90mm in JOST or another brand, tires are 11.00R20, 12.00R20 or 11R22.5, and colour is to your requirement.
Key Benefits
What You Get
- 13000mm chassis carries the largest LNG volume in the cryogenic range
- Aluminium alloy 5083, 5182 or 5454 tank stays tough at cryogenic temperature while saving weight
- Double-cylinder vacuum fibre insulation holds temperature over long hauls
- Kingpin available in both 2 inch and 3.5 inch for different tractor fifth wheels
- Three tire options and a spare rim for remote route operation
Problems Solved
What It Fixes
- Smaller cryogenic tankers need more trips on high-volume LNG routes
- Steel cryogenic vessels are heavy and cut deeply into payload
- Fixed kingpin sizes restrict which tractors can pull the trailer
- Foam-insulated tanks lose product to boil-off on long hauls
Who It Is For
Operators Who Buy This Model
- LNG distributors moving high volume per trip
- Gas utilities supplying satellite stations
- Industrial gas companies serving large customers
- Operators running mixed tractor fleets
Application Scenarios
Where It Works
- High-volume LNG distribution from liquefaction plants
- Long-haul cryogenic gas supply
- Industrial gas delivery to large off-grid consumers
- LNG fuelling infrastructure supply
Technical Features
Build Specification
- Tri-axle large capacity LNG tank truck, dimension 13000 x 2500 x 3500mm
- Maximum payload 20001 to 25000kg
- Tank body aluminium alloy 5083, 5182 or 5454, end plate Q235 6mm steel sheet
- Metal double-cylinder vacuum fibre insulation with rear operation box
- Manhole cover 500mm, discharge valve 4 inch disc type, discharge pipe 4 inch seamless steel tube
- Kingpin 2 inch 50mm or 3.5 inch 90mm, JOST or other brand, two-speed manual heavy duty landing gear
- Tires 11.00R20, 12.00R20 or 11R22.5, rims 9.0-22.5 with 12 plus 1 spare, colour to customer requirement
Specifications
Manufacturer Data Sheet
| Type | Tri |
|---|---|
| Dimensions L x W x H | 13000X2500x3500mm |
| Max Payload | 20001-25000 kg Brand Name MAXWAY |
| King Pin | 2′′(50mm) or 3.5′′(90mm) JOST or Other Brand Color As Customer’s Require |
| Tire | 11.00R20 12.00R20 11R22.5 |
| Tank Body | Aluminum Alloy 5083/5182/5454 |
| End Plate | Q235/6mm steel sheet |
| Discharge Valve | 4 inch disc valve |
| Discharge Pipe | 4 inch seamless steel tube |
| Manhole Cover | 500mm |
| Kingpin | 50mm |
| Landing Gear | two-speed, manual operating ,heavy duty |
| Rim | 9.0-22.5 12+1 spare rim |
| Tool Box | 1 piece, 1m x 0.5m x 0.5m,with some small gadgets |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Vacuum integrity verification on the insulation space
- Aluminium alloy weld inspection on the inner vessel
- Valve and instrument function test in the operation box
- Pressure and leak test before dispatch
Customization
What You Can Change
- Tank alloy selected from 5083, 5182 or 5454
- Tank volume set to your route and axle limits
- Kingpin 2 inch or 3.5 inch
- Tire specification from three options
- Colour finished to your requirement
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| 52.6cbm stainless LNG tanker | Aluminium alloy saves tare weight for payload; stainless is tougher where the vessel takes hard handling. |
| Smaller cryogenic vessel | This 13000mm build carries the largest volume in the range; smaller vessels suit tighter access and lower volumes. |
| LPG pressure tanker | LNG needs cryogenic vacuum insulation; LPG travels under pressure at ambient temperature in a far simpler tank. |
Use Guide
Operating This Trailer
- Complete the cold-down procedure before first filling
- Confirm the kingpin size matches your tractor fifth wheel
- Keep the rear operation box latched in transit
- Log tank pressure and vacuum readings on the stated schedule
- Use cryogenic protective equipment at every transfer
Related Products
Related Trailers
Liquid Natural Gas LNG Tanker Three axles Semi-trailer China Factory Direct Sale
52.6cbm LNG tanker with an S30408 stainless tank, aluminium alloy main beam and 6 tonne curb weight.
View Specification
LNG Cryogenic Liquid Natural Gas Storage Tank truck Semi-trailer
Cryogenic LNG tank trailer with an aluminium alloy 5083/5182/5454 tank body and rear operation box.
View Specification
Off Road LPG Liquefied Petroleum Gas Tanker Semi-trailer
Off-road cryogenic tanker, 52600 litres, -196 degree design temperature and vacuum multi-layer insulation.
View SpecificationFAQ
Questions About This Model
What Payload Can It Carry
Between 20001kg and 25000kg. A vacuum-insulated cryogenic vessel is inherently heavy, so payload is lower than on an ambient-temperature tanker.
What Alloy Is the Tank
Aluminium alloy in 5083, 5182 or 5454, chosen for toughness at cryogenic temperature and for weight saving.
How Is It Insulated
By a metal double-cylinder vacuum fibre insulation structure, with the valves and instruments grouped in a rear operation box.
Can It Work Behind Different Tractors
Yes, the kingpin is available in 2 inch 50mm or 3.5 inch 90mm.
Which Tires Are Available
11.00R20, 12.00R20 or 11R22.5, with 12 plus a spare on 9.0-22.5 rims.
Can I Choose the Colour
Yes, the trailer is finished to your requirement at the factory.
How Long Does It Take to Build
Around 45 days for a customized cryogenic build, confirmed at drawing approval.
