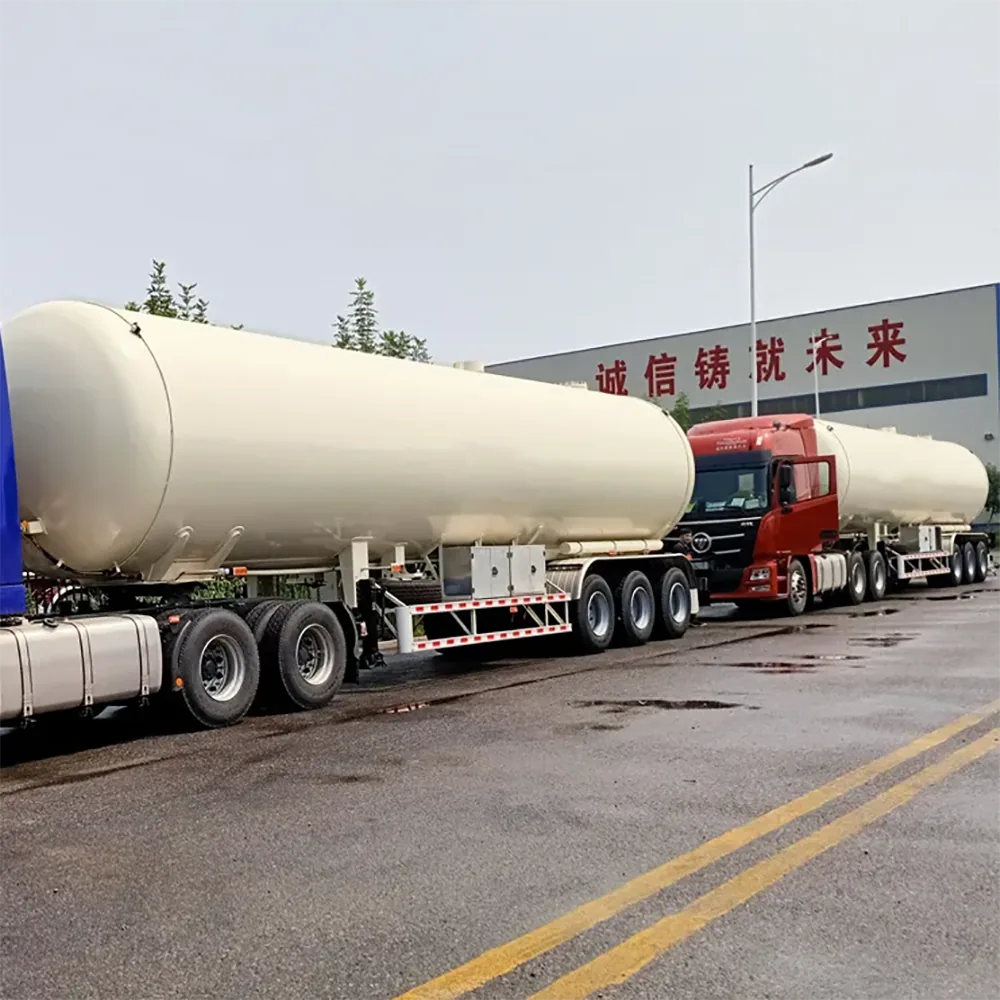

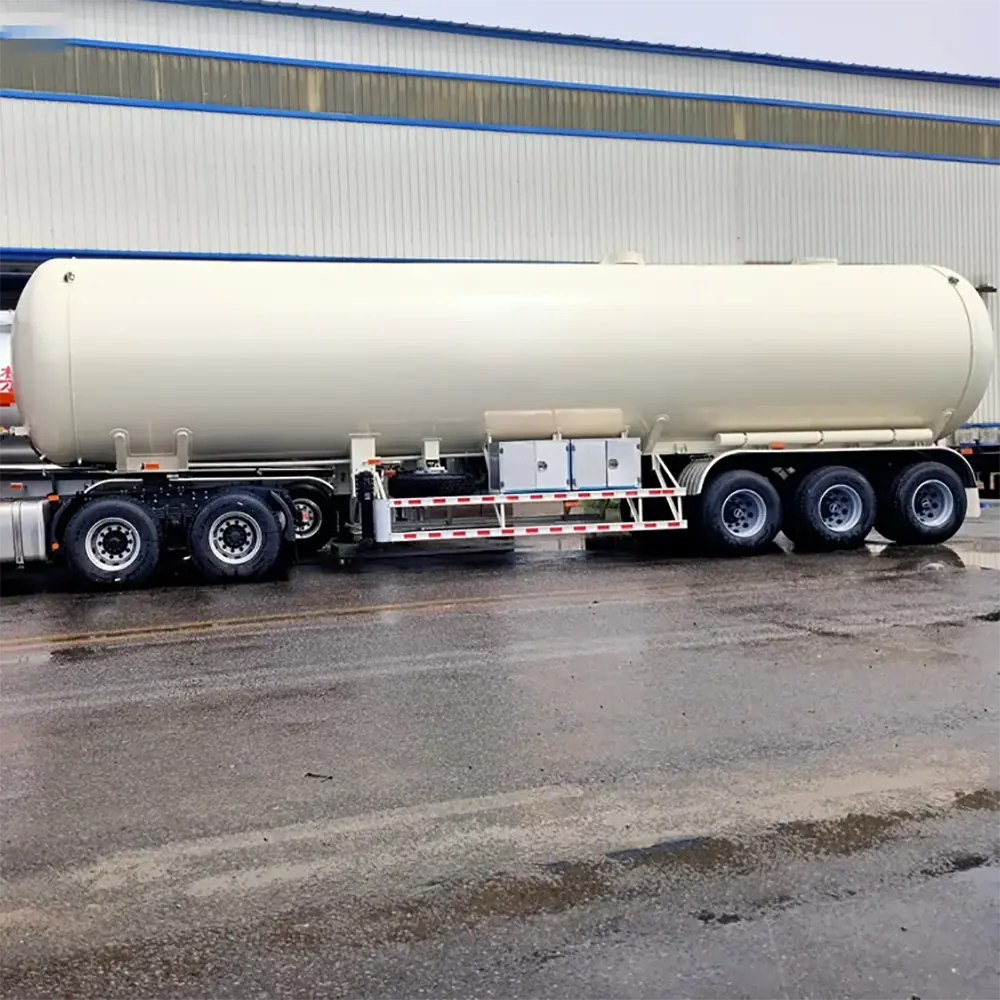

Pressure Vessel LPG Tank Trailer Three axles 60 CBM LPG Liquid Propane Gas Bullet Tank Semi-Trailer
60cbm LPG bullet tank trailer, Q370R 11mm pressure vessel, 22.3 tonne LPG payload.
Overview
What This Trailer Is Built For
A 60 cubic metre LPG bullet tank trailer at 12370*2490*3970mm, built as a pressure vessel in Q370R 11mm plate with a Q370R EHA2476x11mm end plate. LPG is carried under pressure at ambient temperature, so the tank is a certified pressure vessel rather than an insulated cryogenic one, and the plate grade and thickness are what define it. Payload is 22.3 tonnes of LPG with 23.16 tonnes maximum. Axles are FUWA on mechanical suspension, braking is dual line pneumatic with a WABCO relay emergency valve, the kingpin is a 2 or 3.5 inch JOST, landing gear is a standard 28 tonne unit, and four tire sizes are available.
Key Benefits
What You Get
- Q370R 11mm pressure vessel plate is the grade specified for LPG service, not general steel
- 60 cubic metres carries a full commercial LPG load in one trip
- WABCO relay emergency valve with dual line pneumatic braking for a pressurised load
- Four tire options including 385/65R22.5 for local availability
- Colour and finish specified to your requirement
Problems Solved
What It Fixes
- General steel tanks are not certified for LPG pressure service
- Smaller vessels need extra trips on bulk LPG routes
- Standard brake valves are underspecified for a pressurised load
- Unusual tire sizes cannot be replaced in export markets
Who It Is For
Operators Who Buy This Model
- LPG distributors and bottling operations
- Gas companies supplying bulk installations
- Autogas station networks
- Industrial gas users taking bulk propane
Application Scenarios
Where It Works
- LPG distribution from import terminals to bottling plants
- Propane supply to industrial and commercial users
- Bulk gas delivery to rural storage installations
- Autogas supply to filling stations
Technical Features
Build Specification
- Three axle LPG bullet tank semi-trailer, total volume 60cbm
- Dimension 12370*2490*3970mm
- Tank body Q370R 11mm, end plate Q370R EHA2476x11mm
- Payload 22.3 tonnes LPG, maximum payload 23.16 tonnes
- Axles FUWA, mechanical suspension, landing gear standard 28 tonne
- Kingpin 2 inch 50mm or 3.5 inch 90mm JOST, brake WABCO relay emergency valve, dual line pneumatic
- Tires 11.00R20, 12R22.5, 315/80R22.5 or 385/65R22.5, rims 12 units plus 1
Specifications
Manufacturer Data Sheet
| Dimensions L x W x H | 12370*2490*3970mm |
|---|---|
| Max Payload | 23.16Ton Brand Name MAXWAY |
| Axle | FUWA |
| Suspension | Mechanical |
| Payload | 22.3Ton Medium LPG |
| Landing Gear | Standard 28Ton |
| King Pin | 2′′(50mm)or3.5′′(90mm) JOST Color Customers Optional Brake WABCO Relay Emergency Valve |
| Tire | 11.00r20 12r22.5 315/80r22.5 385/65r22.5 Condition Brand-new |
| Tank Body | Q370R, 11mm |
| End Plate | Q370R, EHA2476x11(11)mm |
| Rim | 12 units + 1 |
| Brake System | Dual line pneumatic |
| Painting | Original aluminium or painting as your requirement |
| Tool Box | One |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Pressure vessel weld inspection to the applicable code
- Hydrostatic pressure test on the completed vessel
- Valve, relief and instrument function test
- Dual line brake and WABCO valve response test
Customization
What You Can Change
- Tank volume set within the available range
- Kingpin 2 inch or 3.5 inch JOST
- Tire specification from four options
- Colour finished to your requirement
- Valve and fitting layout matched to your loading procedure
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| LNG cryogenic tanker | LPG is a pressure vessel at ambient temperature; LNG needs vacuum cryogenic insulation. They are not interchangeable. |
| Aluminium alloy LPG tank | Q370R steel is the standard pressure vessel plate and repairs conventionally; aluminium builds save weight. |
| Smaller LPG bullet tank | 60 cubic metres carries a full commercial load; smaller vessels suit tighter axle limits and smaller installations. |
Use Guide
Operating This Trailer
- Operate only within the certified pressure rating of the vessel
- Never adjust or bypass the relief valve setting
- Earth the trailer before every transfer
- Keep the certification documents with the vehicle for inspection
- Have the vessel periodically inspected as required in your market
Related Products
Related Trailers
Liquid Natural Gas LNG Tanker Three axles Semi-trailer China Factory Direct Sale
52.6cbm LNG tanker with an S30408 stainless tank, aluminium alloy main beam and 6 tonne curb weight.
View Specification
LNG Cryogenic Liquid Natural Gas Storage Tank truck Semi-trailer
Cryogenic LNG tank trailer with an aluminium alloy 5083/5182/5454 tank body and rear operation box.
View Specification
Off Road LPG Liquefied Petroleum Gas Tanker Semi-trailer
Off-road cryogenic tanker, 52600 litres, -196 degree design temperature and vacuum multi-layer insulation.
View SpecificationFAQ
Questions About This Model
What Is the Tank Volume
60 cubic metres on a 12370*2490*3970mm chassis.
What Plate Is the Vessel Made From
Q370R at 11mm on the tank body, with a Q370R EHA2476x11mm end plate. That is pressure vessel plate, not general structural steel.
What Payload Does It Carry
22.3 tonnes of LPG, with a maximum payload of 23.16 tonnes.
How Is It Different From an LNG Tanker
LPG travels under pressure at ambient temperature in a certified pressure vessel; LNG needs vacuum cryogenic insulation. The two vessels are completely different builds.
What Brake System Is Fitted
Dual line pneumatic braking with a WABCO relay emergency valve.
Which Tires Can I Choose
11.00R20, 12R22.5, 315/80R22.5 or 385/65R22.5, with 12 rims plus a spare.
What Documentation Comes With It
Pressure vessel documentation appropriate to the build. Tell us the destination country and we will confirm what certification is required before shipment.
Get A Price For The Pressure Configuration You Need
Send your country of use, cargo, load weight and axle limits. We confirm the configuration and quote FOB or CIF in one to three days.
