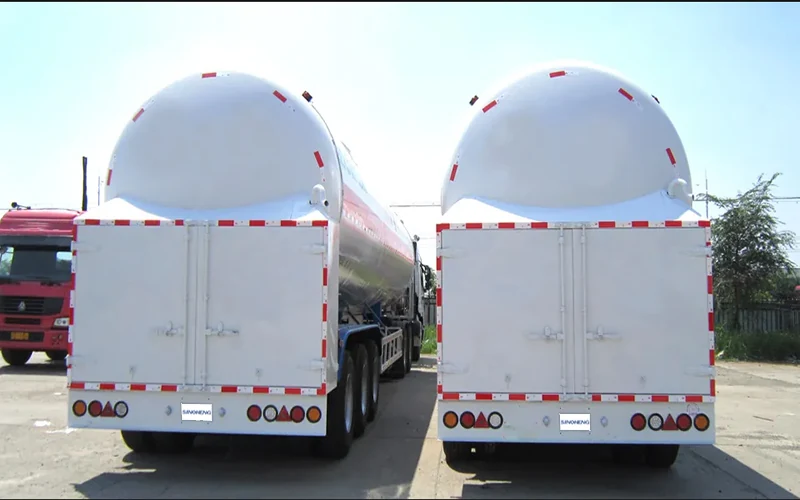

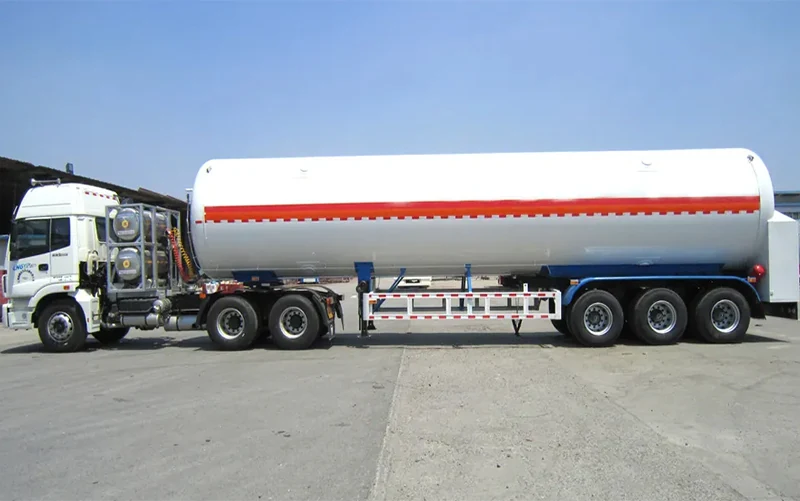

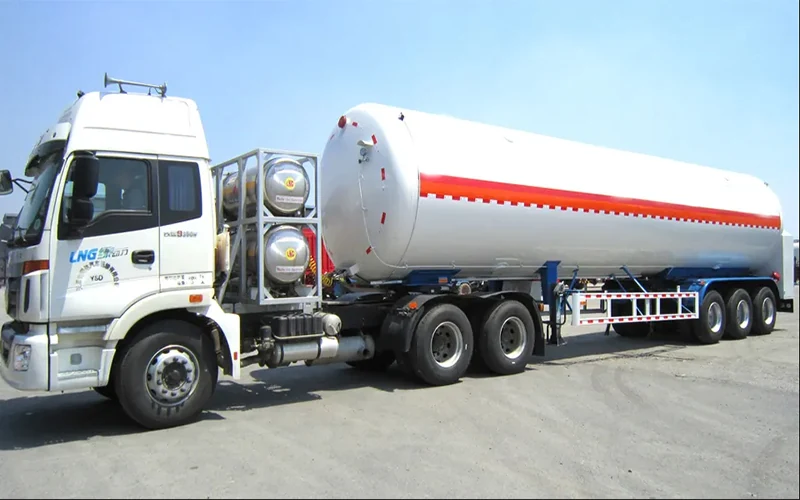

Liquid Nitrogen Tanker 31000L Semi-trailer China Factory for Sale
31000 litre liquid nitrogen tanker, S30408 pressure vessel at 0.8MPa working pressure.
Overview
What This Trailer Is Built For
A 31000 litre cryogenic tanker for liquid nitrogen at 10610 x 2500 x 3820mm, tare 16254kg and payload 23764kg within a 40000kg gross, all plus or minus 5 percent. The trailer height is adjusted to suit the tractor specification, and the traction pin sits 1320mm from the ground. Pressure-bearing components are S30408 stainless with a design pressure of 0.91MPa, a working pressure of 0.8MPa, a relief valve opening at 0.8MPa, and zero corrosion allowance. Insulation is vacuum multi-layer. Unit volume filling weight is 0.766kg per litre, which reflects the density of liquid nitrogen against lighter cryogenic products. Axles are 13 tonne FUWA.
Key Benefits
What You Get
- 31000 litres of liquid nitrogen at 0.766kg per litre is a full commercial industrial gas load
- S30408 stainless pressure-bearing components with zero corrosion allowance
- Vacuum multi-layer insulation holds cryogenic temperature over long hauls
- Trailer height adjusted to your tractor specification rather than a fixed figure
- 1320mm traction pin height matches standard industrial gas tractor fifth wheels
Problems Solved
What It Fixes
- Liquid nitrogen is denser than LNG and overloads tanks sized for lighter cryogens
- General steel is unsuitable for cryogenic pressure service
- Foam insulation cannot hold cryogenic temperature over distance
- A fixed trailer height does not match every tractor fifth wheel
Who It Is For
Operators Who Buy This Model
- Industrial gas producers and distributors
- Food processing companies using nitrogen freezing
- Medical gas suppliers
- Chemical and electronics manufacturers taking bulk cryogen
Application Scenarios
Where It Works
- Industrial gas supply to steelworks and manufacturing plants
- Liquid nitrogen delivery for food freezing operations
- Medical and laboratory gas distribution
- Cryogenic supply to electronics and chemical plants
Technical Features
Build Specification
- Liquid nitrogen tanker semi-trailer, tank volume 31000L
- Dimension 10610 x 2500 x 3820mm, height adjusted to tractor specification
- Tare weight 16254kg, payload 23764kg, gross weight 40000kg, all plus or minus 5 percent
- Design pressure 0.91MPa, working pressure 0.8MPa, relief valve opening pressure 0.8MPa
- Main pressure-bearing material S30408, corrosion allowance 0mm
- Vacuum multi-layer insulation, unit volume filling weight 0.766kg per litre
- Axles 13 tonne FUWA, traction pin height from ground 1320mm, toolbox 1 set
Specifications
Manufacturer Data Sheet
| Type | 31000L liquid nitrogen tanker semi trailer Parameter |
|---|---|
| Dimensions L x W x H | 10610x2500x3820*7mm(The height will be adjusted according to the tractor specification) |
| Tank Volume | 31000L |
| Unit Volume Filling Weight | 0.766 Traction pin height from the ground 1320mm |
| Tare Weight | (kg) 1,6254 kg(±5%) |
| Payload | (kg) 2,3764 kg(±5%) |
| Gross Weight | (kg) 40,000 kg(±5%) |
| Adiabatic Way | Vacuum \ multi-layer |
| Adiabatic Materials | wind (Relief valve) opening pressure(Mpa) 0.8Mpa Filling medium Liquid Nitrogen Fluid property Liquefied nitrogen |
| Design Pressure | 0.91MPa |
| Working Pressure | 0.8MPa Corrosion allowance 0mm Major materials of bearing pressure S30408 |
| Axles | 13 TON FUWA |
| Tool Box | 1 set |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Pressure vessel weld inspection on the inner tank
- Vacuum integrity verification on the insulation space
- Relief valve set pressure verification at 0.8MPa
- Hydrostatic and leak test before dispatch
Customization
What You Can Change
- Trailer height adjusted to your tractor specification
- Tank volume set to your delivery pattern and axle limits
- Valve and instrument layout arranged to your procedure
- Axle brand and suspension chosen to local service support
- Painting and marking to your requirement
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| LNG cryogenic tanker | Liquid nitrogen is much denser at 0.766kg per litre against roughly 0.38 for LNG, so the same weight limit allows far less volume. |
| LPG pressure tanker | Nitrogen is carried cryogenically with vacuum insulation; LPG is a pressure vessel at ambient temperature. |
| Vacuum-insulated ISO tank | A dedicated semi-trailer carries more per trip; an ISO tank suits intermodal transfer. |
Use Guide
Operating This Trailer
- Complete the cold-down procedure before first filling
- Never adjust or bypass the 0.8MPa relief valve setting
- Log tank pressure and vacuum readings on the stated schedule
- Use cryogenic protective equipment at every transfer point
- Confirm the fifth wheel height matches the 1320mm traction pin height
Related Products
Related Trailers
Liquid Natural Gas LNG Tanker Three axles Semi-trailer China Factory Direct Sale
52.6cbm LNG tanker with an S30408 stainless tank, aluminium alloy main beam and 6 tonne curb weight.
View Specification
LNG Cryogenic Liquid Natural Gas Storage Tank truck Semi-trailer
Cryogenic LNG tank trailer with an aluminium alloy 5083/5182/5454 tank body and rear operation box.
View Specification
Off Road LPG Liquefied Petroleum Gas Tanker Semi-trailer
Off-road cryogenic tanker, 52600 litres, -196 degree design temperature and vacuum multi-layer insulation.
View SpecificationFAQ
Questions About This Model
What Is the Tank Volume
31000 litres, with a unit volume filling weight of 0.766kg per litre for liquid nitrogen.
What Is the Working Pressure
0.8MPa working pressure against a 0.91MPa design pressure, with the relief valve opening at 0.8MPa.
What Material Is the Pressure Vessel
S30408 stainless for the main pressure-bearing components, with zero corrosion allowance.
What Is the Payload
23764kg within a 40000kg gross, against a 16254kg tare. A vacuum-insulated cryogenic vessel is inherently heavy.
Can It Carry Other Cryogenic Liquids
The specification here is for liquid nitrogen. Tell us the exact product and we will confirm the materials, pressure rating and fittings before order.
Is the Height Fixed
No. The trailer height is adjusted to suit your tractor specification, and the traction pin sits 1320mm from the ground.
How Long Does Delivery Take
Around 45 days for a customized cryogenic build, confirmed at drawing approval.
Get A Price For The Liquid Configuration You Need
Send your country of use, cargo, load weight and axle limits. We confirm the configuration and quote FOB or CIF in one to three days.
