Heavy Bag Line 10 kg To 50 kg

Heavy bag lines are laid out around the bag closing method and the operator position. We draw the line on your floor plan before anything is quoted.

Bulk density and flow behaviour decide whether you need a granule scale or a screw metering head. We measure it rather than guess it.

Published sealing styles are hem seam or sewing for woven bags, heat sealing, seam sewing or viscose wrapping paper for kraft, and heat sealing for composite and plastic bags.

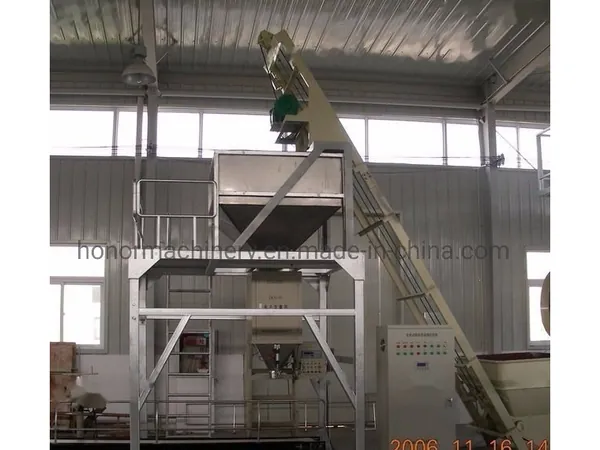

The line is composed of the automatic feeding elevator, the weighing or screw metering machine, the automatic bag feeding and packing machine, the vertical bag conveyor, the heat sealing machine, the folding seam wrapping machine and the coder.

Weight detector and metal detector on the outfeed, with the touch screen storing packaging parameters for each product so a change back does not mean re-setting.

Bag flattener, then robot palletiser and stretch wrapper. This is the most common upgrade path once the bagging step is stable.

Fault display system on the HMI helps the shift leader troubleshoot before calling anyone. Support is 24/7 with a 4-hour critical response.
