Product Category

Palletising Line

Robot palletisers, case erectors, sealers, wrappers and thermal sealing equipment for the end of your packing line.

The end of the line is where most bulk plants still pay for manual labour. Honor palletising equipment closes that gap with robot palletisers, carton erecting and sealing machines, pallet stretch wrappers and heat sealing units that plug into the bagging line upstream.

Palletising Line from Hefei Honor
Why This Category

What It Is For And What It Fixes

Who This Category Is For

Plants that have already automated the bagging and are still stacking by hand. If two people spend a shift lifting 25 kg bags onto pallets behind a machine that never stops, the end of the line is now the bottleneck and the safety exposure.

Which Industries Buy It

Food and beverage, chemicals, building materials, feed and automated logistics operations. The same equipment handles woven sacks, kraft paper bags, cartons and shrink-wrapped bundles with a change of gripper.

Problems It Solves

Manual stacking limits your line speed to what people can lift, produces uneven loads that shift in the container, and carries a real injury risk. A robot palletiser holds the pattern exactly, feeds its own pallets from a magazine of ten to fifteen, and pushes the finished load out for the forklift.

Core Advantages

Published performance on the palletising line includes a 180 kg payload, IP67 protection, 0.1 mm repeat positioning accuracy, a 3.15 m maximum reach and a continuous rate of 600 to 1000 bags an hour on 25 kg to 50 kg bags. Pneumatics are FESTO, TPC or SMC. Stacking patterns are adjusted on the touch screen rather than in the robot program.

Machines

6 Models In This Category

Application Scenarios

Where These Machines Are Installed

Food And Beverage

Puffed snacks, biscuits, candy, tea, coffee bean, frozen food, milk and bean powder, flour, starch, salt and seasoning.

Open

Chemical And Fertiliser

Plastic granules, carbon black, washing powder, dyes, chemical raw materials, salt products and fertiliser.

Open

Building Materials

Dry mortar, powders and granular building products bagged at 25 kg and 50 kg or filled into ton bags.

Open

Agriculture Seed And Feed

Seed, rice, millet, beans, coarse grain, nuts, fungus, pesticide, feed and feed additives.

Open

Pharmaceutical And Additives

Solid medicine, glucose, granular and powder additives packed to hygienic machinery standards.

Open

Logistics And Warehousing

Carton erecting, sealing, wrapping and robot palletising for automated logistics operations.

Open

Related Reading

Guides That Help You Specify

Buying Guide

How To Choose A Packing Machine

The eight questions that decide the machine before price ever comes into it.

Material Guide

Bag Types For Packing Machines

Pillow, four-side seal, stand-up, zipper, M-bag, spouted and woven: what each one costs you.

Process Guide

Packing Accuracy Explained

Why a machine rated at 0.2% can still give you 1% giveaway, and what to do about it.

FAQ

Palletising Line FAQ

Questions buyers ask before they order. If yours is not here, message us and an engineer will answer.

What is the payload and reach of the palletising robot?
Published data for the automatic palletising production line is a 180 kg bearing capacity, IP67 protection, 0.1 mm repeat positioning accuracy, 0.3 mm repeat cycle accuracy and a 3.15 m maximum reach.
How fast can it stack?
Continuous stacking on 25 kg to 50 kg bags is published at 600 to 1000 bags an hour, in 6 to 8 layers with 4, 5, 6 or 8 bags per layer in patterns such as 3+2, 2+3 and 3+3.
Does it feed its own pallets?
Yes. The pallet magazine holds 10 to 15 empty pallets and supplies them automatically, and the number of layers and the supply and discharge sequence are set in the PLC.
What pallet size does it work to?
The published tray size is 1400 mm x 1200 mm x 150 mm. Other pallet sizes are handled by changing the pattern and the gripper, which is a configuration change rather than a new machine.
Can I add stretch wrapping and carton sealing?

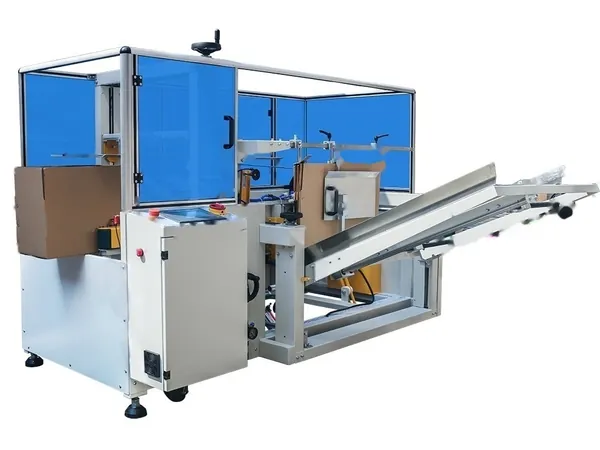

Yes. The rotatable pallet stretch wrapper, the carton case erector with tape sealing and the automatic carton sealer are all in this category and are commonly ordered together with the palletiser.

Get A Shortlist For Your Product

Send the material, the pack weight and the output you need and we will name the two or three models worth quoting.

Request A QuoteTalk To An EngineerEmail Us

Send a drawing, a bag sample photo or a video of your current line on WhatsApp or by email — that is usually enough for us to quote.
