J9822A

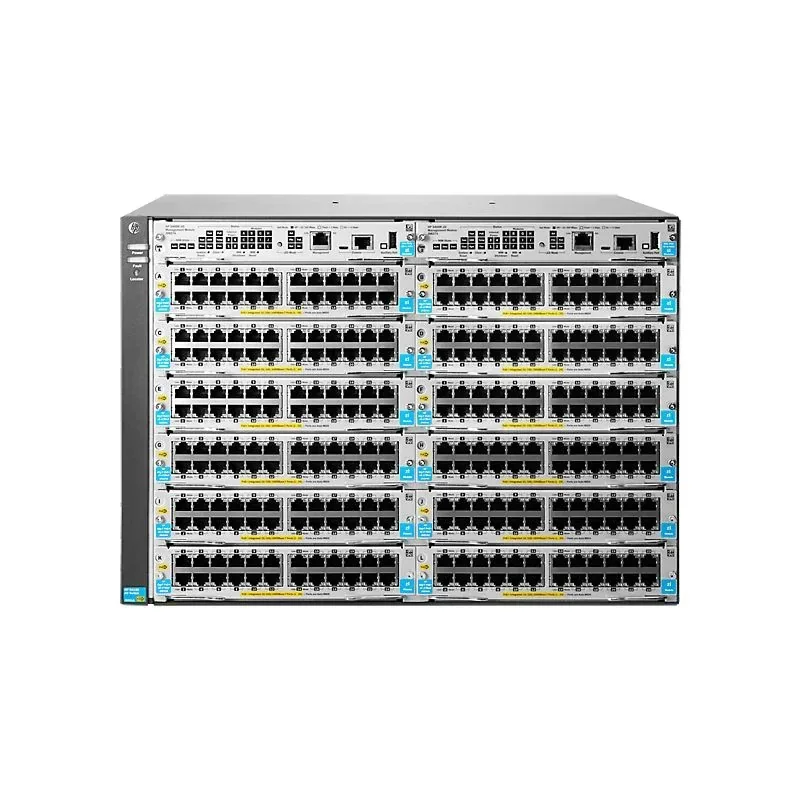

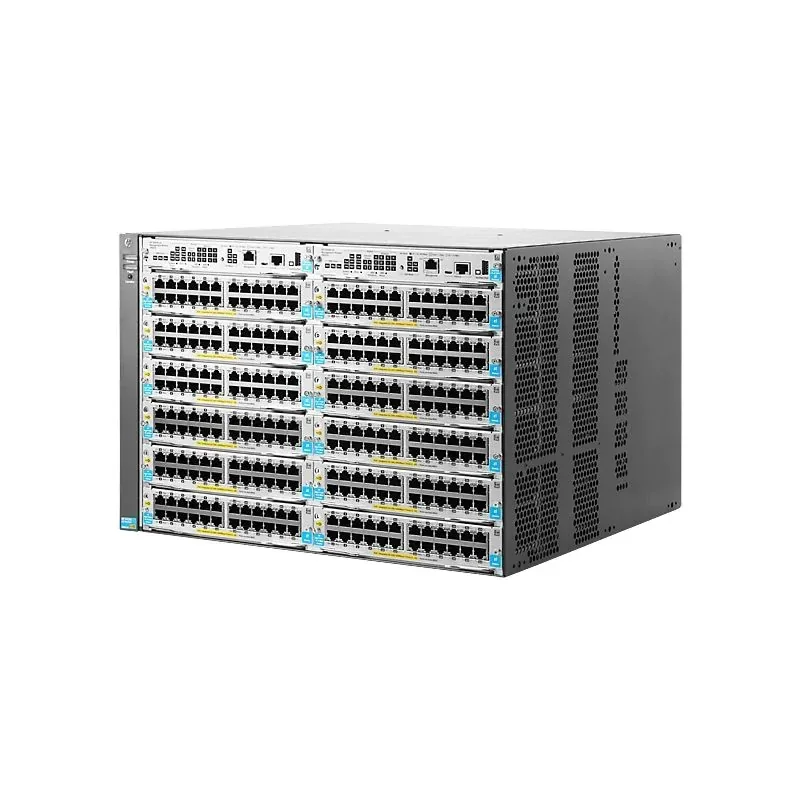

The HPE Aruba 5400R Switch Series is a Layer 3 modular switch series that delivers high-performance, low latency and resiliency for a better mobile-first campus experience. J9822A is a HPE 5412R zl2 Switch, including 1 HPE 5400R zl2 Management Module (J9827A) ...
- Throughput
- 1920 Gbps
- Form Factor
- HPE 5412R zl2 Switch
- MAC Table
- 64000 entries
- Voltage
- 100-127/200-240 VAC, rated
- Dimensions
- 17.5(w) x 17.75(d) x 12.1(h) in. (44.45 x 45.09 x 30.73 cm) (7U...
- Weight
- 38.1 lb (17.28 kg)
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview
J9822A Overview
The HPE Aruba 5400R Switch Series is a Layer 3 modular switch series that delivers high-performance, low latency and resiliency for a better mobile-first campus experience. J9822A is a HPE 5412R zl2 Switch, including 1 HPE 5400R zl2 Management Module (J9827A) and 1 HPE 5412R zl2 Switch Fan Tray (J9832A). The published specification for J9822A lists a published routing/Switching capacity of 1920 Gbps. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning J9822A Changes
Table Sizes Checked Against the Design
A MAC address table size of 64000 entries on this model, the kind of ceiling that only becomes visible once a flat segment has grown.
Rated Performance Written Into the Quotation
1920 Gbps published for J9822A as its routing/Switching capacity, confirmed against the current datasheet revision when the line is quoted.
A Complete Bill of Materials
Modules optics rails and power options are reviewed against J9822A before the quotation is issued, so the install crew is not blocked by a line nobody costed.
Support Registered Under the End User Name
A vendor support contract for J9822A is written under the end customer name, so the entitlement sits with the organisation that owns the outage.
Serials Issued Before It Ships
The serial list for your J9822A consignment is released before despatch, so it can be checked on the manufacturer portal while the goods are still with us.
Problems It Solves
Pain Points J9822A Removes
- PoE budget that stopped covering the access points cameras and phones added since
- Uplink modules and stacking cables quoted separately and discovered missing on site
- AOS-Switch and ArubaOS-CX estates that have drifted into two toolchains
- Performance taken from a family datasheet rather than from this part number, where the published routing/Switching capacity is 1920 Gbps
- End of sale announcements that leave a proven design with no supply route for J9822A
Who It Is For
Who Benefits Most From J9822A
Campus Network Teams
Running one access standard across buildings of very different ages
Education IT
Delivering inside vacation windows against a budget year that rarely aligns with the install date
Enterprise IT Teams
Replacing equipment that has reached end of support before an audit rather than after one
Data Centre Operators
Adding capacity in defined increments as cabinets and rows fill up
Specifications
J9822A Manufacturer Specification
As published by Aruba for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Type | HPE 5412R zl2 Switch |
|---|---|
| Included accessories | 1 HPE 5400R zl2 Management Module (J9827A) 1 HPE 5412R zl2 Switch Fan Tray (J9832A) |
| I/O ports and slots | 12 open module slots Supports a maximum of 288 autosensing 10/100/1000 ports or 288 SFP ports or 96 SFP+ ports or 96 HPE Smart Rate Multi-Gigabit or 24 40GbE ports, or a combination |
| Power supplies | 4 power supply slots 2 minimum power supplies required (ordered separately) |
| Fan Tray | Includes: 1 x J9832A 1 fan tray slot |
| Dimensions (W x D x H) | 17.5(w) x 17.75(d) x 12.1(h) in. (44.45 x 45.09 x 30.73 cm) (7U height) |
| Weight | 38.1 lb (17.28 kg) |
| v3 Gigabit Module | Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal |
| v2 Gigabit Module | ARM 11 @ 450 MHz; Packet buffer size: 18 MB internal |
| v3 10G Module | Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal |
| v2 10G Module | ARM 11 @ 550 MHz; Packet buffer size: 18 MB internal |
| v3 40G Module | Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal |
| Management Module | Freescale P2020 dual core @ 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM |
| Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included); Horizontal surface mounting only |
| 1000 Mb Latency | < 2.8 µs (FIFO 64-byte packets) |
| 10 Gbps Latency | < 1.8 µs (FIFO 64-byte packets) |
| 40 Gbps Latency | < 1.5 µs (FIFO 64-byte packets) |
| Throughput | Up to 1142.8 Mpps |
| Routing/Switching capacity | 1920 Gbps |
| Switch fabric speed | 2030 Gbps |
| Routing table size | 10000 entries (IPv4), 5000 entries (IPv6) |
| MAC address table size | 64000 entries |
| Operating temperature | 32 degF to 113 degF (0 degC to 45 degC); 0 degC to 40 degC with J8177C transceiver installed, 0 degC to 35 degC with FIPS Opacity Shield installed |
| Operating relative humidity | 15% to 95% @ 113 degF (45 degC), noncondensing |
| Nonoperating/Storage temperature | -40 degF to 158 degF (-40 degC to 70 degC) |
| Nonoperating/Storage relative humidity | 15% to 95% @ 149 degF (65 degC), noncondensing |
| Altitude | Up to 10,000 ft (3 km) |
| Acoustic | Power: 49 dB, Pressure: 35.7 dB ISO 7779, ISO 9296 |
| Frequency | 50/60 Hz |
| 80plus.org Certification | Gold |
| Description | Does not come with power supply. Two power supply slots are available; three different power supplies are available. See power supply products for additional specifications. |
| Maximum heat dissipation | 4900 BTU/hr (5169 kJ/hr), (max. non-PoE); 7400 BTU/hr (7,807 kJ/hr), (max. using PoE) |
| Voltage | 100-127/200-240 VAC, rated |
| Idle power | (depending on power supply chosen) |
| Notes | Heat dissipation does not include heat dissipated by the PoE-powered devices themselves. When more than four power cords are installed in a 5412R zl2 switch chassis, additional installation requirements are needed. |
| Safety | CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950 |
| Emissions | FCC part 15 Class A; EN 55022/CISPR 22 Class A |
| Immunity EN ESD Radiated EFT/Burst Surge Conducted Power frequency magnetic field Harmonics Flicker | EN 55024, CISPR 24 IEC 61000-4-2; 4 kV CD, 8 kV AD; HPE ENV. 765.002 IEC 61000-4-3; 3 V/m IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) IEC 61000-4-5; 1 kV/2 kV AC, 1 kV signal, 0.5 kV DC IEC 61000-4-6; 3 Vrms IEC 61000-4-8; 1 A/m, 50 or 60 Hz IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 ... |
| Management | IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); SNMP Manager; Out-of-band management (serial RS-232C or micro USB) AirWave Network Management |
| Notes | Supported 1G SFP transceivers are revision "B" or later (product number ends with the letter "B" or later; For example, J9142B, J8177C. |
Supply Terms
How J9822A Is Supplied
| Part Number | J9822A |
|---|---|
| Brand | Aruba |
| Category | Aruba Switches |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Comparison
J9822A Against Other Models in Aruba Switches
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | J9822A | J9772A | J9773A | J9774A |
|---|---|---|---|---|
| Throughput | 1920 Gbps | 104 Gb/s | 56 Gb/s | 20 Gb/s |
| Form Factor | HPE 5412R zl2 Switch | Aruba 2530-48G-PoE+ Switch | Aruba 2530-24G-PoE+ Switch | Aruba 2530-8G-PoE+ Switch |
| MAC Table | 64000 entries | 16000 entries | 16000 entries | 16000 entries |
| Voltage | 100-127/200-240 VAC, rated | 100 - 127 / 200 - 240 V ac | 100 - 127 / 200 - 240 V ac | 100 - 127 / 200 - 240 V ac |
| Dimensions | 17.5(w) x 17.75(d) x 12.1(h) in. (44.45 x 45.09 x 30.73 cm) (7U... | - | - | - |
| Weight | 38.1 lb (17.28 kg) | - | - | - |
| Product page | View J9822A | View J9772A | View J9773A | View J9774A |
Use Guide
Deployment Guide for J9822A
Confirm the Full Part Number
Check J9822A character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Register Support Entitlement
Register the support contract under the end user name so the entitlement sits with the organisation that owns the outage.
