J9774A
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. This J9774A has 8 x 10/100/1000 PoE+ ports with a power budget of 67W. Add...
- Ports
- · 8 x RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type...
- PoE Power
- 67 W
- Throughput
- 20 Gb/s
- Form Factor
- Aruba 2530-8G-PoE+ Switch
- MAC Table
- 16000 entries
- Voltage
- 100 - 127 / 200 - 240 V ac
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview

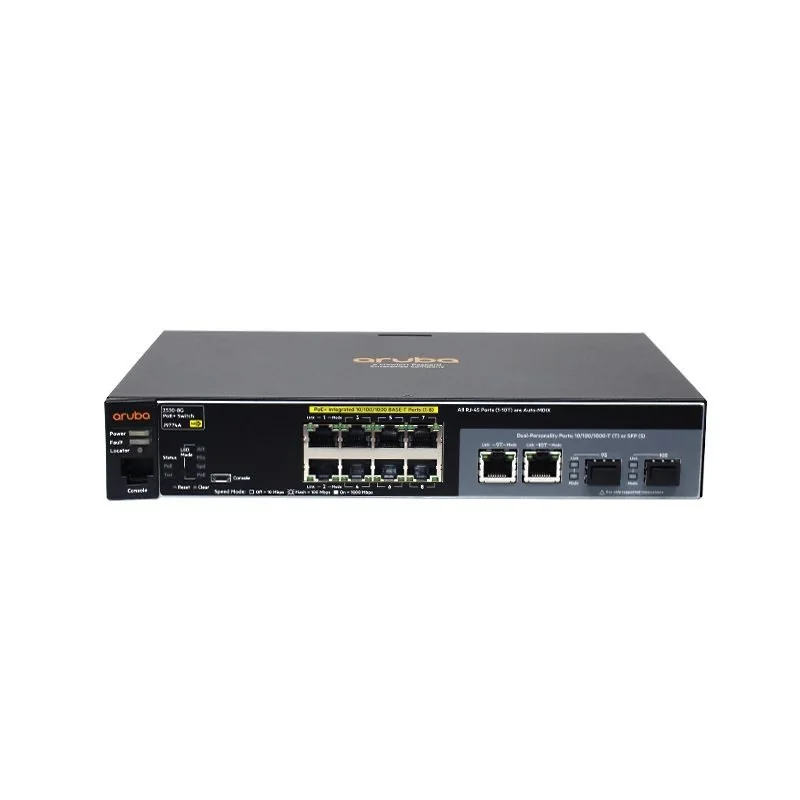

J9774A Overview
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. This J9774A has 8 x 10/100/1000 PoE+ ports with a power budget of 67W. Additionally the switch has two Gigabit 10/100/1000 dual personality shared with two SFP ports. The published specification for J9774A lists 67 W available to powered devices and a published switching capacity of 20 Gb/s. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning J9774A Changes
A Power Budget You Can Design Against
67 W available to powered devices, which is the figure a PoE budget calculation actually needs rather than the platform's total draw.
Rated Performance Written Into the Quotation
20 Gb/s published for J9774A as its switching capacity, confirmed against the current datasheet revision when the line is quoted.
Table Sizes Checked Against the Design
A MAC address table size of 16000 entries on this model, the kind of ceiling that only becomes visible once a flat segment has grown.
Serials Issued Before It Ships
The serial list for your J9774A consignment is released before despatch, so it can be checked on the manufacturer portal while the goods are still with us.
A Complete Bill of Materials
Modules optics rails and power options are reviewed against J9774A before the quotation is issued, so the install crew is not blocked by a line nobody costed.
Problems It Solves
Pain Points J9774A Removes
- AOS-Switch and ArubaOS-CX estates that have drifted into two toolchains
- PoE budgets sized for desk phones and now asked to carry Wi-Fi 6 access points, where 67 W is the figure that decides it
- Performance taken from a family datasheet rather than from this part number, where the published switching capacity is 20 Gb/s
- End of sale announcements that leave a proven design with no supply route for J9774A
- A closet-by-closet rollout that needs the same SKU available years after the first order
Who It Is For
Who Benefits Most From J9774A
Campus Network Teams
Running one access standard across buildings of very different ages
Education IT
Delivering inside vacation windows against a budget year that rarely aligns with the install date
Healthcare Estates
Working to very short change windows with serial level records required for compliance
Machine Builders
Replacing an installed component with one that behaves identically to the unit removed
Specifications
J9774A Manufacturer Specification
As published by Aruba for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Type | Aruba 2530-8G-PoE+ Switch |
|---|---|
| Ports | · 8 x RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 2 x dual-personality ports; each port can be used as either an RJ-45 10/10... |
| Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated. |
| Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
| Management | IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
| 1000 Mb latency | < 2.6 µs (LIFO 64-byte packets) |
| 100 Mb Latency | < 7.4µs (LIFO 64-byte packets) |
| Throughput | Up to 14.8 million pps (64-byte packets) |
| Switching capacity | 20 Gb/s |
| MAC address table size | 16000 entries |
| Dimensions (W x D x H) | 25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height) |
| Weight | 1 kg (2.2 lb) |
| Maximum heat dissipation | 65 BTU/hr (68.58 kJ/hr), (switch only: 65 BTU/hr; combined switch + max. PoE devices: 293 BTU/hr) |
| Voltage | 100 - 127 / 200 - 240 V ac |
| Current | 1.4 A |
| Idle power | 13.4 W |
| Maximum power rating | 86 W |
| PoE power | 67 W |
| Frequency | 50/60 Hz |
Supply Terms
How J9774A Is Supplied
| Part Number | J9774A |
|---|---|
| Brand | Aruba |
| Category | Aruba Switches |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Comparison
J9774A Against Other Models in Aruba Switches
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | J9774A | J9992A | J9993A | J9995A |
|---|---|---|---|---|
| Ports | · 8 x RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type... | - | - | - |
| PoE Power | 67 W | - | - | - |
| Throughput | 20 Gb/s | - | - | - |
| Form Factor | Aruba 2530-8G-PoE+ Switch | - | - | - |
| MAC Table | 16000 entries | - | - | - |
| Voltage | 100 - 127 / 200 - 240 V ac | - | - | - |
| Product page | View J9774A | View J9992A | View J9993A | View J9995A |
Use Guide
Deployment Guide for J9774A
Confirm the Full Part Number
Check J9774A character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Calculate the Power Budget
Compare the devices this unit will feed against the 67 W available, using realistic device draw with headroom rather than class maximums.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Register Support Entitlement
Register the support contract under the end user name so the entitlement sits with the organisation that owns the outage.
Related Products
Other Models in Aruba Switches
J9993A
HPE J9993A - Aruba Module The 8-port 1G/10GbE SFP+ MACsec v3 zl2 module HPE J9993A is used with the 5400R zl2 Switch Series. It is supplied new factor
J9995A
HPE J9995A - Aruba 54/82 v3 10G zl2 Module Aruba 8p 1/2.5/5/XGT PoE+ v3 zl2 Mod. It is supplied new factory sealed, with the serial list issued before
JL001A
The HPE Aruba 5400R Switch Series is a Layer 3 modular switch series that delivers high-performance, low latency and resiliency for a better mobile-fi
JL002A
The HPE Aruba 5400R Switch Series is a Layer 3 modular switch series that delivers high-performance, low latency and resiliency for a better mobile-fi
JL071A
Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. This JL071A has 24 x 10/100/1000 ports
JL072A
Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. This JL072A has 48 x 10/100/1000 ports
JL073A
Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. This JL073A has 24 x 10/100/1000 PoE+
Where It Goes
Industries That Deploy It
Healthcare
Hardware supplied with the traceability and change discipline a clinical environment requires.
Manufacturing and Logistics
Connectivity for plant floors, warehouses and distribution sites built for continuous operation rather than office hours.
Data Center
Top of rack switching, compute and storage delivered in the phased increments a cabinet build actually consumes.
Solutions
Programmes It Is Supplied Under
Campus Wireless Deployment
Wireless projects are rarely stopped by the access point. They are stopped by a mount, a PoE class or a licence count that nobody confirmed before the order went out.
Data Center Switching Build
A cabinet is commissioned as a unit, so it should be supplied as one. Switches, optics, rails and power leads belong in the same consignment.
Support Contracts and SmartNet
A support contract registered under a reseller name is of limited use to the organisation that owns the outage. Entitlement is written under the end user name.
Reference
Project Cases and Guides
Regional Bank Branch Refresh Across 140 Sites
The branch edge had reached end of software support and the estate had drifted into four different router models bought across eight years
University Campus Wi-Fi Density Upgrade
Lecture theatres and the library could not carry the client counts actually present, while the work could only happen during vacations
PoE Budget Planning for Access Switches
Port count and power budget are two separate limits. Most PoE shortfalls come from planning only the first one.
Choosing Optical Transceivers for Reach
Coding, fibre type, reach and connector are four independent decisions, and any one of them can stop a link coming up.
Support Contracts Explained for Buyers
A support contract is bought once and used on the worst day of the year. The level and the name it is registered under both matter.
FAQ
J9774A Frequently Asked Questions
Is J9774A New or Refurbished
Standard supply is new factory sealed in the original vendor carton. If a quotation offers another condition that is stated explicitly in writing before you commit.
Can I Get the Serial Numbers for J9774A Before Payment Clears
Yes. Serials are issued before shipment so you can check them on the manufacturer portal while the goods are still with us.
What Is the Lead Time for J9774A
Availability is confirmed in writing per line at quotation rather than as a project average, because one late line is what moves an installation date.
What Warranty Does J9774A Carry
12 months replacement as standard. A vendor support contract is available separately and is registered under the end user name.
How Much PoE Power Does J9774A Provide
The manufacturer lists poE power of 67 W for this model. A PoE budget should be calculated from realistic device draw with headroom rather than from class maximums.
What Performance Is J9774A Rated For
The published switching capacity is 20 Gb/s. Full port and performance specifications are issued with the quotation against the current datasheet revision.
Are Uplink Modules and Optics Included With J9774A
They are quoted as separate lines and reviewed against the chassis before the quotation is issued, so they reach site in the same consignment as the unit they belong to.
What Table Sizes Does J9774A Carry
The published MAC address table size is 16000 entries. Table ceilings usually only become visible once a flat segment has grown, so they are worth checking against the design rather than against today's estate.
Can You Ship J9774A to My Country
Yes. Consignments go worldwide by courier or freight from Hong Kong, with the routing chosen against the destination clearance regime and your deadline.
Request Pricing for J9774A
Send the quantity and destination country. Availability and lead time come back in writing, with the serial list before shipment.
