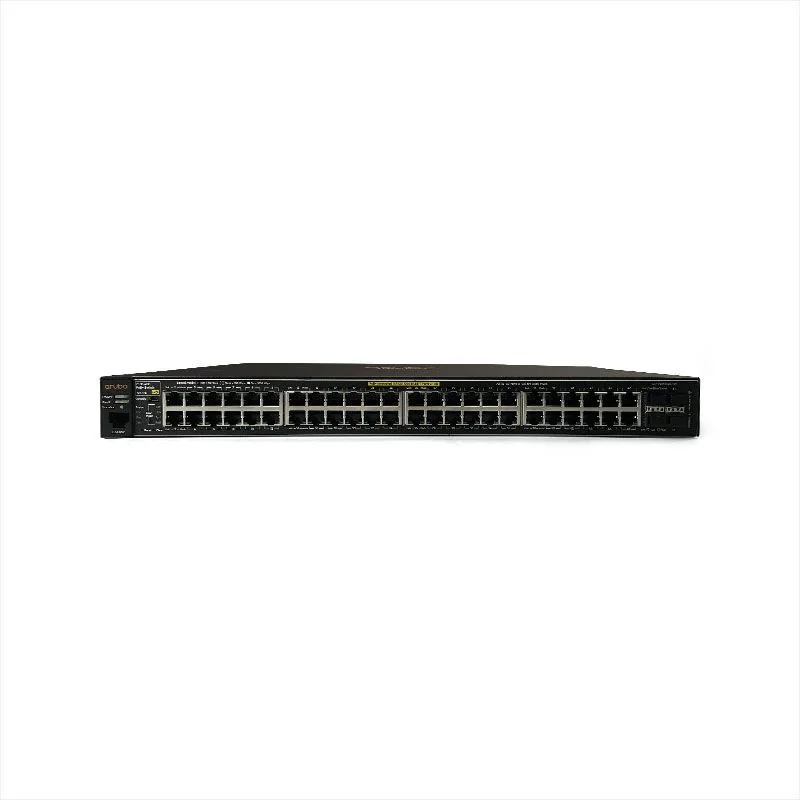

J9772A
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. The published specification for J9772A lists 382 W available to powered de...
- Ports
- · 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type...
- PoE Power
- 382 W
- Throughput
- 104 Gb/s
- Form Factor
- Aruba 2530-48G-PoE+ Switch
- MAC Table
- 16000 entries
- Voltage
- 100 - 127 / 200 - 240 V ac
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview
J9772A Overview
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. The published specification for J9772A lists 382 W available to powered devices and a published switching capacity of 104 Gb/s. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning J9772A Changes
A Power Budget You Can Design Against
382 W available to powered devices, which is the figure a PoE budget calculation actually needs rather than the platform's total draw.
Rated Performance Written Into the Quotation
104 Gb/s published for J9772A as its switching capacity, confirmed against the current datasheet revision when the line is quoted.
Table Sizes Checked Against the Design
A MAC address table size of 16000 entries on this model, the kind of ceiling that only becomes visible once a flat segment has grown.
A Complete Bill of Materials
Modules optics rails and power options are reviewed against J9772A before the quotation is issued, so the install crew is not blocked by a line nobody costed.
Support Registered Under the End User Name
A vendor support contract for J9772A is written under the end customer name, so the entitlement sits with the organisation that owns the outage.
Problems It Solves
Pain Points J9772A Removes
- A closet-by-closet rollout that needs the same SKU available years after the first order
- PoE budget that stopped covering the access points cameras and phones added since
- Uplink modules and stacking cables quoted separately and discovered missing on site
- AOS-Switch and ArubaOS-CX estates that have drifted into two toolchains
- PoE budgets sized for desk phones and now asked to carry Wi-Fi 6 access points, where 382 W is the figure that decides it
Who It Is For
Who Benefits Most From J9772A
Campus Network Teams
Running one access standard across buildings of very different ages
Education IT
Delivering inside vacation windows against a budget year that rarely aligns with the install date
Data Centre Operators
Adding capacity in defined increments as cabinets and rows fill up
Branch Network Teams
Rolling out one site design across many locations on a fixed bill of materials
Specifications
J9772A Manufacturer Specification
As published by Aruba for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Type | Aruba 2530-48G-PoE+ Switch |
|---|---|
| Ports | · 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 4 fixed Gigabit Ethernet SFP ports · 1 Dual-personality (RJ-45 or USB micro... |
| Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 3 MB dynamically allocated. |
| Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
| Management | IMC - Intelligent Management Center; Command-Line Interface (CLI); Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
| 1000 Mb latency | < 2.3 µs (LIFO 64-byte packets) |
| 100 Mb Latency | < 7.4 µs (LIFO 64-byte packets) |
| Throughput | Up to 77.3 million pps (64-byte packets) |
| Switching capacity | 104 Gb/s |
| MAC address table size | 16000 entries |
| Dimensions (W x D x H) | 44.3 x 32.26 x 4.45 cm (17.44 x 13.00 x 1.75 in) (1U height) |
| Weight | 4.72 kg (10.4 lb) |
| Maximum heat dissipation | 236 BTU/hr (248.98 kJ/hr), (switch only: 236 BTU/hr; combined switch + max. PoE devices: 1624 BTU/hr) |
| Voltage | 100 - 127 / 200 - 240 V ac |
| Current | 5.8/2.9 A |
| Idle power1 | 40.1 W |
| Maximum power rating2 | 476 W |
| PoE power | 382 W |
| Frequency | 50/60 Hz |
| Operating temperature | 0 deg to 45 degC (32 deg to 113 degF) |
| Operating relative humidity | 15% to 95% @ 40 degC (104 degF), noncondensing |
| Non-operating/storage temperature | -40 deg to 70 degC (-40 deg to 158 degF) |
| Non-operating/storage relative humidity | 15% to 90% @ 65 degC (149 degF), noncondensing |
| Altitude | Up to 3 km (10,000 ft) |
| Acoustic | Power: 33.6 dB, Pressure: 43.9 dB |
Supply Terms
How J9772A Is Supplied
| Part Number | J9772A |
|---|---|
| Brand | Aruba |
| Category | Aruba Switches |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Comparison
J9772A Against Other Models in Aruba Switches
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | J9772A | JL660A | JL661A | JL662A |
|---|---|---|---|---|
| Ports | · 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type... | - | 48 x 10/100/1000 (PoE) | - |
| PoE Power | 382 W | - | - | - |
| Throughput | 104 Gb/s | - | 176 Gbps | - |
| Form Factor | Aruba 2530-48G-PoE+ Switch | - | 17.3 in x 18.1 in x 1.7 in | - |
| MAC Table | 16000 entries | - | 32,000 entries | - |
| Voltage | 100 - 127 / 200 - 240 V ac | - | - | - |
| Product page | View J9772A | View JL660A | View JL661A | View JL662A |
Use Guide
Deployment Guide for J9772A
Confirm the Full Part Number
Check J9772A character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Calculate the Power Budget
Compare the devices this unit will feed against the 382 W available, using realistic device draw with headroom rather than class maximums.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Register Support Entitlement
Register the support contract under the end user name so the entitlement sits with the organisation that owns the outage.
Related Products
Other Models in Aruba Switches
JL661A
The JL661A is part of the Aruba 6100 Series Switch, specifically designed for optimal performance and scalability. This high-quality switch combines 4
JL662A
The Aruba JL662A is a member of the Aruba 6100 Series Switch, specifically designed for modern networking demands. This advanced switch offers a range

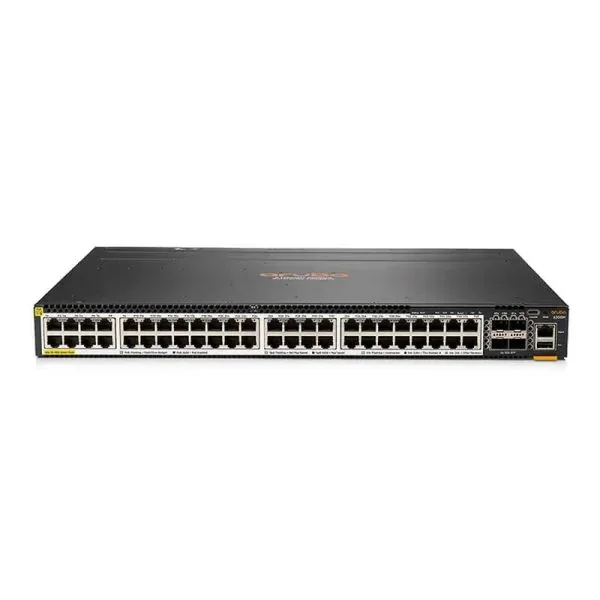

JL663A
The Aruba JL663A, a high-performance 6300M 48-port 1GbE and 4-port SFP56 Switch, is tailored for businesses needing reliable and scalable network solu
JL664A
The ARUBA JL664A is a top-tier network switch, perfect for businesses seeking reliable connectivity solutions. As a part of the Aruba 6300M series, th

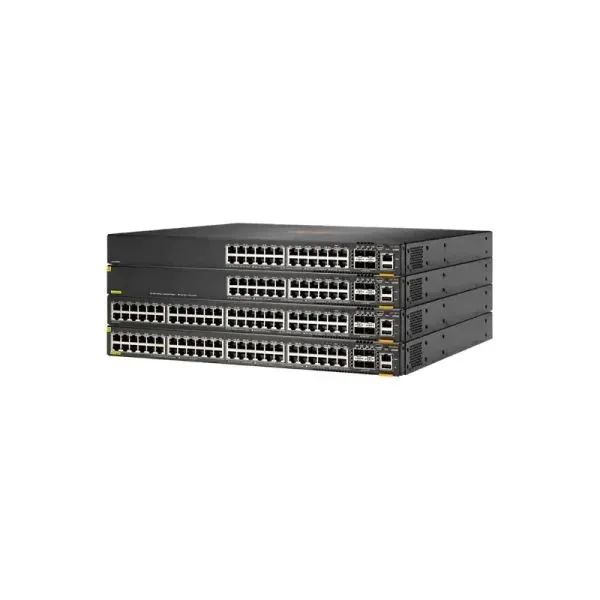

JL667A
Aruba 6300F Switch, 48x1GbE/4xSFP56/Layer 3 Switch. This switch excels in providing robust connectivity, making it ideal for data centers, enterprise
JL680A
JL680A is an Aruba Instant On 1930 8G 2SFP switch. Aruba Instant On 1930 switches features advanced, smart-managed, fixed configuration Gigabit switch
JL681A
JL681A is an Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch. Aruba Instant On 1930 switches features advanced, smart-managed, fixed configuratio
Where It Goes
Industries That Deploy It
Healthcare
Hardware supplied with the traceability and change discipline a clinical environment requires.
Manufacturing and Logistics
Connectivity for plant floors, warehouses and distribution sites built for continuous operation rather than office hours.
Data Center
Top of rack switching, compute and storage delivered in the phased increments a cabinet build actually consumes.
Solutions
Programmes It Is Supplied Under
Network Refresh Programme
Most refresh projects fail on supply rather than on design. A phased programme only works if every phase arrives complete on the date the change window was booked.
Campus Wireless Deployment
Wireless projects are rarely stopped by the access point. They are stopped by a mount, a PoE class or a licence count that nobody confirmed before the order went out.
Data Center Switching Build
A cabinet is commissioned as a unit, so it should be supplied as one. Switches, optics, rails and power leads belong in the same consignment.
Reference
Project Cases and Guides
System Integrator Data Center Tender
The tender required a firm price and date at submission, months before any award, across a bill of materials of several hundred lines
Manufacturer Multi Site Network Standard
Each site had bought its own network hardware locally, so no two plants ran the same equipment and no spares could be shared
Support Contracts Explained for Buyers
A support contract is bought once and used on the worst day of the year. The level and the name it is registered under both matter.
Access Switch Selection for Campus
Five decisions set the part number. Getting them in the right order prevents most of the changes that happen late in a project.
Access Point Mounting and Installation
Wireless installs are rarely delayed by the access point. They are delayed by the mount, the power class or the cable that feeds it.
FAQ
J9772A Frequently Asked Questions
Is J9772A New or Refurbished
Standard supply is new factory sealed in the original vendor carton. If a quotation offers another condition that is stated explicitly in writing before you commit.
Can I Get the Serial Numbers for J9772A Before Payment Clears
Yes. Serials are issued before shipment so you can check them on the manufacturer portal while the goods are still with us.
What Is the Lead Time for J9772A
Availability is confirmed in writing per line at quotation rather than as a project average, because one late line is what moves an installation date.
What Warranty Does J9772A Carry
12 months replacement as standard. A vendor support contract is available separately and is registered under the end user name.
How Much PoE Power Does J9772A Provide
The manufacturer lists poE power of 382 W for this model. A PoE budget should be calculated from realistic device draw with headroom rather than from class maximums.
What Performance Is J9772A Rated For
The published switching capacity is 104 Gb/s. Full port and performance specifications are issued with the quotation against the current datasheet revision.
Are Uplink Modules and Optics Included With J9772A
They are quoted as separate lines and reviewed against the chassis before the quotation is issued, so they reach site in the same consignment as the unit they belong to.
What Table Sizes Does J9772A Carry
The published MAC address table size is 16000 entries. Table ceilings usually only become visible once a flat segment has grown, so they are worth checking against the design rather than against today's estate.
Can You Ship J9772A to My Country
Yes. Consignments go worldwide by courier or freight from Hong Kong, with the routing chosen against the destination clearance regime and your deadline.
Request Pricing for J9772A
Send the quantity and destination country. Availability and lead time come back in writing, with the serial list before shipment.
