J9775A
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. Designed for entry level to midsize enterprise networks, these Gigabit Eth...
- Ports
- · 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type...
- Throughput
- 104 Gb/s
- Form Factor
- Aruba 2530-48G Switch
- MAC Table
- 16000 entries
- Voltage
- 100 - 127 / 200 - 240 V ac
- Dimensions
- 44.3 x 25.4 x 4.45 cm (17.44 x 10.00 x 1.75 in) (1U height)
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview
J9775A Overview
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. Designed for entry level to midsize enterprise networks, these Gigabit Ethernet switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, IPv6 host support, and optional PoE+. The 2530 48G model has 48 x 10/100/1000 ports and four Gigabit SFP ports. The published specification for J9775A lists a published switching capacity of 104 Gb/s. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning J9775A Changes
Rated Performance Written Into the Quotation
104 Gb/s published for J9775A as its switching capacity, confirmed against the current datasheet revision when the line is quoted.
Table Sizes Checked Against the Design
A MAC address table size of 16000 entries on this model, the kind of ceiling that only becomes visible once a flat segment has grown.
Support Registered Under the End User Name
A vendor support contract for J9775A is written under the end customer name, so the entitlement sits with the organisation that owns the outage.
Serials Issued Before It Ships
The serial list for your J9775A consignment is released before despatch, so it can be checked on the manufacturer portal while the goods are still with us.
A Complete Bill of Materials
Modules optics rails and power options are reviewed against J9775A before the quotation is issued, so the install crew is not blocked by a line nobody costed.
Problems It Solves
Pain Points J9775A Removes
- PoE budget that stopped covering the access points cameras and phones added since
- Uplink modules and stacking cables quoted separately and discovered missing on site
- AOS-Switch and ArubaOS-CX estates that have drifted into two toolchains
- Performance taken from a family datasheet rather than from this part number, where the published switching capacity is 104 Gb/s
- End of sale announcements that leave a proven design with no supply route for J9775A
Who It Is For
Who Benefits Most From J9775A
Campus Network Teams
Running one access standard across buildings of very different ages
Education IT
Delivering inside vacation windows against a budget year that rarely aligns with the install date
System Integrators
Bidding work that needs firm pricing and a written lead time before the end client is quoted
Managed Service Providers
Standardising hardware across many customer sites and needing the same SKU available again
Specifications
J9775A Manufacturer Specification
As published by Aruba for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Type | Aruba 2530-48G Switch |
|---|---|
| Ports | · 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only. · 4 fixed Gigabit Ethernet SFP ports. · 1 dual-personality (RJ-45 or USB micro-B) serial console port. |
| Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 3 MB dynamically allocated. |
| Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
| Management | IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB);IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
| 1000 Mb latency | < 2.3 µs (LIFO 64-byte packets) |
| 100 Mb Latency | < 7.4 µs (LIFO 64-byte packets) |
| Throughput | Up to 77.3 Mp/s (64-byte packets) |
| Switching capacity | 104 Gb/s |
| MAC address table size | 16000 entries |
| Dimensions (W x D x H) | 44.3 x 25.4 x 4.45 cm (17.44 x 10.00 x 1.75 in) (1U height) |
| Weight | 3.08 kg (6.8 lb) |
| Maximum heat dissipation | 203 BTU/hr (214.17 kJ/hr) |
| Voltage | 100 - 127 / 200 - 240 V ac |
| Current | 1.2/0.7 A |
| Idle power1 | 29.5 W |
| Maximum power rating2 | 59.5 W |
| Frequency | 50/60 Hz |
| Operating temperature | 0 deg to 45 degC (32 deg to 113 degF) |
| Operating relative humidity | 15% to 95% @ 40 degC (104 degF), noncondensing |
| Non-operating/storage temperature | -40 deg to 70 degC (-40 deg to 158 degF) |
| Non-operating/storage relative humidity | 65 degC15% to 90% @ 149 degF (65 degC), noncondensing |
| Altitude | Up to 3 km (10,000 ft) |
| Acoustic | Power: 31.0 dB, Pressure: 34.5 dB |
Supply Terms
How J9775A Is Supplied
| Part Number | J9775A |
|---|---|
| Brand | Aruba |
| Category | Aruba Switches |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Comparison
J9775A Against Other Models in Aruba Switches
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | J9775A | J9151A | J9151D | J9151E |
|---|---|---|---|---|
| Ports | · 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type... | 1 LC 10-GbE port (IEEE 802.3ae Type 10Gbase-LR); Duplex: full... | - | - |
| Throughput | 104 Gb/s | - | - | - |
| Form Factor | Aruba 2530-48G Switch | 2.19(d) x 0.54(w) x 0.47(h) in. (5.57 x 1.38 x 1.19 cm) | - | - |
| MAC Table | 16000 entries | - | - | - |
| Voltage | 100 - 127 / 200 - 240 V ac | - | - | - |
| Dimensions | 44.3 x 25.4 x 4.45 cm (17.44 x 10.00 x 1.75 in) (1U height) | - | - | - |
| Product page | View J9775A | View J9151A | View J9151D | View J9151E |
Use Guide
Deployment Guide for J9775A
Confirm the Full Part Number
Check J9775A character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Register Support Entitlement
Register the support contract under the end user name so the entitlement sits with the organisation that owns the outage.
Related Products
Other Models in Aruba Switches
J9151D
HPE J9151D - Aruba Transceiver Aruba 10G SFP+ LC LR 10km SMF XCVR. It is supplied new factory sealed, with the serial list issued before shipment and
J9151E
HPE J9151E - Aruba Transceiver Aruba 10G SFP+ LC LR 10km SMF XCVR. It is supplied new factory sealed, with the serial list issued before shipment and

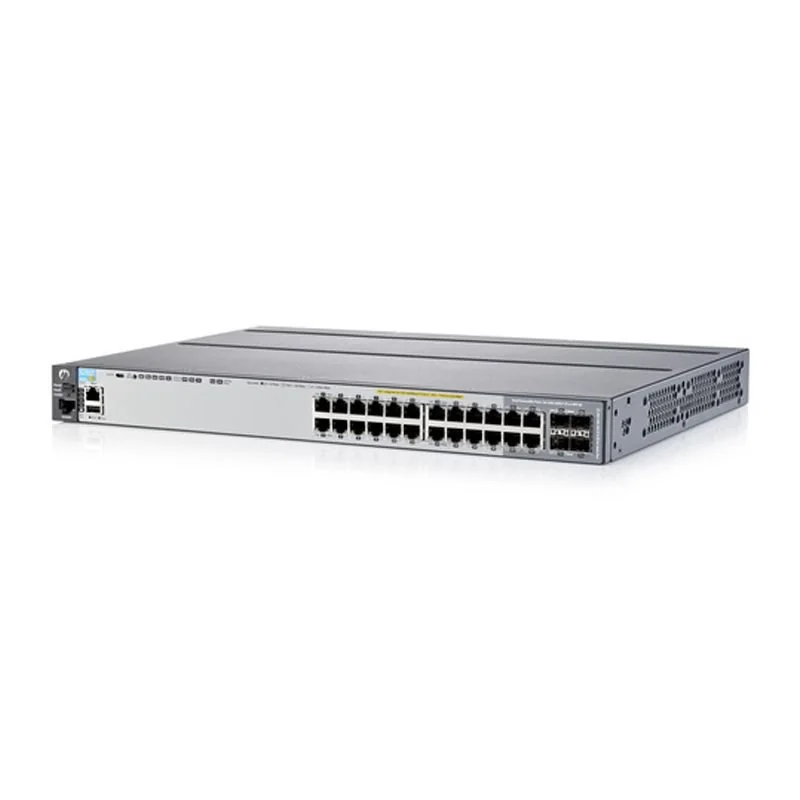

J9727A
