J9777A

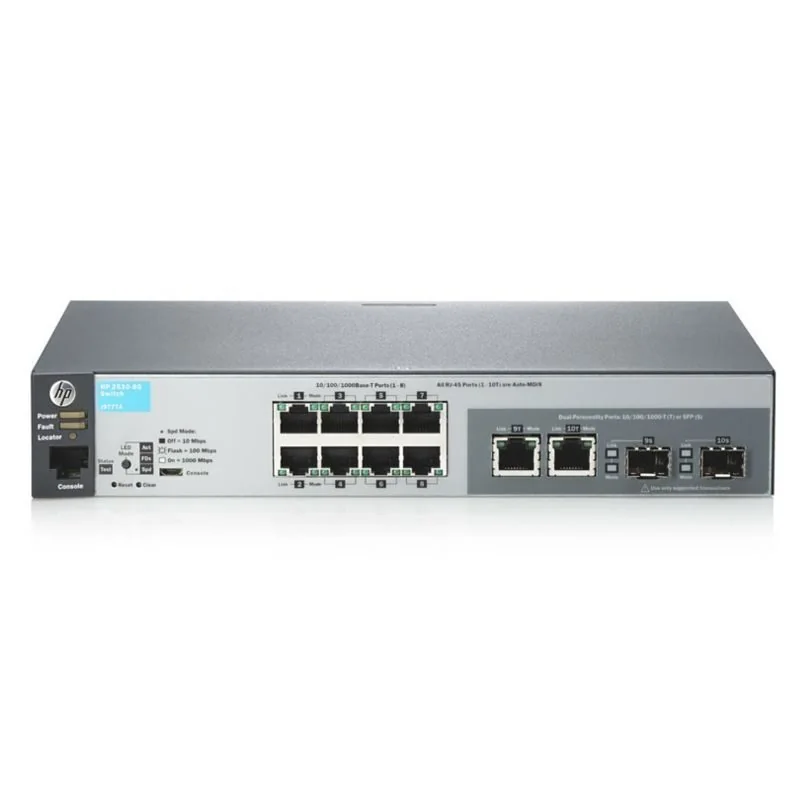

Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. This J9777A has 8 x 10/100/1000 ports. Additionally the switch has two Gig...
- Ports
- · 8 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type...
- Throughput
- 20 Gb/s
- Form Factor
- Aruba 2530-8G Switch
- MAC Table
- 16000 entries
- Voltage
- 100 - 127 / 200 - 240 V ac
- Dimensions
- 25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height)
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview
J9777A Overview
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. This J9777A has 8 x 10/100/1000 ports. Additionally the switch has two Gigabit 10/100/1000 dual personality shared with two SFP ports. The published specification for J9777A lists a published switching capacity of 20 Gb/s. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning J9777A Changes
Rated Performance Written Into the Quotation
20 Gb/s published for J9777A as its switching capacity, confirmed against the current datasheet revision when the line is quoted.
Table Sizes Checked Against the Design
A MAC address table size of 16000 entries on this model, the kind of ceiling that only becomes visible once a flat segment has grown.
Support Registered Under the End User Name
A vendor support contract for J9777A is written under the end customer name, so the entitlement sits with the organisation that owns the outage.
Serials Issued Before It Ships
The serial list for your J9777A consignment is released before despatch, so it can be checked on the manufacturer portal while the goods are still with us.
A Complete Bill of Materials
Modules optics rails and power options are reviewed against J9777A before the quotation is issued, so the install crew is not blocked by a line nobody costed.
Problems It Solves
Pain Points J9777A Removes
- End of sale announcements that leave a proven design with no supply route for J9777A
- A closet-by-closet rollout that needs the same SKU available years after the first order
- PoE budget that stopped covering the access points cameras and phones added since
- Uplink modules and stacking cables quoted separately and discovered missing on site
- AOS-Switch and ArubaOS-CX estates that have drifted into two toolchains
Who It Is For
Who Benefits Most From J9777A
Campus Network Teams
Running one access standard across buildings of very different ages
Education IT
Delivering inside vacation windows against a budget year that rarely aligns with the install date
System Integrators
Bidding work that needs firm pricing and a written lead time before the end client is quoted
Managed Service Providers
Standardising hardware across many customer sites and needing the same SKU available again
Specifications
J9777A Manufacturer Specification
As published by Aruba for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Type | Aruba 2530-8G Switch |
|---|---|
| Ports | · 8 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full;1000BASE-T: full only. · 2 x dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 ... |
| Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated. |
| Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
| Management | IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; Out-of-band management (serial RS-232C or MicroUSB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
| 1000 Mb latency | < 2.6 µs (LIFO 64-byte packets) |
| 100 Mb Latency | < 7.4 µs (LIFO 64-byte packets) |
| ThrougArubaut | Up to 14.8 million pps (64-byte packets) |
| Switching capacity | 20 Gb/s |
| MAC address table size | 16000 entries |
| Dimensions (W x D x H) | 25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height) |
| Weight | 0.91 kg (2.0 lb) |
| Maximum heat dissipation | 63 BTU/hr (66.46 kJ/hr), (switch only: 63 BTU/hr) |
| Voltage | 100 - 127 / 200 - 240 V ac |
| Current | 0.5 A |
| Idle power1 | 13.6 W |
| Maximum power rating2 | 18.6 W |
| PoE power | N/A |
| Frequency | 50/60 Hz |
Supply Terms
How J9777A Is Supplied
| Part Number | J9777A |
|---|---|
| Brand | Aruba |
| Category | Aruba Switches |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Comparison
J9777A Against Other Models in Aruba Switches
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | J9777A | R8Q68A | R8Q70A | R9W86A |
|---|---|---|---|---|
| Ports | · 8 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type... | 24x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to... | 48x 10/100/1000BASE-T Class 4 PoE ports (30W/port), 4x 1G/10G... | - |
| Throughput | 20 Gb/s | - | - | Non-blocking |
| Form Factor | Aruba 2530-8G Switch | HPE Aruba CX 6200M 24G Class4 PoE 4SFP+ Switch | Aruba 6200M Switch, 48xGE PoE/4xSFP+/Class 4 PoE | Networking Switch |
| MAC Table | 16000 entries | - | - | - |
| Voltage | 100 - 127 / 200 - 240 V ac | - | - | - |
| Dimensions | 25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height) | 4.39 x 44.247 x 38.38 cm (1.73 x 17.42 x 15.11 in) | 4.39 x 44.247 x 38.38 cm (1.73 x 17.42 x 15.11 in) | - |
| Product page | View J9777A | View R8Q68A | View R8Q70A | View R9W86A |
Use Guide
Deployment Guide for J9777A
Confirm the Full Part Number
Check J9777A character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Register Support Entitlement
Register the support contract under the end user name so the entitlement sits with the organisation that owns the outage.
Related Products
Other Models in Aruba Switches
R8Q70A
The Aruba R8Q70A is an advanced enterprise-grade switch purpose-built to deliver robust, high-performance networking for branch offices, campuses, and
R9W86A
Aruba R9W86A, the premiere model in the HPE ANW 8100-24XF4C FB3F2AC Bdl series, designed for unparalleled networking performance. Whether powering ent
J4858C
HPE J4858C - Aruba Transceiver Aruba X121 1G SFP LC SX Transceiver. It is supplied new factory sealed, with the serial list issued before shipment and
J4858D
HPE J4858D - Aruba Module Aruba 1G SFP LC SX 500m MMF XCVR. It is supplied new factory sealed, with the serial list issued before shipment and 12 mont
J4859C
HPE J4859C - Aruba Transceiver Aruba X121 1G SFP LC LX Transceiver. It is supplied new factory sealed, with the serial list issued before shipment and
J9150D
HPE J9150D - Aruba Transceiver Aruba 10G SFP+ LC SR 300m MMF XCVR:Aruba Aruba Campus Transceivers. It is supplied new factory sealed, with the serial
J9151A
HPE J9151A - Aruba Transceiver HP X132 10G SFP+ LC LR Transceiver. It is supplied new factory sealed, with the serial list issued before shipment and
Where It Goes
Industries That Deploy It
Data Center
Top of rack switching, compute and storage delivered in the phased increments a cabinet build actually consumes.
Enterprise Campus
Access, distribution and wireless supplied to one standard so every closet in every building behaves the same way.
Service Provider
Repeatable CPE and aggregation hardware supplied at the volume and consistency a managed service contract depends on.
Solutions
Programmes It Is Supplied Under
Global Logistics and Drop Shipping
Hong Kong is a practical despatch point for most of the world. Consignments go to the site, not to a central store and then out again.
Procurement for System Integrators
An integrator carries the risk between quoting a client and receiving the hardware. Firm pricing and a written lead time per line is what makes that risk manageable.
Network Refresh Programme
Most refresh projects fail on supply rather than on design. A phased programme only works if every phase arrives complete on the date the change window was booked.
Reference
Project Cases and Guides
Manufacturer Multi Site Network Standard
Each site had bought its own network hardware locally, so no two plants ran the same equipment and no spares could be shared
Carrier Managed CPE Programme
The programme needed identical customer premises equipment supplied continuously for years and shipped directly to end customer sites
Support Contracts Explained for Buyers
A support contract is bought once and used on the worst day of the year. The level and the name it is registered under both matter.
Access Switch Selection for Campus
Five decisions set the part number. Getting them in the right order prevents most of the changes that happen late in a project.
Access Point Mounting and Installation
Wireless installs are rarely delayed by the access point. They are delayed by the mount, the power class or the cable that feeds it.
FAQ
J9777A Frequently Asked Questions
Is J9777A New or Refurbished
Standard supply is new factory sealed in the original vendor carton. If a quotation offers another condition that is stated explicitly in writing before you commit.
Can I Get the Serial Numbers for J9777A Before Payment Clears
Yes. Serials are issued before shipment so you can check them on the manufacturer portal while the goods are still with us.
What Is the Lead Time for J9777A
Availability is confirmed in writing per line at quotation rather than as a project average, because one late line is what moves an installation date.
What Warranty Does J9777A Carry
12 months replacement as standard. A vendor support contract is available separately and is registered under the end user name.
What Performance Is J9777A Rated For
The published switching capacity is 20 Gb/s. Full port and performance specifications are issued with the quotation against the current datasheet revision.
Are Uplink Modules and Optics Included With J9777A
They are quoted as separate lines and reviewed against the chassis before the quotation is issued, so they reach site in the same consignment as the unit they belong to.
What Table Sizes Does J9777A Carry
The published MAC address table size is 16000 entries. Table ceilings usually only become visible once a flat segment has grown, so they are worth checking against the design rather than against today's estate.
Can You Ship J9777A to My Country
Yes. Consignments go worldwide by courier or freight from Hong Kong, with the routing chosen against the destination clearance regime and your deadline.
Can You Drop Ship J9777A to My Customer
Yes. Consignments can be released directly to an end customer address under your own documentation.
Request Pricing for J9777A
Send the quantity and destination country. Availability and lead time come back in writing, with the serial list before shipment.
