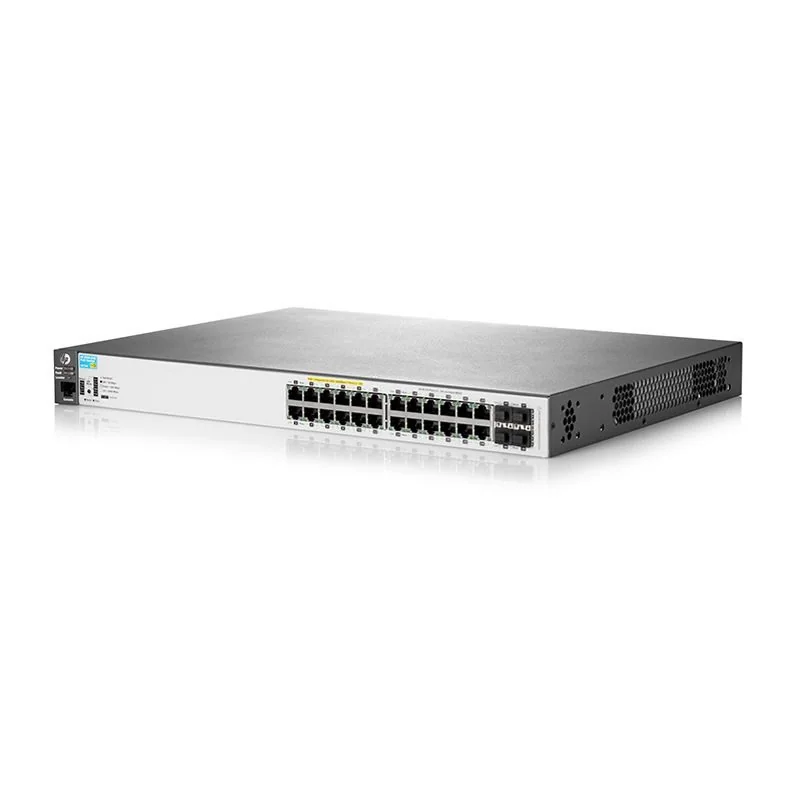

J9773A
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. The published specification for J9773A lists 195 W available to powered de...
- Ports
- · 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type...
- PoE Power
- 195 W
- Throughput
- 56 Gb/s
- Form Factor
- Aruba 2530-24G-PoE+ Switch
- MAC Table
- 16000 entries
- Voltage
- 100 - 127 / 200 - 240 V ac
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview
J9773A Overview
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. The published specification for J9773A lists 195 W available to powered devices and a published switching capacity of 56 Gb/s. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning J9773A Changes
Rated Performance Written Into the Quotation
56 Gb/s published for J9773A as its switching capacity, confirmed against the current datasheet revision when the line is quoted.
Table Sizes Checked Against the Design
A MAC address table size of 16000 entries on this model, the kind of ceiling that only becomes visible once a flat segment has grown.
A Power Budget You Can Design Against
195 W available to powered devices, which is the figure a PoE budget calculation actually needs rather than the platform's total draw.
A Complete Bill of Materials
Modules optics rails and power options are reviewed against J9773A before the quotation is issued, so the install crew is not blocked by a line nobody costed.
Support Registered Under the End User Name
A vendor support contract for J9773A is written under the end customer name, so the entitlement sits with the organisation that owns the outage.
Problems It Solves
Pain Points J9773A Removes
- Uplink modules and stacking cables quoted separately and discovered missing on site
- AOS-Switch and ArubaOS-CX estates that have drifted into two toolchains
- PoE budgets sized for desk phones and now asked to carry Wi-Fi 6 access points, where 195 W is the figure that decides it
- Performance taken from a family datasheet rather than from this part number, where the published switching capacity is 56 Gb/s
- End of sale announcements that leave a proven design with no supply route for J9773A
Who It Is For
Who Benefits Most From J9773A
Campus Network Teams
Running one access standard across buildings of very different ages
Education IT
Delivering inside vacation windows against a budget year that rarely aligns with the install date
Service Providers
Deploying managed hardware at customer premises with consistent revision and firmware
Healthcare Estates
Working to very short change windows with serial level records required for compliance
Specifications
J9773A Manufacturer Specification
As published by Aruba for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Type | Aruba 2530-24G-PoE+ Switch |
|---|---|
| Ports | · 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 4 fixed Gigabit Ethernet SFP ports · 1 dual-personality (RJ-45 or USB micro... |
| Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated. |
| Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
| Management | IMC - Intelligent Management Center; Command-Line Interface (CLI); Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB);IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
| 1000 Mb latency | < 2.3 µs (LIFO 64-byte packets) |
| 100 Mb Latency | < 7.4 µs (LIFO 64-byte packets) |
| Throughput | up to 41.6 million pps (64-byte packets) |
| Switching capacity | 56 Gb/s |
| MAC address table size | 16000 entries |
| Dimensions (W x D x H) | 44.3 x 33.02 x 4.45 cm (17.44 x 13.00 x 1.75 in) (1U height) |
| Weight | 3.95 kg (8.7 lb) |
| Maximum heat dissipation | 135 BTU/hr (142.42 kJ/hr), (switch only: 135 BTU/hr; combined switch + max. PoE devices: 843 BTU/hr) |
| Voltage | 100 - 127 / 200 - 240 V ac |
| Current | 3.2/1.6 A |
| Idle power1 | 25.2 W |
| Maximum power rating2 | 247 W |
| PoE power | 195 W |
| Frequency | 50/60 Hz |
| Operating temperature | 0 deg to 45 degC (32 deg to 113 degF) |
| Operating relative humidity | 15% to 95% @ 40 degC (104 degF), noncondensing |
| Non-operating/storage temperature | -40 deg to 70 degC (-40 deg to 158 degF) |
| Non-operating/storage relative humidity | 15% to 90% @ 65 degC (149 degF), noncondensing |
| Altitude | Up to 3 km (10,000 ft) |
| Acoustic | Power: 39.6 dB, Pressure: 43.9 dB |
Supply Terms
How J9773A Is Supplied
| Part Number | J9773A |
|---|---|
| Brand | Aruba |
| Category | Aruba Switches |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Comparison
J9773A Against Other Models in Aruba Switches
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | J9773A | J9733A | J9772A | J9774A |
|---|---|---|---|---|
| Ports | · 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type... | - | · 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type... | · 8 x RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type... |
| PoE Power | 195 W | - | 382 W | 67 W |
| Throughput | 56 Gb/s | - | 104 Gb/s | 20 Gb/s |
| Form Factor | Aruba 2530-24G-PoE+ Switch | - | Aruba 2530-48G-PoE+ Switch | Aruba 2530-8G-PoE+ Switch |
| MAC Table | 16000 entries | - | 16000 entries | 16000 entries |
| Voltage | 100 - 127 / 200 - 240 V ac | - | 100 - 127 / 200 - 240 V ac | 100 - 127 / 200 - 240 V ac |
| Product page | View J9773A | View J9733A | View J9772A | View J9774A |
Use Guide
Deployment Guide for J9773A
Confirm the Full Part Number
Check J9773A character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Calculate the Power Budget
Compare the devices this unit will feed against the 195 W available, using realistic device draw with headroom rather than class maximums.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Register Support Entitlement
Register the support contract under the end user name so the entitlement sits with the organisation that owns the outage.
Related Products
Other Models in Aruba Switches
J9772A
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure
J9774A
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure
J9775A
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure
J9776A
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure
J9777A
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure
J9821A
The HPE Aruba 5400R Switch Series is a Layer 3 modular switch series that delivers high-performance, low latency and resiliency for a better mobile-fi
J9822A
The HPE Aruba 5400R Switch Series is a Layer 3 modular switch series that delivers high-performance, low latency and resiliency for a better mobile-fi
Where It Goes
Industries That Deploy It
Enterprise Campus
Access, distribution and wireless supplied to one standard so every closet in every building behaves the same way.
Service Provider
Repeatable CPE and aggregation hardware supplied at the volume and consistency a managed service contract depends on.
Solutions
Programmes It Is Supplied Under
Procurement for System Integrators
An integrator carries the risk between quoting a client and receiving the hardware. Firm pricing and a written lead time per line is what makes that risk manageable.
Network Refresh Programme
Most refresh projects fail on supply rather than on design. A phased programme only works if every phase arrives complete on the date the change window was booked.
Campus Wireless Deployment
Wireless projects are rarely stopped by the access point. They are stopped by a mount, a PoE class or a licence count that nobody confirmed before the order went out.
Reference
Project Cases and Guides
Manufacturer Multi Site Network Standard
Each site had bought its own network hardware locally, so no two plants ran the same equipment and no spares could be shared
Carrier Managed CPE Programme
The programme needed identical customer premises equipment supplied continuously for years and shipped directly to end customer sites
How to Read Cisco Catalyst Part Numbers
A Catalyst part number encodes the port count, the port type, the uplink arrangement and the software tier. Misreading one character changes what arrives.
PoE Budget Planning for Access Switches
Port count and power budget are two separate limits. Most PoE shortfalls come from planning only the first one.
Choosing Optical Transceivers for Reach
Coding, fibre type, reach and connector are four independent decisions, and any one of them can stop a link coming up.
FAQ
J9773A Frequently Asked Questions
Is J9773A New or Refurbished
Standard supply is new factory sealed in the original vendor carton. If a quotation offers another condition that is stated explicitly in writing before you commit.
Can I Get the Serial Numbers for J9773A Before Payment Clears
Yes. Serials are issued before shipment so you can check them on the manufacturer portal while the goods are still with us.
What Is the Lead Time for J9773A
Availability is confirmed in writing per line at quotation rather than as a project average, because one late line is what moves an installation date.
What Warranty Does J9773A Carry
12 months replacement as standard. A vendor support contract is available separately and is registered under the end user name.
How Much PoE Power Does J9773A Provide
The manufacturer lists poE power of 195 W for this model. A PoE budget should be calculated from realistic device draw with headroom rather than from class maximums.
What Performance Is J9773A Rated For
The published switching capacity is 56 Gb/s. Full port and performance specifications are issued with the quotation against the current datasheet revision.
Are Uplink Modules and Optics Included With J9773A
They are quoted as separate lines and reviewed against the chassis before the quotation is issued, so they reach site in the same consignment as the unit they belong to.
What Table Sizes Does J9773A Carry
The published MAC address table size is 16000 entries. Table ceilings usually only become visible once a flat segment has grown, so they are worth checking against the design rather than against today's estate.
Can You Ship J9773A to My Country
Yes. Consignments go worldwide by courier or freight from Hong Kong, with the routing chosen against the destination clearance regime and your deadline.
Request Pricing for J9773A
Send the quantity and destination country. Availability and lead time come back in writing, with the serial list before shipment.
