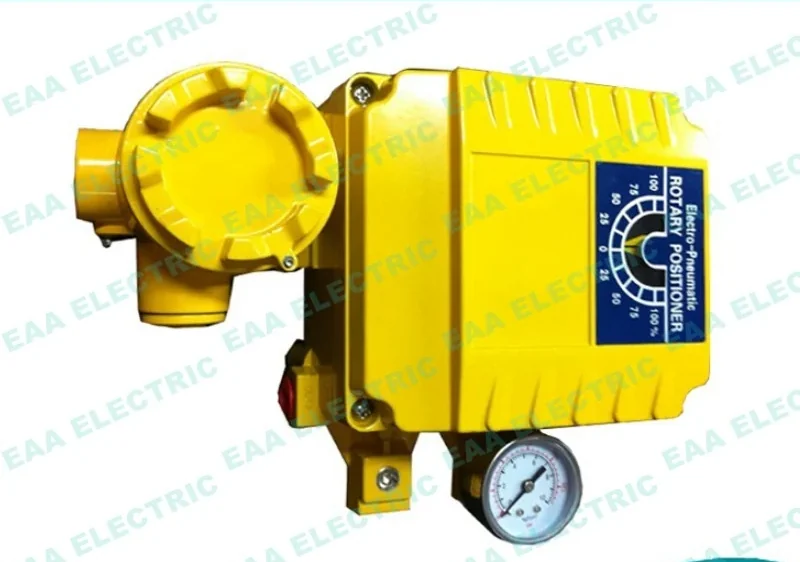

YT1000R+PTM(Internal) Electro Pneumatic Valve Positioner
The YT-1000R with internal PTM is an electro pneumatic valve positioner designed for pneumatic rotary valve actuators.
What This Model Does
The YT-1000R with internal PTM is an electro pneumatic valve positioner designed for pneumatic rotary valve actuators. It receives an analog control signal of DC 4 to 20 mA or split range from an electrical controller or DCS to position rotary valves accurately. Equipped with an internal position transmitter module, it can monitor and feed valve position status back to the control system. This unit acts as a form fit and function replacement for standard YTC pattern rotary positioners on quarter turn pneumatic valve assemblies.
| Model | YT-1000R+PTM(Internal) |
|---|---|
| Type | Electro pneumatic valve positioner |
| Actuator compatibility | Pneumatic rotary valve actuator (angular travel) |
| Input signal | DC 4 to 20 mA, split range available |
| Feedback module | Internal position transmitter module (PTM) |
| Housing colour | Black, blue, yellow or painted to order |
| Warranty | 18 months |
Why Buyers Specify This Model
- Increases output power available to the regulating valve to drive rotary actuators without stalling
- Reduces transmission lag between the electrical control signal and actual rotary valve movement
- Accelerates valve stem travel speed for tighter process response
- Improves valve linearity across the full angular travel stroke
- Overcomes valve stem packing friction to prevent sticking and hunting
- Eliminates the influence of unbalanced process forces acting on the valve disc or ball
- Accepts split range inputs so two regulating valves can be operated from a single controller loop
- Integrates an internal position transmitter module directly inside the housing without external mounting
Problems It Solves
- Valve stem sticks or jumps due to packing friction and process load resistance
- Slow response and transmission lag between DCS output changes and actuator motion
- Poor valve linearity causing unstable process tuning across rotary travel
- Inability to track actual valve position back to the DCS without adding bulky external feedback hardware
- Long lead times when sourcing original brand positioners for running facilities
Application Scenarios
- Quarter turn rotary control valves in chemical or water processes requiring precise throttle positioning
- Ball and butterfly valves operated by pneumatic rotary actuators under analog DCS control
- Split range temperature or pressure control loops where two rotary valves share one 4 to 20 mA output
- Direct replacement of worn or failed YTC type rotary positioners on operational process skids
- New valve automation assemblies requiring an integrated positioner and internal transmitter unit
Who It Is For
- Plant instrument technicians servicing pneumatic rotary control valves and feedback loops
- Valve and actuator manufacturers assembling automated quarter turn valve packages
- EPC engineering contractors sourcing instrumentation for plant piping skids
- Distributors stocking replacement positioners for process plant maintenance teams
- OEMs requiring private label branding and custom housing colours for rotary positioners
Technical Features
- Operation with analog input signals of DC 4 to 20 mA including split ranges
- Engineered specifically for pneumatic rotary valve actuators with angular travel
- Internal position transmitter module fitted inside the housing for position feedback
- High speed forward and reverse actuation response with minimal impact
- Stepless adjustment of air flow to regulate motor speed and operating power
- Zero and span adjustment for field calibration across the valve rotation range
Materials and Construction
- Cast aluminium alloy housing with painted finish
- Internal electronic transmitter board and mechanical feedback components
- Full material specifications are detailed in the product technical datasheet
Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control

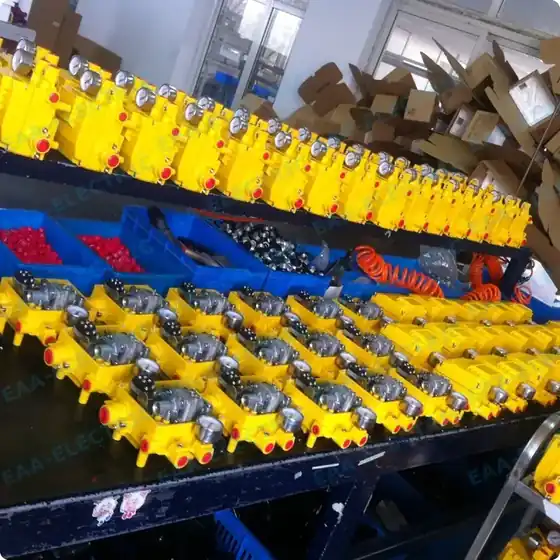

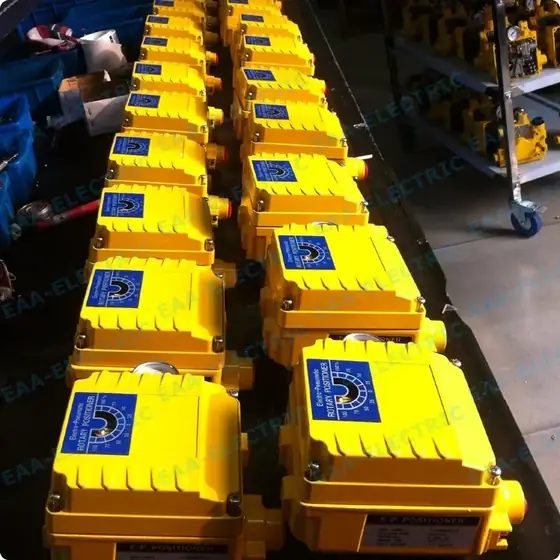

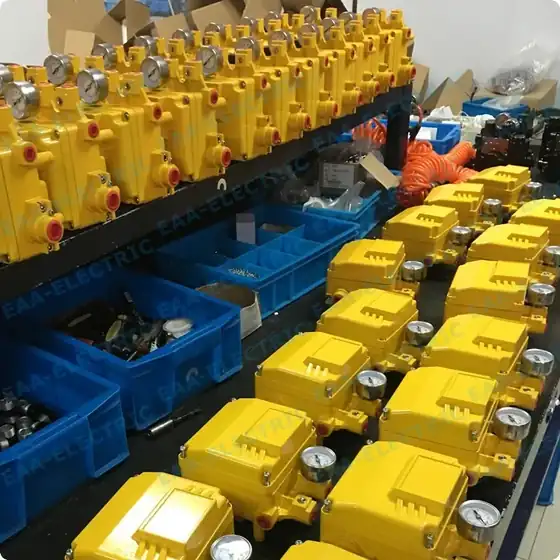

Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Housing casting and precision machining
Torque motor and pilot pneumatic stage assembly
Internal PTM electronic module installation and wiring
Air calibration bench testing for zero and span travel
Signal sweep verification across the 4 to 20 mA range
Surface coating in specified customer housing colour
Carton packaging for transport
Quality Control
- Every positioner undergoes calibration and stroke testing before dispatch
- Internal PTM output signal is verified against mechanical travel prior to packaging
- Sample room or warehouse photos and video available on request before shipping
- Defective units within the 18 month warranty are replaced on photo or video evidence
Customisation Options
- Customer logo and custom nameplate marking
- Housing painted in black, blue, yellow or custom specified shades
- Customised outer carton and inner box packaging
- Assembled with supporting pilot valves or limit switch boxes on request
How It Compares With the Alternatives
| YT-1000L positioner | The YT-1000L is built for straight travel linear valves, while the YT-1000R is built for angular travel rotary actuators |
|---|---|
| Standard YT-1000R without PTM | The standard unit controls position only; adding the internal PTM provides electrical position feedback to the control room |
| External position transmitter | The internal PTM stays protected inside the main housing, eliminating external brackets and extra cabling |
| Direct pneumatic transducer driving an actuator | A transducer only sets pressure without position feedback, failing to correct for stem friction and unbalanced process loads |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the YT-1000R to the rotary actuator using a standard mounting bracket and shaft coupler
Ensure the actuator shaft and positioner feedback spindle align without binding
Connect clean, dry instrument air supply to the inlet port and run piping to the actuator ports
Wire the DC 4 to 20 mA input signal and internal PTM output lines observing correct polarity
Apply 4 mA to set the rotary zero position, then 20 mA to adjust the span setting
Cycle the valve multiple times to confirm smooth rotation and accurate PTM feedback signal
Verify instrument air filter regulator condition regularly to keep moisture and particulates out of the pilot mechanism
YT1000R+PTM(Internal) Electro Pneumatic Valve Positioner FAQ
What is the delivery time for this positioner?
Regular quantities typically dispatch in 2 to 3 days from stock. Large orders require 7 to 10 days.
Does the internal PTM require an external mounting bracket?
No. The PTM is fitted internally inside the YT-1000R housing, keeping the unit compact.
Can we purchase these positioners under our own brand colour and logo?
Yes. Housings can be painted black, blue, yellow, or custom colours, and nameplates are printed with your logo.
What type of actuator does the YT-1000R fit?
It is designed for pneumatic rotary actuators with angular travel, such as quarter turn scotch yoke or rack and pinion units.
How is warranty handled if a positioner fails in service?
The warranty is 18 months. Upon receiving photo or video evidence of the fault, we replace the unit rather than repairing it.
Can this positioner handle split range control signals?
Yes. The unit accepts standard DC 4 to 20 mA analog signals as well as split range configurations.
