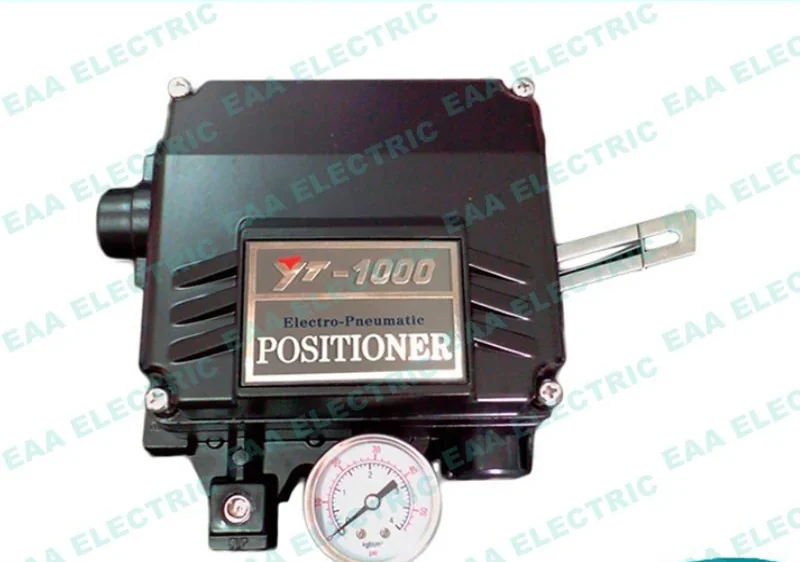

YT1000L Electro Pneumatic Valve Positioner
The YT-1000L is an electro-pneumatic valve positioner designed for operating pneumatic linear valve actuators.
What This Model Does
The YT-1000L is an electro-pneumatic valve positioner designed for operating pneumatic linear valve actuators. It receives a DC 4 to 20 mA analog output signal or split range signals from an electrical controller or DCS. Acting as the primary accessory for pneumatic control valves, it uses its pneumatic output signal to position the control valve. As the valve actuates, the displacement of the valve stem is fed back to the positioner through a mechanical device, while the valve position status can be transmitted to the upper system via an electrical signal. It serves as a direct form, fit, and function replacement for standard YTC pattern linear positioners.
| Model | YT-1000L |
|---|---|
| Type | Electro-pneumatic valve positioner |
| Compatible actuator | Pneumatic linear valve actuator |
| Input signal | DC 4 to 20 mA or split ranges |
| Action direction | One-way (single acting) or two-way (double acting) |
| Feedback type | Mechanical device coupled to valve stem displacement |
| Signal feedback | Electric signal transmission of valve position status to upper system |
| Housing colour | Black, blue, yellow, or painted to customer requirement |
| Delivery time | 2 to 3 days for regular quantities, 7 to 10 days for large quantities |
| Warranty | 18 months |
Why Buyers Specify This Model
- Closes the control loop at the valve stem through direct mechanical feedback linkage
- Increases the output power delivered to the regulating valve actuator
- Reduces transmission lag between controller command changes and valve actuator movement
- Accelerates the movement speed of the linear valve stem during throttling
- Improves the linearity of the control valve across its full stroke range
- Overcomes valve stem packing friction to prevent erratic valve movement
- Eliminates the influence of unbalanced fluid forces acting on the valve plug
- Accepts split range DC 4 to 20 mA input signals for valve sequencing
Problems It Solves
- Valve stem sticks and jumps due to stem packing friction overpowering the actuator
- Control valve responds slowly to process changes due to pneumatic transmission lag
- Fluid forces act against the plug causing stem displacement away from the setpoint
- Actuator lacks sufficient power to position linear control valves accurately across the stroke
- Original brand positioner requires long delivery lead times while plant maintenance is delayed
Application Scenarios
- Pneumatic linear control valves in process piping requiring precise throttling under variable line pressure
- Actuators experiencing sluggish travel due to high stem packing friction or fluid resistance
- Control loops where signal transmission lag impairs downstream process regulation
- Split range control configurations where two control valves operate from a single DC 4 to 20 mA loop
- Direct replacement of worn or failed YTC pattern positioners on existing linear valve assemblies
- Pneumatic linear valve packages built by valve OEMs requiring custom branding and paint
Who It Is For
- Instrument technicians replacing worn positioners on linear control valves in process plants
- Control valve and actuator OEMs requiring positioners branded with custom logos and colors
- EPC contractors procuring control valve instrumentation packages for industrial project installations
- Instrumentation distributors stocking form, fit, and function replacements for plant spares
- Plant maintenance teams resolving stem sticking, lag, or linearity issues on critical control valves
Technical Features
- Accepts analog input signals of DC 4 to 20 mA including split range configurations
- Mechanical displacement feedback device monitors linear valve stem travel directly
- Transmits valve position status back to the upper monitoring system via electric signal
- Available in one-way single acting and two-way double acting action configurations
- Acts on both cylinder chambers when configured as a two-way positioner for piston actuators
- Increases output power and accelerates stem speed to overcome unbalance and friction
Materials and Construction
- Cast metal housing with protective painted exterior finish

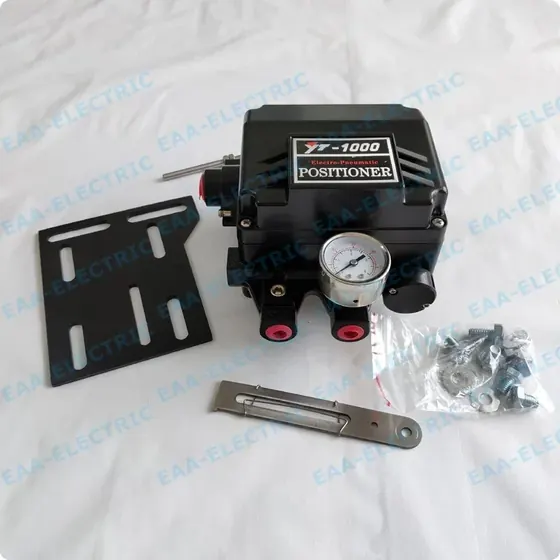

- Mechanical stem feedback linkage components
- Pneumatic relay and internal nozzle flapper subassemblies
Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control
Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Machining and finishing of the positioner housing structure
Assembly of internal electro-pneumatic conversion mechanism and mechanical feedback components
Pneumatic calibration across DC 4 to 20 mA and split range input spans
Inspection of stroke movement and feedback mechanism alignment
Housing painting in specified OEM customer colors such as black, blue, or yellow

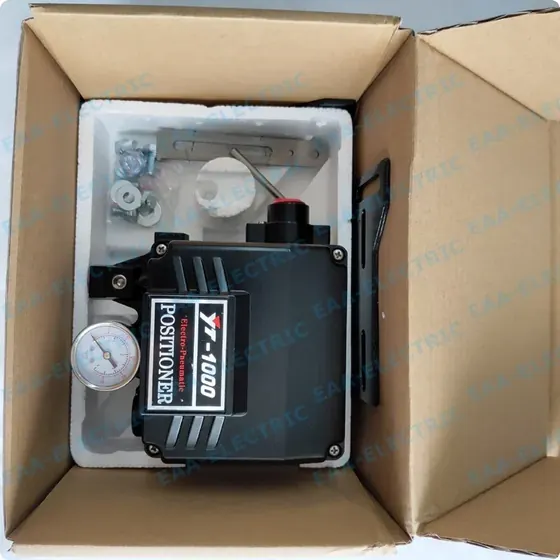

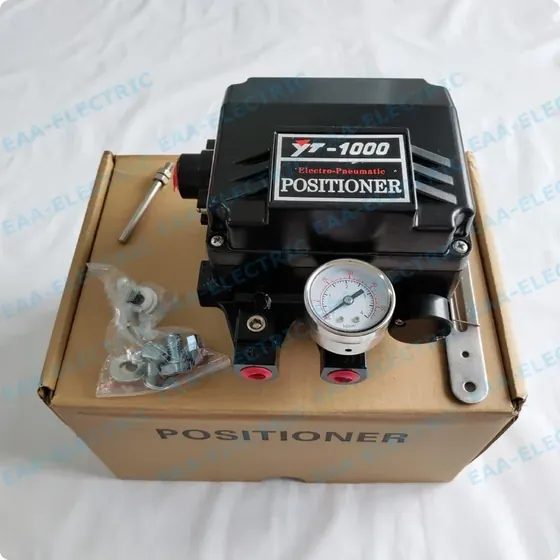

Carton packaging preparation and custom nameplate marking
Quality Control
- Every positioner is calibrated and operationally verified before packaging
- Sample room or warehouse photos and video can be provided prior to dispatch
- Faulty units within the 18 month warranty are replaced based on photo or video evidence
- Replacement units ship immediately if required or bundle with the next scheduled order
Customisation Options
- Customer logo marking and custom nameplate data
- Housing painted in specified colors including black, blue, yellow, and others
- Custom design shape modules manufactured to customer requirements
- Carton and custom inner packaging options
- Supply paired alongside limit switch boxes, pilot valves, or pneumatic actuators
How It Compares With the Alternatives
| Pneumatic valve positioner | The YT-1000L accepts a direct DC 4 to 20 mA electrical signal, removing the need for a separate upstream I/P converter |
|---|---|
| Intelligent valve positioner | The YT-1000L uses analog electro-pneumatic control without complex digital configuration interfaces, reducing unit purchase cost |
| Direct actuator connection without positioner | The YT-1000L boosts actuator output power and uses stem feedback to eliminate packing friction and unbalanced process forces |
| YT-1000R rotary positioner | The YT-1000L is engineered for linear stem valves, whereas the YT-1000R is designed for quarter-turn rotary actuators |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the positioner securely onto the pneumatic linear actuator yoke using the appropriate bracket
Attach the mechanical feedback device to the actuator stem clamp to monitor linear displacement
Connect the clean, regulated pneumatic supply air line to the positioner air inlet port
Plumb the pneumatic output ports to the linear actuator cylinder for one-way or two-way operation
Wire the DC 4 to 20 mA analog control signal to the terminal block observing correct polarity
Adjust zero and span settings to align actuator stroke travel with the input signal range
Verify smooth valve stem travel and confirm feedback signal reporting to the upper control system
YT1000L Electro Pneumatic Valve Positioner FAQ
What is the delivery lead time for the YT-1000L positioner?
Regular quantities normally ship within 2 to 3 days from stock. Large orders typically ship in 7 to 10 days.
Does the YT-1000L support split range control signals?
Yes. The positioner operates with analog input signals of DC 4 to 20 mA as well as split range configurations.
Can this positioner drive both single and double acting actuators?
Yes. It is available as a one-way positioner for single acting actuators or a two-way positioner acting on both sides of a piston cylinder.
Can we purchase these units under our own brand name and custom colour?
Yes. We offer OEM customization including customer logos, nameplates, and housing paint in black, blue, yellow, or custom colors.
What is the warranty policy if a unit malfunctions in service?
We provide an 18 month warranty. Faulty units are replaced rather than repaired upon providing photo or video evidence.
Can you provide actual photos or videos of the positioners prior to dispatch?
Yes. Real product photos and videos can be recorded in our sample room or warehouse upon request before shipping.
Can supporting accessories be packaged together with the positioner?
Yes. We also supply limit switch boxes, pilot valves, and pneumatic valve actuators alongside our positioner range.
