Model 510 Limit Switch
The Model 510 limit switch is an accessory designed for electro pneumatic valve positioners in control valve automation...
Limit Switches and Pilot ValvesOEM and Private Label2 to 3 Day Stock Delivery
Overview
What This Model Does
The Model 510 limit switch is an accessory designed for electro pneumatic valve positioners in control valve automation assemblies. It mounts alongside the positioner to confirm open or closed valve positions back to the control system or monitoring equipment. It operates as part of our positioner accessory lineup which includes Models 210, 310, 410A, 410B, and 510. It is supplied as a standalone replacement unit or assembled directly with positioners and pneumatic valve actuators.
| Model | 510 |
|---|---|
| Product type | Limit switch accessory |
| Application | Electro pneumatic valve positioner accessory |
| Related models | 210, 310, 410A, 410B, 510 |
| Housing colours | Black, blue, yellow or custom painted to order |
| Lead time | 2 to 3 days regular quantities, 7 to 10 days large quantities |
| Warranty | 18 months |
Key Benefits
Why Buyers Specify This Model
- Provides confirmed electrical end position feedback directly from the automated control valve assembly
- Mounts as a dedicated accessory alongside electro pneumatic valve positioners on process control valves
- Shares accessory family compatibility with related switch models including 210, 310, 410A, and 410B
- Available painted in customer brand colours including standard black, blue, yellow, or custom finishes
- Replaces worn or damaged limit switch boxes on existing valve assemblies without changing the valve
- Supplied from stock in two to three days for regular replacement orders and maintenance needs
- Backed by an eighteen month replacement warranty on photo or video verification from the field
Problems It Solves
- Control room lacks discrete valve travel confirmation because the existing positioner operates without auxiliary switches
- Damaged switch enclosure compromises position signaling on critical automated process valves
- Long factory lead times from original valve brands delay scheduled valve maintenance and overhaul
- Procurement needs matching limit switches, positioners, and actuators bundled from a single factory supplier
- Instrument tags require private label branding and specific housing paint colors for OEM consistency
Application Scenarios
- Mounting onto an electro pneumatic valve positioner assembly to add remote open and closed indication
- Replacing a damaged Model 510 switch box on an active control valve assembly without re-piping
- Assembling with new pneumatic actuators and positioners for complete skid packages prior to shipment
- Adding discrete end of travel signaling to globe, ball, or butterfly control valve packages
- Stocking common positioner accessories for plant maintenance teams managing ongoing valve repairs
Who It Is For
- Plant instrument technicians adding travel confirmation switches to existing electro pneumatic positioners
- Control valve assemblers sourcing matching accessories for automated valve packages
- Distributors stocking replacement accessories for process plants running pneumatic control valves
- EPC contractors buying complete valve accessory packages for chemical, water, or energy projects
- Valve OEMs needing private label limit switch accessories finished in designated corporate colours
Technical
Technical Features
- Designed as an accessory unit for electro pneumatic valve positioners on automated valves
- Functions alongside positioner families including YT1000 and related rotary or linear units
- Part of the positioner accessory series comprising models 210, 310, 410A, 410B, and 510
- Can be pre-assembled onto positioners and pneumatic actuators prior to factory dispatch
- Enclosure customizable with OEM corporate logo and custom exterior paint finish
- Provides electrical feedback confirmation of valve travel limits back to central control systems
Materials and Construction
- Coated metal housing with painted external finish
- Internal electrical switch and terminal components
- Datasheet provides full material breakdown for specific internal components
Reference Drawing
Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
How It Is Made
Manufacturing and Quality Control

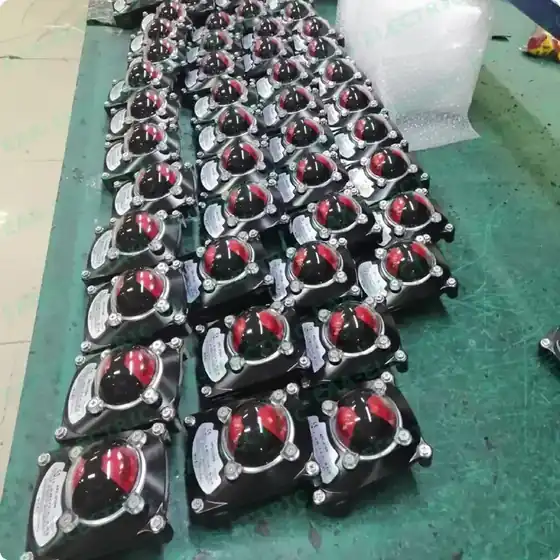

Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Enclosure casting and precision machining to standard accessory mounting dimensions
Internal switch mechanism installation and terminal block wiring assembly
Protective surface preparation and industrial coating in customer specified colour
Functional contact continuity verification and mechanical trip testing
OEM nameplate marking and customer logo application where specified
Inspection, packaging in stock or custom cartons, and final dispatch
Quality Control
- Every unit undergoes switch trip continuity testing before carton packaging
- Real product photos or video from sample room provided on request prior to dispatch
- Eighteen month warranty with faulty units replaced rather than repaired
- Urgent replacement units shipped via the fastest available route when plants require rapid support
Customisation Options
- Customer logo marking on the switch nameplate and external packaging
- Housing finished in customer corporate colours including black, blue, and yellow
- Carton packaging and labeling tailored to distributor and OEM requirements
- Pre-assembly with positioners, pilot valves, or pneumatic actuators to order
- Newly designed shape modules developed to customer technical drawings
Comparison
How It Compares With the Alternatives
| Model 210 limit switch box | The Model 510 offers an alternative form factor within the same positioner accessory series |
|---|---|
| Model 410A and 410B limit switch boxes | Provides a different body profile and mounting layout depending on actuator clearance and positioner model |
| Standalone valve positioner without switch box | Adding the Model 510 delivers independent electrical end position feedback directly to the control room |
| Internal positioner feedback transmitter | The 510 gives discrete mechanical switch contact signaling rather than a continuous analog loop signal |
Use Guide
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Confirm mounting bracket alignment between the Model 510 switch box and the positioner housing
Couple the switch drive shaft securely to the actuator feedback shaft without applying axial pre-load
Connect clean signal wiring to the internal terminal strip according to plant loop drawings
Adjust the internal travel cams so switches trip accurately at the full open and full closed positions
Ensure enclosure cover bolts are tightened evenly across the gasket before placing the valve in service
Verify signal contact closure on the control room DCS or indicator panel during test strokes
Inspect mechanical linkage periodically during scheduled routine valve maintenance rounds
FAQ
Model 510 Limit Switch FAQ
What is the lead time for regular quantities of the Model 510?
Regular quantities normally ship in 2 to 3 days from stock. Large project quantities require 7 to 10 days.
Can the Model 510 be supplied pre-assembled with a positioner?
Yes. We supply the Model 510 mounted directly to our electro pneumatic positioners or pneumatic actuators as a package.
Can we order the housing painted in our company colour?
Yes. Housings can be painted in standard black, blue, yellow, or custom colours to match your brand.
What is your warranty policy if a switch fails in service?
We provide an 18 month warranty. Faulty units are replaced upon photo or video evidence rather than repaired.
Can you put our own logo and brand nameplate on the unit?
Yes. We provide full OEM branding including custom nameplates, customer logo application, and customized cartons.
How do I verify the unit matches my valve before it ships?
You can request real photos or video taken in our warehouse or sample room before shipment.
