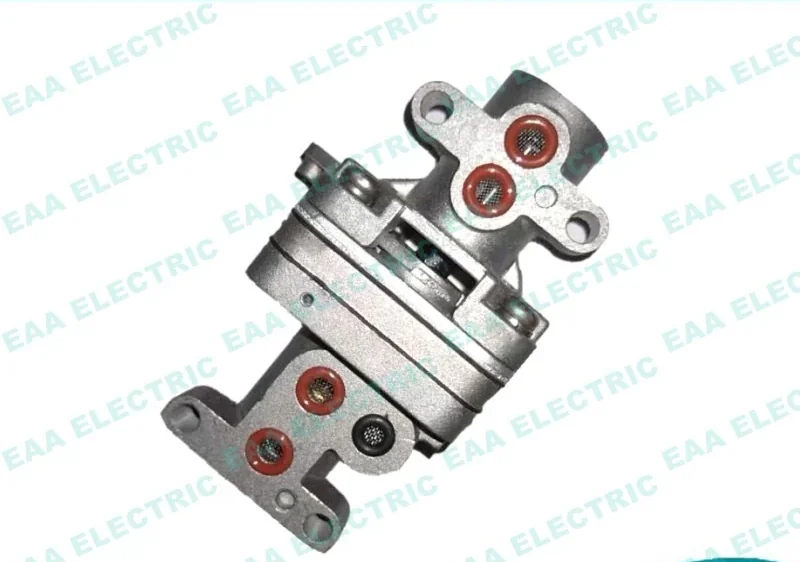

Pilot Valve
The pilot valve is a pneumatic control component designed for control valve automation, operating alongside pneumatic valve...
What This Model Does
The pilot valve is a pneumatic control component designed for control valve automation, operating alongside pneumatic valve actuators, positioners and limit switch boxes. It directs instrument air to switch or control pneumatic actuators in process piping systems. Built as a direct replacement component and OEM accessory, it allows plants and valve assemblers to source reliable pneumatic pilot units without extended factory lead times. It can be supplied individually or packaged together with limit switch boxes and pneumatic actuators.
| Product | Pilot valve |
|---|---|
| Category | Limit switches and pilot valves |
| Application | Control valve automation and pneumatic actuators |
| Housing colour | Black, blue, yellow or painted to customer requirement |
| Warranty | 18 months |
Why Buyers Specify This Model
- Provides dependable pneumatic switching for pneumatic valve actuators and control valve automation assemblies
- Drops directly into standard actuator and control valve configurations without redesigning existing mounting setups
- Supplied alongside limit switch boxes and pneumatic actuators for simplified procurement and matched compatibility
- Housing can be painted in custom colours to match customer branding or existing plant conventions
- Short lead times of two to three days on regular quantities help keep plant maintenance on schedule
- Backed by an eighteen month replacement warranty on photo or video evidence without returning the unit
Problems It Solves
- Long lead times on original manufacturer pilot valves that delay skid assembly and maintenance work
- Inconsistent component sourcing by pairing pilot valves directly with matching limit switch boxes and actuators
- Pneumatic actuators stalling or failing to cycle properly due to worn or leaking pilot valve mechanisms
- Private label branding challenges solved by providing custom housing colours and logo markings
- Lengthy warranty return processes resolved through immediate replacement based on photo or video proof
Application Scenarios
- Pneumatic valve actuator automation packages requiring a dedicated pilot valve for directional air control
- Replacing worn or malfunctioning pilot valves on existing automated process control valves
- Valve and actuator OEM assembly lines building packaged automated valves under private label
- EPC contractor project skids where pilot valves are specified alongside limit switch boxes
- Routine plant maintenance replacement where an exact replacement is needed without changing actuator piping
Who It Is For
- Plant maintenance technicians replacing failed pneumatic pilot valves on automated control valves
- Valve and actuator OEMs assembling complete automated valve packages under their own brand
- EPC engineering contractors sourcing pneumatic accessories in project quantities for industrial builds
- Instrumentation distributors stocking replacement pneumatic accessories and pilot valves for local plants
- Trading companies sourcing valve automation components for process industrial clients
Technical Features
- Pneumatic directional pilot operation for automated control valve and actuator packages
- Engineered for integration with pneumatic valve actuators and limit switch box assemblies
- Housing finish available in standard black, blue, yellow or custom painted colours
- Designed for form, fit and function replacement in standard pneumatic valve control circuits
- Supplied as an individual component or pre-assembled with complementary valve automation hardware
Materials and Construction
- Aluminium alloy housing with durable painted exterior finish
- Internal pneumatic switching components designed for clean instrument air service
- Full material breakdown and detailed mechanical dimensions are available on inquiry
Manufacturing and Quality Control
Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Housing casting and precision mechanical machining to design specifications
Internal valve component cleaning, sub-assembly and seal placement
Pneumatic cycling and pressure leak check on test bench
Surface treatment and painting in black, blue, yellow or custom colour
Nameplate marking and customer logo application where specified
Protective packaging into standard stock cartons or customised client packaging
Quality Control
- Each pilot valve undergoes pneumatic operation and leak testing prior to dispatch

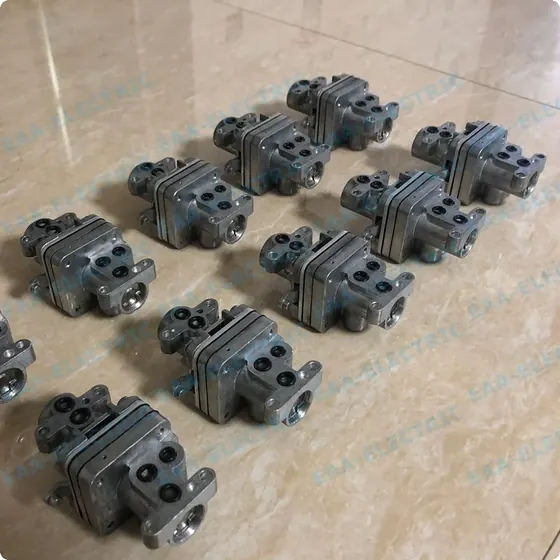

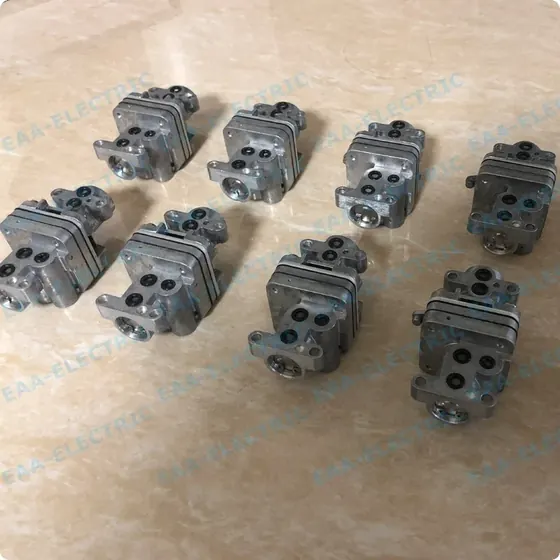

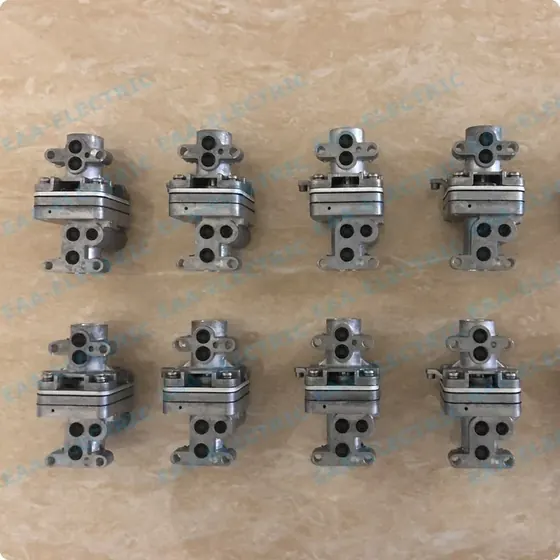

- Real product photos and inspection videos can be provided from the warehouse before shipping
- Eighteen month warranty with direct replacement upon clear photo or video documentation
- Replacement goods can be expedited rapidly if a critical site line is stopped
Customisation Options
- Housing painted in customer specified colours including black, blue and yellow
- OEM customer logo and nameplate marking applied directly to the unit
- Custom carton and inner packaging configurations according to customer guidelines
- Newly designed shape modules developed to match custom project specifications
- Supplied assembled together with limit switch boxes and pneumatic valve actuators
How It Compares With the Alternatives
| Sourcing original brand pilot valves | Original brands often carry multi-week delivery times while regular quantities ship in two to three days |
|---|---|
| Standard off-the-shelf industrial solenoids | This unit is built specifically for valve automation and pairs directly with standard limit switch boxes |
| Buying pilot valves from separate hardware vendors | Sourcing together with actuators and switch boxes eliminates compatibility issues and simplifies logistics |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Inspect the pilot valve ports and mounting interface to confirm clean mating surfaces prior to assembly
Mount the pilot valve securely to the pneumatic actuator or bracket assembly using correct hardware
Connect clean, dry instrument air to the inlet port according to system requirements
Connect actuator supply lines ensuring all pneumatic fittings are sealed and free of particulate debris
Cycle the valve several times to verify smooth shifting and leak-free port switching
Regularly verify air supply quality to prevent internal contamination from affecting pilot operation
Pilot Valve FAQ
What is the typical lead time for pilot valve orders?
Regular quantities normally ship in 2 to 3 days from stock. Larger production orders take 7 to 10 days.
Can you supply this pilot valve under our own brand and colour?
Yes. We provide OEM service including customer logo nameplates, custom packaging and painted housings in black, blue, yellow or other requested colours.
Can this pilot valve be supplied together with a limit switch box?
Yes. We supply pilot valves alongside limit switch boxes and pneumatic actuators as a matched automation package.
What is the warranty policy if a pilot valve fails in service?
We provide an 18 month warranty. Faulty units are replaced rather than repaired based on photo or video evidence, usually shipping with your next order.
Can I see photos or videos of the actual units before dispatch?
Yes. Real product photos and videos can be taken in our sample room or warehouse upon your request before shipment.
Do you hold spare accessories and stock for small urgent orders?
Yes. We maintain stock on regular models and spare accessories to handle urgent replacement requirements quickly.
