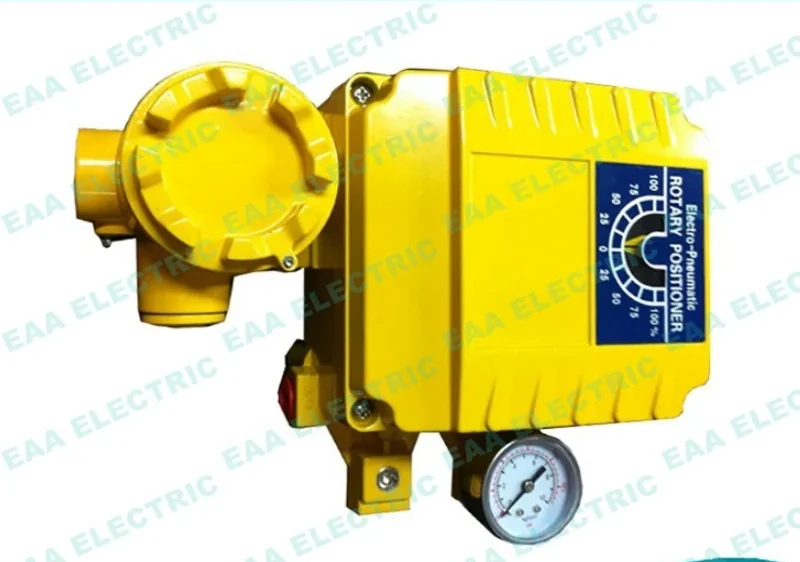

YT1000R Electro Pneumatic Valve Positioner-Yellow
The YT-1000R yellow electro pneumatic valve positioner operates pneumatic rotary valve actuators from an analog DC 4 to 20...
What This Model Does
The YT-1000R yellow electro pneumatic valve positioner operates pneumatic rotary valve actuators from an analog DC 4 to 20 mA controller signal or split ranges. When the rotary valve actuates, mechanical feedback transfers the stem position back to the positioner to regulate, divert, or cut off process flow. Electrical signals can transmit the valve position status back to the upper control system. This yellow-housed unit serves as a form fit and function replacement for YTC rotary positioners on control valves handling air, water, steam, oil, mud, and corrosive media.
| Model | YT-1000R |
|---|---|
| Type | Electro pneumatic valve positioner |
| Actuator compatibility | Pneumatic rotary valve actuators |
| Input signal | DC 4 to 20 mA or split ranges |
| Feedback type | Mechanical feedback device from valve stem |
| Coil resistance | Approximately 250 Ω |
| Controlled fluids | Air, water, steam, corrosive media, mud, oil, liquid metal, radioactive media |
| Function | Regulating, diverting, cutting off |
| Housing colour | Yellow (also available in black, blue, or custom painted) |
| Warranty | 18 months |
Why Buyers Specify This Model
- Operates pneumatic rotary control valves from a DC 4 to 20 mA or split range controller signal
- Mechanical feedback linkage returns actual stem displacement to the positioner to stabilize rotary valve throttling
- Regulates, diverts, or cuts off flow across media including steam, mud, oil, water, and corrosive fluids
- Transmits valve position status back to the supervisory system through electrical output signals
- Torque motor coil with 250 ohm nominal resistance delivers consistent response to input signal changes
- Standard YTC rotary mounting pattern allows direct replacement on existing quarter turn pneumatic actuators
- Bright yellow painted finish provides clear visual identification on process piping skids and plant lines
Problems It Solves
- Rotary valve hunting caused by poor feedback between actuator displacement and control room output signals
- Slow or incomplete actuator stroking caused by improper nozzle baffle alignment or blocked gas passages
- Single controller outputs needing to drive two sequential valves through split range calibration
- Long delivery wait times from original instrument brands for standard rotary valve positioners
- Difficulty tracking valve position status in the upper DCS without integrated electrical feedback options
Application Scenarios
- Quarter turn rotary control valve on slurry or mud lines requiring stable throttling
- Rotary control valve handling steam, water, or oil where split range operation is required
- Corrosive media line where a high visibility yellow housing is specified for instrument identification
- Replacing a damaged or worn YTC pattern rotary positioner without modifying the actuator mounting
- Plant skid automation where pneumatic rotary valves must transmit position status back to the control room
Who It Is For
- Plant instrument technicians replacing damaged YTC pattern positioners on quarter turn rotary valves
- Valve automation workshops mounting positioners on pneumatic rotary actuators prior to project shipment
- EPC contractors procuring rotary valve positioners in quantity for plant construction skids
- Process instrumentation distributors maintaining stock of YTC pattern rotary positioners and spare assemblies
- Original equipment manufacturers requiring custom branded or yellow painted positioners for valve packages
Technical Features
- Designed specifically for pneumatic rotary valve actuator mounting and mechanical stem feedback
- Accepts analog DC 4 to 20 mA input signals as well as split range configurations
- Internal torque motor coil rated at approximately 250 ohms normal operational resistance
- Pneumatic amplifier and nozzle baffle assembly provide responsive air output to the actuator
- Central nozzle exhaust port on the positioner base for smooth pneumatic venting
- Allows valve position status transmission back to the control system via electrical signals
Materials and Construction
- Cast aluminium housing with yellow painted protective finish
- Torque motor coil with insulated lead wiring rated at 250 ohms
- Pneumatic amplifier block, nozzle baffle mechanism, and internal restriction hardware
Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control

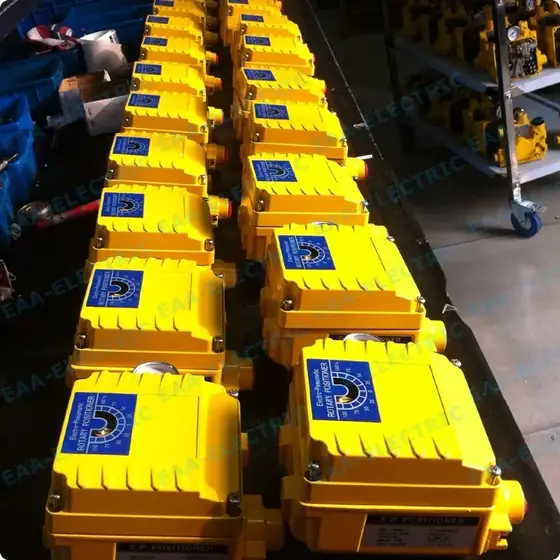

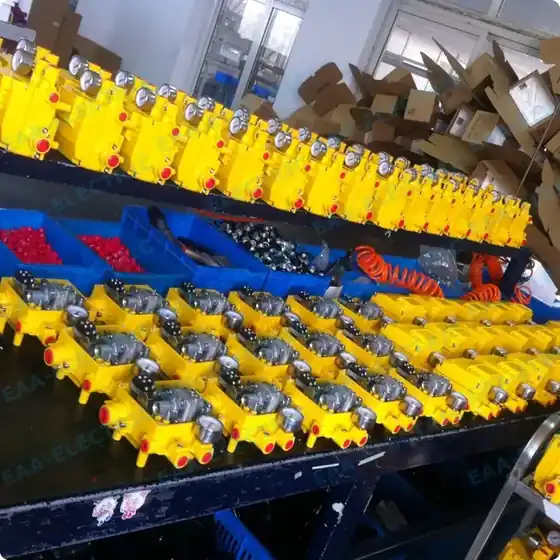

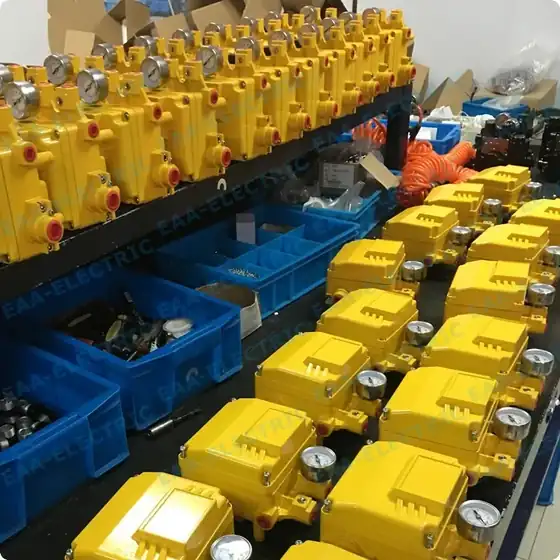

Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Die casting and CNC machining of the positioner housing and pneumatic base plate
Winding and testing of the 250 ohm torque motor coil assembly
Precision installation of the pilot amplifier, nozzle baffle, and trip fine-tuning screw
Calibration of zero, span, and nozzle baffle parallelism on pneumatic test stations
Full stroke response testing across the DC 4 to 20 mA signal range
Surface cleaning and yellow spray painting with customer nameplate branding
Final packaging in standard cartons or custom specified shipping boxes
Quality Control
- Every unit undergoes electrical resistance testing to verify torque motor coil continuity around 250 ohms
- Nozzle baffle parallelism and trip adjustment screws are set and stroke tested before packing
- Live sample room photos or video recordings can be supplied to verify units prior to dispatch
- Faulty units within the 18 month warranty are replaced based on video or photo evidence
Customisation Options
- Housing painted in yellow, black, blue, or customer specified project colours
- Custom laser marking or printed nameplates with customer logo and model numbers
- Newly designed shape modules and bespoke outer housings engineered to customer requirements
- Customized shipping cartons and protective inner packaging for resale or OEM delivery
- Factory assembly with matching limit switch boxes or pneumatic valve actuators
How It Compares With the Alternatives
| YT1000L positioner | The YT-1000R drives quarter turn rotary actuators whereas the YT-1000L is engineered for linear stem actuators |
|---|---|
| Pneumatic-only positioner | The YT-1000R takes an electrical 4 to 20 mA signal directly without requiring an external I/P converter |
| Original brand positioners | Provides identical form fit and function mounting at shorter delivery times of 2 to 10 days |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the positioner securely to the pneumatic rotary actuator using standard YTC bracket hardware
Connect the mechanical feedback device to the actuator stem and verify smooth rotational alignment
Connect dry instrument air supply to the inlet port and run output tubing to the rotary actuator ports
Connect the DC 4 to 20 mA signal wires to the positive and negative terminals checking polarity
If output is low, check coil resistance with a multimeter to confirm approximately 250 ohms
Inspect nozzle baffle parallelism and clear any gas resistance restriction using a 0.12 mm pin
Keep the central nozzle exhaust hole on the base free from dirt and paint obstruction
YT1000R Electro Pneumatic Valve Positioner-Yellow FAQ
Will the YT-1000R fit my existing rotary actuator bracket?
Yes, the YT-1000R uses the standard YTC rotary mounting footprint and connects to rotary actuator stems with standard feedback linkages.
What is the standard delivery lead time?
Regular order quantities normally dispatch within 2 to 3 days from stock, while larger production quantities take 7 to 10 days.
What should I check if there is an input signal but no air output?
Verify terminal polarity, measure the torque motor coil resistance for approximately 250 ohms, check nozzle baffle parallelism, and inspect the 0.12 mm gas resistance.
Can this positioner accept split range control signals?
Yes, the YT-1000R accepts standard DC 4 to 20 mA analog controller signals as well as split range signal calibrations.
What is your warranty policy if a positioner malfunctions?
We provide an 18 month warranty. If an issue occurs, send video or photo evidence and we ship a replacement unit rather than waiting for repairs.
Can I order this rotary positioner in a colour other than yellow?
Yes, while this model is painted yellow, we also stock black and blue housings, or we can paint housings to match your OEM colour specification.
