YT1000R Electro Pneumatic Valve Positioner-Blue
The YT-1000R is an electro pneumatic valve positioner designed for operating pneumatic rotary valve actuators from an...
What This Model Does

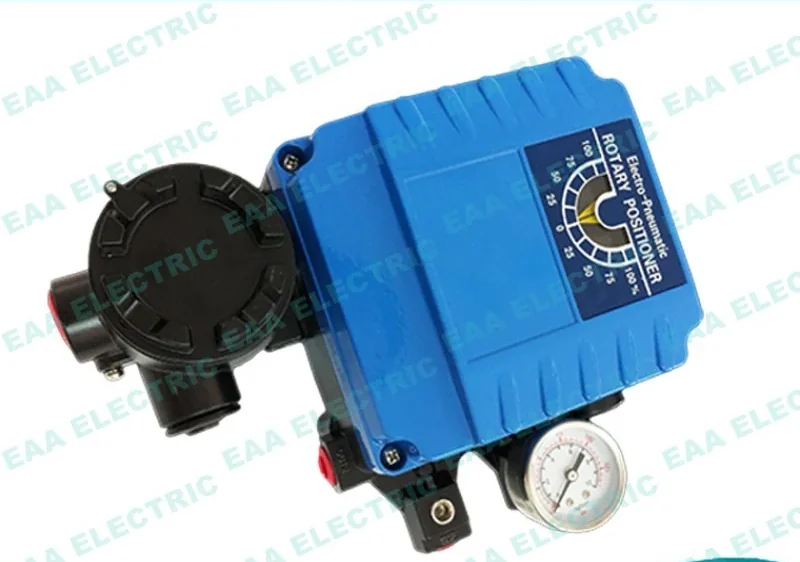

The YT-1000R is an electro pneumatic valve positioner designed for operating pneumatic rotary valve actuators from an electrical controller or control system. It receives a DC 4 to 20 mA analog input or split range signal and converts it into output air pressure to drive the actuator. A rotary feedback mechanism monitors the rotation angle of the valve stem, forming a closed loop control circuit directly at the valve assembly. Finished in blue housing paint, it serves as a form fit and function replacement for standard YTC pattern rotary positioners on pneumatic ball and butterfly valves.
| Model | YT-1000R |
|---|---|
| Actuator type | Pneumatic rotary valve actuator |
| Input signal | DC 4 to 20 mA or split range |
| Action type | Single acting or double acting |
| Valve compatibility | Pneumatic ball valves, butterfly valves and rotary control valves |
| Feedback type | Rotary angular displacement feedback |
| Housing colour | Blue |
| Warranty | 18 months |
Why Buyers Specify This Model
- Closes the position control loop at the rotary actuator to eliminate valve position error caused by disc or seal friction
- Converts DC 4 to 20 mA controller signals directly into actuator output air pressure without an external transducer
- Maintains accurate quarter turn valve positioning across ball valves and butterfly valves in throttling control service
- Supports split range control signals so two rotary control valves can operate sequentially from one loop output
- Available in single acting and double acting configurations to match spring return or double acting rotary actuators
- Mechanical angular feedback linkage ensures valve rotation matches the requested electrical input signal across the stroke
- Blue painted finish provides high visibility and matches plant coding or OEM equipment branding requirements
Problems It Solves
- Rotary valve disc sticks on the seat then overshoots due to static friction overcoming actuator torque
- Control room signal does not match actual disc rotation angle because open loop pneumatic pressure fluctuates
- Long factory lead times for original brand rotary positioners cause project commissioning delays
- Plant needs split range operation on two rotary valves but the existing positioner cannot split ranges
- Spring return or double acting rotary actuators lack closed loop feedback to maintain stable intermediate travel
Application Scenarios
- Pneumatic quarter turn ball valve on a chemical feed line requiring accurate flow modulation
- Pneumatic butterfly valve on cooling water service where disc seal drag causes positional hunting
- Split range temperature loop where one controller output sequences two separate rotary control valves
- Replacement of worn YTC pattern rotary positioners on existing process plant skids without repiping brackets
- Valve automation workshop fitting positioners onto quarter turn pneumatic actuators before shipping to site
Who It Is For
- Plant instrumentation technicians maintaining quarter turn pneumatic control valves and rotary actuators
- Valve automation centres and actuator manufacturers building rotary control valve packages
- Engineering procurement contractors sourcing instrumentation packages for process plant expansion projects
- Regional instrumentation distributors stocking form fit replacements for standard YTC rotary positioners
- Equipment OEMs requiring private label rotary positioners supplied in blue or custom housing colours
Technical Features
- Accepts analog input signals of DC 4 to 20 mA including split range calibration options
- Closed loop feedback mechanism senses actuator rotation angle to correct positional drift automatically
- Available in single acting and double acting models for spring return or double acting actuators
- Explosion proof options and position transmitter feedback modules such as PTM can be integrated
- Converts electrical direct current signals into proportional pneumatic output pressure for rotary actuators
- Cast housing finished in blue industrial coating with accessible zero and span calibration points
Materials and Construction
- Cast aluminium alloy enclosure with blue painted finish
- Internal pneumatic relay and mechanical feedback linkage components
- Detailed material specifications and dimensional data are provided on the engineering product drawing
Dimensions and Connection Detail

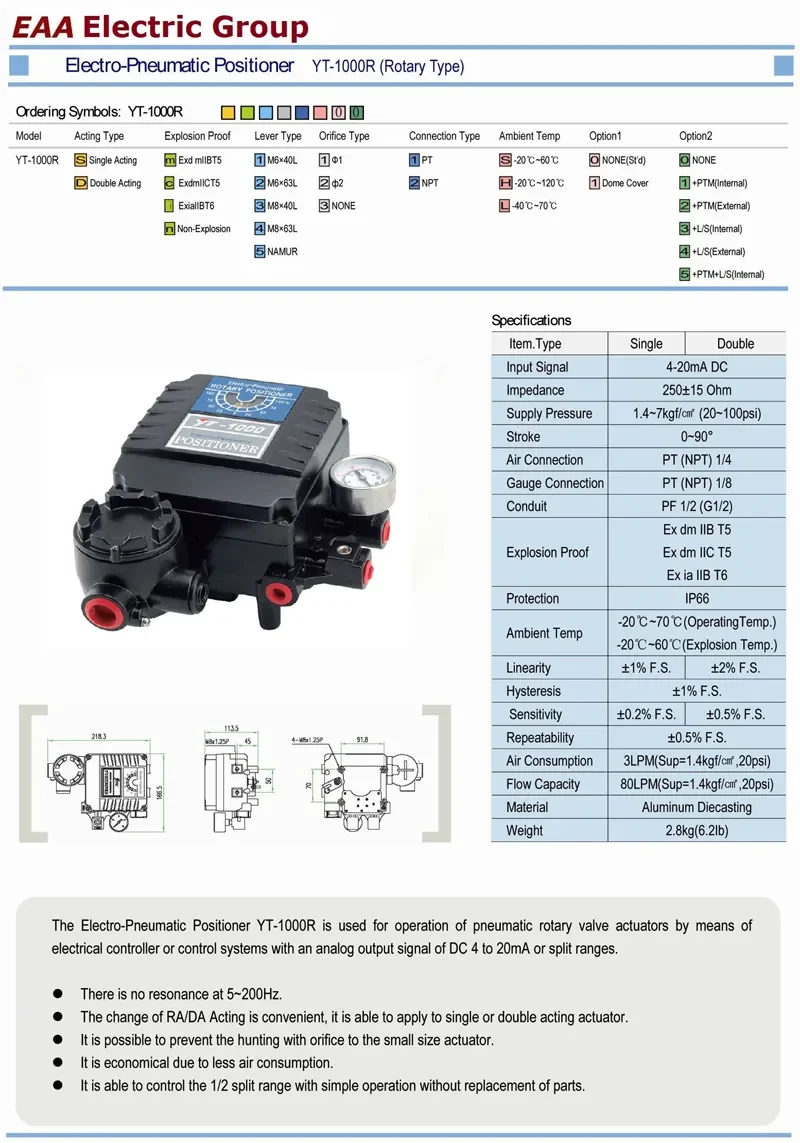

Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control

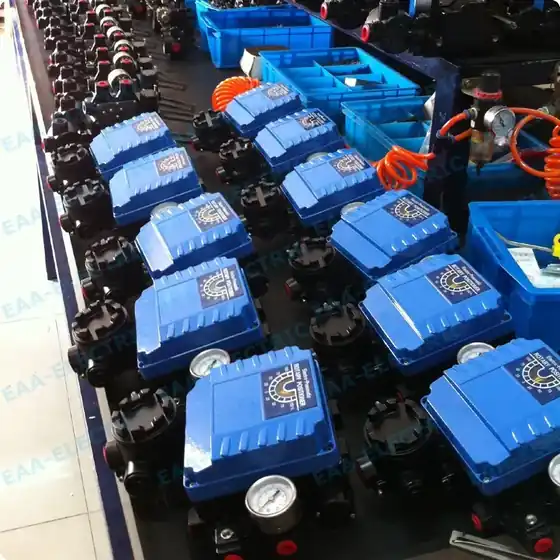

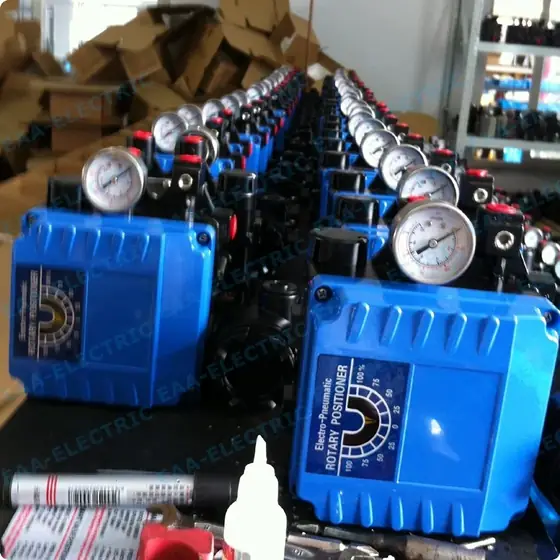

Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Die casting and precision machining of the positioner aluminium body

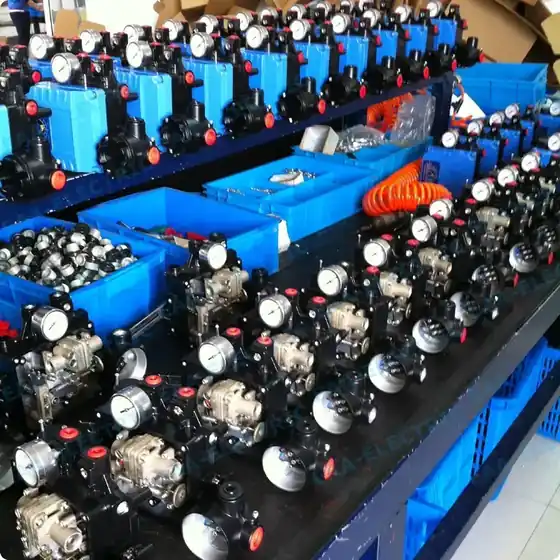

Assembly of the internal torque coil, pneumatic relay and rotary feedback shaft
Air bench calibration for zero, span and linearity across the 4 to 20 mA range
Stroke verification on single acting and double acting rotary test actuators
Surface preparation and application of blue protective housing coating
Final packaging into individual protective cartons with customer labelling if requested
Quality Control
- Every rotary positioner undergoes calibration and stroke testing before leaving the workshop
- Sample room or warehouse photos and inspection videos can be provided prior to dispatch
- Faulty units within the 18 month warranty are replaced on photo or video evidence rather than repaired
- Warranty replacement units are dispatched with the next shipment or sent quickly for critical plant shutdowns
Customisation Options
- Housing supplied in blue, black, yellow or painted to customer corporate specification
- Custom nameplate marking and laser engraving with buyer brand logo and model numbers
- Customised carton packaging and inner protective foam arrangements for distributor resale
- Pre-assembly with position transmitter module PTM or external limit switch boxes on request
How It Compares With the Alternatives
| YT1000L linear positioner | The YT-1000R is built for angular stroke rotary actuators, whereas the YT-1000L is for linear stem actuators |
|---|---|
| Pneumatic positioner without I/P module | The YT-1000R accepts DC 4 to 20 mA signals directly without requiring a separate external I/P converter |
| Direct actuator air supply without positioner | Air pressure alone cannot account for valve seat friction, while the YT-1000R closes the loop on actual angle |
| Digital smart positioner | The YT-1000R offers an analog closed loop solution without digital bus complexity or high electronic replacement cost |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the YT-1000R to the rotary actuator top flange using the standard NAMUR or YTC pattern bracket
Align the positioner feedback shaft securely with the actuator rotary drive pinion to prevent mechanical backlash
Connect clean, dry instrument air supply to the supply inlet port and connect output ports to actuator chambers
Wire the DC 4 to 20 mA signal cable to the internal terminal block, ensuring correct polarity
Apply 4 mA to set the rotary valve zero position, then supply 20 mA to adjust the span travel stop
Cycle the input signal repeatedly between 4 mA and 20 mA to verify stable stroke travel and feedback tracking
Check air supply filtration regularly to ensure the internal pneumatic relay remains free of oil and moisture
YT1000R Electro Pneumatic Valve Positioner-Blue FAQ
Will this positioner mount directly to my quarter turn actuator?
The YT-1000R fits standard rotary actuator mounting brackets configured for YTC pattern positioners. You can share a photo of your actuator top flange to confirm fitment before ordering.
What is the standard delivery lead time?
Standard stock quantities ship in 2 to 3 days. Larger project volume orders generally ship in 7 to 10 days.
Is this model suitable for both single and double acting rotary actuators?
Yes. The YT-1000R is available in both single acting and double acting versions to match your actuator configuration.
Can we purchase the YT-1000R with feedback transmitter modules?
Yes. The positioner can be ordered with feedback accessories such as the PTM position transmitter module to transmit stem position back to your control system.
How is warranty handled if a unit fails in the field?
All units carry an 18 month warranty. If an issue occurs, submit photos or a short video, and a replacement unit will be issued without requiring the old unit to be returned.
Can the housing be branded with our company logo and custom colour?
Yes. We provide OEM branding including custom nameplates, buyer logos, and housing painted in blue, black, yellow, or specific client paint codes.
