YT1000L Electro Pneumatic Valve Positioner-Yellow
The YT-1000L in yellow housing is an electro pneumatic valve positioner designed to operate pneumatic linear valve actuators...
What This Model Does

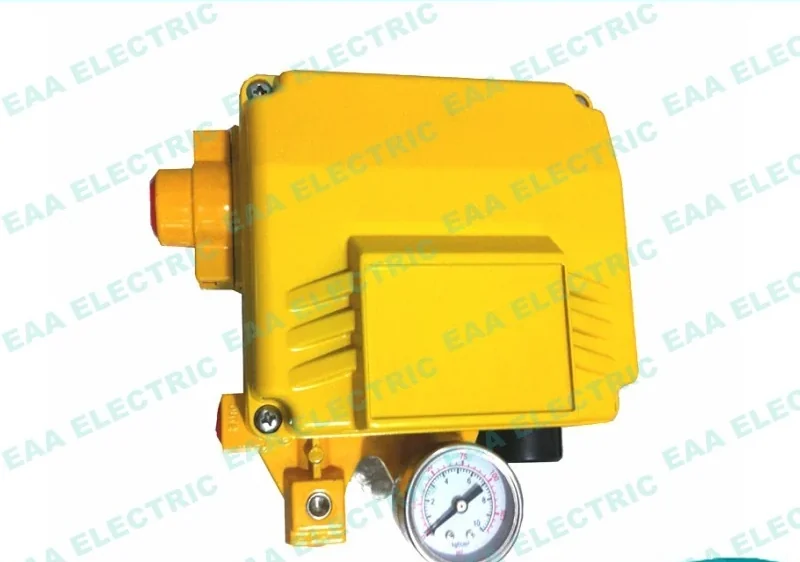

The YT-1000L in yellow housing is an electro pneumatic valve positioner designed to operate pneumatic linear valve actuators from an analog controller signal. It accepts a DC 4 to 20 mA or 0 to 10 mA input, including split range calibrations, and converts that electrical control signal into a proportional pneumatic output. The unit integrates the functions of an electro pneumatic converter and a valve positioner, maintaining a direct one-to-one correspondence between the electrical input signal and the linear valve position. It serves as a direct form, fit and function replacement for YTC pattern positioners on linear control valves.
| Model | YT-1000L |
|---|---|
| Type | Electro pneumatic valve positioner |
| Actuator type | Pneumatic linear valve actuator |
| Input signal | DC 4 to 20 mA, DC 0 to 10 mA, split ranges |
| Functionality | Electro pneumatic converter and pneumatic positioning |
| Housing colour | Yellow (also available in black, blue or to order) |
| Warranty | 18 months |
| Delivery time | 2 to 3 days for regular quantities, 7 to 10 days for large quantities |
Why Buyers Specify This Model
- Maintains a one-to-one correspondence between the input electrical signal and mechanical valve position
- Improves valve position linearity across the full stroke of the linear actuator
- Reduces control signal transmission delay and increases overall valve response speed
- Enables split-range control to sequence valves from one controller signal range
- Reduces the resistance of fluid to stem movement when handling viscous fluids or suspended solids
- Combines electrical signal conversion and pneumatic valve positioning into a single unit
- Yellow painted finish enables quick visual identification on plant pipe racks and skids
Problems It Solves
- Valve stem movement lags behind control room output due to signal transmission delay
- Fluid viscosity and suspended solids resist valve stem travel and distort positioning
- Control valve travel lacks linearity across the full working stroke
- Two valves need to operate from a single controller output but require split-range calibration
- Original positioner is out of stock or subject to extended factory lead times
Application Scenarios
- Pneumatic linear control valves handling viscous media where stem movement encounters high resistance
- Slurry and process lines with suspended solids that increase valve stem drag
- Split-range control loops where one controller output sequences two pneumatic valves
- Replacing damaged or worn YTC type linear positioners without modifying existing actuator linkages
- Skid and valve assembly where yellow housing colour is required to match project specifications
Who It Is For
- Plant instrument technicians servicing pneumatic linear control valves
- Valve automation shops and actuator assemblers building linear valve packages
- EPC contractors procuring control valve instrumentation for plant construction projects
- Distributors stocking YTC pattern replacement positioners for local process industries
- OEM valve manufacturers sourcing private-label positioners in designated housing colours
Technical Features
- Direct conversion of DC 4 to 20 mA or 0 to 10 mA control signals to pneumatic output
- Split-range calibration capability for multi-valve control configurations
- Dual functionality combining electro pneumatic converter and linear positioner
- Designed specifically for direct mounting onto pneumatic linear valve actuators
- Yellow painted housing for clear unit identification on site
- Enables adjustment of regulating valve static and dynamic response characteristics
Materials and Construction

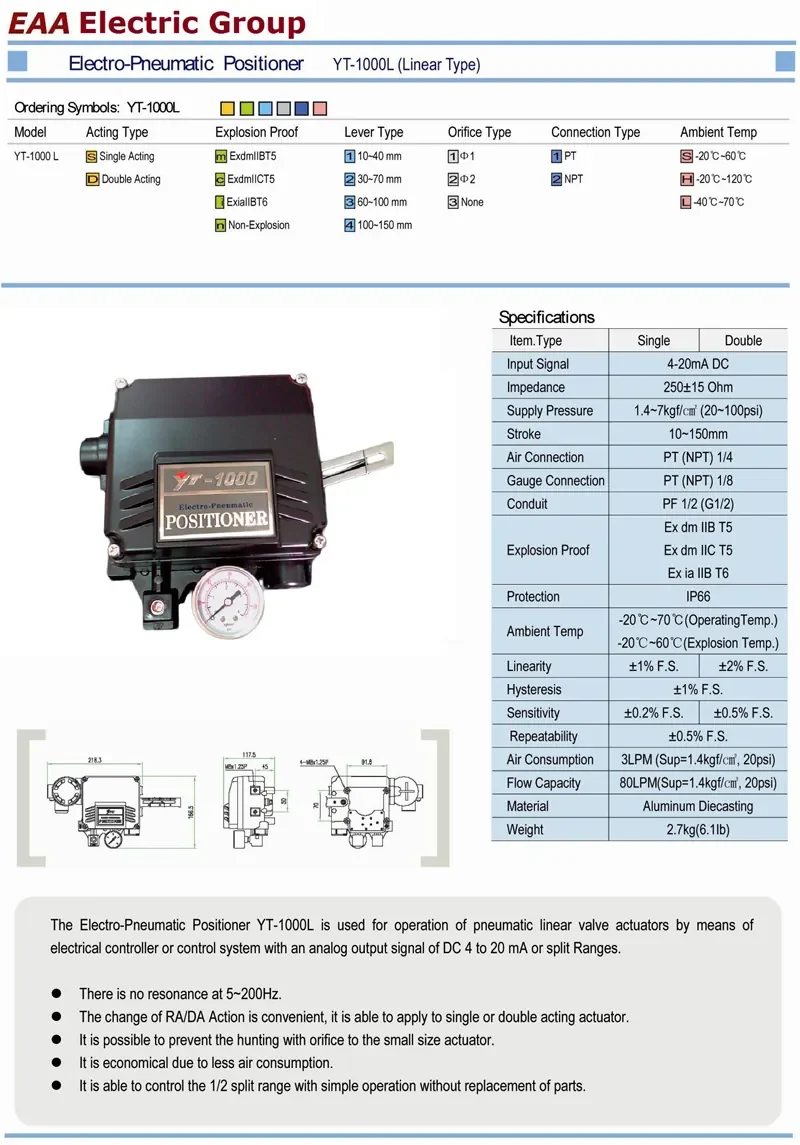

Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control

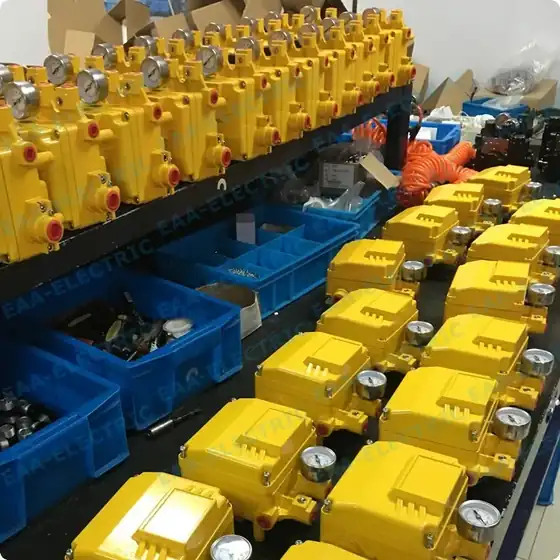

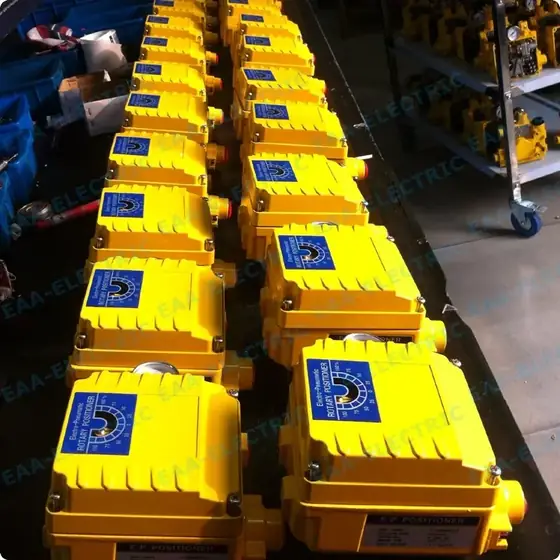

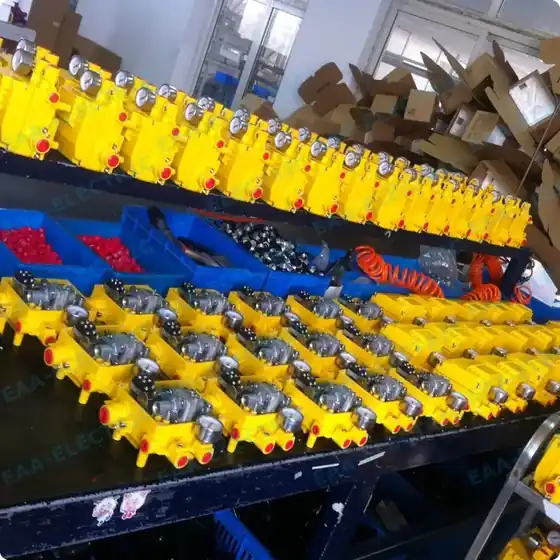

Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Casting and machining of positioner housing components
Assembly of electro pneumatic conversion module and pneumatic positioning mechanism
Calibration of input signal response across DC 4 to 20 mA and split ranges
Yellow protective surface coating applied to the outer housing
Functional verification of signal response and travel positioning
Packaging into standard or customer-specified shipping cartons
Quality Control
- Every unit undergoes functional testing of signal conversion and stem positioning prior to shipment
- Sample room or warehouse photos and video can be provided for review before dispatch
- Eighteen-month warranty covering replacement rather than repair of defective units
- Replacement units for verified faults ship with the next order or immediately if urgent
Customisation Options
- Housing painted in yellow, black, blue or other customer-specified colours
- OEM and ODM branding including customer nameplate and logo marking
- Newly designed housing shape modules manufactured to customer requirements
- Customised outer carton and inner protective packaging
- Can be paired with supporting limit switch boxes or pneumatic actuators
How It Compares With the Alternatives
| YT1000R rotary positioner | The YT-1000L operates pneumatic linear valve actuators, while the YT-1000R is built for quarter-turn rotary actuators |
|---|---|
| Separate I/P transducer and pneumatic positioner | The YT-1000L combines the signal converter and valve positioner in one housing, eliminating external interconnecting tubing |
| Standard black housing positioners | The yellow housing provides immediate visual distinction for specific process lines, safety services or OEM branding |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the positioner securely to the pneumatic linear valve actuator yoke
Connect the feedback linkage between the valve stem and the positioner feedback mechanism
Connect clean and regulated instrument air supply piping to the supply inlet
Connect the output pneumatic port directly to the linear actuator diaphragm or cylinder chamber
Wire the DC 4 to 20 mA or DC 0 to 10 mA input signal leads observing proper polarity
Calibrate the zero and span points to ensure full travel matches the assigned input range
Verify smooth stem response under operating pressure to confirm elimination of transmission lag
YT1000L Electro Pneumatic Valve Positioner-Yellow FAQ
What input signals does the YT-1000L accept?
It accepts DC 4 to 20 mA or DC 0 to 10 mA analog signals, and can be calibrated for split-range operation.
What type of actuator does this model operate?
The YT-1000L is designed specifically for pneumatic linear valve actuators, such as those on globe and diaphragm valves.
What is the standard delivery time?
Regular quantities typically ship in 2 to 3 days from stock, while large order quantities take 7 to 10 days.
Can this positioner be ordered in different colours or with our logo?
Yes. The housing can be painted yellow, black, blue or other custom colours, and OEM logo marking is supported.
How is warranty service handled for international buyers?
Units include an 18 month warranty. If a unit fails, provide photo or video evidence and a replacement is supplied rather than repaired.
Can I inspect the units prior to shipment?
Yes. Real product photos and videos can be taken in the sample room or warehouse upon request before dispatch.
