Model 410B Limit Switch
The Model 410B Limit Switch is an electrical accessory for electro pneumatic valve positioners on automated control valve...
What This Model Does
The Model 410B Limit Switch is an electrical accessory for electro pneumatic valve positioners on automated control valve packages. It detects and signals discrete valve end positions, confirming fully open and fully closed states back to the control system or PLC. Designed to operate alongside EAA electro pneumatic positioners as well as rotary and linear actuators, the Model 410B belongs to a switch family that includes the 210, 310, 410A and 510 models, providing plant operators with positive remote travel confirmation.
| Model | Model 410B |
|---|---|
| Type | Limit switch accessory for electro pneumatic valve positioners |
| Related models in series | Model 210, Model 310, Model 410A, Model 510 |
| Standard housing colours | Black, blue, yellow or painted to customer requirement |
| Lead time (regular quantity) | 2 to 3 days |
| Lead time (large quantity) | 7 to 10 days |
| Warranty | 18 months |
Why Buyers Specify This Model
- Mounts directly as an accessory to electro pneumatic valve positioners for remote end position confirmation
- Supplies distinct open and closed travel signals back to the control room or safety interlock system
- Operates alongside pneumatic valve actuators, pilot valves and positioners from a single component manufacturer
- Dispatches in 2 to 3 days for regular quantities from factory stock to reduce plant turnaround downtime
- Protected by an 18 month warranty with immediate unit replacement on photo or video evidence
- Available in custom painted housing colours including black, blue and yellow to match customer specifications
- Supports private labelling with customer logos for valve automation manufacturers and distributor catalogues
Problems It Solves
- Control room lacks discrete travel limit signals from control valves running positioners without switches
- Original brand limit switch accessories are on long factory lead times delaying plant commissioning
- Procuring positioners and limit switches from separate suppliers causes delivery coordination delays
- Failed accessories stall plant operations while waiting on lengthy manufacturer warranty repair procedures
- Distributors cannot obtain custom housing colours or OEM nameplates from standard component suppliers
Application Scenarios
- Adding open and closed travel confirmation to a control valve equipped with an electro pneumatic positioner
- Replacing a damaged limit switch on an operating control valve without modifying the actuator mounting
- Building factory assembled actuator and positioner packages for delivery to industrial processing plants
- Upgrading valve automation skids where control systems require discrete status verification at stroke limits
- Stocking replacement accessories for plant maintenance teams running electro pneumatic control valves
Who It Is For
- Plant instrument technicians replacing damaged limit switches on operating automated control valves
- Valve and actuator OEMs who build complete automated valve packages under their own brand
- EPC contractors buying positioners and matching limit switch accessories for turnkey plant builds
- Instrumentation distributors stocking positioner spare parts and accessories for industrial process plants
- Trading companies sourcing valve automation components with short delivery times for end users
Technical Features
- Engineered as a dedicated accessory for electro pneumatic valve positioner assemblies
- Provides discrete electrical contact signaling at full stroke travel limits
- Part of the standard accessory line including Model 210, 310, 410A, 410B and 510
- Enclosure supplied in black, blue, yellow or custom painted customer colours
- Integrates into automated control valve loops alongside positioners, pilot valves and actuators
- Available with OEM customer logo marking and customised carton packaging
Materials and Construction
- Housing painted in black, blue, yellow or customer specified finish
- Complete material and construction details available in technical product drawings
Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control

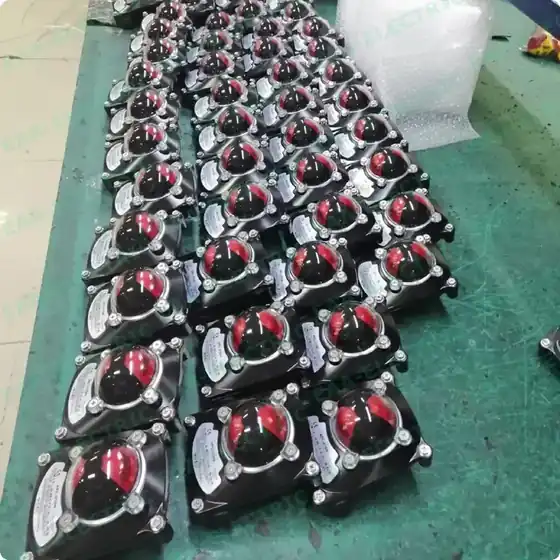

Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Housing fabrication and precision machining for positioner and actuator interface mounting
Assembly of internal switch mechanisms and electrical terminal blocks
Electrical contact continuity and mechanical trigger verification testing
Surface treatment and enclosure painting in required customer colour
Application of customer nameplate and logo marking for OEM orders
Inspection and packing into stock or custom printed cartons
Quality Control
- Every limit switch unit is inspected and function tested prior to packing
- Real product photos and video can be provided from the sample room or warehouse before shipment
- Faulty units under the 18 month warranty are replaced on photo or video evidence rather than repaired
- Replacement units are dispatched on expedited transport when urgent plant requirements arise
Customisation Options
- Housing painted in customer specified colours including black, blue, yellow and other custom shades
- Customer logo and custom brand nameplate marking for equipment manufacturers
- Carton and inner packaging customisation tailored to distributor brand standards
- Newly designed shape modules developed to match customer drawings and specifications
- Can be supplied pre-assembled with electro pneumatic positioners and pneumatic actuators
How It Compares With the Alternatives
| Model 410A limit switch | The 410B provides an alternative housing configuration to suit different positioner and actuator mounting arrangements within the 410 series |
|---|---|
| Continuous position transmitter module | The 410B provides discrete open and closed contact feedback, whereas a 4 to 20 mA transmitter reports full continuous travel |
| Model 210 or 310 limit switches | Different enclosure body styles and profiles to suit alternate actuator top works and positioner models |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the Model 410B securely to the valve positioner accessory bracket or actuator mounting surface
Align the switch drive shaft with the positioner feedback mechanism or actuator output stem
Terminate electrical signaling wires to the internal terminal blocks following the site wiring diagram
Cycle the valve actuator to set switch actuation points precisely at fully open and closed limits
Tighten the housing cover to seal internal electrical contacts against surrounding site conditions
Verify signal receipt at the control room PLC before placing the valve loop into live operation
Model 410B Limit Switch FAQ
What is the lead time for Model 410B limit switches?
Regular order quantities normally ship in 2 to 3 days from stock. Large project orders ship in 7 to 10 days.
Is the Model 410B supplied with the positioner or separately?
It can be ordered as a loose spare accessory or supplied pre-assembled with our electro pneumatic positioners.
Can the housing be painted in our company colour?
Yes. Black, blue and yellow are regular colours, and other housing colours are painted to your project specification.
What is your warranty policy on limit switch accessories?
We provide an 18 month warranty. If a unit is faulty, send photo or video evidence and we ship a replacement rather than repairing it.
Can we purchase this under our own brand name?
Yes. We offer OEM and ODM service including your customer logo on the nameplate and customised carton packaging.
Can I see photos of the switch before it ships?
Yes. We can provide real product photos or videos taken in our sample room or warehouse upon request before dispatch.
Applications Cases and Guides
Related Products
Get A Price on This Model
Tell us the quantity, the actuator it goes on and the destination port. We come back with price, lead time and confirmation that the model matches your valve.
